HDMM5MA

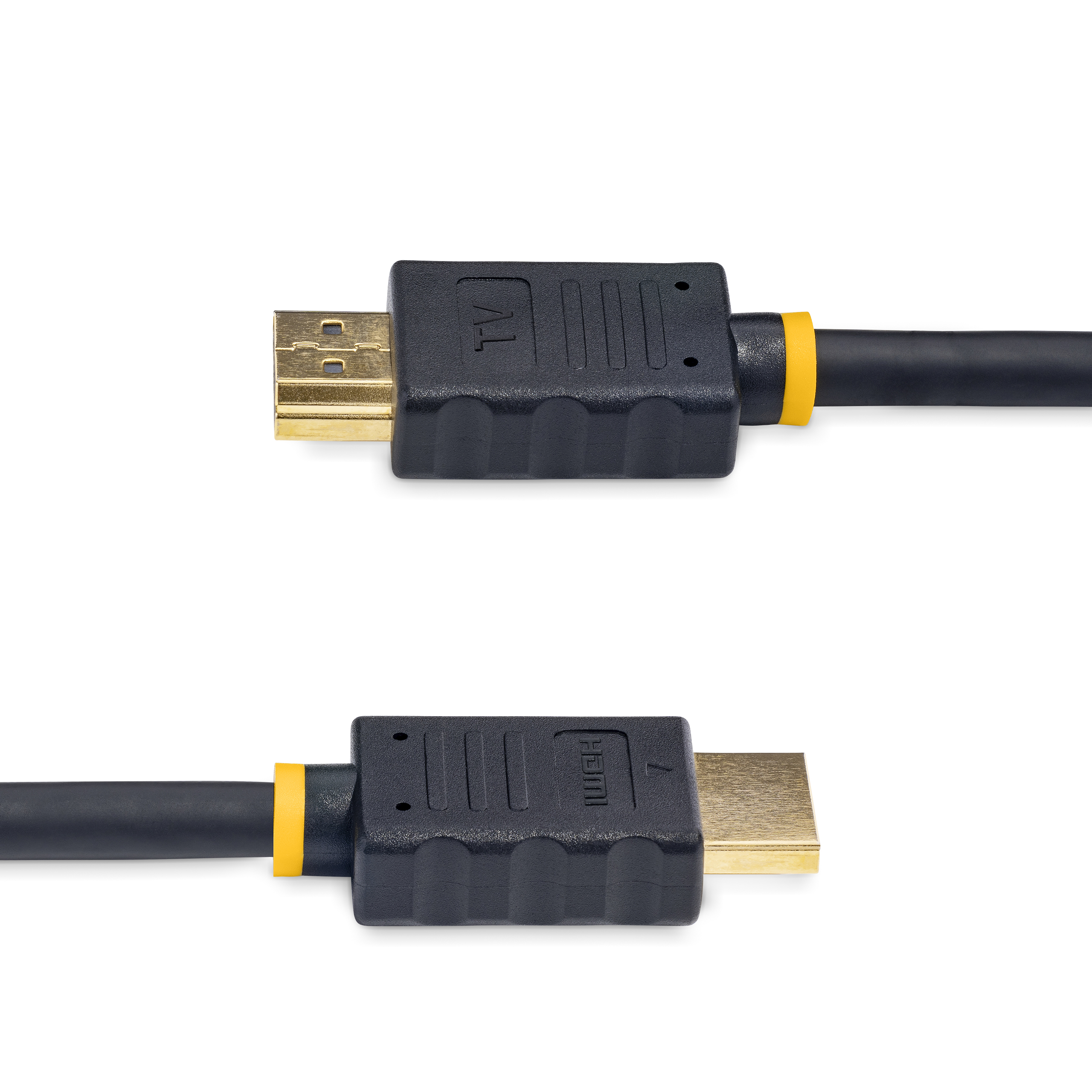

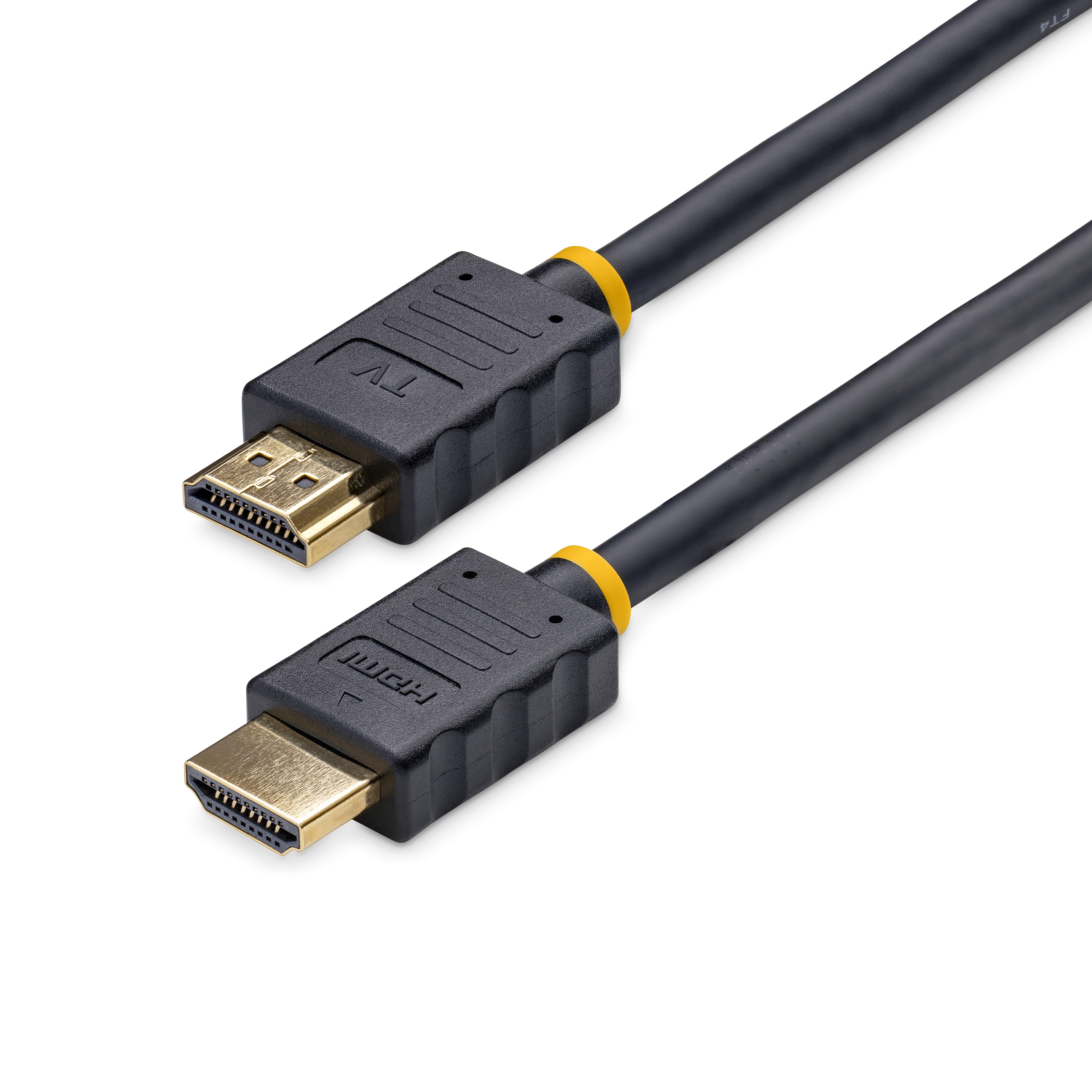

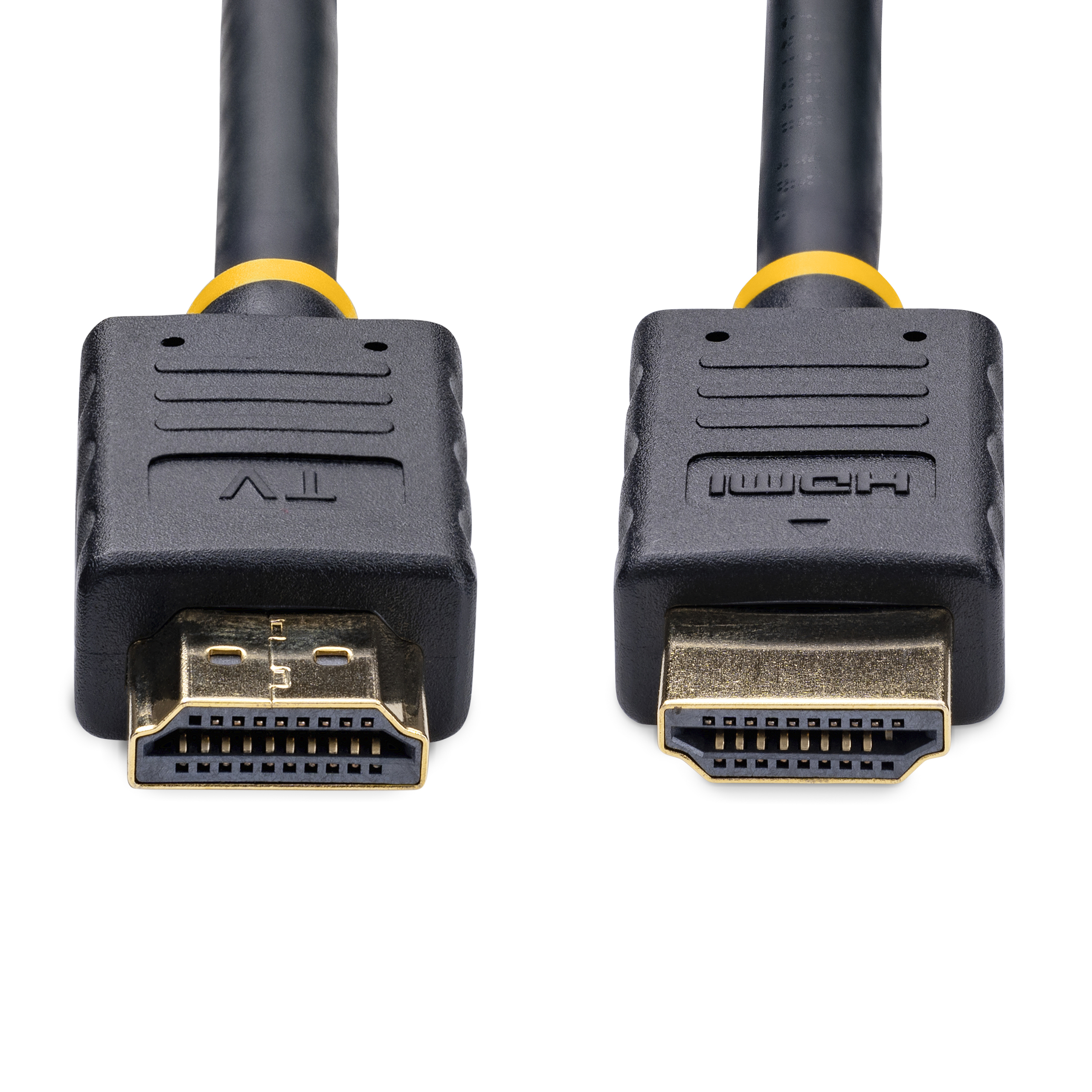

Active 5m High Speed HDMI Cable HDMI M M

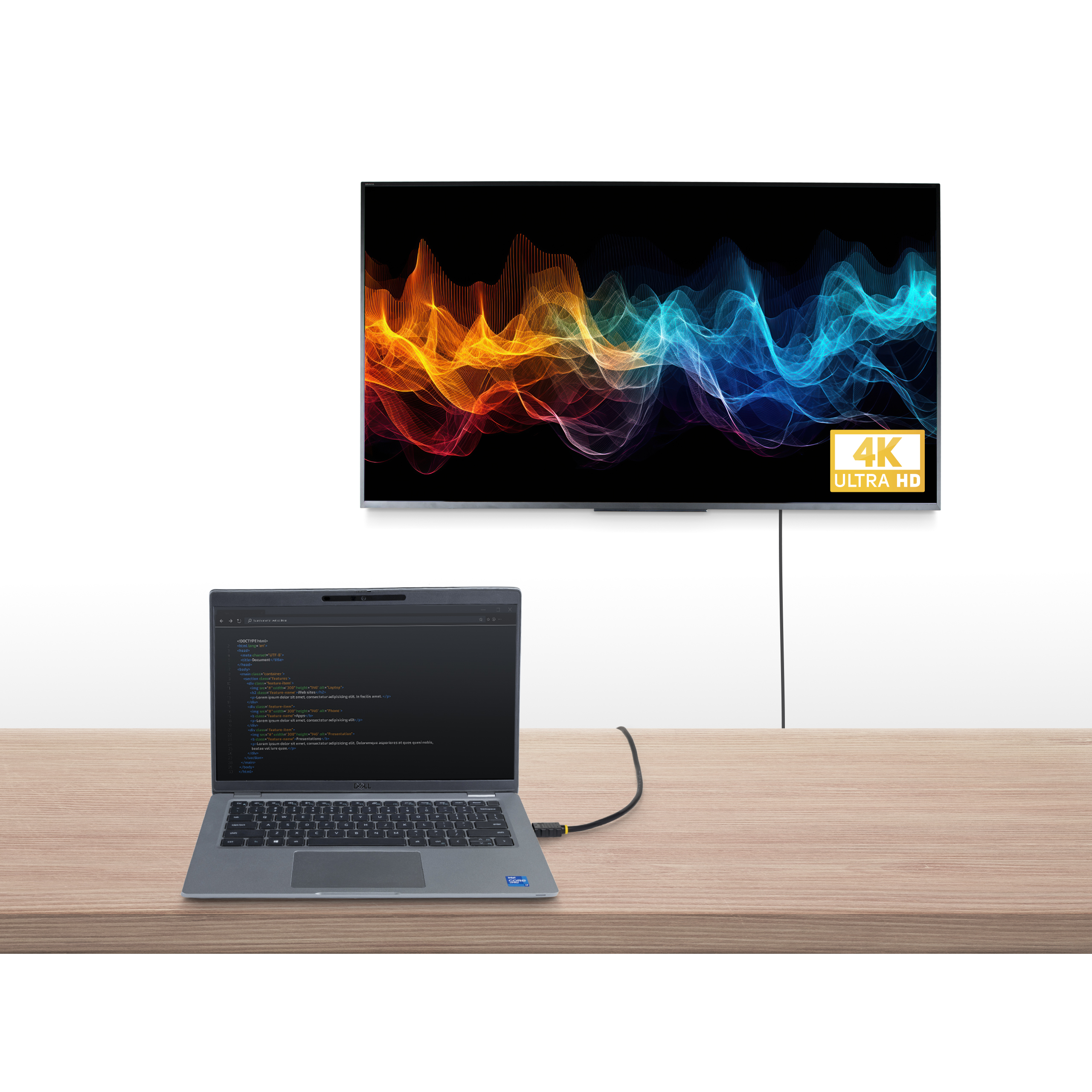

Create Ultra HD connections between your High Speed HDMI®-equipped devices, up to 5m away with no signal loss
Main Image
Product Images
Product Images
Product Images
Product Images
Product Name Active 5m High Speed HDMI Cable HDMI M M Product Number HDMM5MA UPC 065030853361 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cables > Video Cables Category Level 1 Digital Display Cables Category Level 2 HDMI Cables Category Level 3 HDMI Cables - 1.x Family Active HDMI 1.4 Cables, CL2 Rated, 4K30 Web Hierarchy Cables - Audio-Video Cables - HDMI Cables Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX069X Product Title (Ultra-Short) Active HDMI Cable Product Title (Short) 15 ft Active High Speed HDMI Cable M/M Product Title (Medium) 5m 15ft Active High Speed HDMI Cable - Ultra HD 4k x 2k HDMI Cable - HDMI M/M Product Title (Standard) 5m (15 ft) Active High Speed HDMI Cable - Ultra HD 4k x 2k HDMI Cable - HDMI to HDMI M/M Product Title (Long) 16.4ft (5m) Active High Speed HDMI Cable - Ultra HD 4k x 2k HDMI Cable - HDMI to HDMI M/M Product Title (AMZ) 5m (15 ft) Active High Speed HDMI Cable - Ultra HD 4k x 2k HDMI Cable - HDMI to HDMI M/M - 1080p - Audio Video Gold-Plated (HDMM5MA) Title Ingram (Part 1) 5m Active High Speed HDMI Title Ingram (Part 2) Cable - Ultra HD 4k x 2k HDMI Website Product Headline Create Ultra HD connections between your High Speed HDMI®-equipped devices, up to 5m away with no signal loss Bullet 1 ACTIVE HIGH SPEED HDMI CABLE: 16.4 ft (5m) Active High Speed HDMI supports 4K Ultra HD video (3840x2160p, 24, 30Hz), Full HD (1080p 120Hz); HDMI 1.4b Bullet 2 DURABLE CABLE: Ideal for in-wall installations where CL2 rating is required; Flexible PVC jacket; Al-Mylar Foil with Braid shield & gold plated connectors with metal shell improve signal integrity & block external Electromagnetic Interference (EMI) Bullet 3 APPLICATIONS: Use this HDMI cable for home office, conference room, office or classroom; works w/ your laptop/professional workstation/soundbar for presentations via UHD/4K monitors, projectors/large HDTV displays; Samsung/Sony/Apple TV/Dell/Lenovo Bullet 4 ACTIVE CIRCUITRY: Active bus powered amplifier boosts video signals over longer distances to extend HDMI signal up to 16.4 ft (5m) (no external power supply needed), supports additional color spaces such as Adobe RGB and YCC601 Color Bullet 5 SPECS: 16.4 feet (5 meters); Black; HDMI 1.4b; HDMI Cord Male to Male; Jacket: PVC; Shield: Al-Mylar foil w/ Braid; CL2 Fire Rated; ARC, Deep Color, HDCP 1.4, CEC; Note: HDMI connector labelled "TV" connects to the TV/Display side Bullets (Consolidated) - 16.4 ft (5m) Active High Speed HDMI supports 4K Ultra HD video (3840x2160p, 24, 30Hz), Full HD (1080p 120Hz); HDMI 1.4b - Use this HDMI cable for home office, conference room, office or classroom - Active bus powered amplifier boosts video signals over longer distances to extend HDMI signal - Ideal for in-wall installations where CL2 rating is required; Flexible PVC jacket; Al-Mylar Foil with Braid shield & gold plated connectors - HDMI connector labelled "TV" connects to the TV/Display side Marketing Copy Applications Connecting high-definition A/V devices such as Blu-Ray Disc™ players, HDTVs, DVD Players, DVRs, game consoles, projectors etc., up to 5m away, with no signal loss Website Search Keyword - 5m HDMI cable
- 15 feet hdmi cable
- 15 ft hdmi cable
- 5 meter hdmi cable
- active HDMI cable
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device

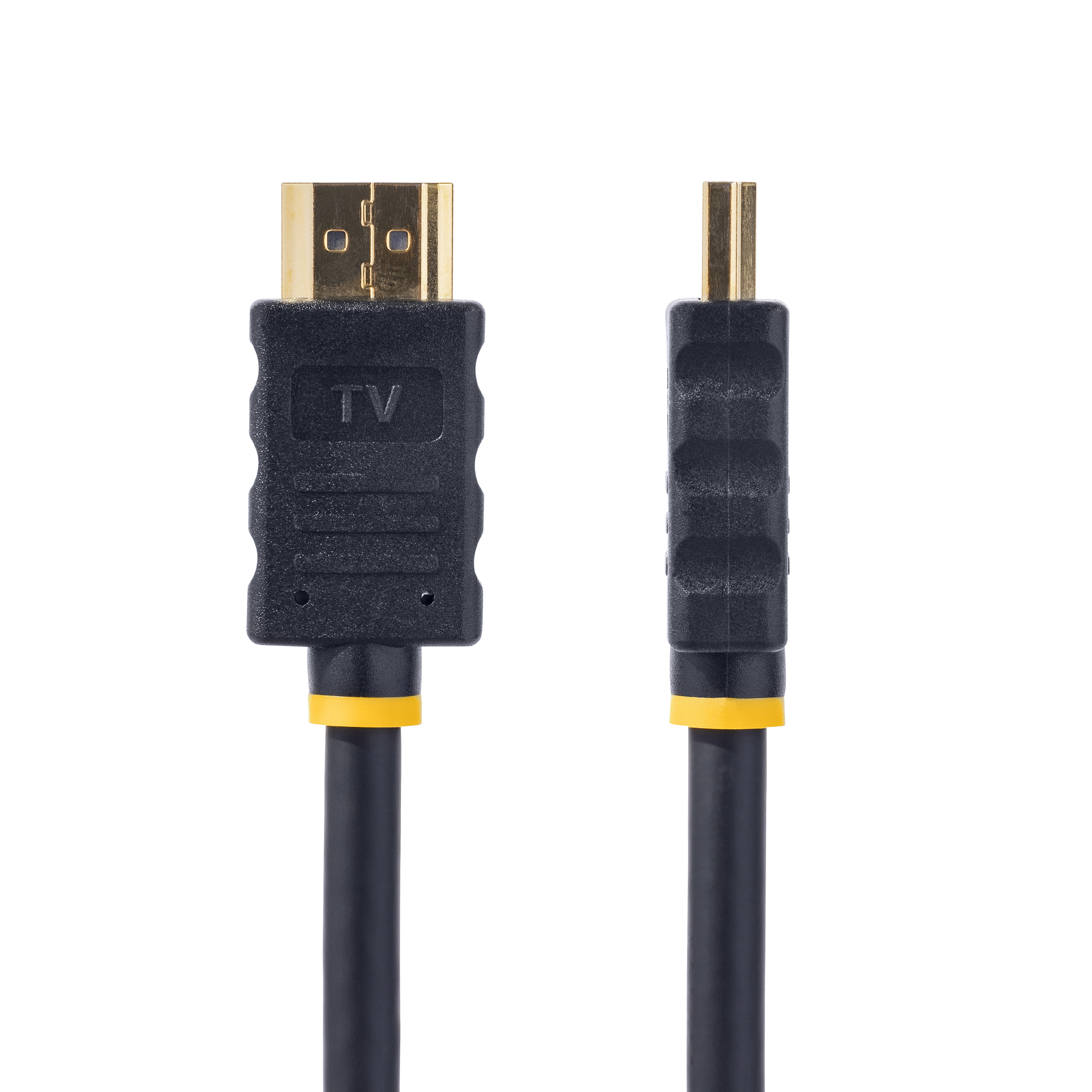

Special Notes This HDMI Cable is unidirectional. Please ensure that the HDMI connector labelled with "TV" is connected to the Display, TV, or Projector. Related Products - HDMM10MA
- HDMIMM80AC
- HDMM15MA
Cable Length (mm) 5000 Cable OD 6 Color Black Connector Style Straight Humidity 0% ~ 95% Operating Temperature 0°C to 50°C (32°F to 122°F) Primary Material Plastic Product Length (mm) 5000.000 Product Width (mm) 18.800 Product Height (mm) 10.000 Product Weight (g) 261.000 Storage Temperature -20°C to 70°C (-4°F to 158°F) TAA Compliant No Wire Gauge 30 AWG HDMI Version High Speed HDMI 1.3/1.4 (10.2 Gbps) Maximum Digital Resolutions 3840 x 2160 (Ultra HD 4K) @ 30hz Cable Jacket Material PVC - Polyvinyl Chloride Cable Shield Material Aluminum-Mylar Foil with Braid Chipset ID Spectra7 - HT8181 Connector Plating Gold Connectors HDMI to HDMI Fire Rating CL2 Carton Depth (mm) 334 Carton Height (mm) 306 Carton Quantity 80 Carton Weight Gross (g) 8878 Included in Package 1 - 5m Active High Speed HDMI® Cable - HDMI - M/M Included In Package for Label 1 - 5M ACtive High Speed HDMI® Cable - HDMI - M/M Package Depth (mm) 198 Package Height (mm) 39 Package Width (mm) 163 Package Quantity 1 Package Weight (g) 272 Packaging Description Active High Speed HDMI® Cable - HDMI - M/M Packaging Description India Active High Speed HDMI® Cable - HDMI - M/M Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 HDMI Connector 1 (Quantity) 1 Connector 2 HDMI Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2013-08-20 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,CO,DE,DK,ES,EU,FI,FR,HK,IE,IN,IT,JP,NL,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager David Muzinic Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream
