HDVGADP2HD
VGA HDMI DisplayPort to HDMI Converter Switch - 4K
Switch between DisplayPort, VGA or two HDMI source devices on one display, with automatic and priority switching
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name VGA HDMI DisplayPort to HDMI Converter Switch - 4K Product Number HDVGADP2HD UPC 065030863476 Lifecycle status End of Life Warranty 2 Years Taxonomy Product > Cards & Adapters > AV Converters Category Level 1 Video Display Connectivity Category Level 2 Video Switchers Category Level 3 Multi-Input Switchers Family No Family Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Manual Material Safety Data Sheet (MSDS) https://images.salsify.com/image/upload/s--SlNwtFeO--/c1e8eab8cb30ff4f867b76695888fab51c5f689a.pdf Product Title (Ultra-Short) HDMI Adapter Switch Product Title (Short) Multi-Input to HDMI Adapter Switch - 4K Product Title (Medium) Multi-Input to HDMI Converter Switch - Auto Switch - 4K Product Title (Standard) Multi-Input to HDMI Converter Switch - DisplayPort, VGA and Dual-HDMI to HDMI Switch - Priority and Automatic Switch - 4K Product Title (Long) Multi-Input to HDMI Automatic Switch and Converter - 4K - TAA Product Title (AMZ) Multi-Input to HDMI Converter Switch - DisplayPort, VGA and Dual-HDMI to HDMI Switch - Priority and Automatic Switch - 4K (HDVGADP2HD) Title Ingram (Part 1) VGA, HDMI & DisplayPort to HDMI Title Ingram (Part 2) Automatic Converter Switch - 4K Website Product Headline Switch between DisplayPort, VGA or two HDMI source devices on one display, with automatic and priority switching Bullet 1 Save the hassle and expense of using additional adapters, with a switch that accommodates VGA, DP and HDMI inputs with a single HDMI output Bullet 2 Effortless control with auto-detect and priority port selection Bullet 3 Astonishing picture quality with support for resolutions up to 4K at 30Hz Bullet 4 Backward compatible with high-definition resolutions up to 1920 x 1200 or 1080p Bullet 5 Mounting hardware included Bullets (Compact) Switch between DisplayPort, VGA or two HDMI source devices on one display, with automatic and priority switching - Effortless control with auto switch - Astonishing video quality with 4K 30Hz resolution support - Switch accommodates VGA, DP and HDMI Bullets (Consolidated) Switch between DisplayPort, VGA or two HDMI source devices on one display, with automatic and priority switching - Works with VGA, DP and HDMI source devices and HDMI displays monitors and projectors - Automatic switching - DisplayPort to HDMI switch/VGA to HDMI switch/Multi-input to HDMI Converter Switch/HDMI adapter switch - Effortless control with automatic selection - Astonishing picture quality with support for resolutions up to 4K at 30Hz - Switch accommodates VGA, DP and HDMI inputs Marketing Copy Marketing Copy (No HTML) Applications - Use in your classroom or boardroom display, to enable presenters to connect a wide range of devices

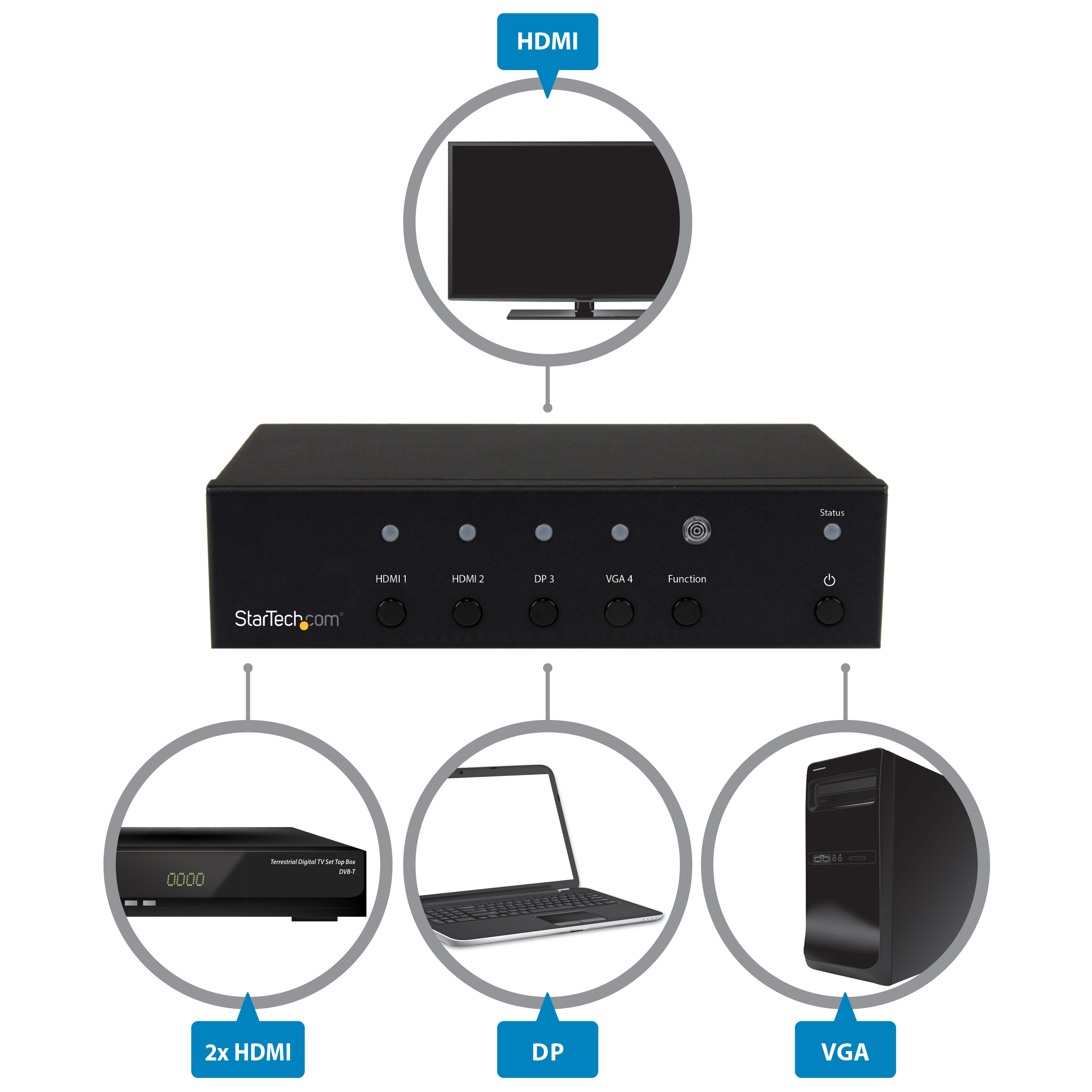

- Automatically switch between your set-top box or computer, in a home theatre environment
- Connect and switch between DP, VGA and HDMI video sources on a test bench, for troubleshooting different types of computers
Website Search Keyword - 1080p
- 3-in-1 auto switch
- 4k
- auto switching
- board room
- conference room
- DisplayPort to HDMI
- displayport to hdmi converter
- displayPort to HDMI switch
- displayport vga hdmi to hdmi switch
- HDMI and DisplayPort auto switch to HDMI
- IR control
- manual switching
- priority switching
- serial control
- Three-in-one auto switch
- VGA and DisplayPort auto switch to HDMI
- VGA and HDMI auto switch to HDMI
- vga displayport hdmi switch
- vga displayport hdmi to hdmi converter
- vga displayport hdmi to hdmi switch
- VGA to HDMI
- vga to hdmi converter
- vga to hdmi switch
- Video switch for boardrooms
- Video switch for classrooms
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Accessory Products - HDMM1
- HDMM3
- HDMM6
- HDMM8
- HDMM10
- HDMM12
- HDMM15
- HDMM20
- DISPLPORT1L
- DISPLPORT3L
- DISPLPORT6L
- DISPLPORT10L
- DISPLPORT15L
- DISPLPORT25L
- MXT101MMHQ1
- MXT101MMHQ3
- MXT101MMHQ
- MXT101MMHQ10
- MXT101MMHQ20
- MXT101MMHQ25
- HDDVIMM3
- HDMIDVIMM6
- HDMIDVIMM10
- HDMIDVIMM15
- HDMIDVIMM20
Related Products - VS221VGA2HD
- BOX4HDECP
- VGA2HDPRO2
- VID2HDCON
- DPMDPHD2HD
- VGA2HD2
- CMDPHD2HD
- CPNTA2HDMI
- SDI2HD
- CPNTTOS2HDMI
- VS221HD2VGA
Input Voltage 100 - 240 AC Output Current 1.5 A Output Voltage (V) 12V DC Power Consumption (In Watts) 18 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0% ~ 80% Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Plastic Product Length (mm) 161.000 Product Width (mm) 105.000 Product Height (mm) 41.000 Product Weight (g) 615.000 Storage Temperature -10°C to 60°C (14°F to 140°F) TAA Compliant Yes Maximum Analog Resolutions 1920 x 1200 at 60 Hz Maximum Digital Resolutions 3840x2160 at 30 Hz Supported Resolutions Wide Screen Supported Yes Active or Passive Adapter Active Audio Yes AV Input - HDMI
- VGA
- DisplayPort

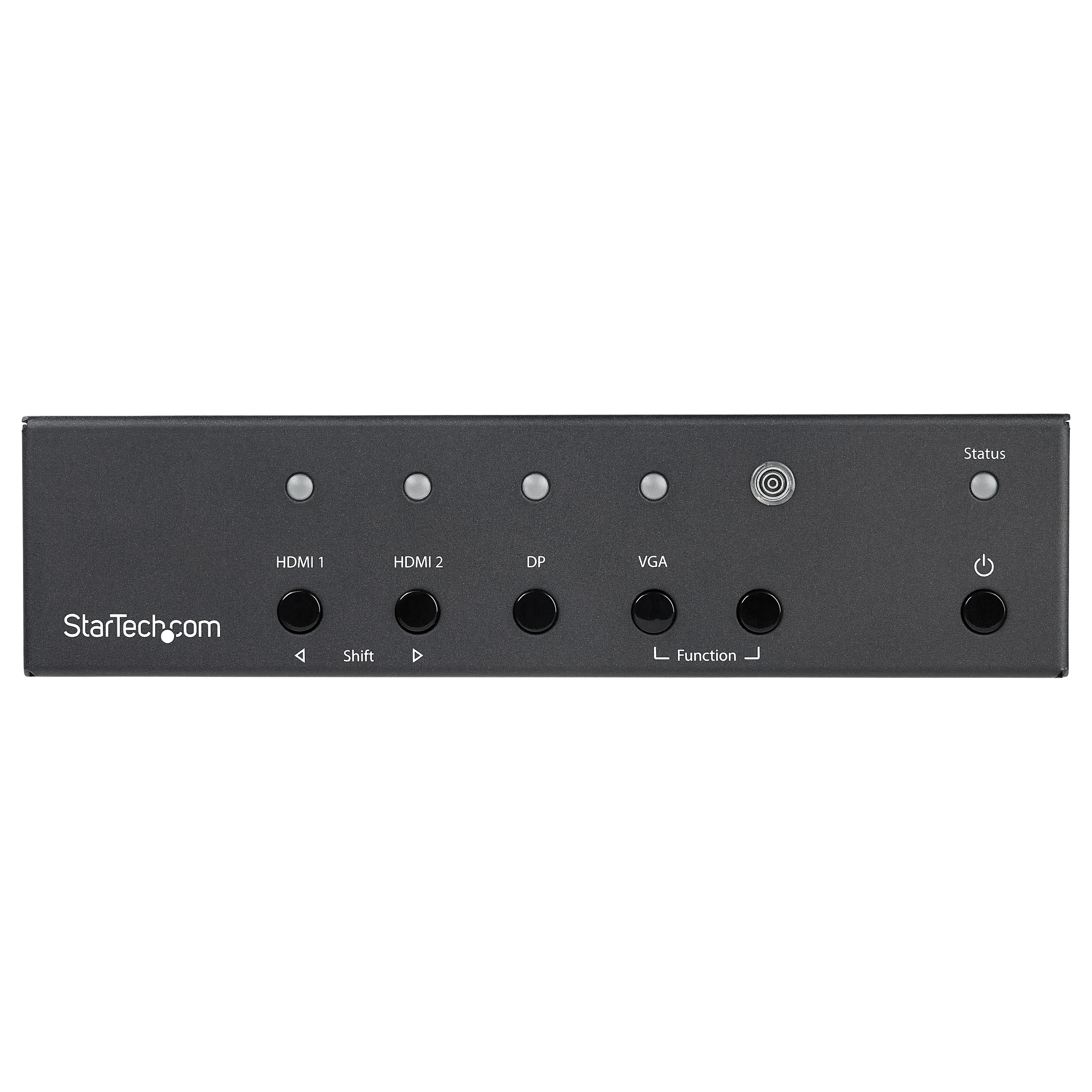

AV Output HDMI LED Indicators - 4 - selected port LEDs
- 1 - status LED

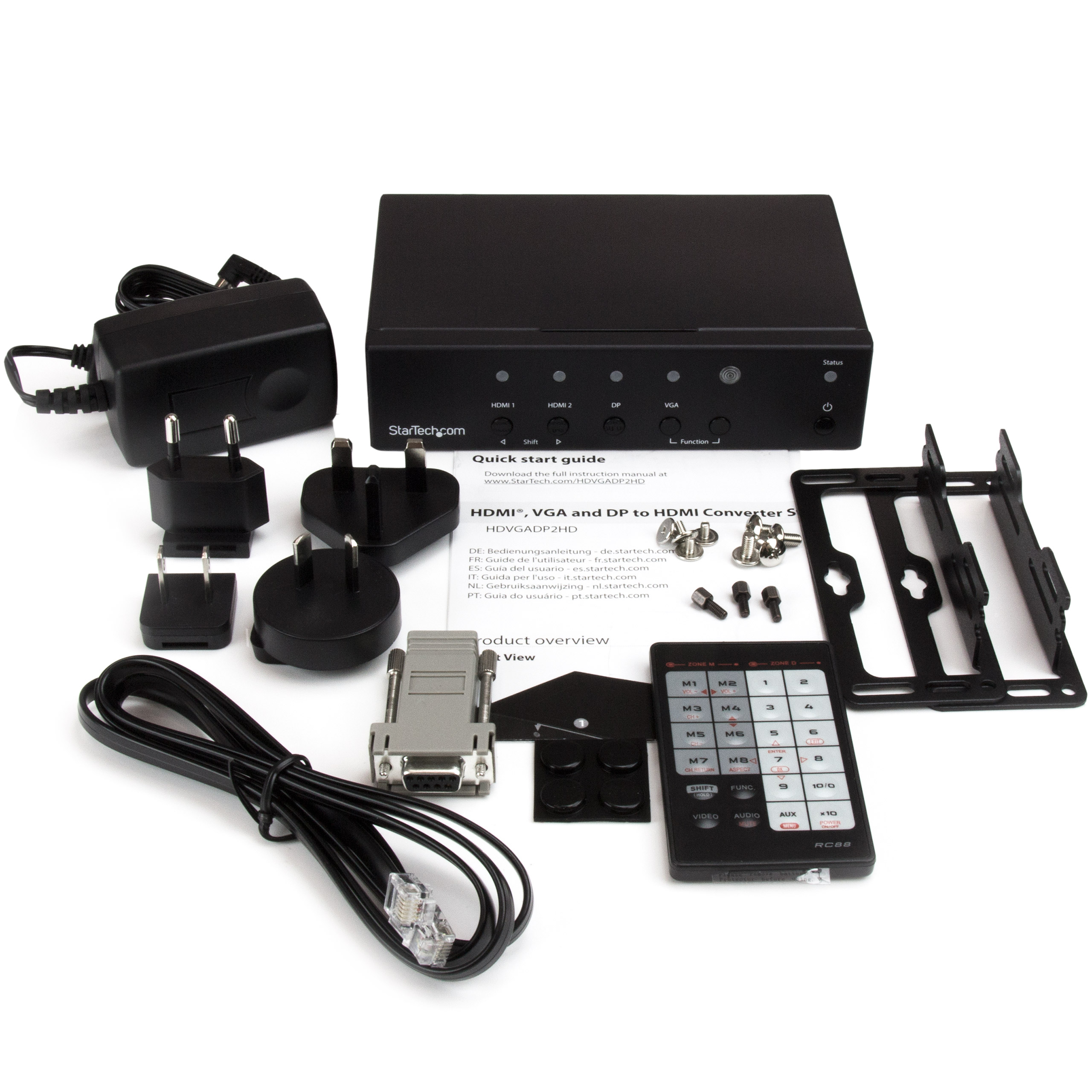

Carton Depth (mm) 322 Carton Height (mm) 266 Carton Quantity 6 Carton Weight Gross (g) 8208 Included in Package - 1 - converter switch
- 1 - IR remote control
- 1 - screw kit
- 1 - mounting bracket kit
- 1 - footpad set
- 1 - universal power adapter (NA / EU / UK / AU)
- 1 - RJ11-to-RS232 converter
- 1 - RJ11 cable
- 1 - quick start guide
Package Depth (mm) 216 Package Height (mm) 66 Package Width (mm) 297 Package Quantity 1 Package Weight (g) 1212 Packaging Description HDMI®, VGA and DP to HDMI Converter Switch - 4K Packaging Description India HDMI®, VGA and DP to HDMI Converter Switch - 4K Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 HDMI Connector 1 (Quantity) 2 Connector 2 VGA Connector 2 (Quantity) 1 Connector 3 DisplayPort Connector 3 (Quantity) 1 Connector 4 3.5mm (3 Conductors, TRS) Connector 4 (Quantity) 1 Connector 5 Infrared (IrDA) Connector 5 (Quantity) 1 Connector 6 HDMI Connector 6 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2015-11-25 Buying Center - AV & Collaboration Yes Buying Center - End User Compute No Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,HK,IE,IT,JP,MX,NL,NZ,PE,SE,UK,US Primary Technology None Product Development Specialist Natalie Goodale Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Production Release 2016-02-05 Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
