HSB100SATBK

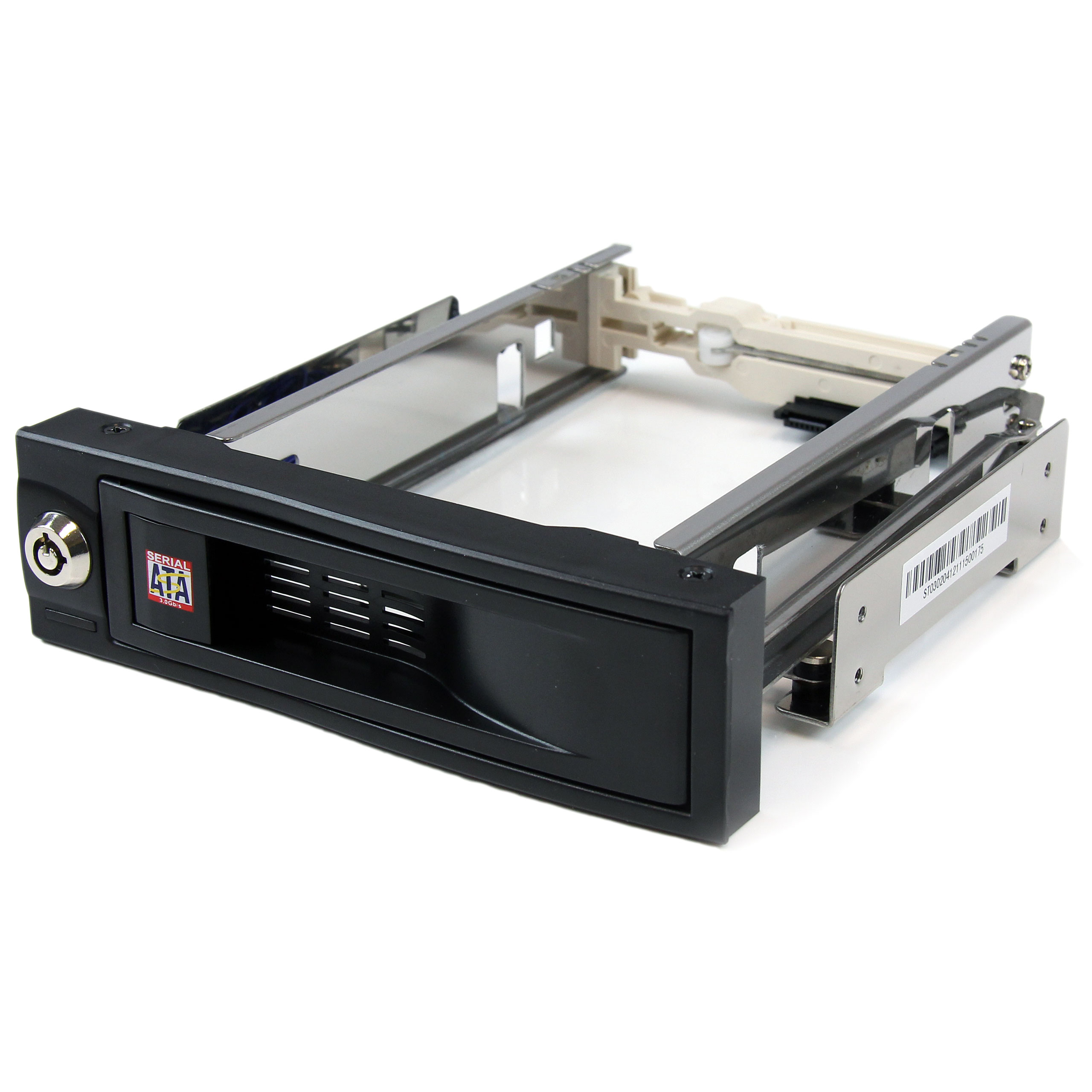

5 25 Tray Less SATA Hot Swap Bay

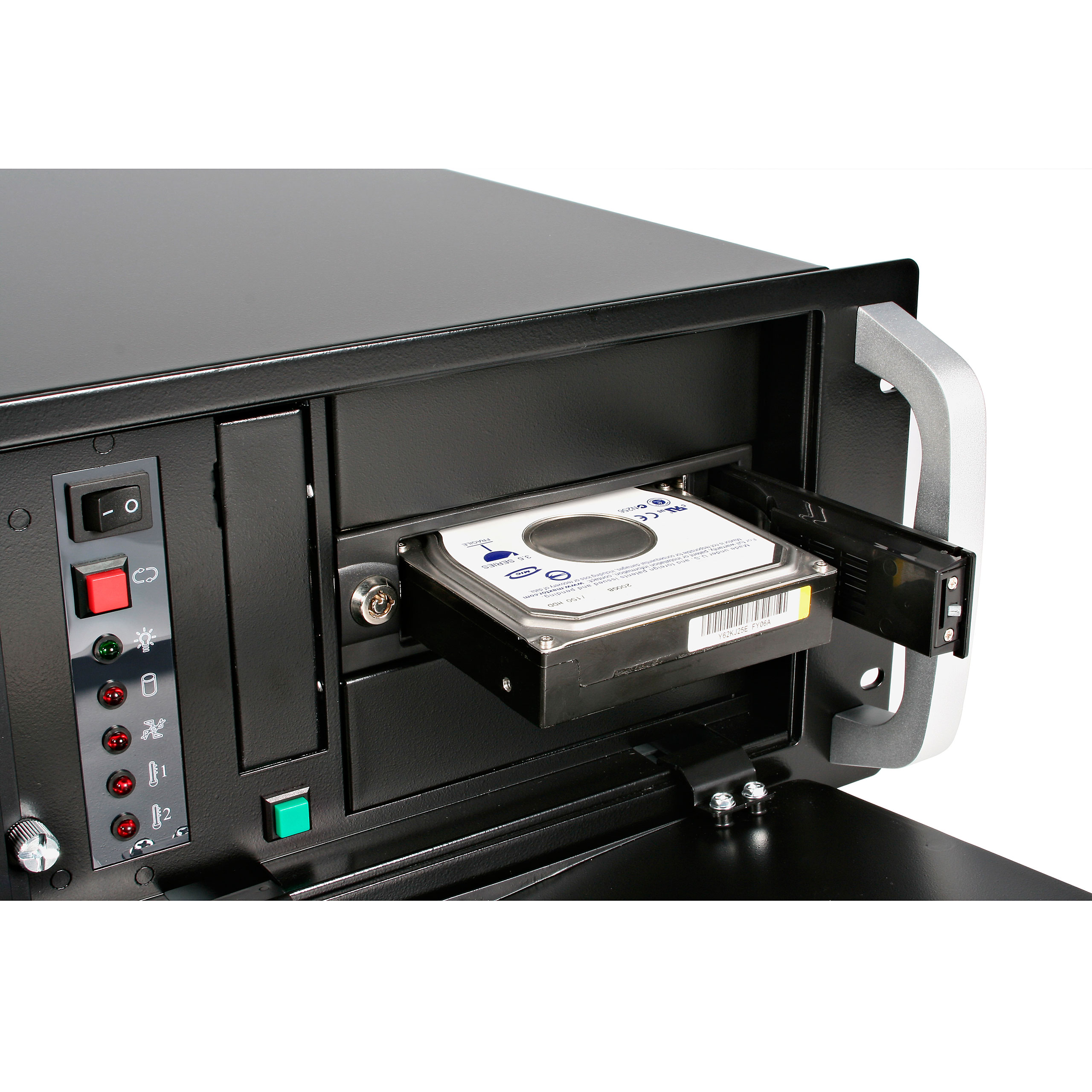

Hot-swap any 3.5in SATA hard drive easily from any computer with a 5.25in bay
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name 5 25 Tray Less SATA Hot Swap Bay Product Number HSB100SATBK UPC 065030821360 Lifecycle status Active Warranty 2 Years Taxonomy Product > Other > Tools Category Level 1 Data Storage Category Level 2 Internal Storage Category Level 3 3.5" Drive Mobile Racks and Backplanes Family 3.5" to 5.25" Adapter Chassis Country of Origin Europe & Japan China Country of Origin North America China Product Title (Short) 5.25in Trayless Mobile Rack for 3.5in HD Product Title (Medium) x Product Title (Standard) 5.25" Tray-Less SATA Hot-Swap Hard Drive Bay, Storage mobile rack, black, TAA Product Title (Long) 5.25in Trayless Hot Swap Mobile Rack for 3.5in Hard Drive, TAA-Compliant Product Title (AMZ) 5.25in Trayless Hot Swap Mobile Rack for 3.5in Hard Drive - Internal SATA Backplane Enclosure - Lockable drive bay , TAA (HSB100SATBK) Title Ingram (Part 1) 5.25in Trayless Hot Swap Mobile Title Ingram (Part 2) Rack for 3.5in Hard Drive Website Product Headline Hot-swap any 3.5in SATA hard drive easily from any computer with a 5.25in bay Bullet 1 Holds a 3.5" SATA drive in a front accessible 5.25" bay Bullet 2 Trayless design: drives are not mounted into separate trays/enclosures Bullet 3 Lockable drive bay Bullet 4 Internal rubber shock absorbers Bullet 5 50,000+ insertion rating Bullets (Compact) Hot-swap any 3.5in SATA hard drive easily from any computer with a 5.25in bay - SATA backplane lets you install a 3.5" SATA drive in an available 5.25" bay - Internal enclosure with trayless hot swap - Hot swap mobile rack with lockable drive bay Bullets (Consolidated) Hot-swap any 3.5in SATA hard drive easily from any computer with a 5.25in bay - Trayless Hot Swap - Hot Swap Mobile Rack - 5.25 Bay - Internal Enclosure - SATA Backplane - 5.25" Trayless Hot Swap Mobile Rack for 3.5" Hard Drive Marketing Copy Applications - Add additional hot-swap bays to a server or workstation computer
- Replace or upgrade old IDE backplane with a SATA backplane
- System builders who need to image drives quickly and efficiently
- Environments where drives need to be replaced/removed regularly, without external protection for the drives required after removal
- Be able to replace/remove individual drives from a storage array with minimal or no system down time
Website Search Keyword - removable storage
- removable drive
- removable enclosure
- hard drive bay
- sata
- os imaging
- 2 Terabyte TB hard drive
- trayless tray less hot swap
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + cords
Accessory Products - SATA18POW
- SATA24POW
Related Products - HSB320SATBK
- HSB430SATBK
- HSB220SAT25B
- DRW110SATBK
- SAT3510U2REM

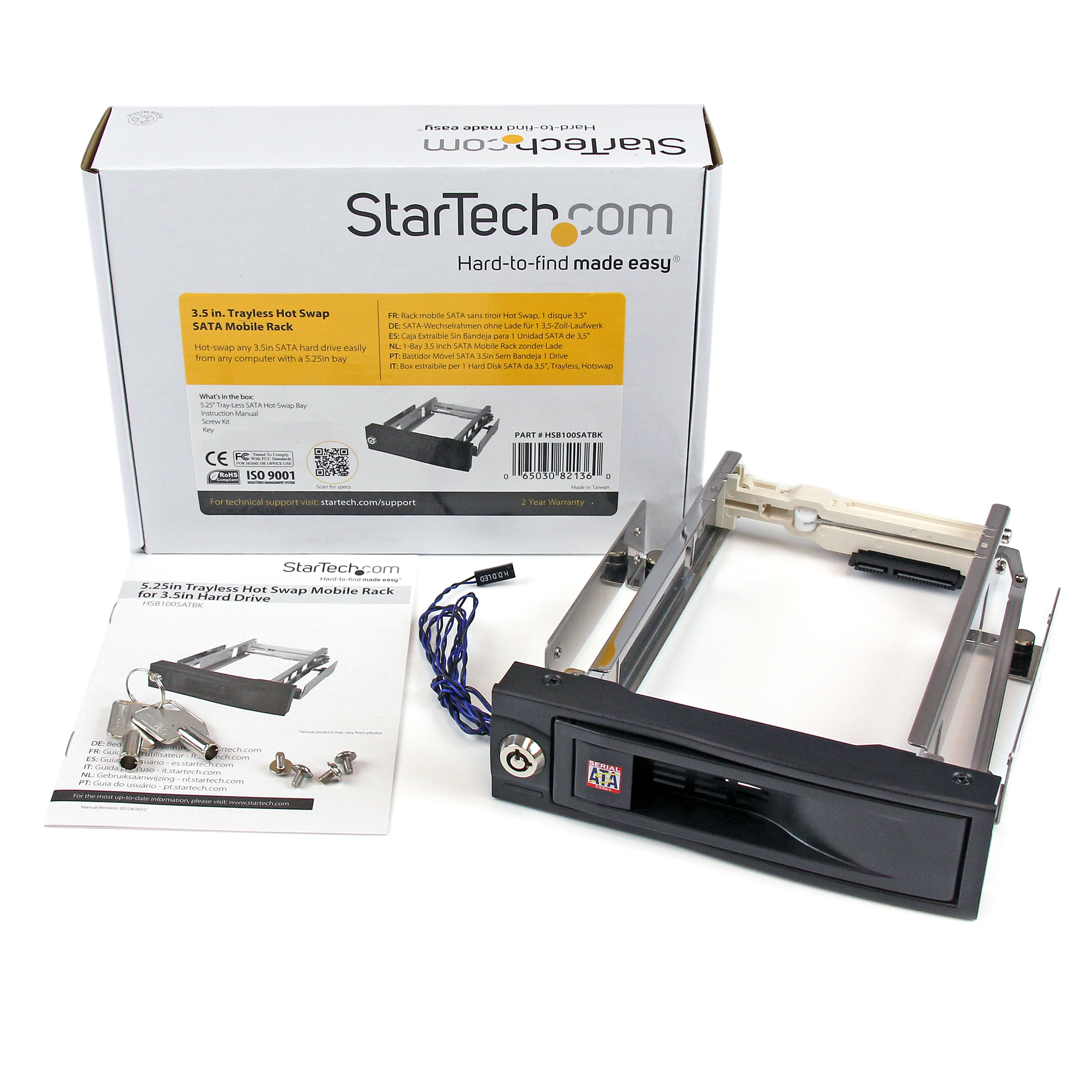

Color Black Humidity Material Aluminum and Plastic Operating Temperature 0°C to 50°C (32°F to 122°F) Primary Material Plastic Product Length (mm) 184.000 Product Width (mm) 149.000 Product Height (mm) 42.000 Product Weight (g) 261.000 TAA Compliant Yes Hot Swap Capability Yes Insertion Rating 50,000+ Cycles OS Compatibility OS Independent Compatible Drive Types SATA Front Door Key Lock Yes LED Indicators 1 - Drive Power/Activity Number of Drives 1 Carton Depth (mm) 443 Carton Height (mm) 295 Carton Quantity 20 Carton Weight Gross (g) 8260 Included in Package - 1 - 5.25" Tray-Less SATA Hot-Swap Bay
- 1 - Instruction Manual
- 1 - Screw Kit
- 2 - Key
- 1 - Drive Activity LED and 2 Pin Wire
Included In Package for Label - 1 - Screw Kit
- 2 - Key
- 1 - Instruction Manual
- 1 - 5.25" Tray-Less SATA Hot-Swap Bay
- 1 - Drive ACtivity Led And 2 Pin Wire
Package Depth (mm) 209 Package Height (mm) 55 Package Width (mm) 160 Package Quantity 1 Package Weight (g) 366 Packaging Description 1 Drive Trayless 3.5in SATA Mobile Rack Packaging Description India 1 Drive Trayless 3.5in SATA Mobile Rack Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin) Connector 1 (Quantity) 1 Connector 2 SATA (15-Pin) Connector 2 (Quantity) 1 Host Connector 1 SATA (7-Pin) Host Connector 1 (Quantity) 1 Host Connector 2 SATA (15-Pin) Host Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream
