HSB110SATBK

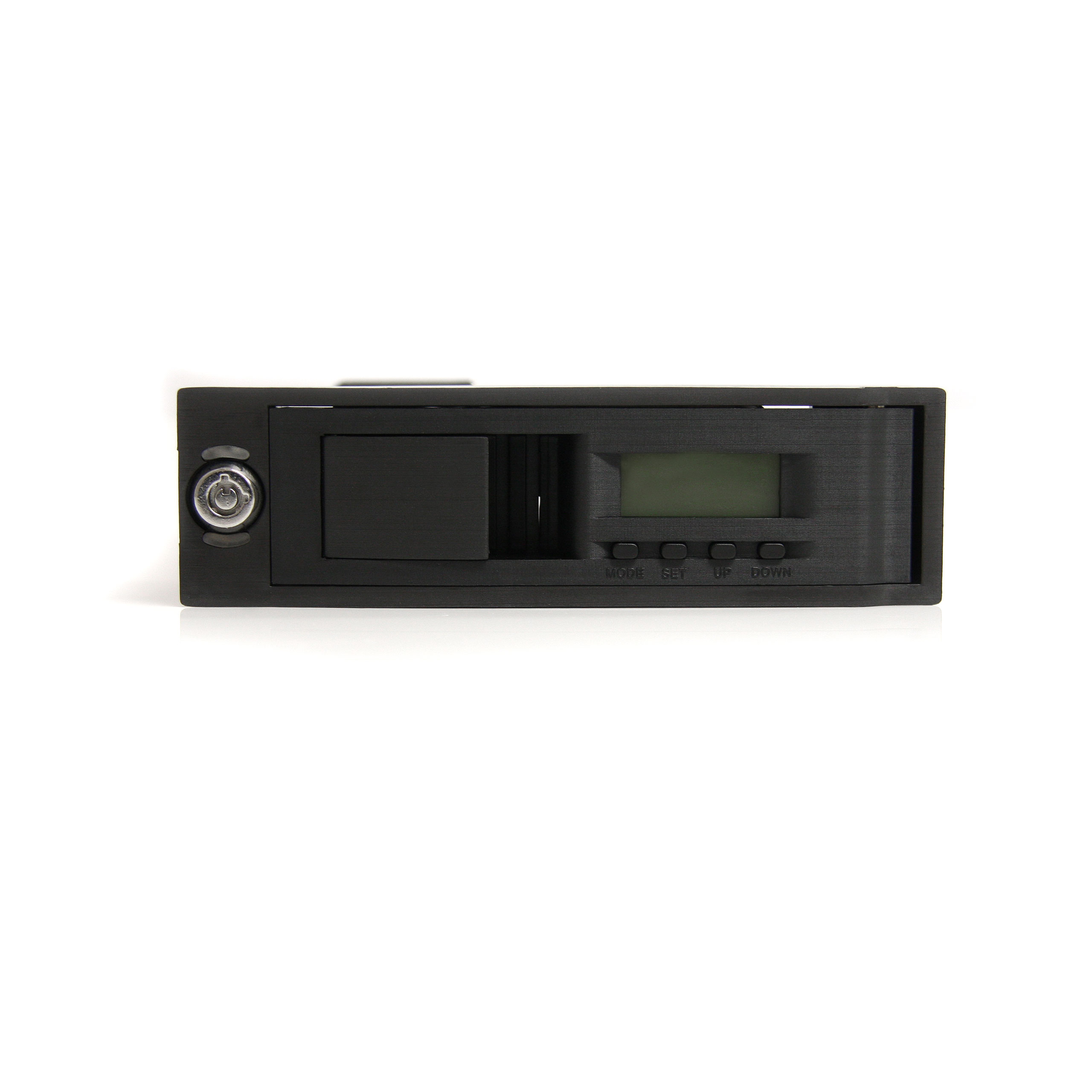

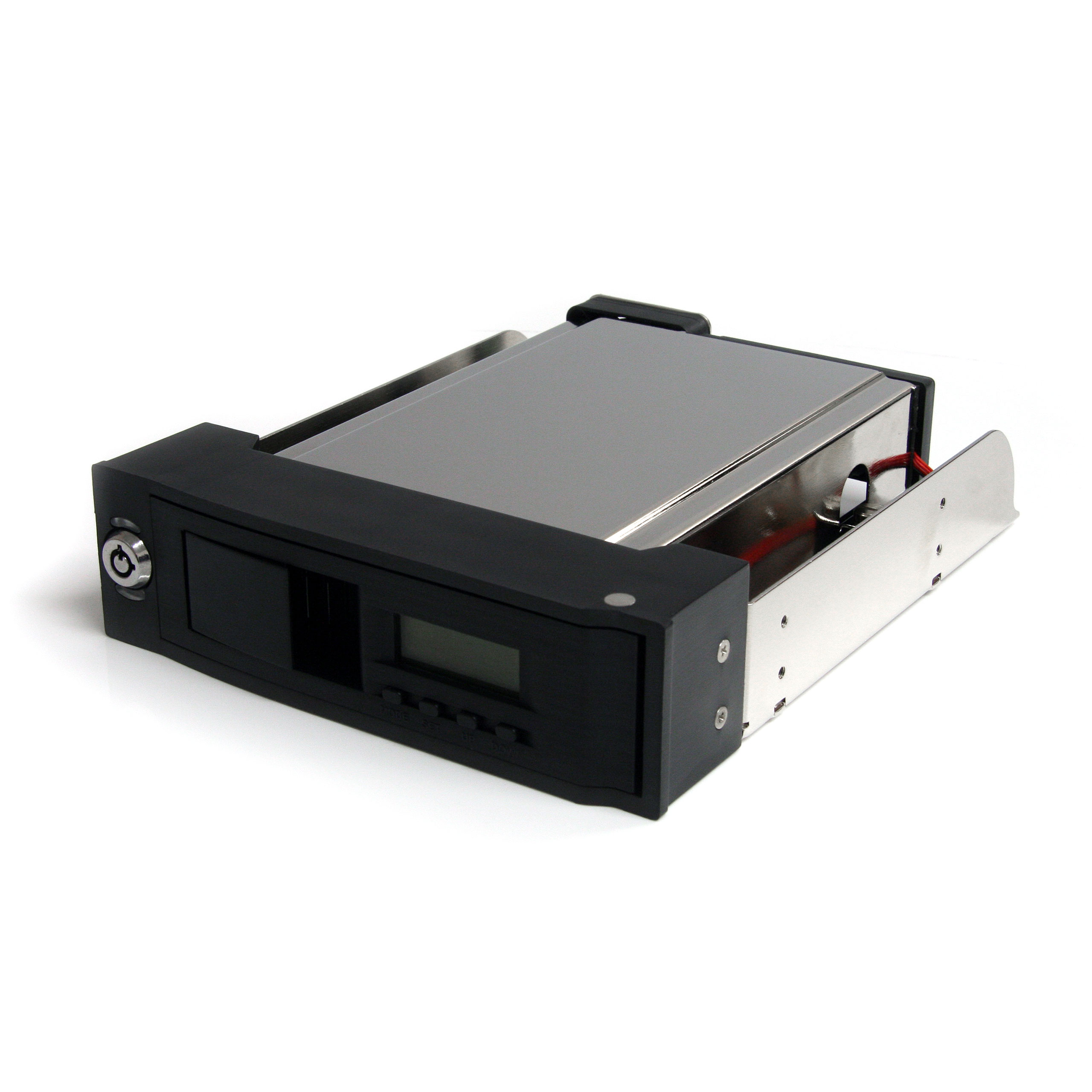

5.25 Mobile Rack for 3.5 HDD w/Fan & LCD
Hot swap 3.5in SATA hard drives in and out of your PC, from a 5.25in bay
Main Image
Product Images
Product Images
Product Images
BOM Image

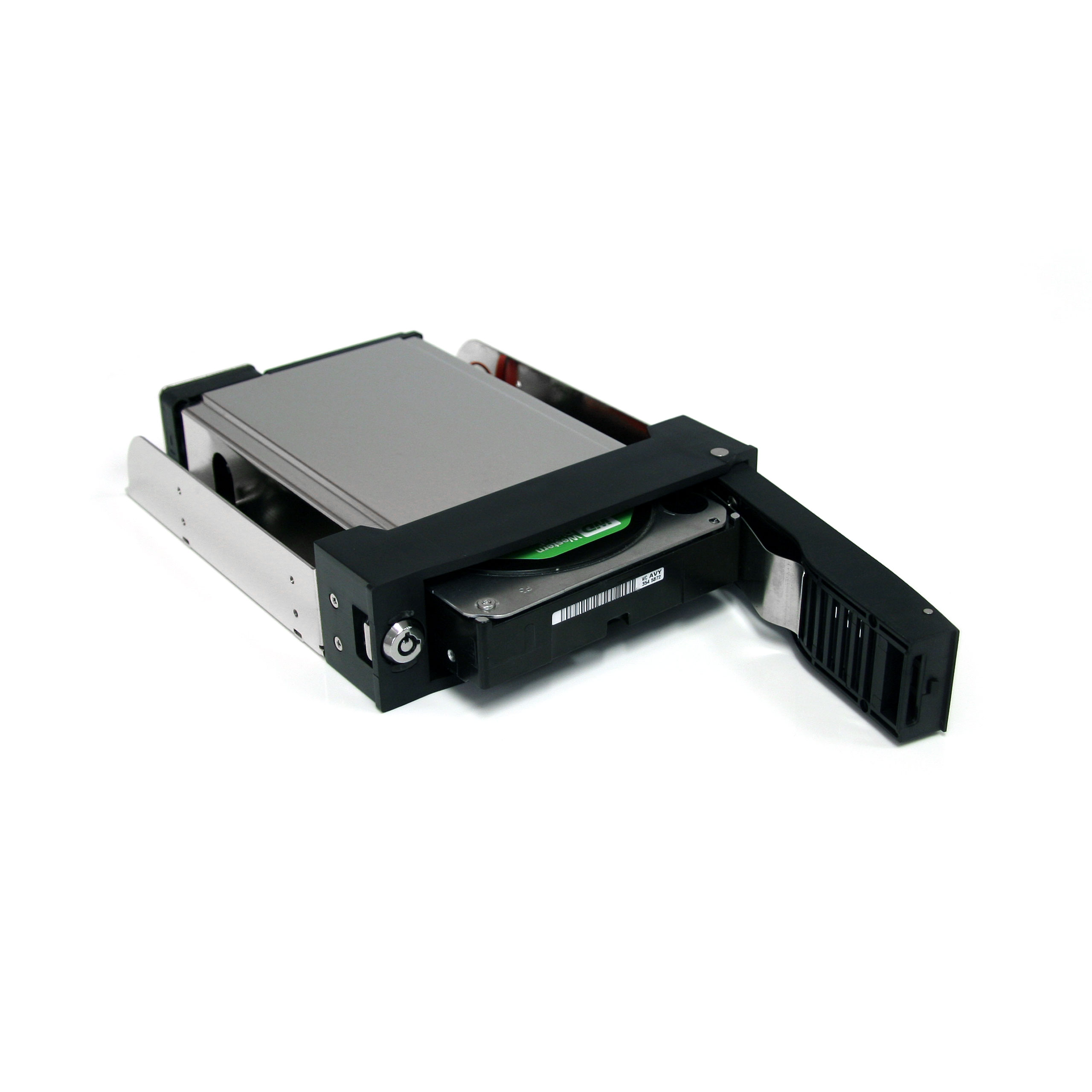

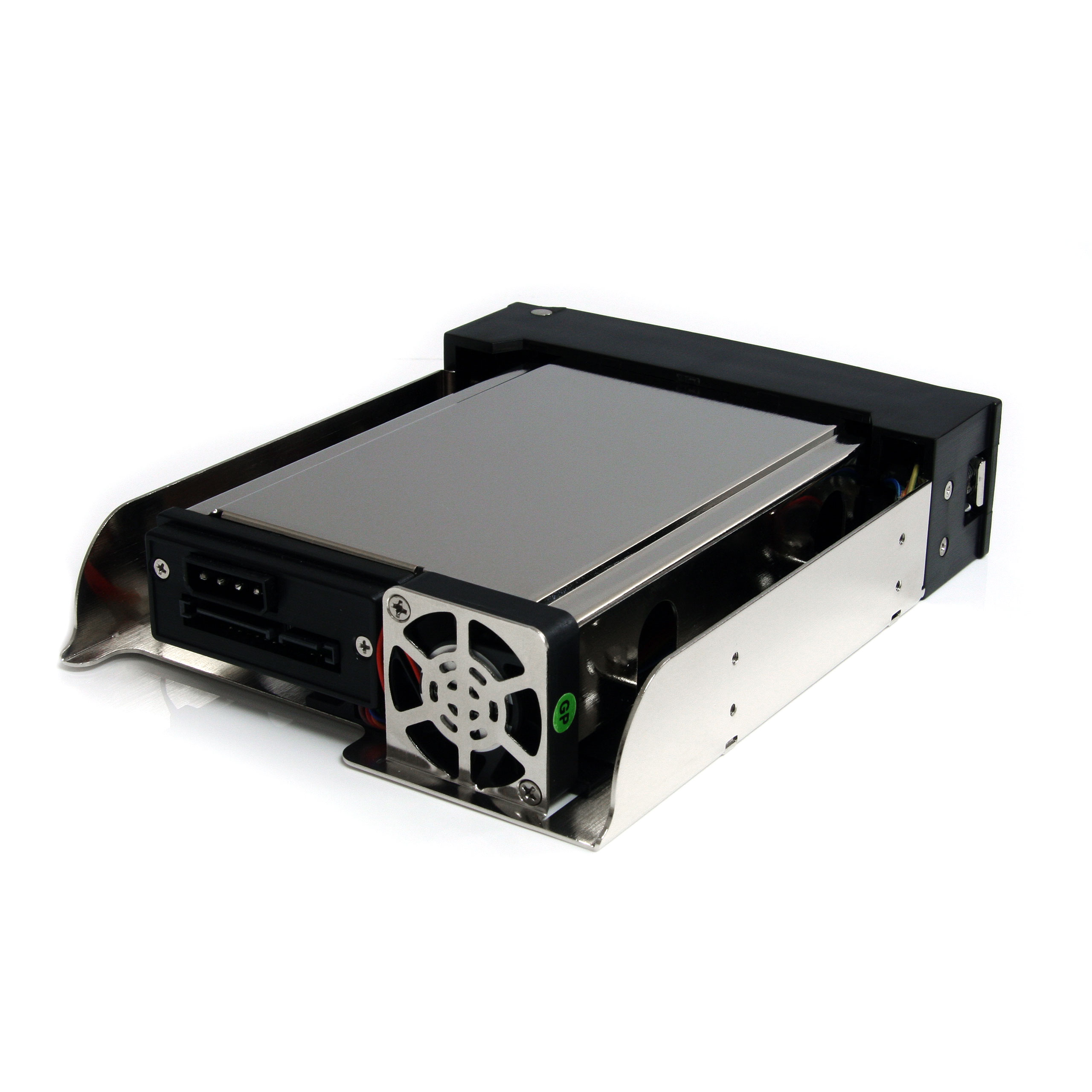

Product Name 5.25 Mobile Rack for 3.5 HDD w/Fan & LCD Product Number HSB110SATBK UPC 065030843584 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 Internal Storage Category Level 3 3.5" Drive Mobile Racks and Backplanes Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX073X Product Title (Short) 5.25 Mobile Rack for 3.5 HDD w/Fan & LCD Product Title (Standard) 5.25in Trayless Hot Swap Mobile Rack for 3.5in SATA HDD with LCD & Fan Product Title (Long) 5.25in Trayless Hot Swap Mobile Rack for 3.5in SATA HDD with LCD & Fan Product Title (AMZ) 5.25in Trayless Hot Swap Mobile Rack for 3.5in SATA HDD with LCD & Fan - SATA mobile Rack Back Plane - Hot Swap bay (HSB110SATBK) Title Ingram (Part 1) 5.25in Trayless Mobile Rack for Title Ingram (Part 2) 3.5in SATA HDD w/ LCD & Fan Website Product Headline Hot swap 3.5in SATA hard drives in and out of your PC, from a 5.25in bay Bullet 1 40mm cooling fan Bullet 2 Trayless design: hard drives are not mounted into separate trays/enclosures Bullet 3 Lockable drive bay Bullet 4 Built-in vibration/shock absorbers Bullet 5 Support for SATA revision I/II/III (1.5/3.0/6.0 Gbps) Marketing Copy Applications - Add additional hot swap bays to a server or workstation
- Be able to quickly replace individual drives from a storage array, with no system down time
- Use with systems that need a standalone hardware monitor for hard drives
- Use in operating environments with potentially high/unpredicable temperatures
Website Search Keyword - hot swap bay
- hotswap enclosure
- mobile rack
- drive drawer
- internal enclosure
System and Cable Requirements Available 5.25 inch front bay Accessory Products - SATA8
- SATA12
- SATA18
- SATA24
- SATA6
- LSATA12
- SATA12LA1
- LSATA12RA1
Related Products - HSB100SATBK
- HSB320SATBK
- HSB430SATBK
- HSB220SAT25B
- SATDOCK2520
- SBAY5BK
Replacement Product HSB100SATBK Color Black Humidity 8~90% RH Material Steel and Plastic Operating Temperature 5°C to 80°C (41°F to 176°F) Product Length (mm) 180 Product Width (mm) 150 Product Height (mm) 40 Product Weight (g) 689 Storage Temperature -40°C to 70°C (-40°F to 158°F) TAA Compliant No Hot Swap Capability Yes Insertion Rating 15,000 Cycles OS Compatibility OS Independent Compatible Drive Types SATA Fans 1 - 40 mm Front Door Key Lock Yes LED Indicators - 1 - Power (Blue)
- 1 - Activity (Blue)

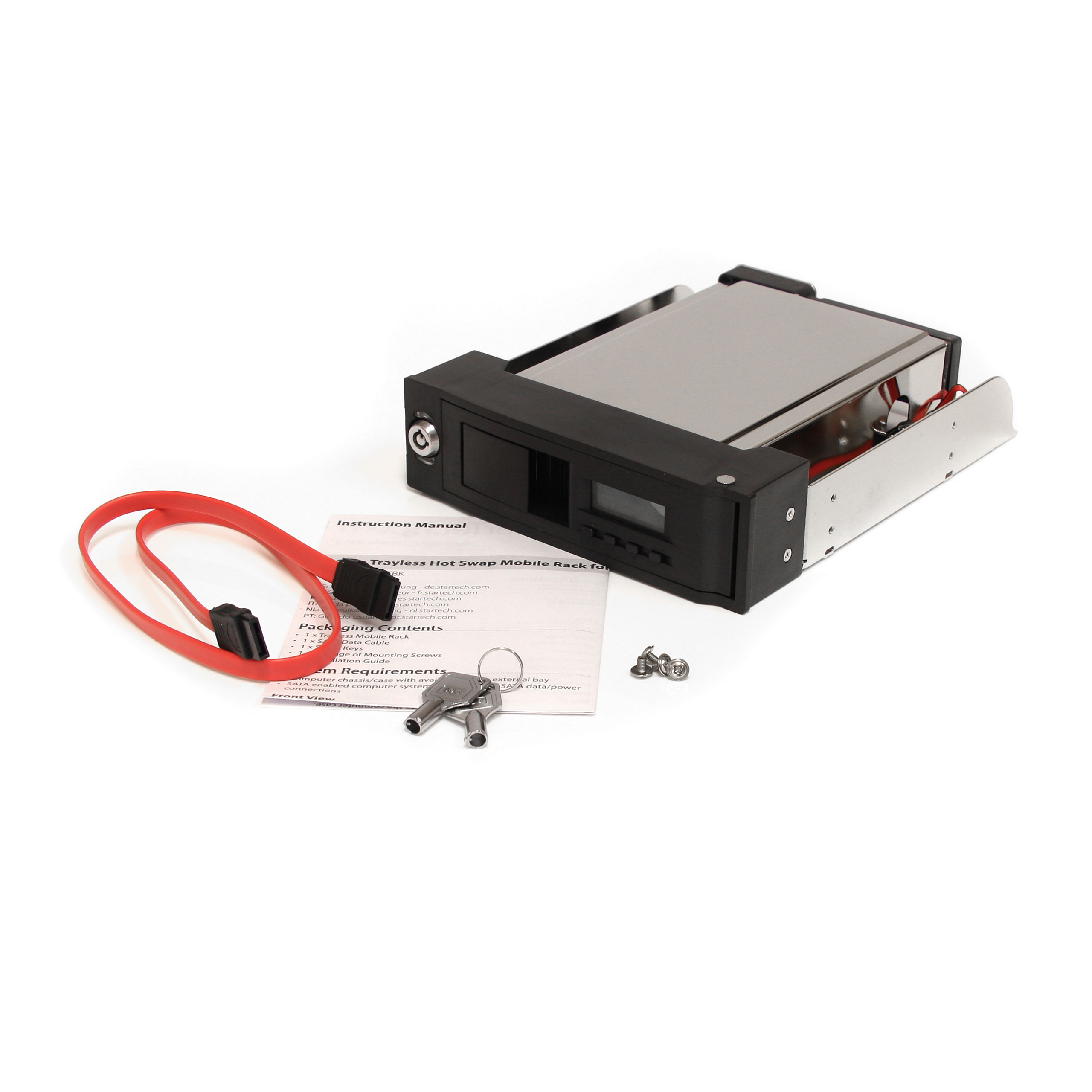

Number of Drives 1 Regulatory Approvals UL94 V-0 Rated Plastic Carton Depth (mm) 320 Carton Height (mm) 420 Carton Quantity 20 Carton Weight Gross (g) 17967 Included in Package - 1 - Trayless Mobile Rack
- 1 - Set of keys
- 1 - Package of mounting screws
- 1 - Instruction Manual
- 1 - SATA Data Cable
Package Depth (mm) 170 Package Height (mm) 55 Package Width (mm) 215 Package Quantity 1 Package Weight (g) 812 Packaging Description 5.25 Mobile Rack for 3.5 HDD w/Fan & LCD Packaging Description India 5.25 Mobile Rack for 3.5 HDD w/Fan & LCD Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 1 Host Connector 1 SATA (7-Pin + 15-Pin) Host Connector 1 (Quantity) 1 Host Connector 2 LP4 / Molex Power (4-Pin, 5V / 12V) Host Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Legacy
