HSB1SATSASBA
5 25 to 3 5 Drive Hot Swap Bay SATA SAS Trayless
Hot-swap drives with ease, using this trayless mobile backplane for desktop PCs or servers
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Quick-Start Guide
Product Name 5 25 to 3 5 Drive Hot Swap Bay SATA SAS Trayless Product Number HSB1SATSASBA UPC 065030872317 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > Data Storage Cards & Adapters Category Level 1 Data Storage Category Level 2 Internal Storage Category Level 3 3.5" Drive Mobile Racks and Backplanes Family 3.5" SATA/SAS Drive Backplane Country of Origin Europe & Japan China Country of Origin North America China Product Title (Ultra-Short) 3.5 HDD Hot Swap Bay Product Title (Short) Hot Swap Bay - 5.25 Bay to 3.5" SATA/SAS Product Title (Medium) 5.25 to 3.5 Hard Drive Hot Swap Bay - For 3.5" SATA/SAS - Trayless - Aluminum Product Title (Standard) 5.25 to 3.5 Hard Drive Hot Swap Bay - Trayless - Aluminum - For 3.5" SATA/SAS Drives - Front Mount - SAS/ SATA Backplane Product Title (Long) 5.25 to 3.5 Hard Drive Hot Swap Bay - For 3.5" SATA/SAS Drives - Trayless - Aluminum Product Title (AMZ) 5.25" to 3.5" Trayless Hard Drive Hot Swap Bay - Removable Hard Drive Bay for 3.5" SATA/SAS Drives - Aluminum (HSB1SATSASBA) Title Ingram (Part 1) 5.25 to 3.5 Hard Drive Hot Swap Title Ingram (Part 2) Bay - For 3.5" SATA/SAS - Trayless Website Product Headline Hot-swap drives with ease, using this trayless mobile backplane for desktop PCs or servers Bullet 1 VERSATILE FUNCTIONALITY: This hard drive bay for 3.5in SATA/SAS drives is ideal for IT professionals looking to for quickly swap, replace, or transport hard drives (HDDs) and solid-state drives (SSDs) between various systems and locations Bullet 2 EASY TO USE: This 5.25in to 3.5in hard drive hot swap bay features a trayless design, creating a convenient solution for drive maintenance and interchangeability between multiple systems - Includes SATA data cable Bullet 3 SMART AND SECURE DESIGN: The aluminum hot swap hard drive bay provides a protective backplane with a durable aluminum housing that offers ventilation for proper air flow and heat dissipation - Features Power/Activity LED and lockable drive door w/ keys Bullet 4 FAST SPEEDS: To maximize the performance of your drives, the removable hard drive bay supports SAS I/II & SATA I/II/III, providing data transfer speeds up to 6Gbps with a compatible controller Bullet 5 THE IT PRO’S CHOICE: Designed and built for IT Professionals, this hard drive bay is backed for 2 years, including free lifetime 24/5 multi-lingual technical assistance Bullets (Compact) Hot-swap drives with ease, using this trayless mobile backplane for desktop PCs or servers - 5.25 to 3.5 Hard Drive Hot Swap Bay - Trayless - For 3.5" SATA/SAS Drives - Front Mount - Metal - Vented - Hard Drive Bay - SAS Backplane - SATA Backplane Bullets (Consolidated) Hot-swap drives with ease using this trayless mobile backplane for desktop PCs or servers - 5.25" to 3.5" Hard Drive Hot Swap Bay lets you quickly swap 3.5" SATA or SAS drives using an available 5.25" front drive bay - Aluminum - Vented - Supports SAS I/II and SATA I/II/III (up to 6 Gbps) - Lockable secure drive door - Front mount hard drive bay/SAS Backplane/SATA Backplane/Hard drive tray/Removable hard drive bay/HDD rack/Hard drive hot swap/Hot swap mobile rack - 5.25in to 3.5in Marketing Copy Marketing Copy (No HTML) This removable hard drive bay for 3.5" SATA/SAS drives makes it easy to swap 3.5" SATA or SAS drives in and out of your server or desktop computer, using an available 5.25" front drive bay. The 5.25" to 3.5" hard drive hot swap bay features a trayless design that saves you installation time and enables you to insert or remove drives as needed, creating a convenient solution for drive maintenance and interchangeability of data between multiple systems. This hot-swap 5.25" to 3.5" hard drive hot swap bay is ideal for IT professionals, such as system administrators or computer operators, for quickly swapping, replacing, or transporting drives between various systems and locations. With support for both SATA and SAS 3.5" drives, the aluminum removable hard drive bay saves valuable time in environments where storage drives need to be replaced or removed regularly, such as in server rooms and data centers. The hot-swap aluminum removable hard drive bay provides a protective backplane with a durable aluminum housing that offers ventilation to ensure proper air flow and heat dissipation. To safeguard your data, you can lock the 5.25" to 3.5" hard drive bay door to prevent unauthorized access to your drive. To maximize the speed and performance of your drives, the mobile trayless hot swap bay supports SAS I and II and SATA I, II and III, providing data transfer speeds up to 6Gbps when paired with a compatible controller. The removable hard drive bay for 3.5" SATA/SAS drives is backed by a StarTech.com 2-year warranty and free lifetime technical support. Applications - Provides easy hot-swapping of drives in environments where drives need to be replaced or removed regularly, such as server rooms and data centers
- Ideal for use in industrial or enterprise storage applications such as data backup, recovery, and archiving
- For building or upgrading computer systems for organizations such as government agencies, small-to-medium businesses, educational institutions, medical facilities, and military organizations
Website Search Keyword - 5.25 to 3.5 Hard Drive Hot Swap Bay
- 3.5 Hard Drive Hot Swap Bay
- Hard Drive Hot Swap Bay
- Hot Swap Bay
- hard drive bay
- SAS Backplane
- SATA Backplane
- Hard drive tray
- HDD mobile rack
- mobile rack
- backplane
- HDD backplane
- Removable hard drive bay
- HDD rack
- Hard drive hot swap
- Hot swap mobile rack
- Hard drive backplane
- Trayless hot swap
- Trayless mobile rack
- Aluminum SAS/SATA backplane
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + cords
Accessory Products - LSATA18RA1
- LSATARND18
- LSATA18RA2
- LSATA18
- LSATA12
- LP4LSATAADAP
- PYO2LSATA
- PYO2LP4LSATR
- PYO2LP4LSATA
- PYO2LP4SATA
- SATAPOWADAP
- SATAPOWADAPR
- LSATA8
- LSATARND12
- LSATARND24
- LSATARND6
- LSATA24
Related Products - SATSASBAY3BK
- HSB220SAT25B
- HSB100SATBK
- HSB430SATBK
- HSB320SATBK
- SATADOCK525
- HSB225SATBK
- SATSAS425BK
- SATSAS225ODD
- SATDOCK2520
- HSB43SATSASB
- HSB13SATSASB
Input Voltage 5V DC / 12V DC Output Voltage (V) 5 DC Color Black Humidity Material Aluminum Max Drive Height (mm) 26.1 Operating Temperature 0°C to 50°C (32°F to 122°F) Primary Material Aluminum Product Length (mm) 179.400 Product Width (mm) 146.000 Product Height (mm) 39.000 Product Weight (g) 336.000 Storage Temperature -20°C to 60°C(-4°F to 140°F) TAA Compliant No Hot Swap Capability Yes Max Drive Capacity Currently tested with up to 10TB 7200 RPM hard drive Maximum Data Transfer Rate 6 Gbps OS Compatibility OS Independent USB Type and Rate SATA/SAS 6 Gbps Compatible Drive Types SAS & SATA Fans Included? Yes/No No Front Door Key Lock Yes Interface/Bridge SATA LED Indicators 1 - Drive Power/Activity Number of Drives 1 Carton Depth (mm) 643 Carton Height (mm) 281 Carton Quantity 20 Carton Weight Gross (g) 8744 Included in Package - 1 - backplane

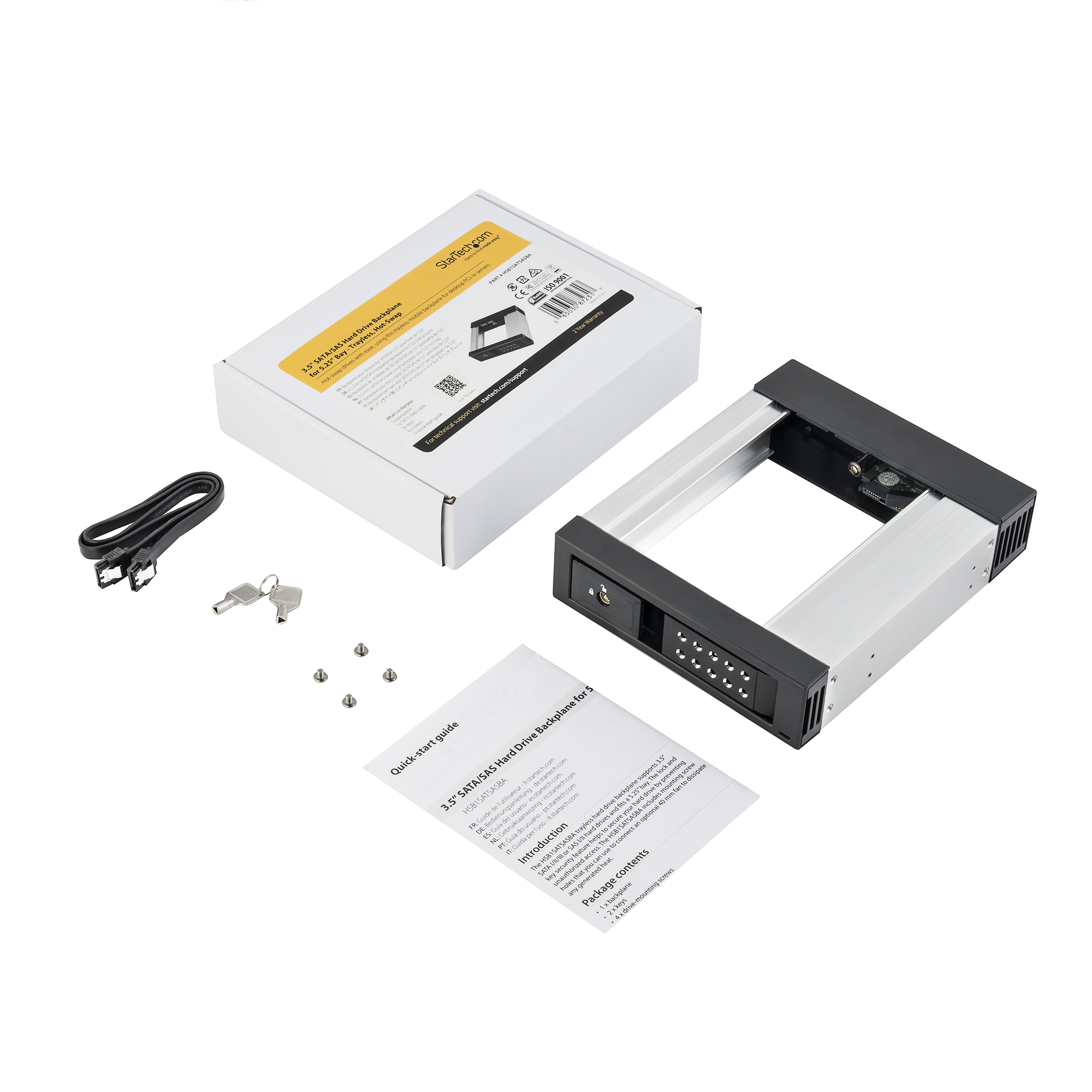

- 2 - keys
- 4 - screws
- 1 - quick-start guide
- 1 - SATA data cable
Included In Package for Label - 1 - SATA Data Cable
- 1 - Backplane
- 2 - Keys
- 4 - Screws
- 1 - Quick-Start Guide
Package Depth (mm) 201 Package Height (mm) 48 Package Width (mm) 155 Package Quantity 1 Package Weight (g) 422 Packaging Description 3.5" SATA/SAS Hard Drive Backplane for 5.25” Bay Packaging Description India 3.5" SATA/SAS Hard Drive Backplane for 5.25” Bay Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SFF-8482 (29-Pin, SAS) Connector 1 (Quantity) 1 Host Connector 1 SATA (7-Pin + 15-Pin) Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2017-03-03 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2017-06-21 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,IE,IN,IT,JP,MX,NL,NZ,PE,SE,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2017-02-17 Target Production Release 2017-03-10 Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream
