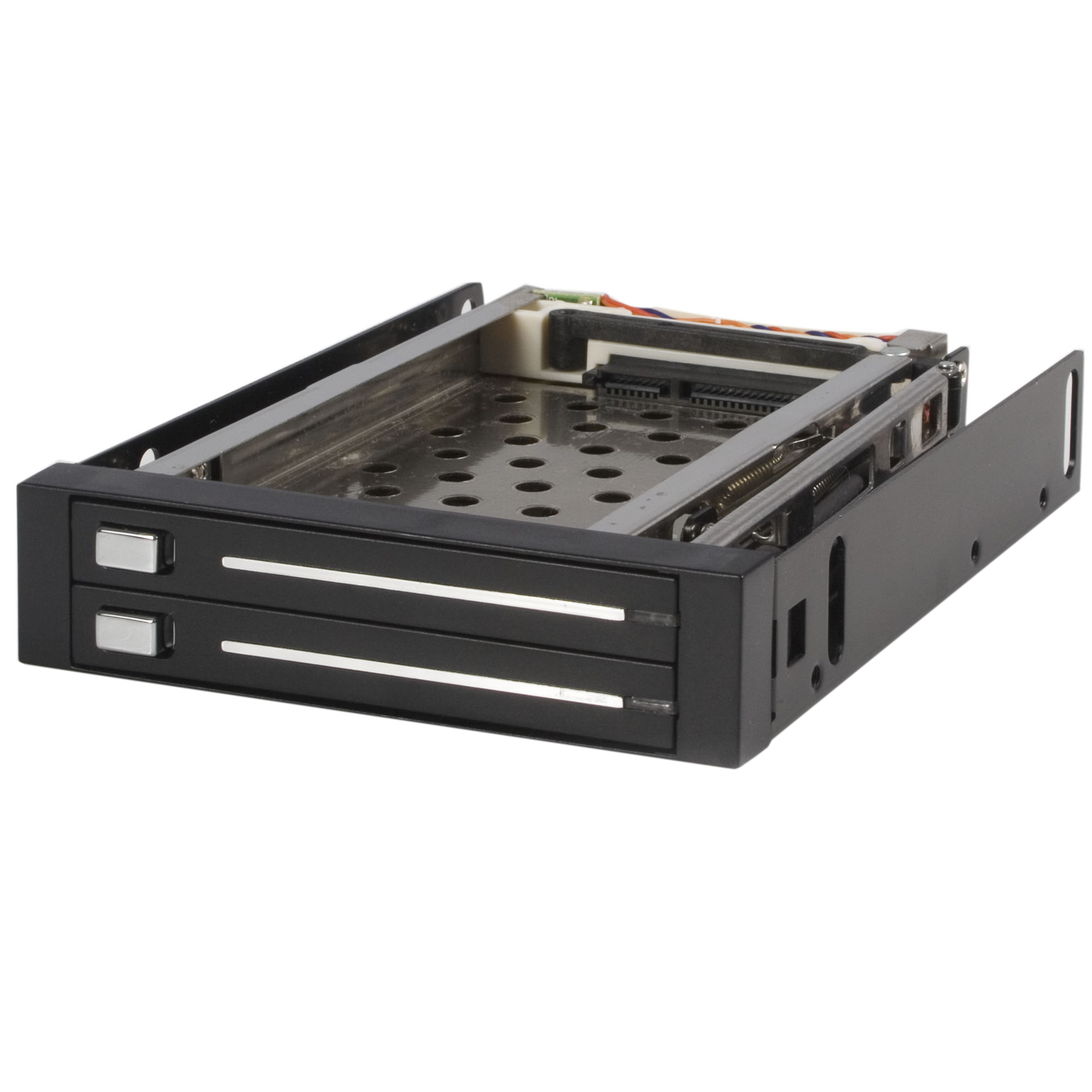

HSB220SAT25B
3 5 Dual HDD SATA Hot Swap Bay

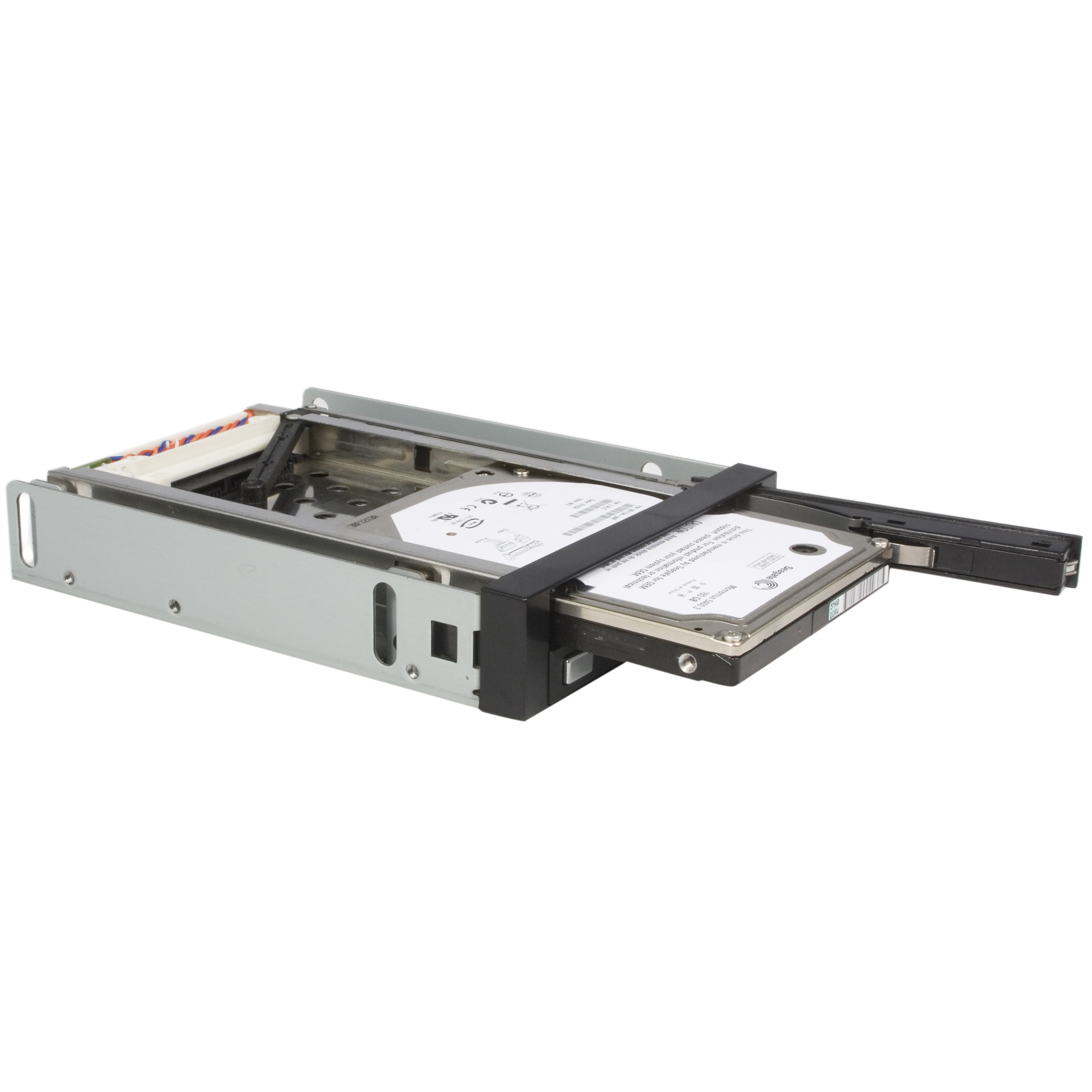

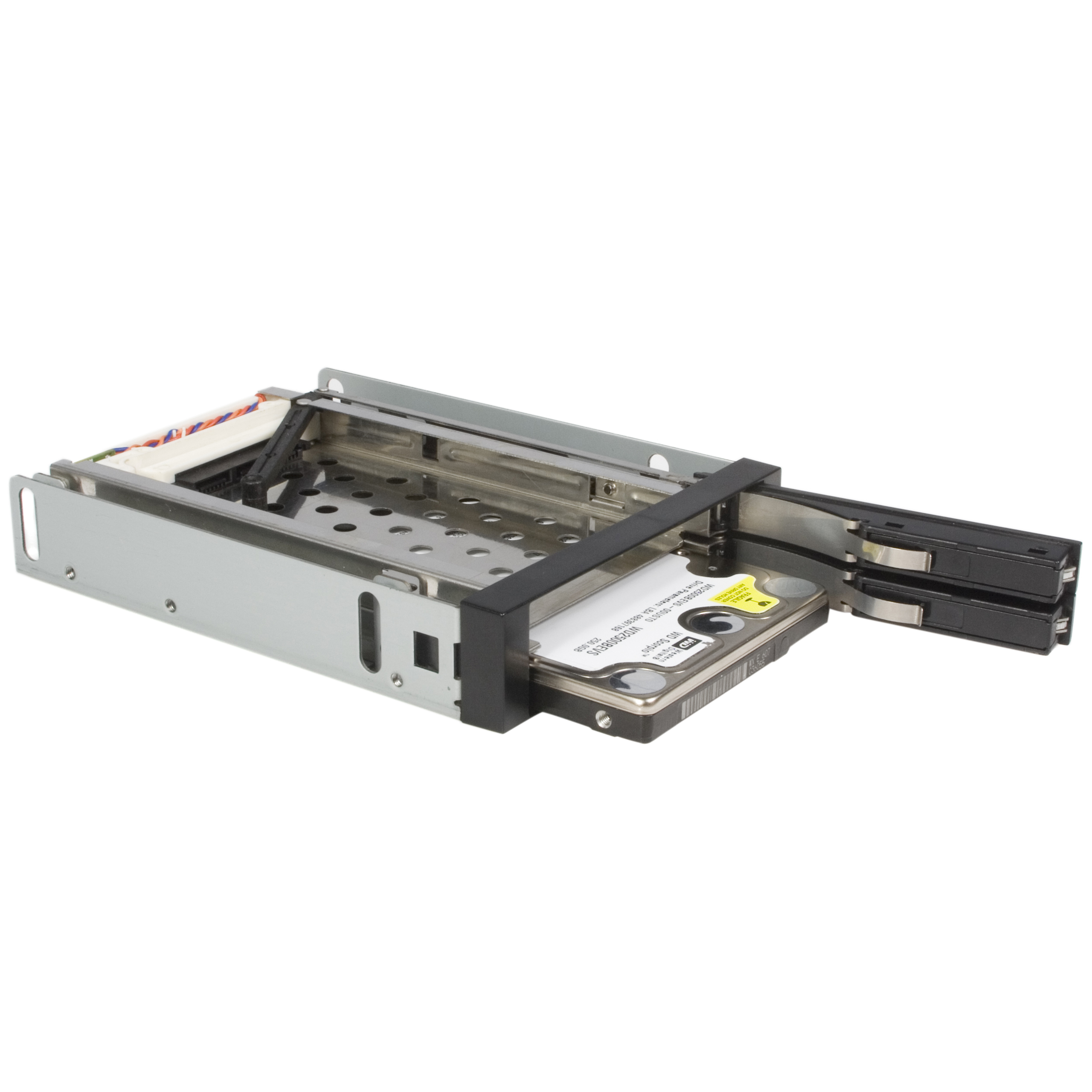

Easy, trayless removal and insertion of dual 2.5in SATA hard drives from single 3.5in bay
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name 3 5 Dual HDD SATA Hot Swap Bay Product Number HSB220SAT25B UPC 065030827980 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > External Drive Enclosures Category Level 1 Data Storage Category Level 2 Internal Storage Category Level 3 2.5" Drive Mobile Racks and Backplanes Family Dual 2.5" SATA Backplane Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX088X Product Title (Short) 2 Drive 2.5in Trayless SATA Mobile Rack Product Title (Medium) x Product Title (Standard) 2 Drive 2.5in Trayless Hot Swap SATA Mobile Rack Backplane - Storage bay adapter - black Product Title (Long) 2 Drive 2.5in Trayless Hot Swap SATA Mobile Rack Backplane Product Title (AMZ) 2 Drive 2.5in Trayless Hot Swap SATA Mobile Rack Backplane - Dual Drive SATA Mobile Rack Enclosure for 3.5 HDD (HSB220SAT25B) Title Ingram (Part 1) 2 Drive 2.5in Trayless Hot Swap Title Ingram (Part 2) SATA Mobile Rack Backplane Website Product Headline Easy, trayless removal and insertion of dual 2.5in SATA hard drives from single 3.5in bay Bullet 1 INCREASED PRODUCTIVITY: The mobile rack backplane for 2.5in SATA III turns a single 3.5in bay into a hot-swappable interface for up to two 2.5" SATA hard drives (HDDs) and solid-state drives (SSDs) Bullet 2 EASY TO USE: This trayless hot swap mobile rack backplane features dedicated front eject buttons and individual power and activity LEDs for each drive slot - Includes screw kit, LP4 to SATA, and SATA cables: 7-pin (data) and 15-pin (power) Bullet 3 DURABILITY: Aluminum construction with 50,000+ insertion rating for maximum durability and performance - Includes two plastic protective film sheets for the bottom side of the hard drives Bullet 4 MAINTAIN OPTIMAL TEMPERATURE: To help prevent drive failure, the aluminum mobile rack backplane features an open-top design and vented slot divider for maximum passive heat dissipation Bullet 5 MAXIMUM COMPATIBILITY: The hot swap backplane for 2.5in SATA III can interface with SATA I/II/III SSDs and HDDs and does not require additional drivers or software - an ideal solution for technicians and IT professionals Bullets (Compact) Easy, trayless removal and insertion of dual 2.5in SATA hard drives from single 3.5in bay - 2.5 hot swap drive bay - Internal 2.5 hard drive enclosure - Hard drive rack holds up to two SATA drives in one 3.5" bay - SATA mobile rack w/ trayless design Bullets (Consolidated) Easy trayless removal and insertion of dual 2.5in SATA hard drives from a single 3.5in bay - 2 Drive 2.5in Trayless Hot Swap SATA Mobile Rack Backplane - Dual Drive SATA Mobile Rack Enclosure for 3.5 HDD - SATA backplane - sata mobile rack - sata enclosure - 2.5in hot swap bay - SATA hot swap - Aluminum construction - Supports SATA revision I/II/III (1.5/3.0/6.0 Gbps) - Plug-and-Play and Hot-Swap compatible Marketing Copy Marketing Copy (No HTML) Applications - IT environments where you just need to quickly insert/replace removable hard drives/solid state drives
- Imaging - For System Builders or configuring new systems - Use Hot Swap Bay in master system to copy Windows OS quickly to blank hard drive as part of system building process
- Ideal for RAID applications (with RAID supported SATA controller)
Website Search Keyword - Hard Drive Bay
- Drive Bay
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + cords
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
Accessory Products - SATA18
- SATA24
- BRACKETFDBK

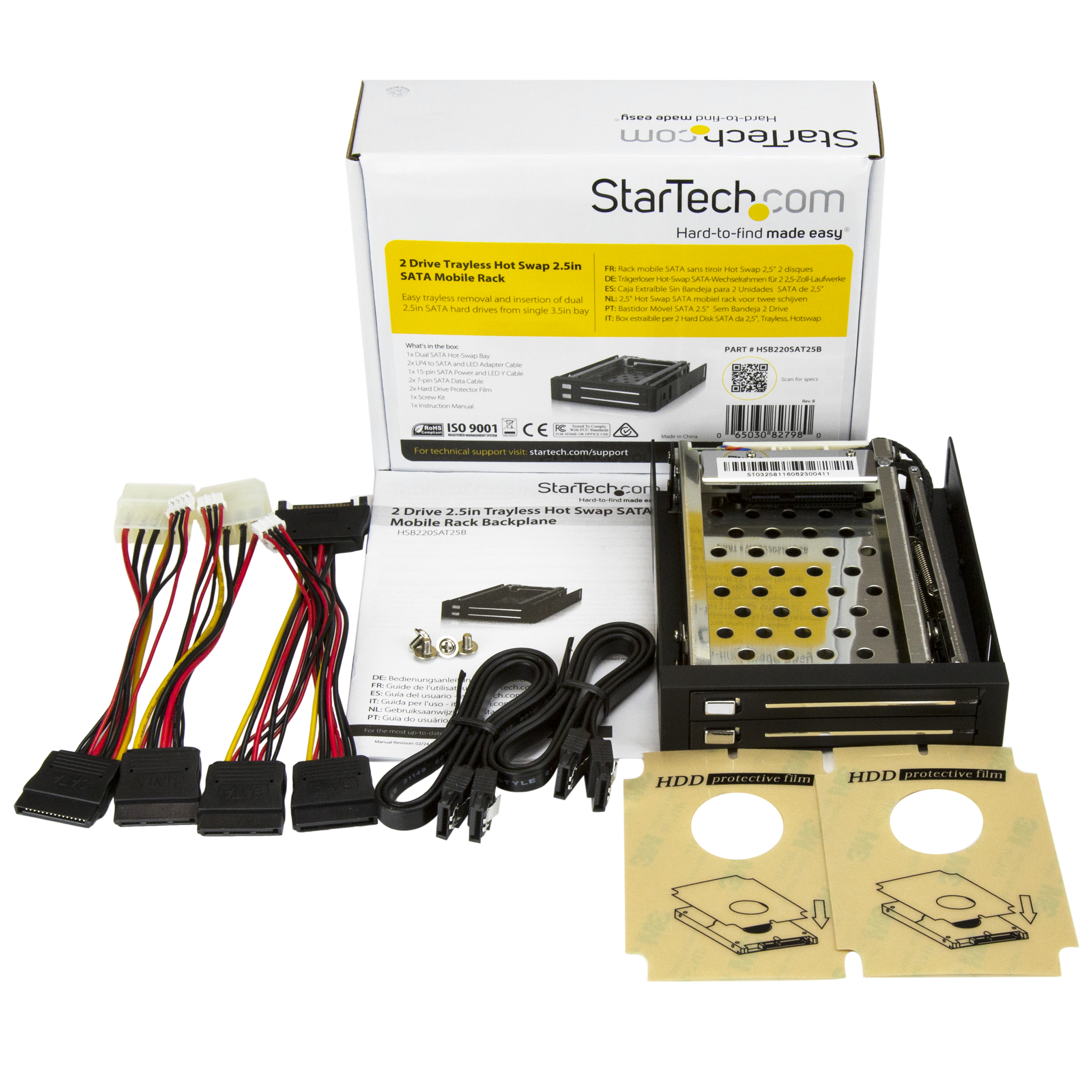

Related Products HSB225S3R Constrained SKU Alternatives (Limited Stock) HSB225S3R Color Black Material Aluminum Max Drive Height (mm) 9.5 Primary Material Aluminum Product Length (mm) 134.000 Product Width (mm) 102.000 Product Height (mm) 24.000 Product Weight (g) 286.000 TAA Compliant No Hot Swap Capability Yes Max Drive Capacity Tested up to 500GB per drive OS Compatibility OS Independent SATA Type and Rate SATA III (6 Gbps) Compatible Drive Types SATA Front Door Key Lock No LED Indicators 1 - Power/Drive Activity Number of Drives 2 Carton Depth (mm) 366 Carton Height (mm) 280 Carton Quantity 32 Carton Weight Gross (g) 16692 Included in Package - 1 - dual SATA hot-swap bay
- 1 - instruction manual
- 2 - LP4 to SATA and LED adapter cable
- 2 - 7-pin SATA data cable
- 1 - screw kit
- 2 - hard drive protector film
- 1 - 15-pin SATA power and LED Y cable
Included In Package for Label - 2 - Hard Drive Protector Film
- 1 - Dual SATA Hot-Swap Bay
- 1 - Manual
- 2 - LP4 To SATA Converter
- 2 - SATA Cable
- 1 - Screw Kit
- 1 - 15-Pin DC Y Cable
Package Depth (mm) 128 Package Height (mm) 52 Package Width (mm) 170 Package Quantity 1 Package Weight (g) 490 Packaging Description 2 Drive Trayless 2.5in SATA Mobile Rack Packaging Description India 2 Drive Trayless 2.5in SATA Mobile Rack Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (15-Pin) Connector 1 (Quantity) 2 Connector 2 SP4 / Floppy Power (4-Pin, 5V / 12V) Connector 2 (Quantity) 2 Connector 3 SATA (7-Pin) Connector 3 (Quantity) 2 Connector 4 SATA (7-Pin) Connector 4 (Quantity) 2 Connector 5 SATA (15-Pin) Connector 5 (Quantity) 2 Host Connector 1 SATA (7-Pin) Host Connector 1 (Quantity) 2 Host Connector 2 SATA (15-Pin) Host Connector 2 (Quantity) 2 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,HK,IE,IN,IT,JP,MX,NL,NZ,SE,SG,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream
