HSB225SATBK
SATA Mobile Rack for Dual 2.5in Hard Drives
Easily connect and swap two 2.5in SATA hard drives or SSDs through a single 3.5in front bay
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name SATA Mobile Rack for Dual 2.5in Hard Drives Product Number HSB225SATBK UPC 065030848466 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 Internal Storage Category Level 3 2.5" Drive Mobile Racks and Backplanes Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX073X Product Title (Ultra-Short) . Product Title (Short) 3.5 SATA Mobile Rack for Dual 2.5 HDD Product Title (Standard) 3.5in Trayless SATA Mobile Rack for Dual 2.5in Hard Drives Product Title (Long) 3.5in Trayless Hot Swap SATA Mobile Rack for Dual 2.5in Hard Drives Product Title (AMZ) 3.5in Trayless Hot Swap SATA Mobile Rack for Dual 2.5in Hard Drives - SATA Mobile Rack for 2.5in HDD (HSB225SATBK) Title Ingram (Part 1) 3.5in Trayless SATA Mobile Rack Title Ingram (Part 2) for Dual 2.5in HDD Website Product Headline Easily connect and swap two 2.5in SATA hard drives or SSDs through a single 3.5in front bay Bullet 1 Supports 2.5" form factor hard drives (HDD) and solid state drives (SSD) Bullet 2 Plug-and-Play and Hot-Swap compatible Bullet 3 Accepts up to two 2.5" SATA drives in a single 3.5" drive bay form factor Bullet 4 Lockable drive doors Bullet 5 Power/Activity LED indicators for each drive Bullets (Consolidated) Easily connect and swap two 2.5in SATA hard drives through a single 3.5in front bay - 2.5in Mobile Rack - 2.5" SATA Rack - 2.5 Hot Swap Bay - 2.5 SATA Backplane - 2.5 SATA Internal Enclosure - Storage Mobile Rack - Marketing Copy Applications - Maximizing the storage capacity of a computer, by enabling two 2.5" drives to be installed into a single 3.5" bay
- Mass system builds/deployment, where fast and efficient drive imaging is needed, with minimal downtime
- Regular testing or benchmarking of different hard drives
Website Search Keyword - Trayless
- Mobile Back Plane
- Drive Drawer
- 2.5in SATA Hard Drive
- 3.5in bay
- Floppy Bay
- Internal Enclosure
- SATA II
- SATA I
Required Regulatory Compliance Marks - CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
System and Cable Requirements - Available 3.5 inch front bay
- 2 x SATA data ports
- 1 x SATA power from system PSU
Accessory Products - LP4LSATAADAP
- SATA18POWRA
- PYO1LP4SATA
- PYO2LP4SATA
- SATAPOWADAP
- SATA18POW
- SATA24POW
- SATA18
- SATA24
- SATA36
- HDDCASE25BK
- HDDCASE25BL
- HDDCASE25GN
- HDDCASE25OR
- HDDCASE25WH
- HDDCASE25YW
Related Products - SATADOCK22UE
- SATADOCK525
- SATADOCKU2
- SATADOCKU2E
- SATDOCKCRH
- UNIDOCK2U
- SATDOCK22R
- SAT2510U2REM
- SATABAY425BK
- HSB220SAT25B
- HSB100SATBK

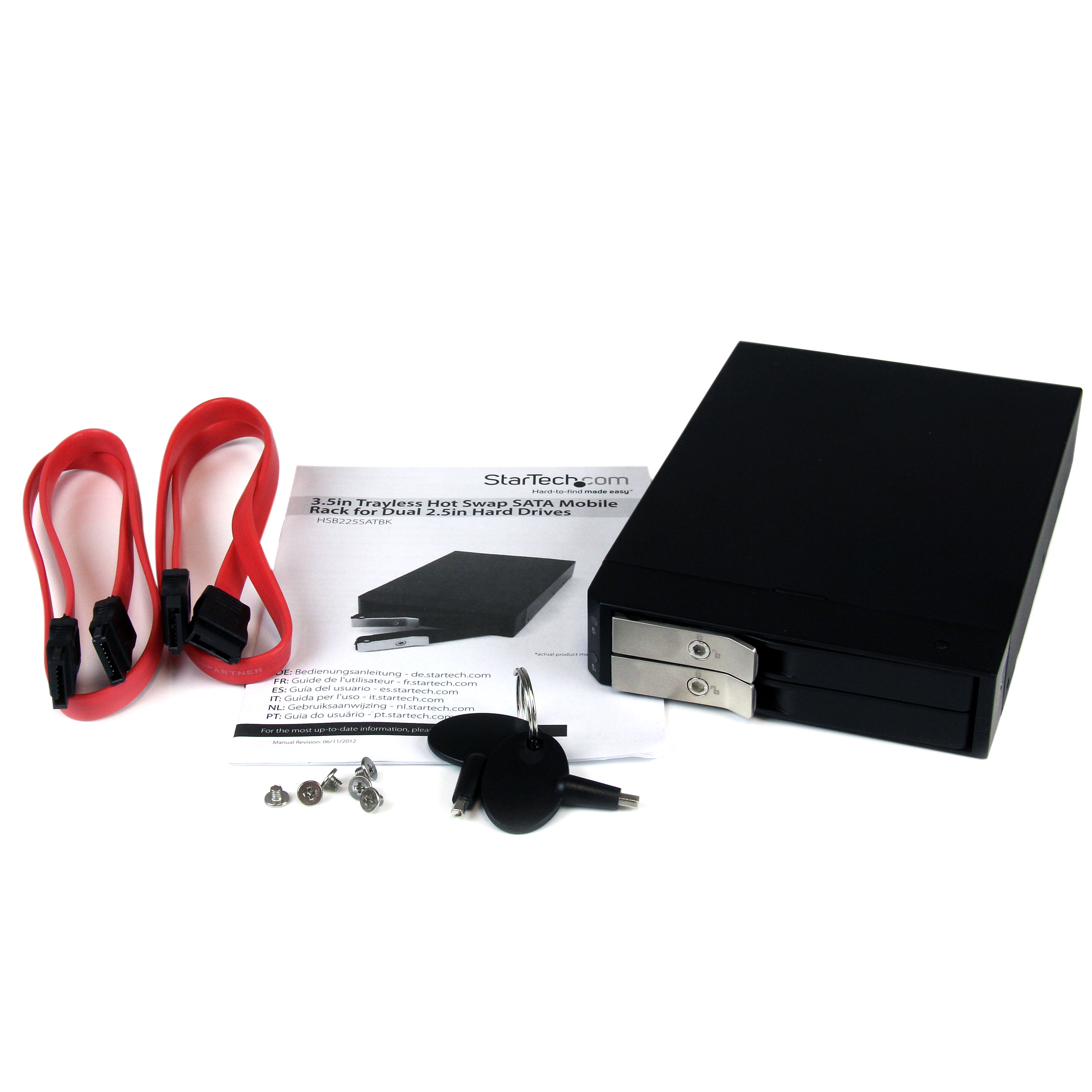

Replacement Product HSB220SAT25B Color Black Humidity 8~90% RH Material Steel and Plastic Max Drive Height (mm) 9.5 Operating Temperature 5°C to 70°C (41°F to 158°F) Product Length (mm) 150 Product Width (mm) 100 Product Height (mm) 25 Product Weight (g) 250 Storage Temperature -40°C to 80°C (-40°F to 176°F) TAA Compliant No Hot Swap Capability Yes Insertion Rating 15,000 Cycles OS Compatibility OS Independent Compatible Drive Types SATA Front Door Key Lock Yes LED Indicators 2 - Drive Power/Activity (Blue-Power, Red-Activity) Number of Drives 2 Regulatory Approvals UL94 V-0 Rated Plastic Carton Depth (mm) 185 Carton Height (mm) 320 Carton Quantity 20 Carton Weight Gross (g) 8100 Included in Package - 1 - Dual 2.5in Mobile Rack
- 1 - Instruction Manual
- 2 - Keys
- 2 - SATA data cables
- 1 - Screw Kit

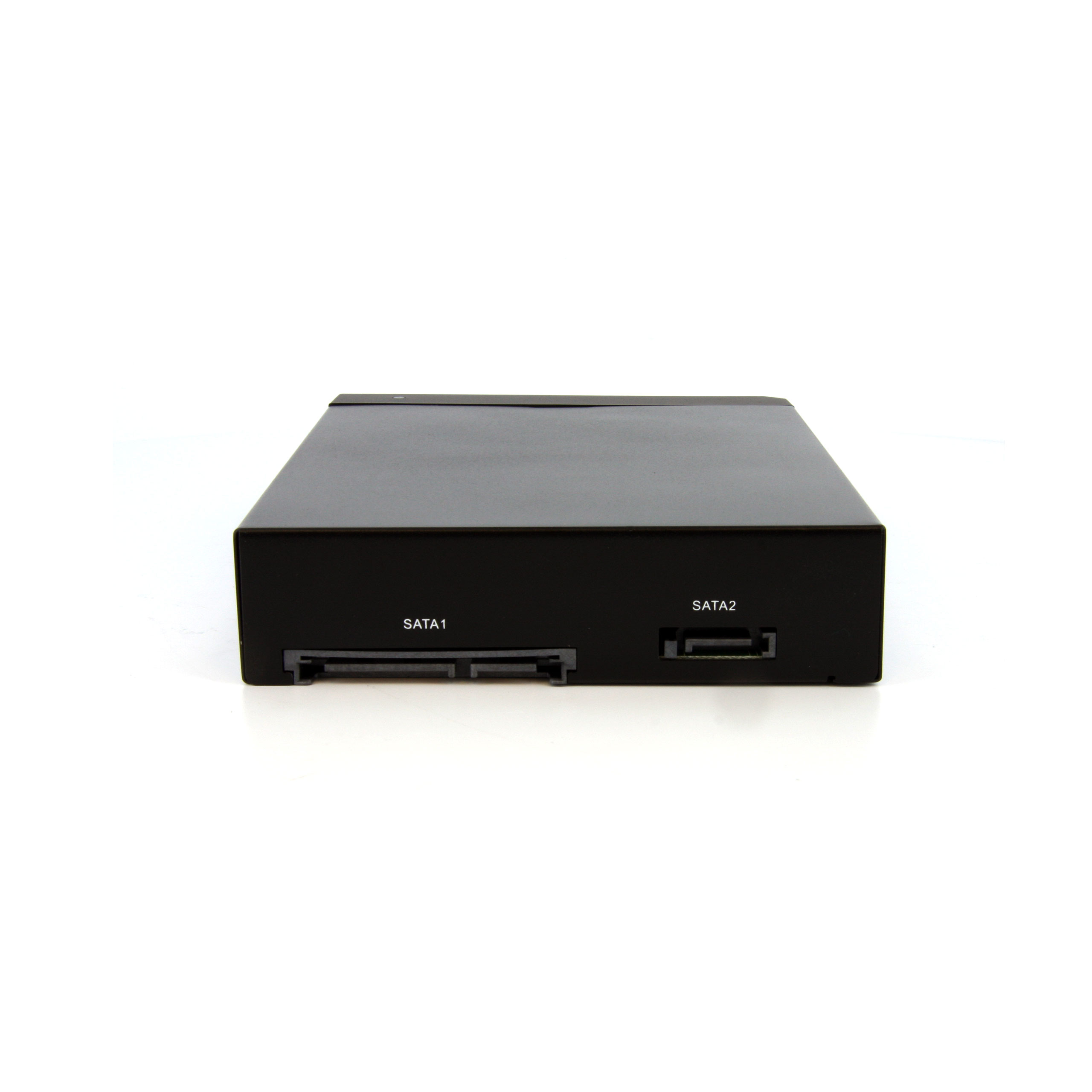

Package Depth (mm) 165 Package Height (mm) 36 Package Width (mm) 140 Package Quantity 1 Package Weight (g) 344 Packaging Description Trayless SATA Mobile Rack for 2x 2.5 HDD Packaging Description India Trayless SATA Mobile Rack for 2x 2.5 HDD Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 2 Host Connector 1 SATA (7-Pin) Host Connector 1 (Quantity) 1 Host Connector 2 SATA (7-Pin + 15-Pin) Host Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2013-08-21 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AU,CA,EU,NZ,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Legacy
