HSB2535SATBK
2 Drive Trayless Storage / Mobile Hot Swap Rack
Easily connect and hot swap dual 2.5” and 3.5” SATA/SAS hard drives from a 5.25” bay
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 2 Drive Trayless Storage / Mobile Hot Swap Rack Product Number HSB2535SATBK UPC 065030853668 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 Internal Storage Category Level 3 3.5" Drive Mobile Racks and Backplanes Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX073X Product Title (Ultra-Short) Trayless Mobile Rack Product Title (Short) Dual Bay 5.25" Trayless Mobile Rack Product Title (Standard) Dual Bay 5.25" Trayless Hot Swap Mobile Rack Backplane for 2.5" and 3.5" SATA/SAS HDD or SSD with Fan Product Title (Long) Dual Bay 5.25" Trayless Hot Swap Mobile Rack Backplane for 2.5" and 3.5" SATA/SAS HDD or SSD with Fan Product Title (AMZ) Dual Bay 5.25" Trayless Hot Swap Mobile Rack Backplane for 2.5" and 3.5" SATA/SAS HDD or SSD with Fan (HSB2535SATBK) Title Ingram (Part 1) 2 Drive Trayless Storage / Title Ingram (Part 2) Mobile Hot Swap Rack Website Product Headline Easily connect and hot swap dual 2.5” and 3.5” SATA/SAS hard drives from a 5.25” bay Bullet 1 Individual 2.5" and 3.5" drive trays Bullet 2 Trayless design for hot swap support Bullet 3 Solid aluminum construction Bullet 4 Support for SATA revision I/II/III (1.5/3.0/6.0 Gbps) Bullet 5 Power and Activity LEDs for each drive Bullets (Consolidated) Storage bay adapter - SATA 6Gb/s/SAS 6Gb/s Marketing Copy Applications - Imaging - For System Builders or configuring new systems - Use Hot Swap Bay in master system to copy Windows OS quickly to multiple blank hard drives as part of system building process
- IT environments where you need to quickly insert/replace hard drives with no external HDD enclosure required
- Add a hot-swap bay to a server or workstation computer, for a removable backup solution
- Create a hybrid storage solution with a solid state drive for speed, and a standard hard drive for larger storage capacity like hyperduo
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
Accessory Products - LSATA18RA1
- LSATARND18
- LSATA18RA2
- SATAPOWADAP
- PYO4SATA
- LSATA18
- PYO2SATA
Related Products - SATSASBAY3BK
- HSB220SAT25B
- HSB100SATBK
- HSB430SATBK
- HSB320SATBK
- SATADOCK525
- HSB225SATBK
- SATSAS425BK
- SATSAS225ODD
- SATSASBAY425
- SATDOCK2520
- LSATA24RA2
- LSATA24
- LSATARND12
- LSATARND24
- LSATA12
- LSATA12RA1
- LSATA12RA2
- LSATA24RA1
Humidity 20%RH ~ 80%RH Operating Temperature -5°C to 35°C (23°F to 95°F) Product Length (mm) 148.000 Product Width (mm) 182.600 Product Height (mm) 42.000 Product Weight (g) 528.000 Storage Temperature -20°C to 50°C (-4°F to 122°F) TAA Compliant No Insertion Rating 10,000 Max Drive Capacity Maximum Data Transfer Rate 6 Gbit/s OS Compatibility OS Independent SATA Type and Rate SATA III (6 Gbps) Compatible Drive Types SAS & SATA Fan Bearing Type Ball Bearing Fans 1 - 50 mm Fans Included? Yes/No Yes Front Door Key Lock Yes Interface/Bridge SATA LED Indicators - 1 - 2.5" HDD/SSD Activity LED
- 1 - 3.5" HDD Activity LED

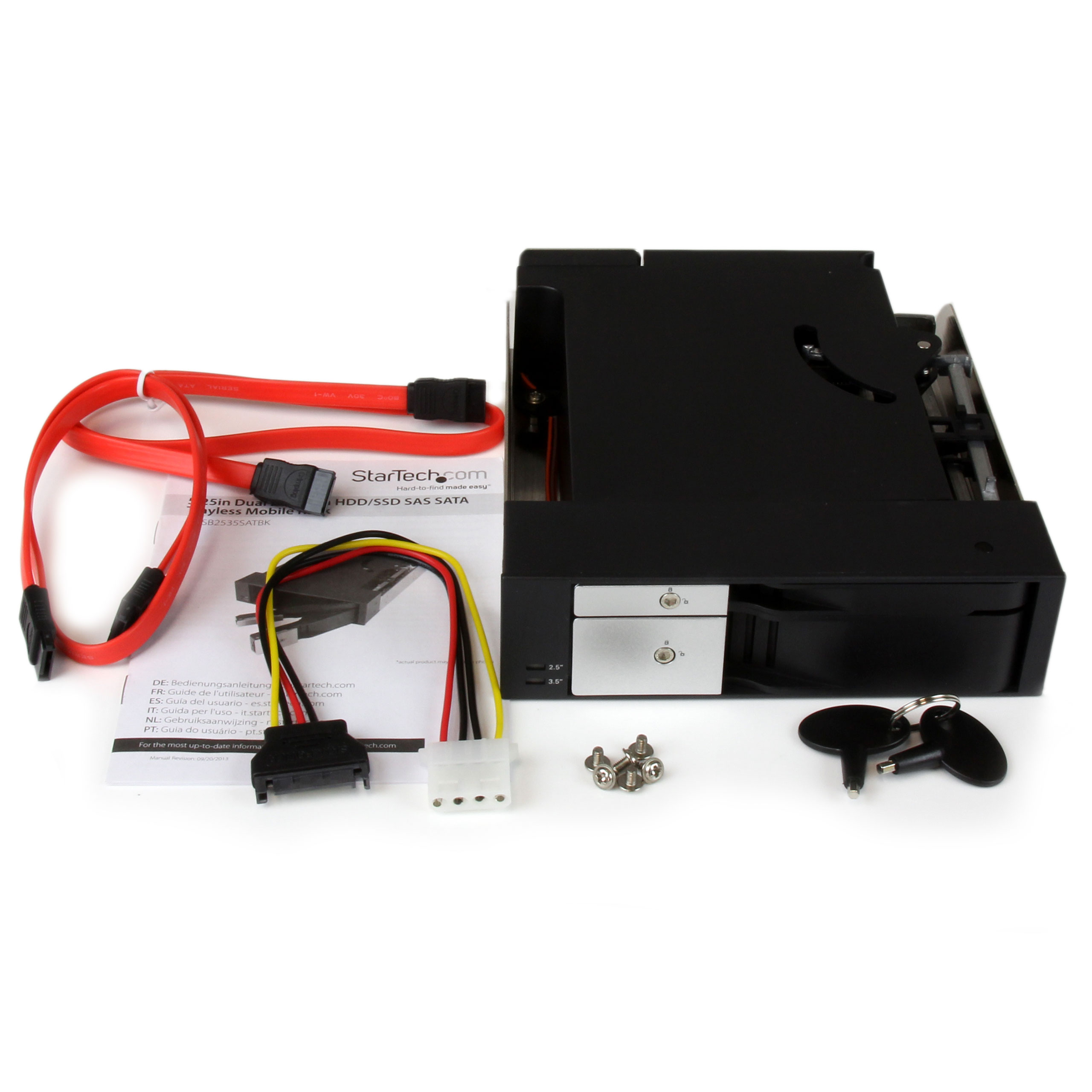

Number of Drives 2 Carton Depth (mm) 315 Carton Height (mm) 412 Carton Quantity 20 Carton Weight Gross (g) 15780 Included in Package - 1 - 2.5/3.5in SATA HDD Backplane
- 2 - 18" SATA Cable
- 2 - Bay Key
- 1 - Instruction Manual
- 1 - Installation Screw kit
- 1 - LP4 to SATA Power Adapter Cable

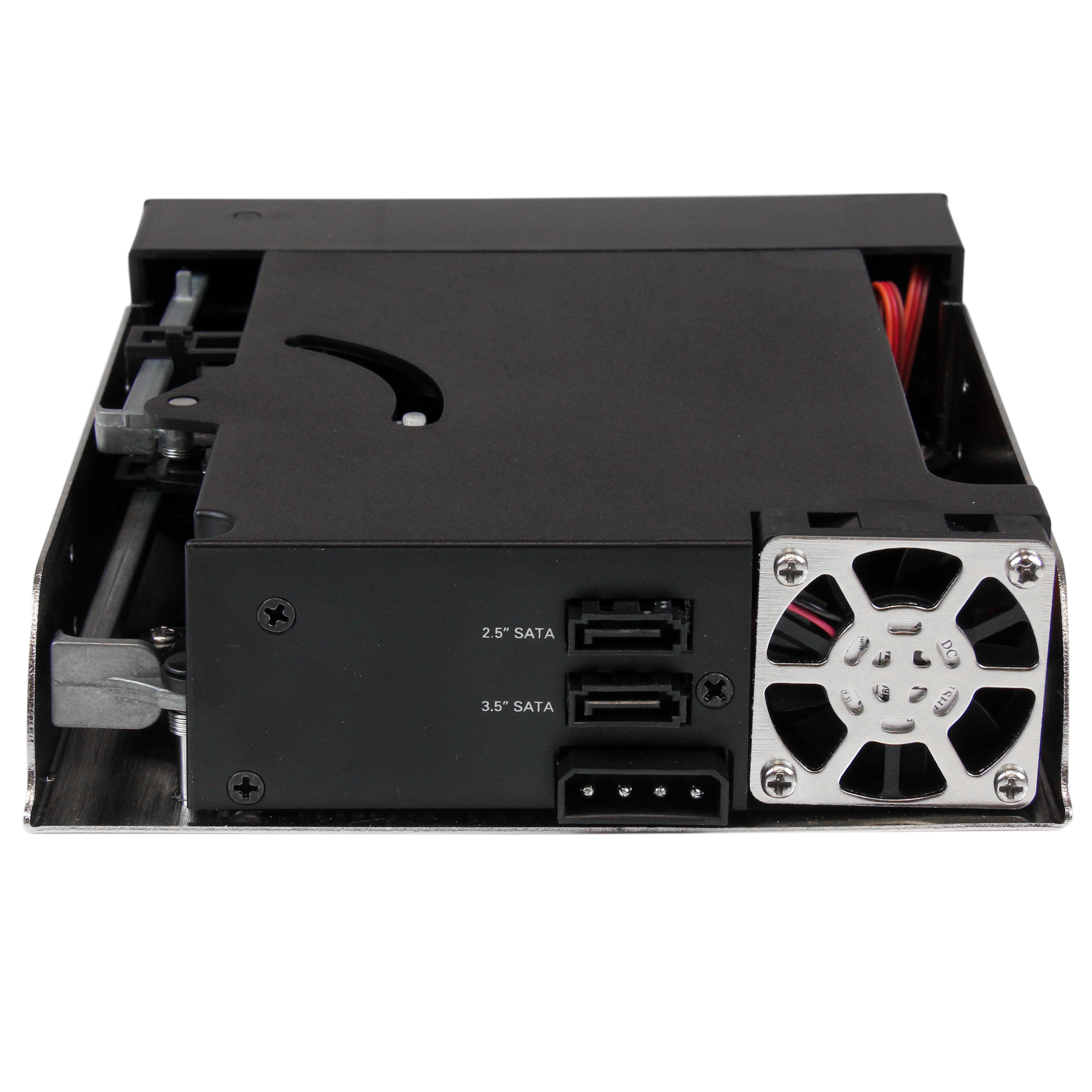

Package Depth (mm) 220 Package Height (mm) 54 Package Width (mm) 174 Package Quantity 1 Package Weight (g) 693 Packaging Description 5.25in Dual 2.5/3.5in HDD/SSD SAS SATA Trayless Mobile Rack Packaging Description India 5.25in Dual 2.5/3.5in HDD/SSD SAS SATA Trayless Mobile Rack Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SFF-8482 (29-Pin, SAS) Connector 1 (Quantity) 2 Host Connector 1 SATA (7-Pin) Host Connector 1 (Quantity) 2 Host Connector 2 LP4 / Molex Power (4-Pin, 5V / 12V) Host Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2013-09-06 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AU,CA,CL,EU,NZ,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle None
