HSB320SATBK
3 Drive Tray-Less SATA Hot-Swap Enclosure
Hot swap up to three 3.5in SATA hard drives in seconds
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name 3 Drive Tray-Less SATA Hot-Swap Enclosure Product Number HSB320SATBK UPC 065030821711 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX088X Product Title (Short) 3 Drive 3.5in Trayless SATA Mobile Rack Product Title (Standard) StarTech.com 3 Drive 3.5in Trayless SATA Mobile Rack Product Title (Long) 3 Drive 3.5in Trayless Hot Swap SATA Mobile Rack Backplane Title Ingram (Part 1) 3 Drive 3.5in Trayless Hot Swap Title Ingram (Part 2) SATA Mobile Rack Backplane Website Product Headline Hot swap up to three 3.5in SATA hard drives in seconds Bullet 1 Holds up to three SATA drives across two 5.25" bays Bullet 2 Trayless design: drives are not mounted into separate trays/enclosures Bullet 3 Internal rubber shock absorbers Bullet 4 Solid aluminum construction Bullet 5 10,000+ insertion rating Marketing Copy Applications - Imaging - For System Builders or configuring new systems - Use Hot Swap Bay in master system to copy Windows OS quickly to multiple blank hard drives as part of system building process
- IT environments where just need to quickly insert/replace removable hard drive - no protection required for mobility reasons for hard drive
- Serial ATA servers and storage subsystems
- High-end workstations
- Serial ATA Drive Arrays
- Network Attached Storage
- Enterprises replacing IDE/Parallel ATA hard drives with SATA hard drives
Website Search Keyword - SATA hard drive bay
- os imaging
- 3 drive removable drive enclosure
- removable storage
- sata
- 2 Terabyte TB hard drive
- trayless tray-less hot swap
Related Products - HSB430SATBK
- HSB100SATBK
- SATABAY3BK
Replacement Product HSB3SATSASBA Color Black Humidity Material Aluminum and Plastic Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 194 Product Width (mm) 146 Product Height (mm) 85 Product Weight (g) 1100 Storage Temperature 0°C to 50°C (32°F to 122°F) TAA Compliant No Hot Swap Capability Yes Insertion Rating 10, 000+ Cycles Noise Level 24 dBA OS Compatibility OS Independent Compatible Drive Types SATA Fans 2 - 40 mm LED Indicators - 3 - Drive Power
- 3 - Drive Activity

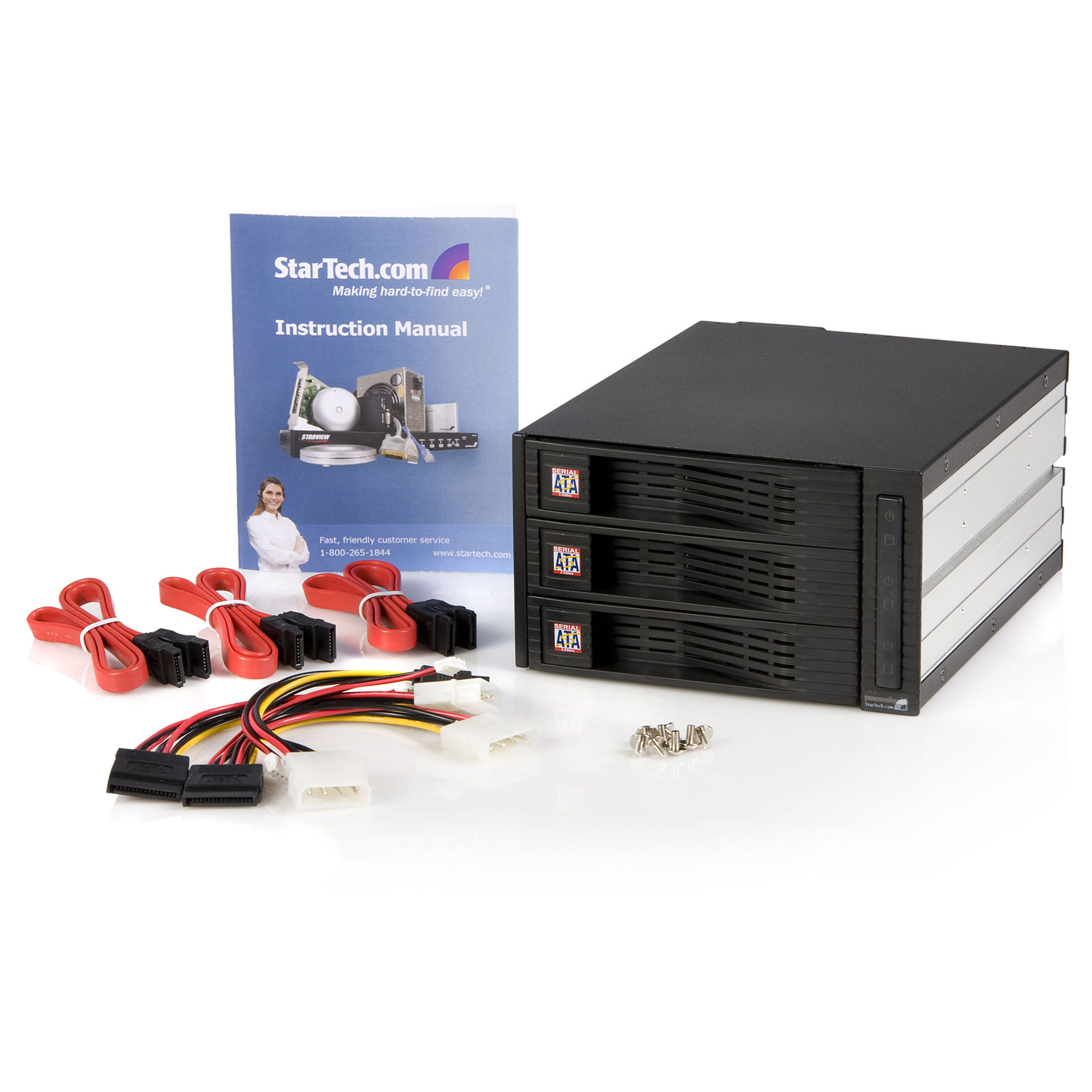

Number of Drives 3 Carton Depth (mm) 555 Carton Height (mm) 320 Carton Quantity 8 Carton Weight Gross (g) 14160 Included in Package - 1 - 5.25" Tray-Less SATA Hot-Swap Bay
- 1 - Instruction Manual
- 1 - Screw kit
- 3 - SATA cable
- 3 - SATA to LP4 Molex + LED Cable
Package Depth (mm) 143 Package Height (mm) 218 Package Width (mm) 268 Package Weight (g) 1620 Packaging Description 3 Drive Trayless 3.5in SATA Mobile Rack Packaging Description India 3 Drive Trayless 3.5in SATA Mobile Rack Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin) Connector 1 (Quantity) 3 Connector 2 SATA (15-Pin) Connector 2 (Quantity) 3 Host Connector 1 SATA (7-Pin) Host Connector 1 (Quantity) 3 Host Connector 2 SATA (15-Pin) Host Connector 2 (Quantity) 3 en-US Content Approved Yes Product Manager David Muzinic
