HSB3SATSASBA

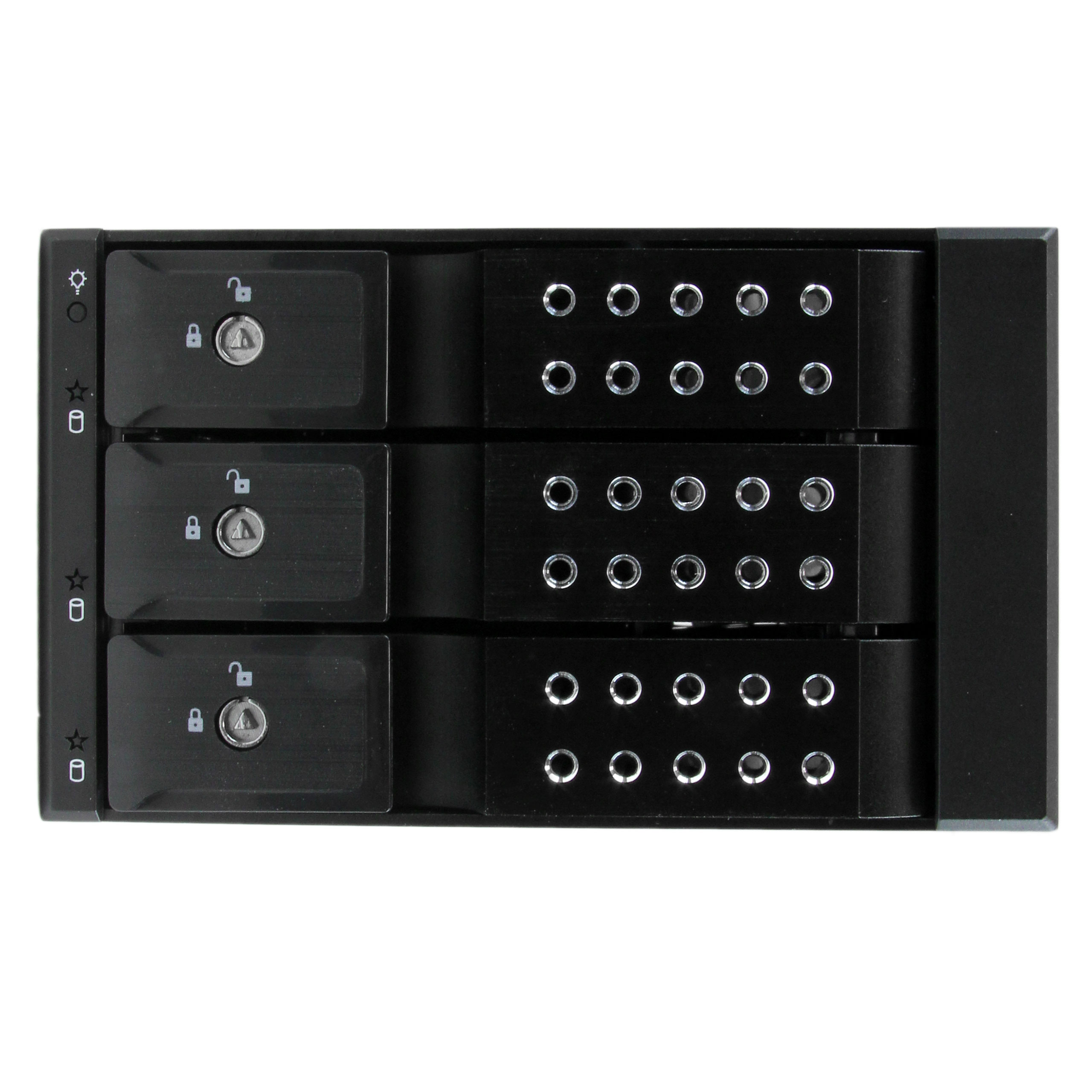

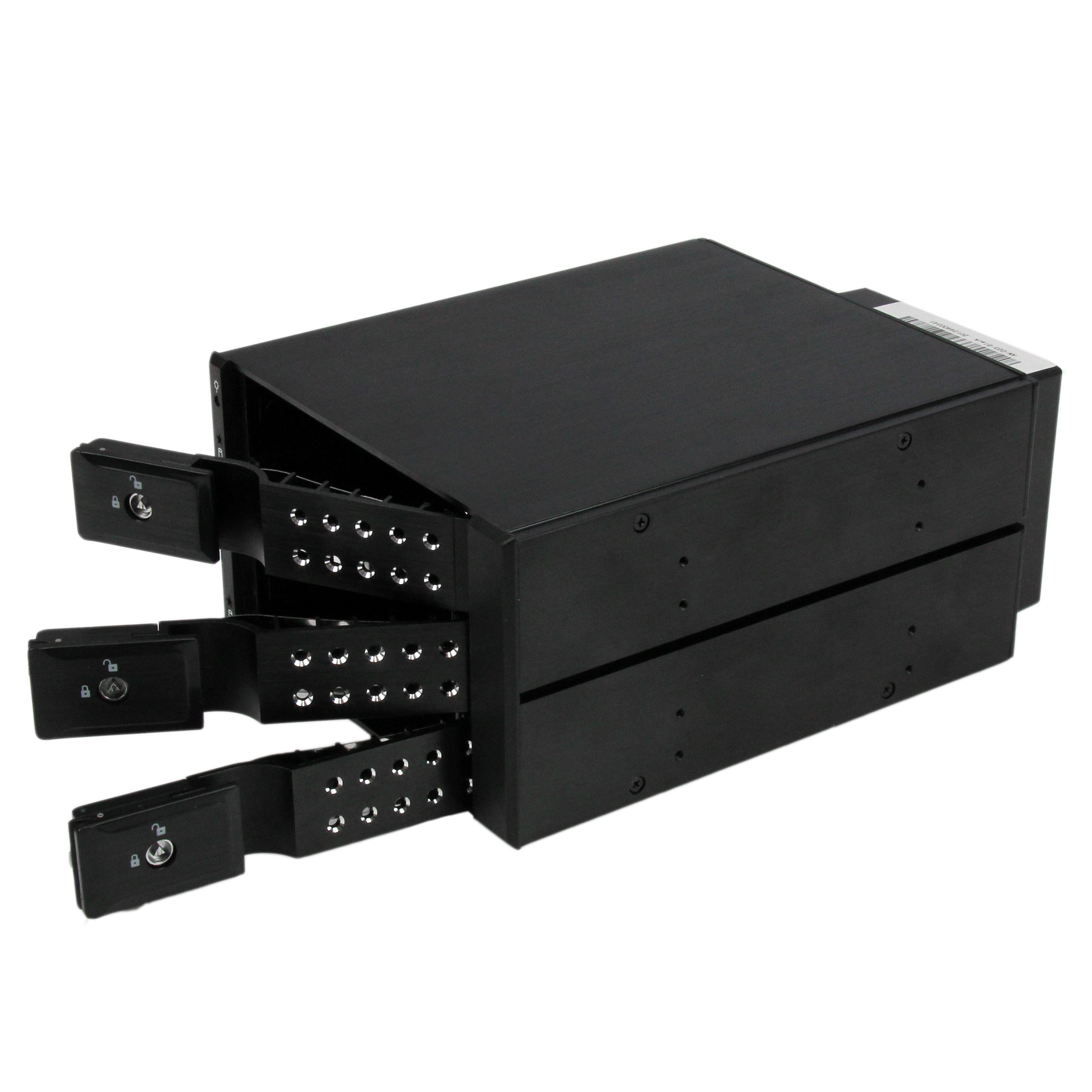

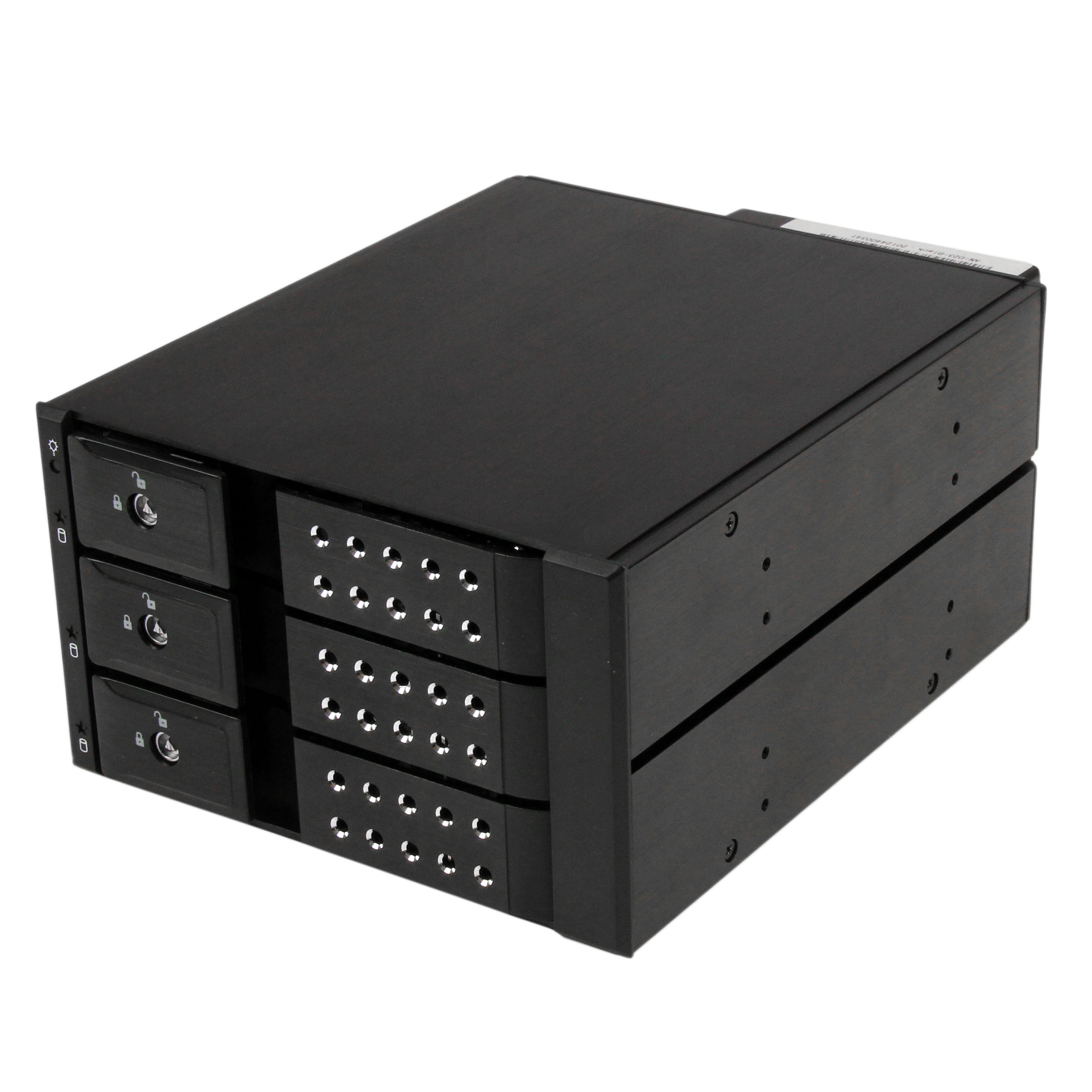

3 Bay 3 5 SATA SAS Trayless Mobile Rack Backplane
Easily connect and hot swap up to three 3.5” SATA/SAS hard drives from two 5.25” bays
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name 3 Bay 3 5 SATA SAS Trayless Mobile Rack Backplane Product Number HSB3SATSASBA UPC 065030855297 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > Network Cards & Adapters Category Level 1 Data Storage Category Level 2 Internal Storage Category Level 3 3.5" Drive Mobile Racks and Backplanes Family 3.5" SATA/SAS Drive Backplane Country of Origin Europe & Japan China Country of Origin North America China Product Title (Ultra-Short) 3 Bay Backplane Product Title (Short) 3 Bay Hot Swap Mobile Rack Backplane Product Title (Medium) x Product Title (Standard) 3 Bay Aluminum Trayless Hot Swap Mobile Rack Backplane for 3.5in SAS II/SATA III - 6 Gbps HDD Product Title (Long) 3 Bay Aluminum Trayless Hot Swap Mobile Rack Backplane for 3.5in SAS II/SATA III - 6 Gbps HDD Product Title (AMZ) 3-Bay Hot Swap Backplane for 3.5in SAS II/SATA III - 6 Gbps HDD - Aluminum Trayless Mobile Rack Backplane (HSB3SATSASBA) Title Ingram (Part 1) 3 Bay 3.5in SATA / SAS HDD Title Ingram (Part 2) Trayless Mobile Rack Backplane Website Product Headline Easily connect and hot swap up to three 3.5” SATA/SAS hard drives from two 5.25” bays Bullet 1 INCREASED PRODUCTIVITY: The 3-drive hot swap backplane lets you turn two 5.25in bays into a hot-swappable interface for you to connect up to three 3.5in SATA or SAS hard drives (HDD) Bullet 2 MAXIMUM COMPATIBILITY: For added versatility, the hard mobile rack backplane can interface with SATA I/II/III and SAS I/II hard drives; An ideal accommodation for enterprise system applications; Power and status LEDs for each bay Bullet 3 MAINTAIN OPTIMAL TEMPERATURE: To help prevent drive failure, the 3-drive hot swap backplane features a vented solid aluminum enclosure that provides excellent heat dissipation in addition to a built-in fan with speed control; UL VO flammability rated Bullet 4 THE IT PRO'S CHOICE: Designed and built for IT professionals, this 3-Bay hard drive backplane is backed for 2 years, including free lifetime 24/5 multi-lingual technical assistance Bullet 5 QUICK SETUP: For a quick and secure method of installing and removing drives, this trayless SATA hot swap backplane features individual ejection levers for each bay with a key-lock design for optional added security (includes two keys) Bullets (Consolidated) Storage mobile rack - 2.5" - black Marketing Copy Marketing Copy (No HTML) The removable 3-drive hot swap blackplane lets you quickly install and hot-swap 3.5" drives from the front of your computer, by turning two 5.25" bays into a hot-swappable interface for you to connect up to three 3.5" SATA or SAS hard drives (HDD). For added versatility, the mobile rack backplane can interface with SATA I/II/III and SAS I/II hard drives -- an ideal accommodation for enterprise system applications. For a quick and secure method of installing and removing drives, the SATA hot swap backplane features ejection levers and a key-lock design. To help prevent drive failure, the hot swap blackplane provides excellent heat dissipation with a built-in fan, and a vented solid aluminum enclosure. The removable 3-drive mobile rack backplane is backed by a StarTech.com 2-year warranty and free lifetime technical support. Applications - Imaging - for new system builds or configurations, use the hot swap bay in your master system to quickly copy the Windows OS to multiple blank hard drives
- Add a hot-swap bay to a server or workstation computer that you can use as a removable backup solution
- IT environments where you need to quickly insert/replace hard drives with no external HDD enclosure required
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + cords
Accessory Products - LSATA18RA1
- LSATARND18
- LSATA18RA2
- LSATA18
- LSATA12
- LP4LSATAADAP
- PYO2LSATA
- PYO2LP4LSATR
- PYO2LP4LSATA
- PYO2LP4SATA
- SATAPOWADAP
- SATAPOWADAPR
- LSATA8
- LSATARND12
- LSATARND24
- LSATARND6
- LSATA24
Related Products - SATSASBAY3BK
- HSB220SAT25B
- HSB100SATBK
- HSB430SATBK
- HSB320SATBK
- SATADOCK525
- HSB225SATBK
- SATSAS425BK
- SATSAS225ODD
- SATDOCK2520
Color Black Humidity 5%~85% RH Material Aluminum Operating Temperature 0°C to 55°C (23°F to 95°F) Primary Material Aluminum Product Length (mm) 194.000 Product Width (mm) 146.000 Product Height (mm) 85.000 Product Weight (g) 865.000 Storage Temperature -20°C to 60°C (-4°F to 122°F) TAA Compliant No General Specifications Max Drive Capacity Currently tested with up to 4TB 7200 RPM hard drives Maximum Data Transfer Rate 6 Gbit/s OS Compatibility OS Independent SATA Type and Rate SATA III (6 Gbps) Compatible Drive Types SAS & SATA Fan Bearing Type Sleeve Bearing Fans 1 - 70 mm Fans Included? Yes/No Yes Front Door Key Lock Yes Interface/Bridge SATA LED Indicators - 1 - Drive 1 Activity LED
- 1 - Drive 2 Activity LED
- 1 - Drive 3 Activity LED
- 1 - Power LED

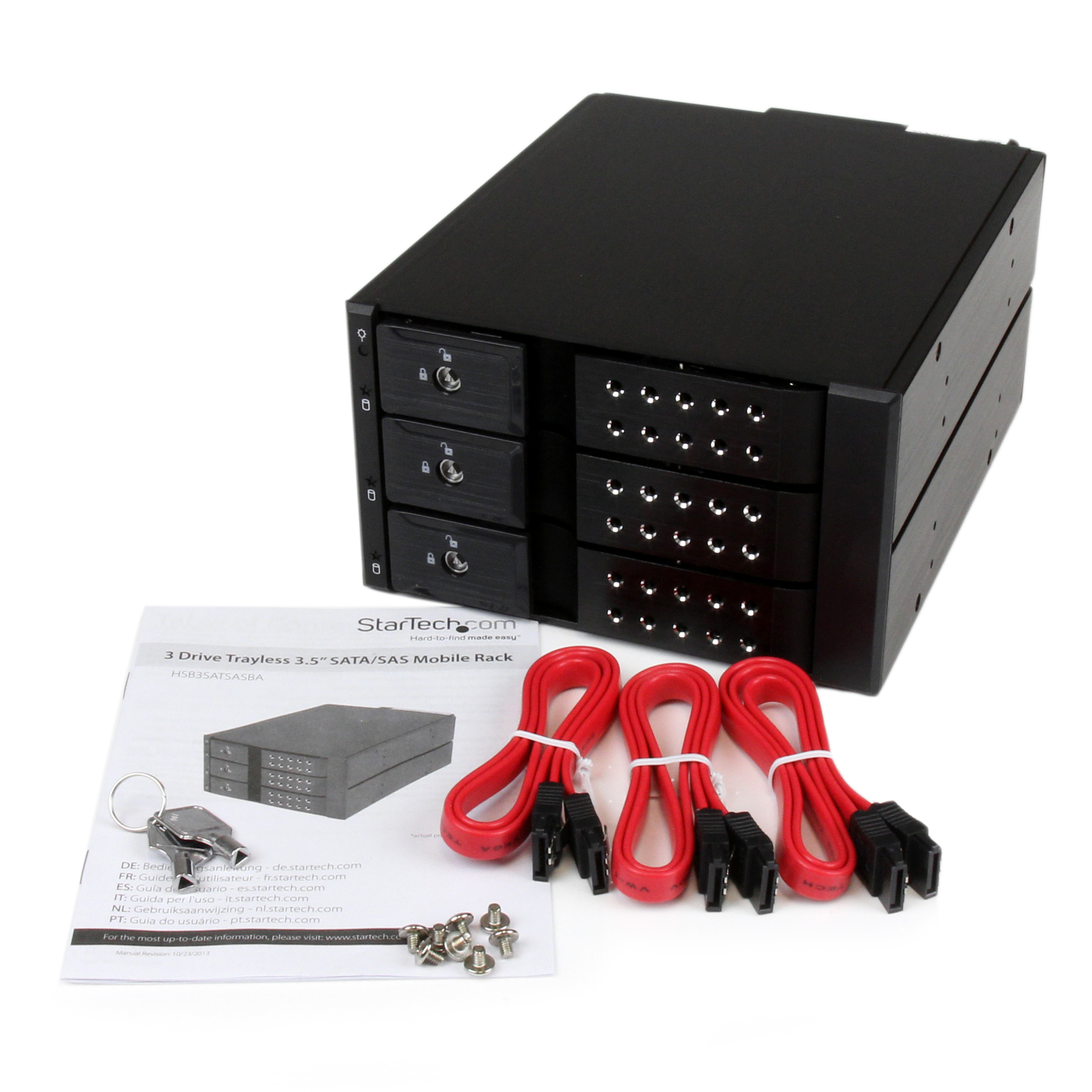

Number of Drives 3 Carton Depth (mm) 541 Carton Height (mm) 287 Carton Quantity 8 Carton Weight Gross (g) 9806 Included in Package - 1 - 3 SATA HDD Backplane
- 3 - 18" SATA Cable
- 2 - Bay Key
- 1 - Instruction Manual
- 1 - Installation screw kit
Included In Package for Label - 1 - Installation Screw Kit
- 1 - Instruction Manual
- 2 - Bay Key
- 3 - 18" SATA Cable
- 1 - 3 SATA Hdd Backplane

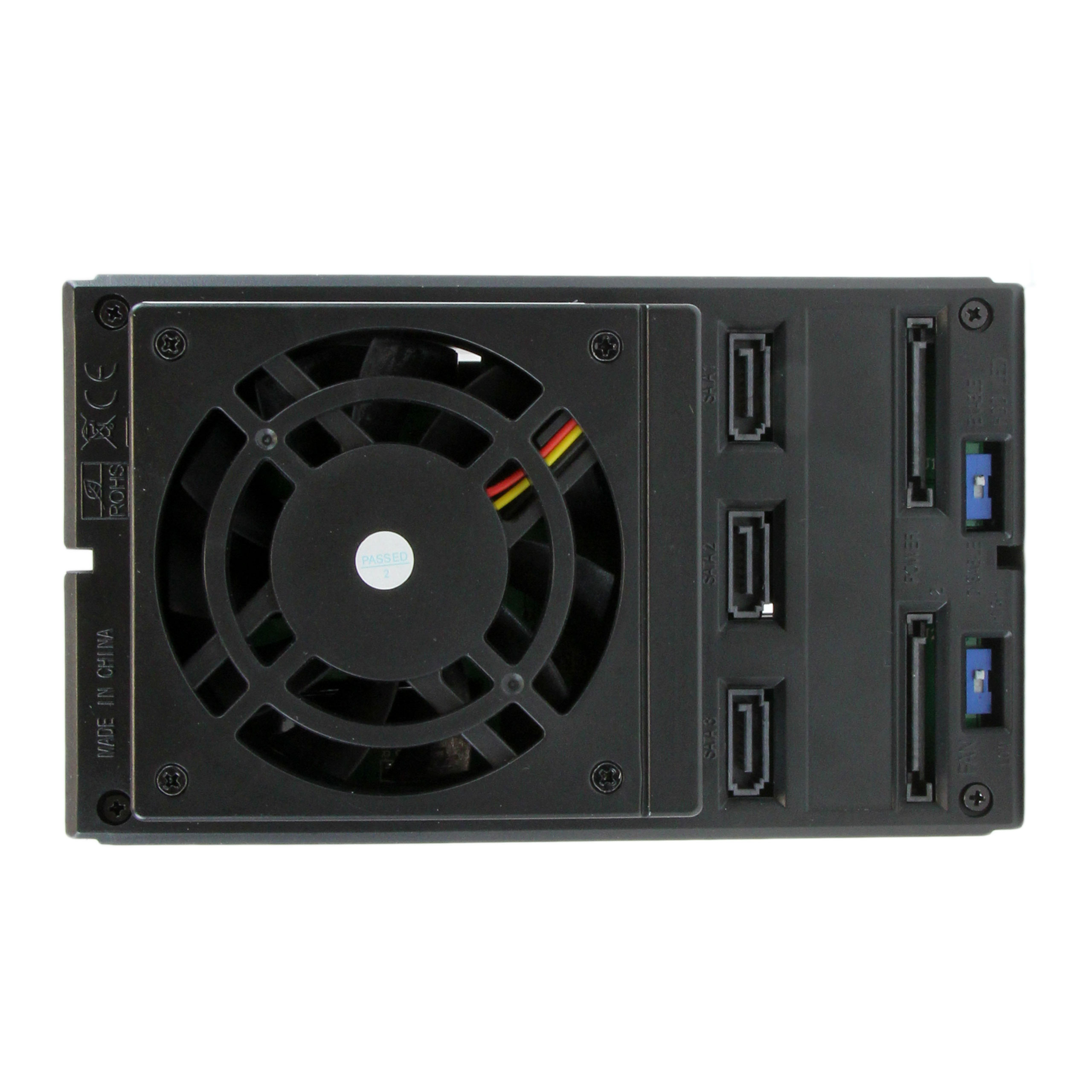

Package Depth (mm) 253 Package Height (mm) 126 Package Width (mm) 184 Package Quantity 1 Package Weight (g) 1082 Packaging Description 3 Drive Trayless 3.5” SATA/SAS Mobile Rack Packaging Description India 3 Drive Trayless 3.5” SATA/SAS Mobile Rack Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SFF-8482 (29-Pin, SAS) Connector 1 (Quantity) 3 Host Connector 1 SATA (7-Pin) Host Connector 1 (Quantity) 3 Host Connector 2 SATA (15-Pin) Host Connector 2 (Quantity) 2 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2013-11-12 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,DE,DK,ES,EU,FR,HK,IE,IN,IT,JP,NL,NZ,SE,SG,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream Vending Machine Not Compatible with Vending Machine
