HSB430SATBK
4 Drive Tray-Less SATA Hot-Swap Enclosure
Hot swap up to four 3.5in SATA hard drives in seconds
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 4 Drive Tray-Less SATA Hot-Swap Enclosure Product Number HSB430SATBK UPC 065030822312 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 Internal Storage Category Level 3 3.5" Drive Mobile Racks and Backplanes Country of Origin Europe & Japan China Country of Origin North America China Product Title (Short) 4 Drive 3.5in Trayless SATA Mobile Rack Product Title (Medium) x Product Title (Standard) StarTech.com 4 Drive 3.5in Trayless SATA Mobile Rack Product Title (Long) 4 Drive 3.5in Trayless Hot Swap SATA Mobile Rack Backplane Product Title (AMZ) 3.5in Trayless Hot Swap SATA Mobile Rack Backplane - 4 Drive Removable Drive Enclosure (HSB430SATBK) Title Ingram (Part 1) 4 Drive 3.5in Trayless Hot Swap Title Ingram (Part 2) SATA Mobile Rack Backplane Website Product Headline Hot swap up to four 3.5in SATA hard drives in seconds Bullet 1 Holds up to four SATA drives across three 5.25" bays Bullet 2 Trayless design: drives are not mounted into separate trays/enclosures Bullet 3 Internal rubber shock absorbers Bullet 4 Solid aluminum construction Bullet 5 10,000+ insertion rating Bullets (Consolidated) Storage drive cage - 3.5" - black - for P/N: PEXSAT34RH Marketing Copy Marketing Copy (No HTML) Hot swap up to four 3.5in SATA hard drives in seconds - This 4 Bay SATA Mobile Rack lets you swap between 3.5in Serial ATA (SATA, SATA II, SATA III-6Gbps) hard drives in seconds. A time saving storage solution, the mobile rack offers four trayless SATA hard drive bays, allowing you to hot swap Serial ATA hard drives but avoid having to mount the drives to trays for deployment or unfasten them for replacement. To maximize performance and utilize the full speed potential of your SATA III hard drives, this HDD Backplane supports SATA III for transfer speeds up to 6 Gbps when paired with compatible controller. Supporting up to four hard drives, the mobile SATA hot swap rack only takes up three 5.25in drive bays inside a host computer - maximizing space-efficiency within the computer. The mobile rack/backplane is fully compatible with RAID installations to ensure maximum performance and versatility for enhanced storage applications. Using Terabyte hard drives? Don't expose your Hard Drive and valuable data to unnecessary heat! The HSB430SATBK has two built-in 40mm fans that re-distribute the heat build-up generated as a result of typical drive operation. This feature is especially important for larger volume storage drives, and faster "spinning" drives (i.e 7200 RPM), as it can help optimize drive operability and in turn preserve stored data integrity. Compatible with: This HDD Backplane supports SATA III for transfer speeds up to 6 Gbps when paired with a compatible controller. Applications - Add additional hot-swap bays to a server or workstation computer
- Replace or upgrade old IDE backplane with a SATA backplane
- System builders who need to image many drives simultaneously and quickly
- Environments where drives need to be replaced/removed regularly, without external protection for the drives required after removal
- Be able to replace/remove individual drives from a storage array with minimal or no system down time
Website Search Keyword - os imaging
- 4 drive removable drive enclosure
- removable storage
- sata
- SATA hard drive bay
- 2 Terabyte TB hard drive
- trayless tray-less hot swap
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Related Products - HSB100SATBK
- HSB320SATBK
- SATABAY4BK
Color Black Humidity Material Aluminum and Plastic Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 194.000 Product Width (mm) 146.000 Product Height (mm) 126.000 Product Weight (g) 1426.000 Storage Temperature 0°C to 50°C (32°F to 122°F) TAA Compliant No Hot Swap Capability Yes Insertion Rating 10, 000+ Cycles Noise Level 24 dBA OS Compatibility OS Independent Compatible Drive Types SATA Fans 2 - 40 mm Fans Included? Yes/No Yes LED Indicators - 4 - Drive Power
- 4 - Drive Activity

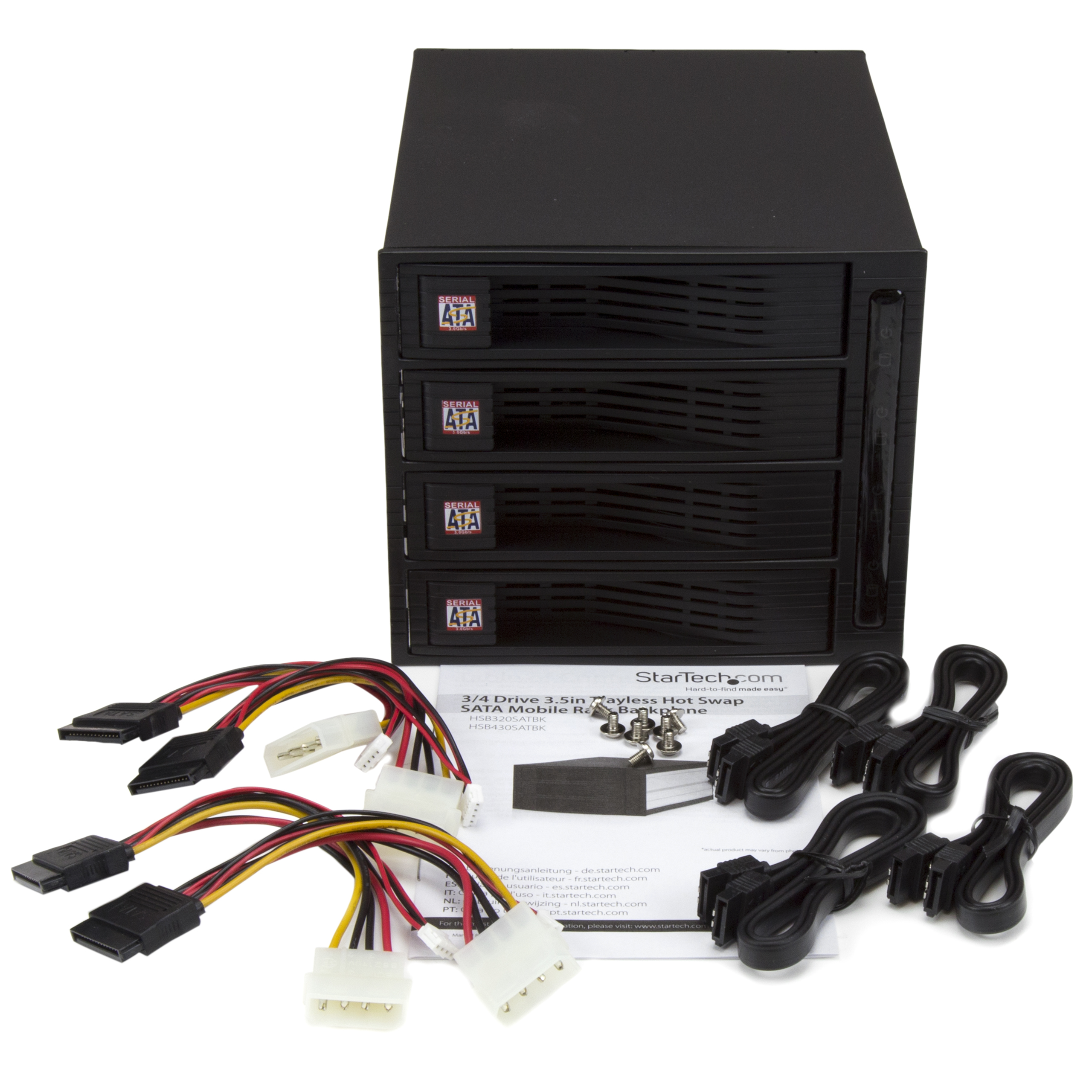

Number of Drives 4 Carton Depth (mm) 555 Carton Height (mm) 320 Carton Quantity 4 Carton Weight Gross (g) 9440 Included in Package - 1 - 5.25" Tray-Less SATA Hot-Swap Bay
- 1 - Instruction Manual
- 1 - Screw kit
- 4 - SATA cable
- 4 - SATA to LP4 Molex + LED Cable
Package Depth (mm) 182 Package Height (mm) 218 Package Width (mm) 270 Package Quantity 1 Package Weight (g) 1426 Packaging Description 4 Drive Trayless 3.5in SATA Mobile Rack Packaging Description India 4 Drive Trayless 3.5in SATA Mobile Rack Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin) Connector 1 (Quantity) 4 Connector 2 SATA (15-Pin) Connector 2 (Quantity) 4 Host Connector 1 SATA (7-Pin) Host Connector 1 (Quantity) 4 Host Connector 2 SATA (15-Pin) Host Connector 2 (Quantity) 4 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,JP,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
