HSB43SATSASB

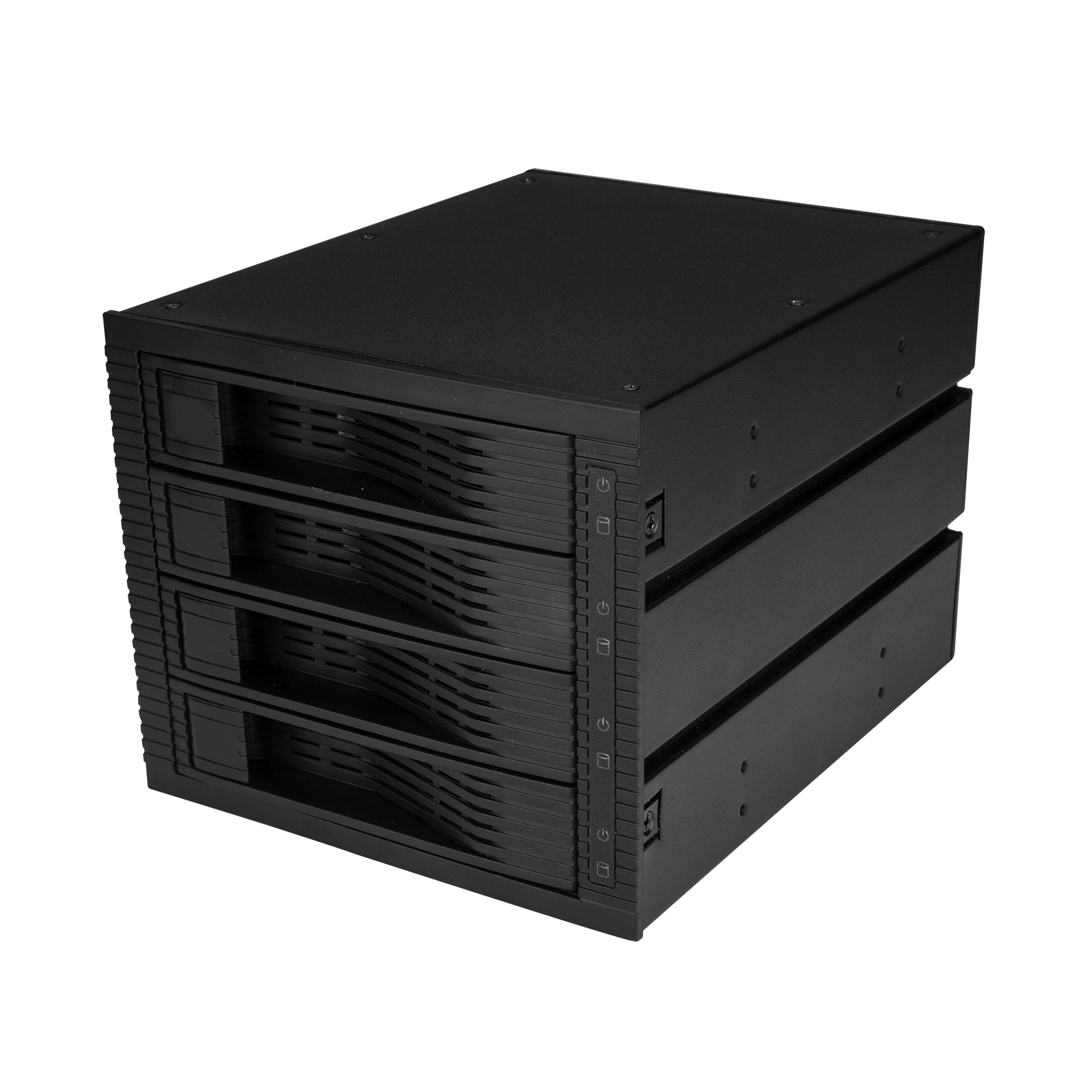

4 Bay 3.5in SATA SAS Backplane for 3 5.25in Bays

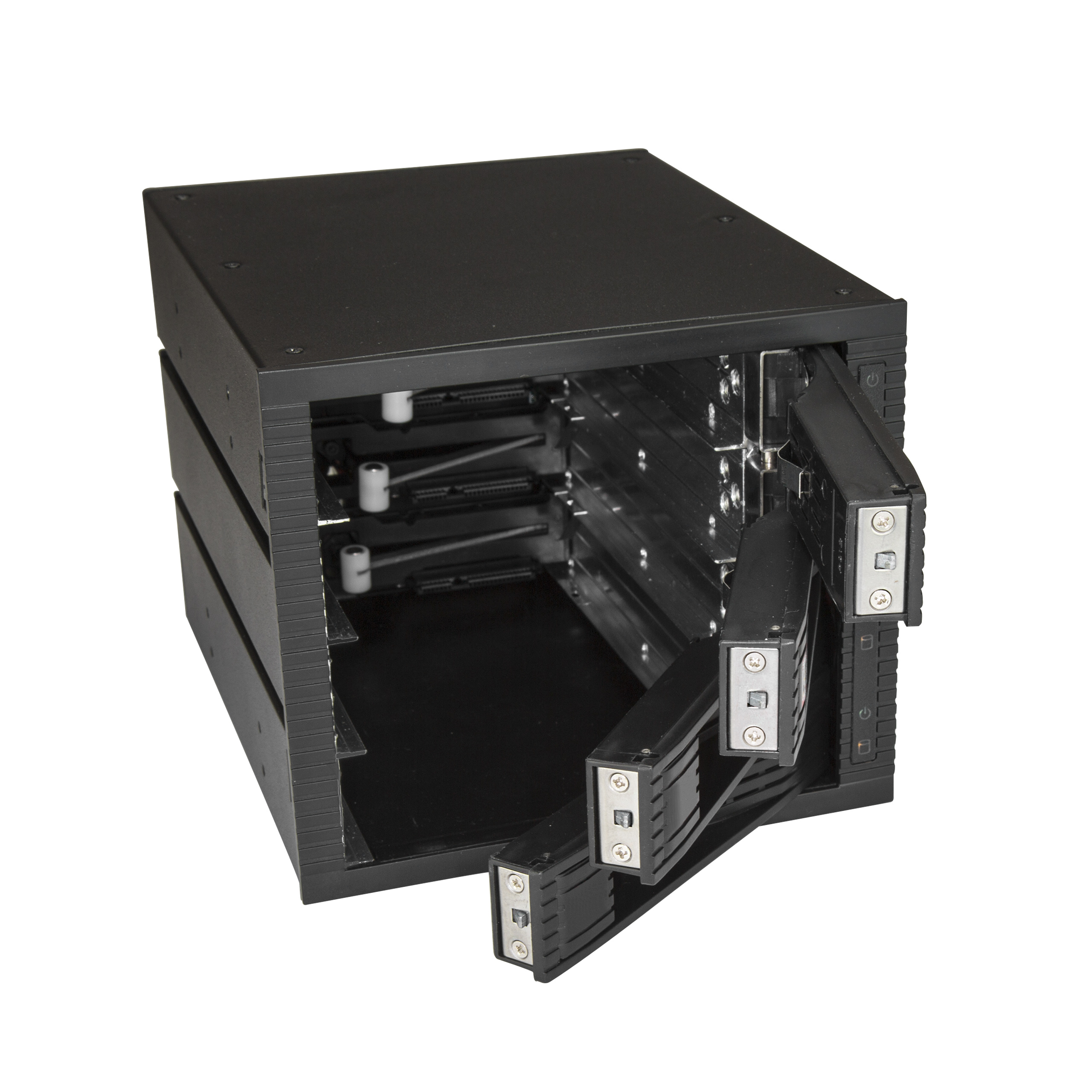

Hot swap up to four 3.5” SATA or SAS hard drives using three 5.25” bays
Main Image
Product Images
Product Images
BOM Image
Product Name 4 Bay 3.5in SATA SAS Backplane for 3 5.25in Bays Product Number HSB43SATSASB UPC 065030872836 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 Internal Storage Category Level 3 3.5" Drive Mobile Racks and Backplanes Family No Family Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX088X Product Title (Ultra-Short) SATA / SAS Backplane Product Title (Short) 4 Bay 3.5in SATA SAS Backplane, Trayless Product Title (Medium) 4 Bay 3.5" SATA SAS Backplane for 3 5.25" Bays - Trayless - Hot Swap Mobile Rack Product Title (Standard) 4 Bay 3.5in SATA SAS Backplane - Hot Swap Mobile Rack for 3 5.25in Bays - Trayless - HDD Rack - SAS Backplane - SATA Backplane Product Title (Long) 4 Bay 3.5" SATA / SAS Backplane for 3 5.25" Bays - Trayless Product Title (AMZ) 4 Bay 3.5" SATA SAS Backplane - 3 x 5.25in Bays - Trayless Mobile Rack - SATA Backplane - Removable Hard Drive Bay - HDD Rack (HSB43SATSASB) Title Ingram (Part 1) 4 Bay 3.5in SATA SAS Backplane Title Ingram (Part 2) for 3 5.25in Bays - Trayless Website Product Headline Hot swap up to four 3.5” SATA or SAS hard drives using three 5.25” bays Bullet 1 Hot swap drives between systems, using up to four 3.5” SATA or SAS drives in three 5.25” front bays Bullet 2 Durable plastic and aluminum construction Bullet 3 Trayless design for ease of use Bullet 4 Supports SAS I/II and SATA I/II/III Bullet 5 Two fans and venting to optimize heat dissipation Bullets (Compact) Hot swap up to four 3.5” SATA or SAS hard drives using three 5.25” bays - 4 Bay 3.5" SATA SAS Backplane - Hot Swap Mobile Rack for three 5.25" Bays - Trayless design - Supports SAS I/II and SATA I/II/III - HDD Rack - SAS Backplane - SATA Backplane Bullets (Consolidated) Hot swap up to four 3.5" SATA or SAS hard drives using three 5.25" bays - 4 Bay 3.5" SATA SAS Backplane - Hot Swap Mobile Rack for three 5.25" Bays - Trayless design - Supports SAS I/II and SATA I/II/III - 4 bay mobile rack with durable plastic and aluminum construction provides a cost-effective solution for drive maintenance and hot swapping drives between systems - 2 fans and venting to optimize heat dissipation - HDD Rack - SAS Backplane - SATA Backplane - 4-bay SAS/SATA backplane Marketing Copy Applications - Provides a cost-effective solution for building or upgrading computer systems for organizations such as government agencies, small-to-medium businesses, educational institutions, medical facilities, and military organizations
- Provides easy hot-swapping of drives in environments where drives need to be replaced or removed regularly, such as server rooms and data centers
- Ideal for use in industrial or enterprise storage applications such as data backup, recovery, and archiving
Website Search Keyword - 4 bay 3.5" SATA SAS backplane
- SATA SAS backplane
- SATA backplane
- SAS backplane
- Hot Swap Mobile Rack
- 4 bay mobile rack
- HDD Rack
- hard drive tray
- 4-bay SAS/SATA backplane
- Hard drive caddy
- rack mount drawer
- drive caddy
- hard drive hot swap
- hot swap drive cage
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Accessory Products - LSATA18RA1
- LSATARND18
- LSATA18RA2
- LSATA18
- LSATA12
- PYO2LSATA
- PYO2LP4LSATR
- PYO2LP4LSATA
- PYO2LP4SATA
- SATAPOWADAP
- SATAPOWADAPR
- LSATA8
- LSATARND12
- LSATARND24
- LSATARND6
- LSATA24
Related Products - HSB4SATSASBA
- HSB1SATSASBA
- HSB13SATSASB
- SATSASBAY3BK
- HSB220SAT25B
- HSB100SATBK
- HSB430SATBK
- HSB320SATBK
- SATADOCK525
- HSB225SATBK
- SATSAS425BK
- SATSAS225ODD
- SATDOCK2520
- HSB3SATSASBA

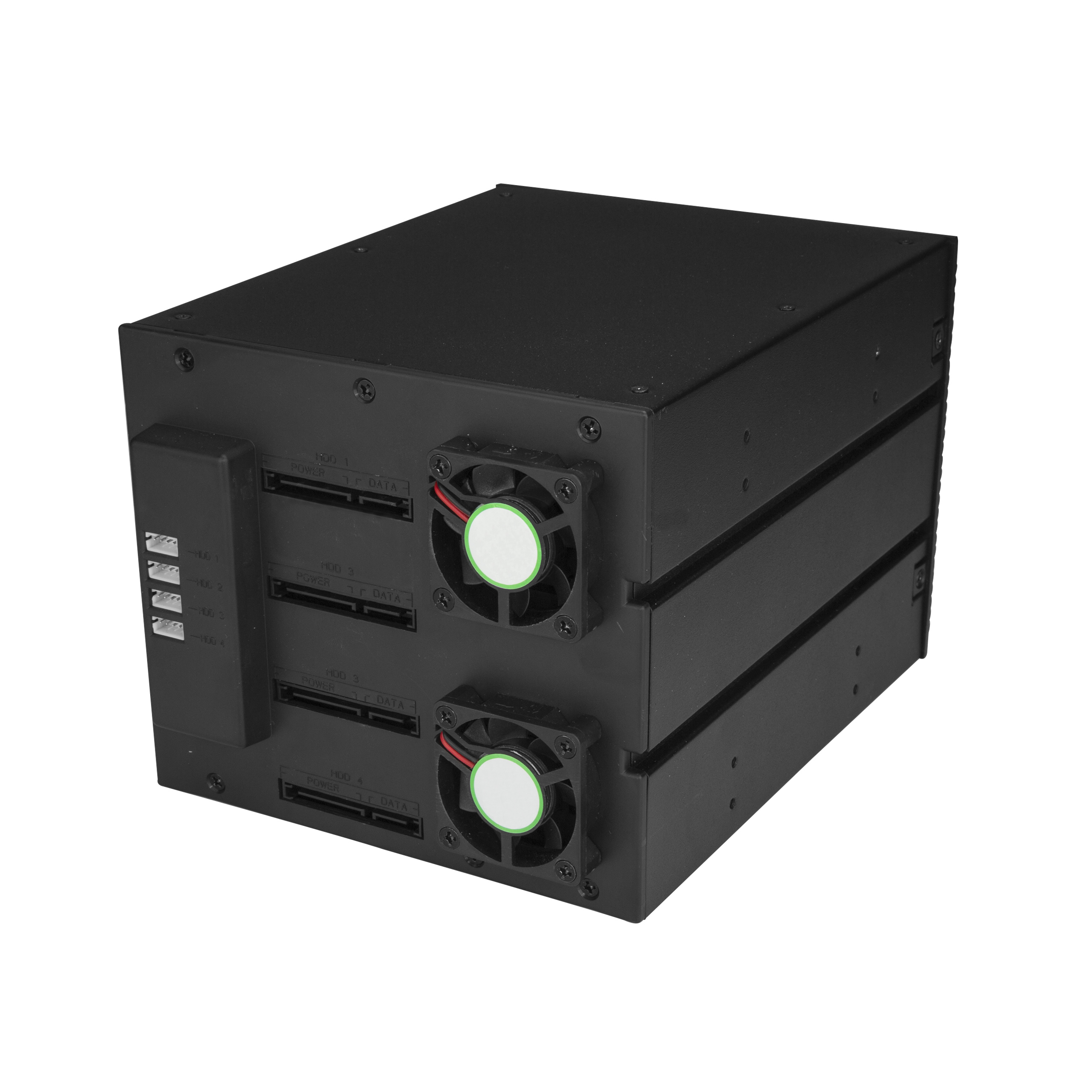

Color Black Humidity 5% ~ 65% Material Plastic and Aluminum Max Drive Height (mm) 26.1 Operating Temperature 0⁰C to 55⁰C (32°F to 131°F) Primary Material Plastic Product Length (mm) 195.000 Product Width (mm) 148.000 Product Height (mm) 127.000 Product Weight (g) 1435.000 Storage Temperature -20⁰C to 55⁰C (-4°F to 131°F) TAA Compliant No Air Flow Rate 4.48 CFM Hot Swap Capability Yes Insertion Rating 50,000 cycles Max Drive Capacity Currently tested with up to 10TB 7200 RPM hard drive Maximum Data Transfer Rate 6 Gbps Noise Level 21.13 dBA OS Compatibility OS Independent SATA Type and Rate SATA/SAS 6 Gbps Compatible Drive Types SAS & SATA Fan Bearing Type Dual Ball Bearing Fans 2 - 40 mm Fans Included? Yes/No Yes Front Door Key Lock Yes Interface/Bridge - SATA
- SAS

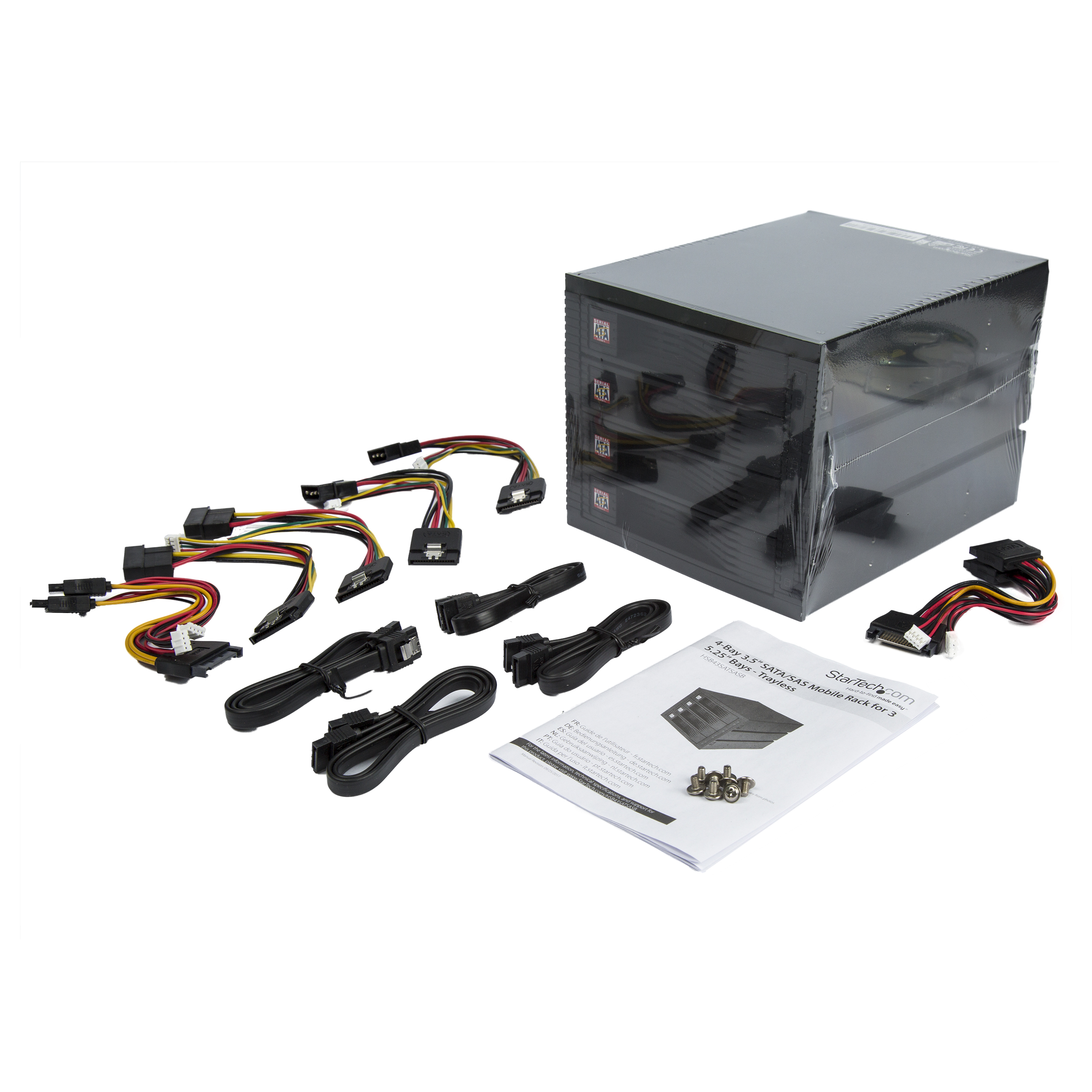

LED Indicators 4 - Drive Power/Activity Number of Drives 4 Carton Depth (mm) 834 Carton Height (mm) 459 Carton Quantity 8 Carton Weight Gross (g) 15960 Included in Package - 1 - mobile rack
- 4 - SATA cables
- 4 - LP4 to SATA & LED power cable adapters
- 2 - SATA to SATA & LED Y power cable adapters
- 8 - installation screws
- 1 - quick-start guide
Package Depth (mm) 183 Package Height (mm) 215 Package Width (mm) 255 Package Quantity 1 Package Weight (g) 1912 Packaging Description 4-Bay 3.5” SATA/SAS Mobile Rack for 3x5.25” Bays Packaging Description India 4-Bay 3.5” SATA/SAS Mobile Rack for 3x5.25” Bays Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PWM Fan (4-Pin, 12V) Connector 1 (Quantity) 4 Connector 2 SFF-8482 (29-Pin, SAS) Connector 2 (Quantity) 4 Host Connector 1 SATA (7-Pin + 15-Pin) Host Connector 1 (Quantity) 4 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2017-06-23 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2017-07-28 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,IE,IT,JP,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2017-05-12 Target Production Release 2017-06-23 Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
