HUBTEST
Main Image

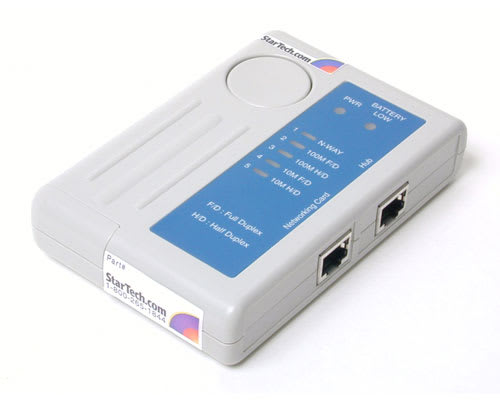

Product Name *D*Port Tester for 10/100 Mbps Ethernet Devices *D* Product Number HUBTEST UPC 065030792608 Warranty 2 Years Taxonomy Product > Legacy Discontinued Product Title (Long) *D*Port Tester for 10/100 Mbps Ethernet Devices *D* Bullet 1 Simple one-button operation with easy-to-read LED feedback Bullet 2 Battery-powered with automatic shutdown Marketing Copy The StarTech Ethernet Port Tester is a cost-effective, palm-sized unit designed for quick diagnosis of Ethernet LAN hardware. This easy-to-operate unit allows you to verify the port connections of your Ethernet hubs and adapters and provides instant feedback to determine whether your port connections are capable of Auto-Negotiation (N-Way), or 10/100 Mbps with Half/Full Duplex. It features one-button operation and automatic power-off. TAA Compliant No General Specifications - Protocols: IEEE 802.3 10BaseT Ethernet, IEEE 802.3u 100BaseTX Fast Ethernet
- LED Indicators: Power, Battery Low, N-Way, 100M/FD, 100M/HD, 10M/FD, 10M/HD
- Connectors: (2) RJ45
- Cable Length: Maximum 100m for all connections
- Power: DC 9V (battery only)
- Dimensions: 145x86x26mm (5.7x3.4x1.1 in)
- Weight: 185g (6.53 oz)
Included in Package - 1 - Port Tester for 10/100 Mbps Ethernet
- 1 - Instruction Manual
en-US Content Approved Yes
