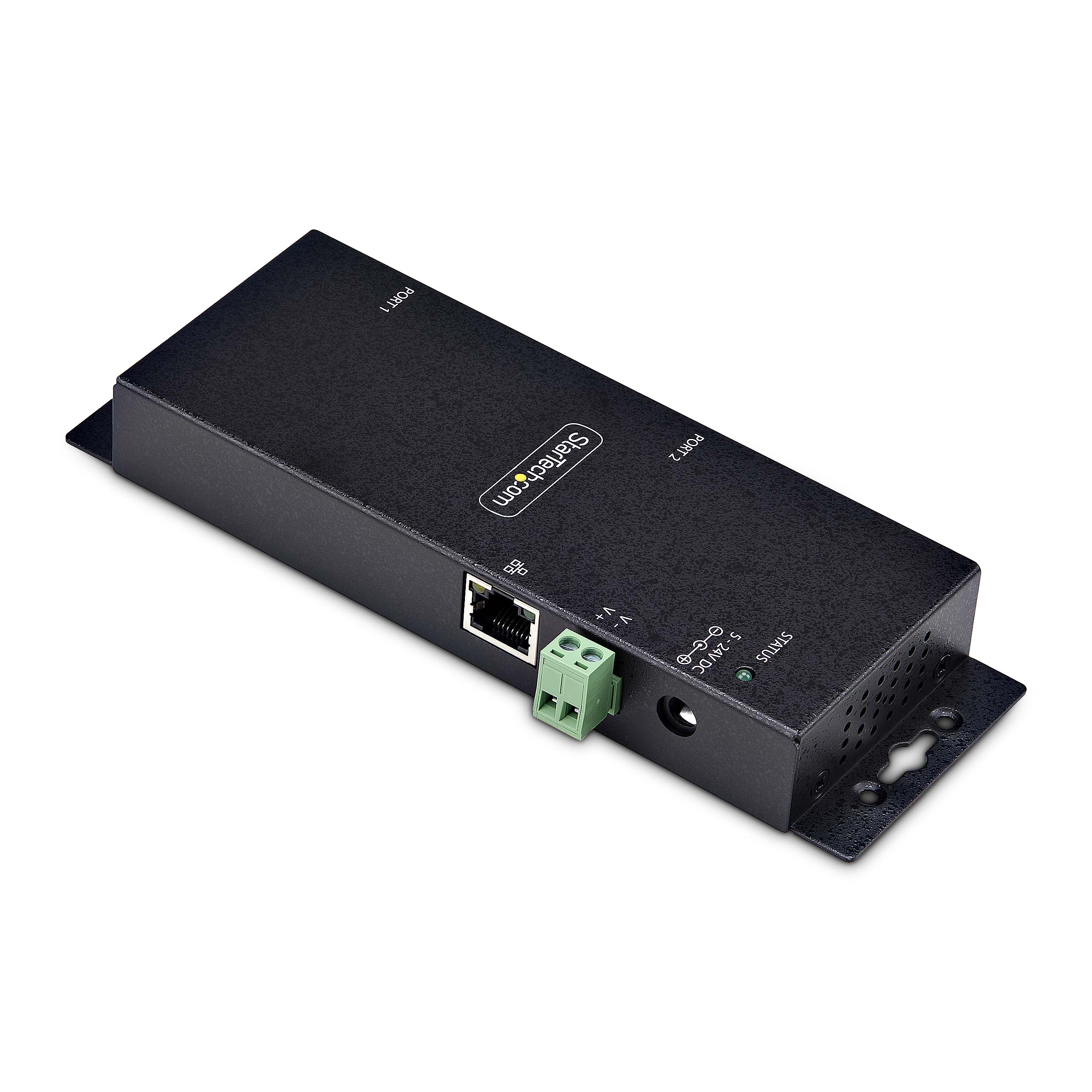

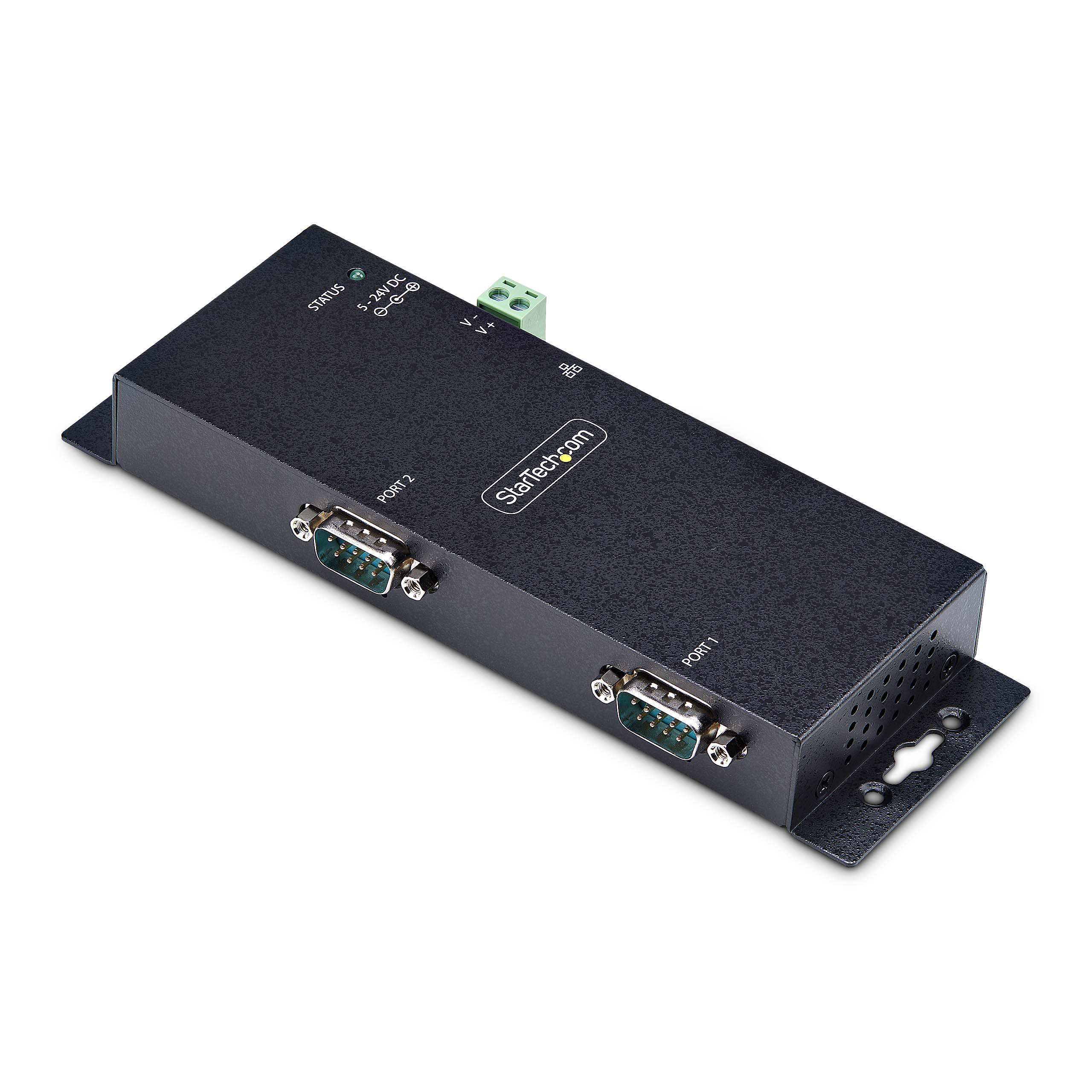

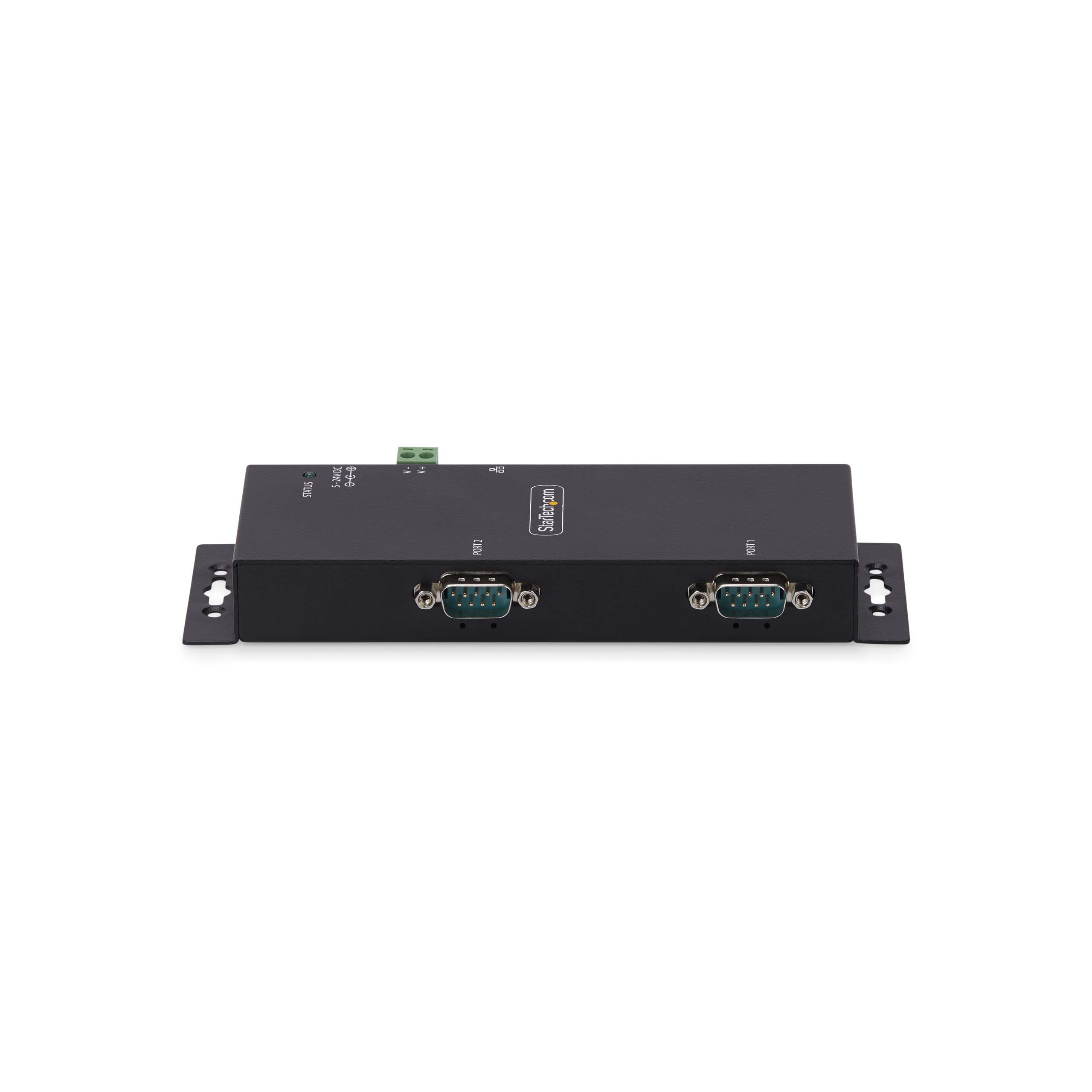

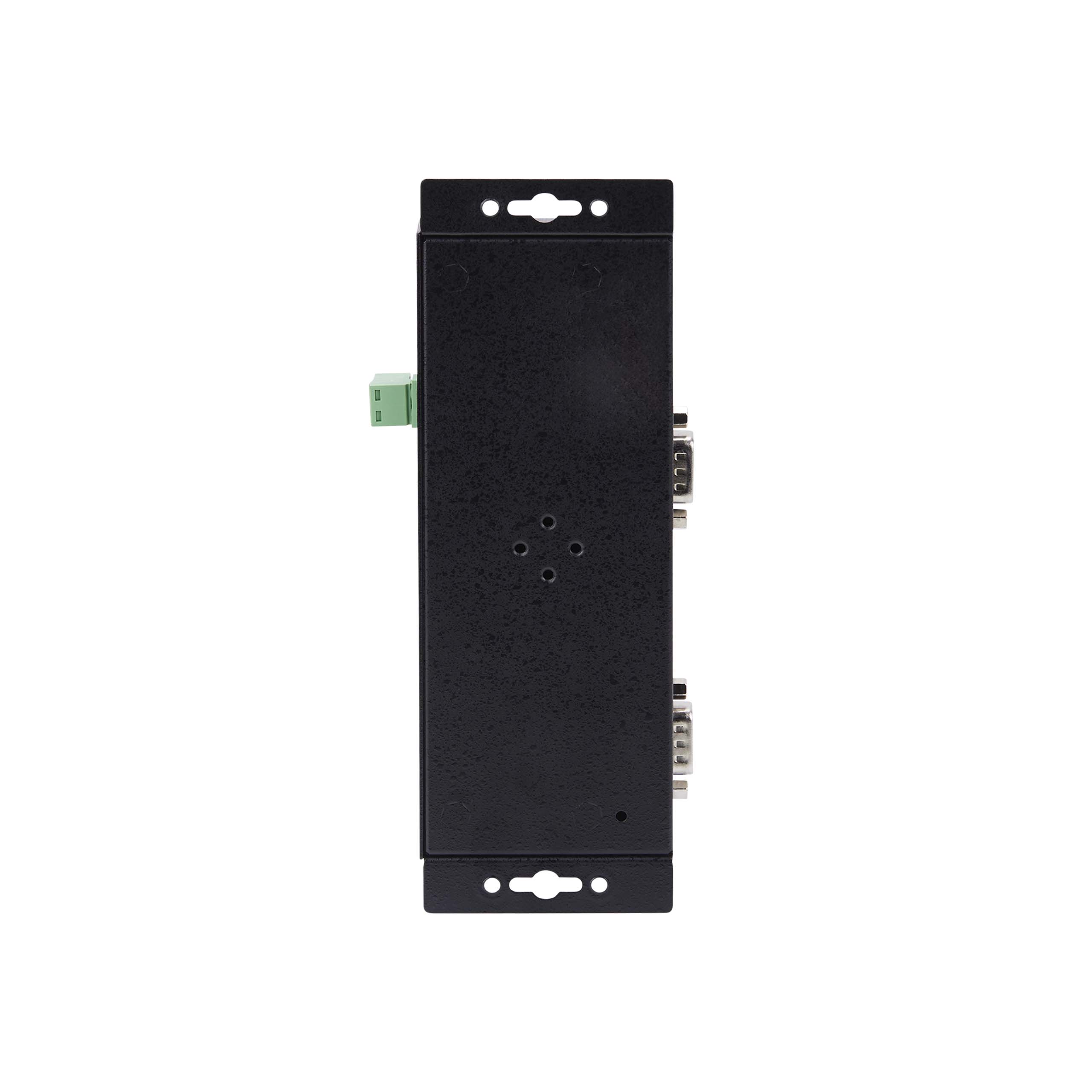

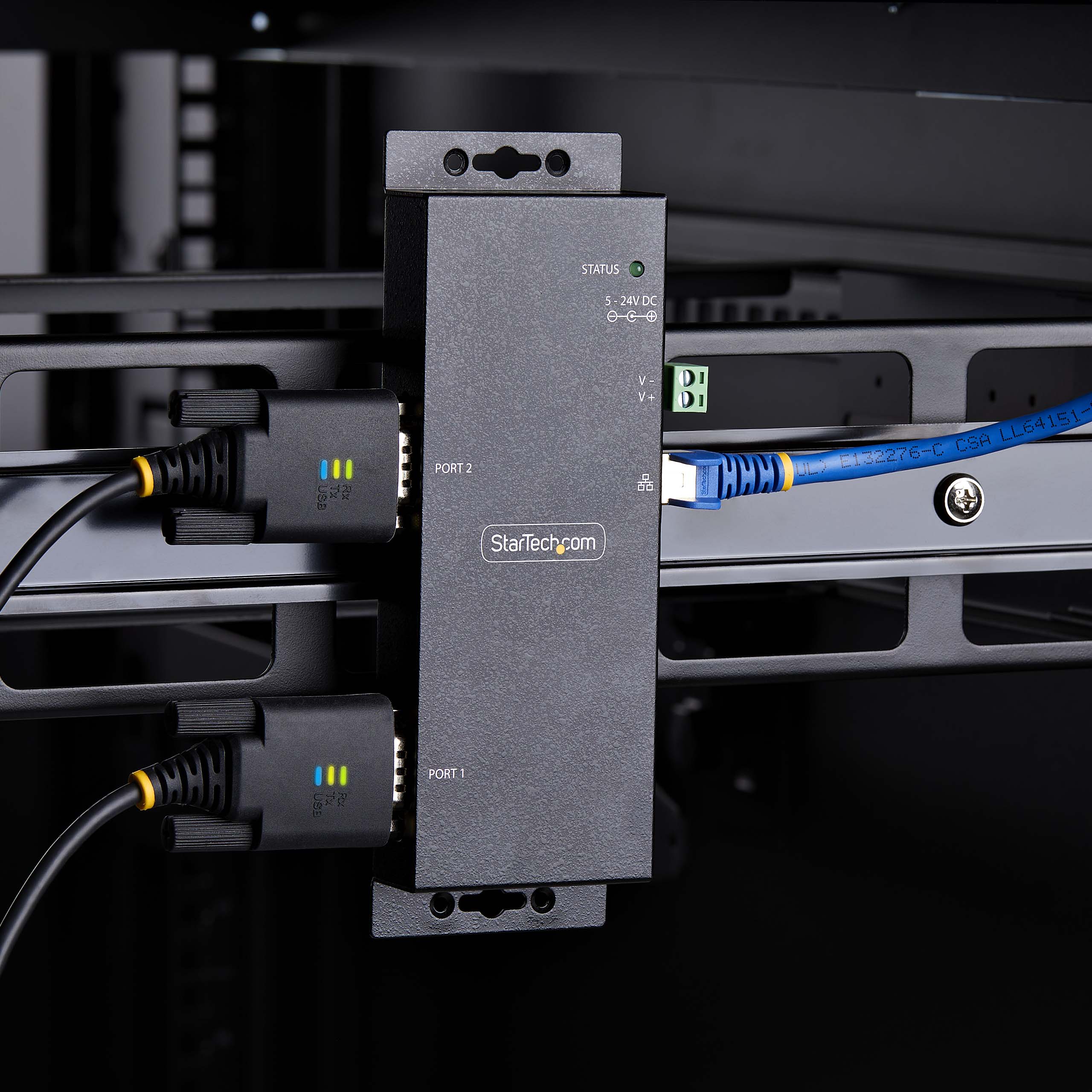

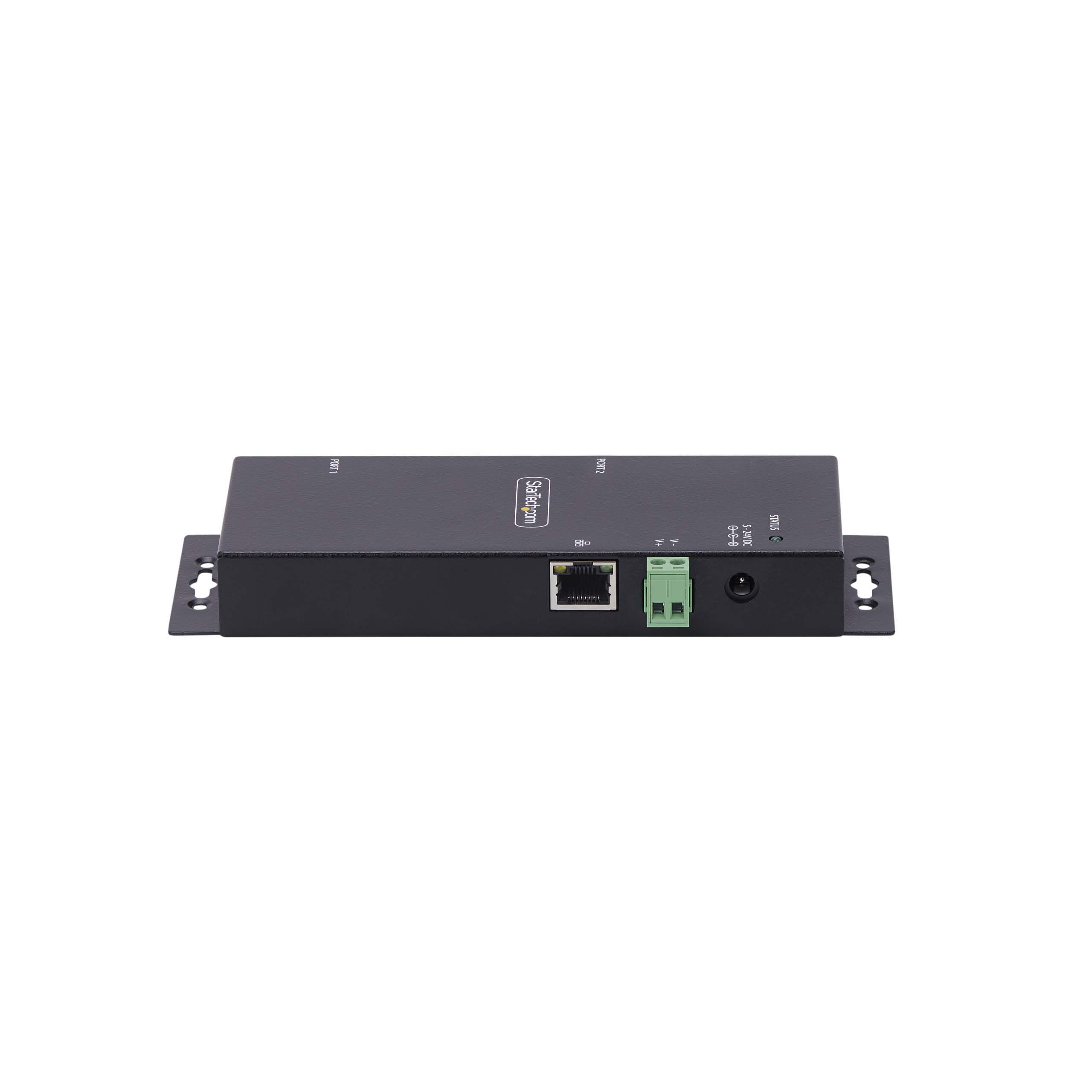

I23-SERIAL-ETHERNET
2-port RS232 to Ethernet Device Server
Streamline RS-232 connectivity for serial device management over IP
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Video Link YouTube
Product Name 2-port RS232 to Ethernet Device Server Product Number I23-SERIAL-ETHERNET UPC 065030905992 Lifecycle status Active Warranty 2 Years Weighted Opportunity 82023 Taxonomy Product > Extenders > Serial Extenders Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 Serial Device Servers Family Serial Device Servers Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX013X Product Title (Ultra-Short) Serial to Ethernet Product Title (Short) Serial to Ethernet Adapter, LAN to RS232 Product Title (Medium) 2-Port Serial to Ethernet Adapter, IP Serial Device Server/RJ45 to DB9 Converter Product Title (Standard) 2-Port Serial to Ethernet Adapter, IP Serial Device Server For RS232 Devices, Wall/DIN Rail Mount, LAN To DB9 Converter, TAA Product Title (Long) 2-Port Serial to Ethernet Adapter, IP Serial Device Server For Remote RS232 Devices, Wall/DIN Rail Mountable, Metal Housing, RJ45 LAN to DB9 Serial Converter, TAA Product Title (AMZ) 2-Port Serial to Ethernet Adapter, IP Serial Device Server For Remote RS232 Devices, Wall/DIN Rail, LAN to DB9, TAA Title Ingram (Part 1) 2-Pt Serial to Ethernet Adapter Title Ingram (Part 2) - DB9/RS232 Over LAN Converter Website Product Headline Streamline RS-232 connectivity for serial device management over IP Bullet 1 DUAL PORT SERIAL TO IP CONVERTER: Connect different RS232 serial devices remotely over an IP-based network; Use for POS systems, barcode readers, sensors, weighing systems, CNC controllers & PLCs; DB9 serial port supports up to 921.6Kbps; TAA Compliant Bullet 2 VERSATILE CONFIGURATIONS: RJ45 LAN to RS232 converter support TCP client/server mode to enable serial tunneling between two device servers over a LAN; Export/import settings, custom naming / location, admin password protection, and upgradeable firmware Bullet 3 UNIFIED ECOSYSTEM EXPERIENCE: All our device servers share the same management software and Web UI; View/manage individual devices with a common UI on any OS; Windows software to set up virtual com ports and view/manage all device servers on the network Bullet 4 ETHERNET AND POWER OPTIONS: Single 10/100Mbps RJ45 port w/auto-negotiation; Serial device server operates over Telnet (RFC2217)/UDP/TCP; Serial to LAN converter includes a power adapter & supports 5V over pin 9 for serial devices Bullet 5 RUGGED AND MOUNTABLE ENCLOSURE: All-metal housing ensures durability in harsh conditions; Supports Level-4 ESD protection (15kV air/8kV contact); Includes the necessary wall and DIN rail mounting hardware; Dimensions 7x2.3x0.9in (178x59.4x23mm) Bullets (Compact) 2-Port serial to Ethernet device server; Ideal for remote RS232 device management over IP network - Supports Telnet/TCP server/TCP Client/UDP - Windows-based software for VCOMs and device management - DC jack/Terminal block power; ESD level 4 Bullets (Consolidated) - All StarTech.com devices share the same management software/Web UI; View/manage devices w/ a common UI - Windows software to set up virtual com ports and view/manage all device servers on the network; Web UI to view/manage individual devices on any OS - Export/import settings, custom naming/location, password, firmware upgrade - 10/100Mbps RJ45 LAN port; DB9 up to 921.6Kbps; Supports Telnet, TCP server/TCP Client/UDP - Wall/DIN rail mount; ESD level 4 surge protection; TAA Compliant Marketing Copy Marketing Copy (No HTML) Required Regulatory Compliance Marks - CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Special Notes Accessory Products - GC9SF
- AT925FM
- SCNM9FF
- SCNM9FM
- MXT100_25
- 45PATCH50WH
- 45PATCH10BK
- S45PATCH10BL
Related Products - RS232EXTC1
- NETRS2322P
- I13-SERIAL-ETHERNET
- I13P-SERIAL-ETHERNET
- I43-SERIAL-ETHERNET
Input Current 0.48A Input Voltage 100 - 240 AC Output Current 3A Output Voltage (V) 5V DC Power Consumption (In Watts) 15W Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 5~95% RH (Non-condensing) Material Steel Operating Temperature 0°C to 60°C (32°F to 140°F) Primary Material Steel Product Length (mm) 60.000 Product Width (mm) 179.000 Product Height (mm) 23.000 Product Weight (g) 315.000 Storage Temperature -20°C to 75°C (-4°F to 167°F) TAA Compliant Yes Auto MDIX Yes Compatible Networks 10/100 Mbps Data Bits 7, 8 ESD Protection - +/-15kV (Air)
- +/-8kV (Contact)
Flow Control RTS/CTS , X-ON/X-OFF, None Full Duplex Support Yes Max Baud Rate 921.6 Kbps OS Compatibility - Windows 11
- Windows 10

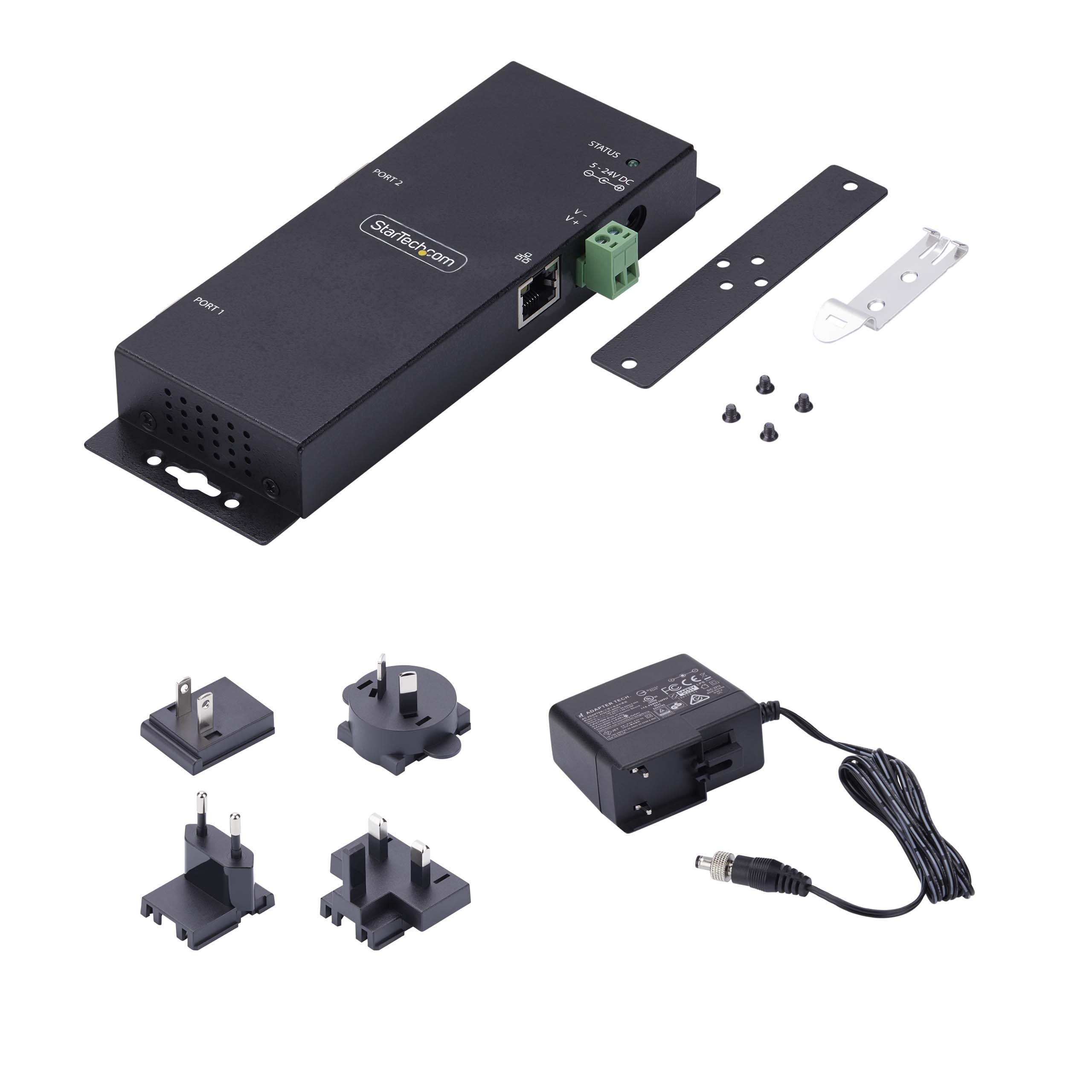

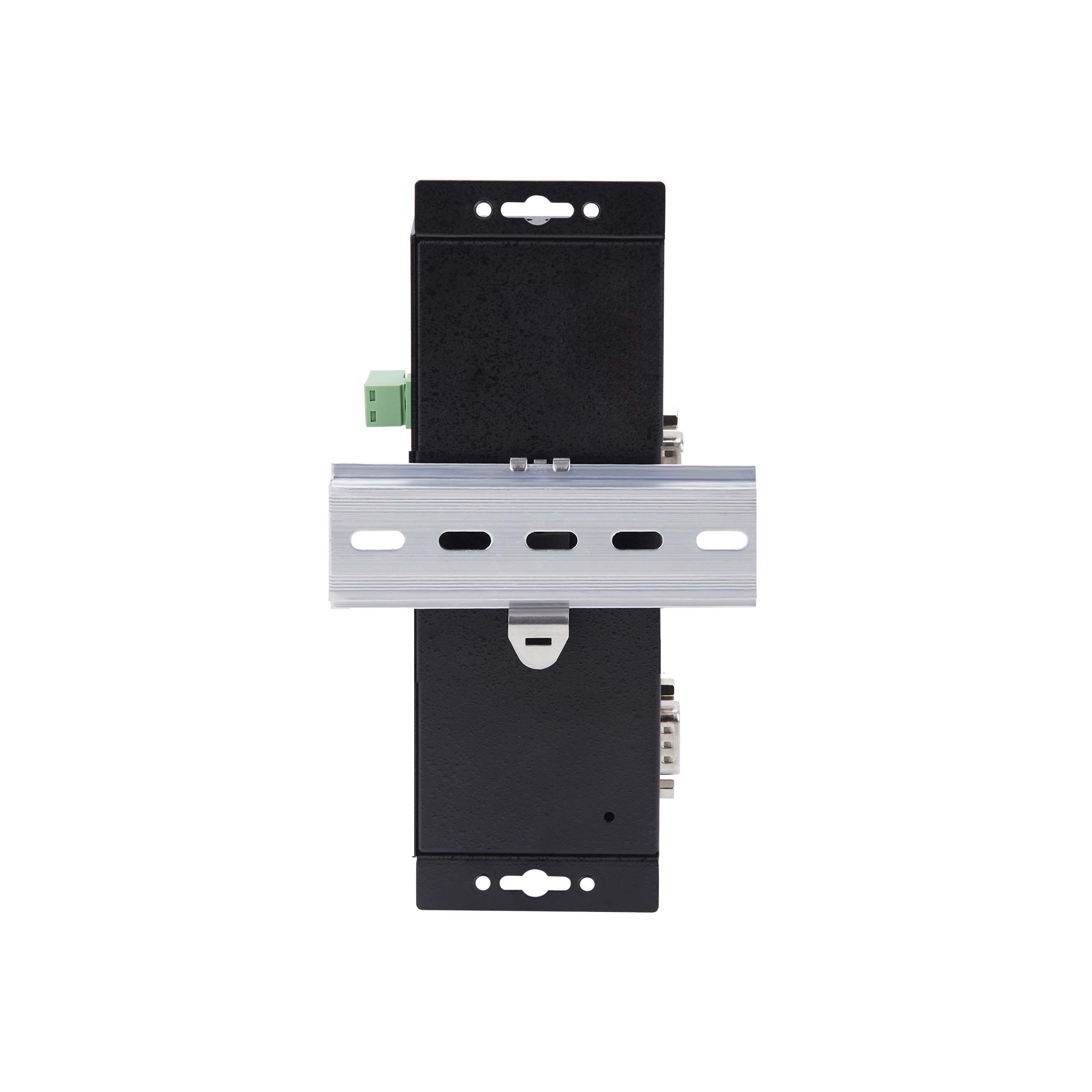

Parity None, Even, Odd, Mark, Space Remote Management Ability Yes Stop Bits 1, 2 Supported Protocols IP, Telnet RFC2217, TCP Server, TCP Client, and UDP Supported Serial Protocol RS-232 Ethernet Port Yes Industry Standards IEEE 802.3u (100BASE-TX ) </br> IEEE 802.3i (10BASE-TX) </br> EIA/TIA-232 Interface/Bridge Serial LED Indicators Mounting Options DIN Rail Network Adapter LAN Ports 1 Carton Depth (mm) 433 Carton Height (mm) 281 Carton Quantity 15 Carton Weight Gross (g) 10146 Included in Package - 1 - 2-Port Serial Over IP Device Server
- 1 - Quick-Start Guide
- 1 - Din Rail Kit
- 2 - Din Rail Screws
- 1 - Universal Power Adapter
Package Depth (mm) 245 Package Height (mm) 62 Package Width (mm) 168 Package Weight (g) 624 Packaging Description 2-Port RS232 Serial Over IP Device Server - Metal Case - ESD Protection Packaging Description India 2-Port RS232 Serial Over IP Device Server - Metal Case - ESD Protection Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DB-9 Serial Connector 1 (Quantity) 2 Connector 2 RJ-45 Connector 2 (Quantity) 1 Connector 3 Terminal Block (2 Wire) Connector 3 (Quantity) 1 Connector 4 RJ-45 Connector 4 (Quantity) 1 Connector 5 DB-9 Serial Connector 5 (Quantity) 2 A+ Not Required Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Veronica Ye Application Photos Uploaded Artwork Due Date 2024-02-07 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Comparable SKU Comment 2-Port Serial-to-IP Ethernet Device Server - RS232 Comparable SKU 2 Comment 1-Port Serial-to-IP Ethernet Device Server - RS232 Digital Content Due Date 2024-05-08 Enhanced Gallery Required Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 2 Graphic Designer Shane Arnett ID Label Silkscreened or a Label Sticker label - 37x20mm Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,FI,FR,IE,IT,NL,SE,UK,US Product Development Specialist Alex Sikora Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Development Completion Date 2024-01-31 Target Production Release 2024-02-07 Tech Lead Stefan Tirolese Technical Writer Dan Dagenais Technology Lifecycle None Video Not Required
