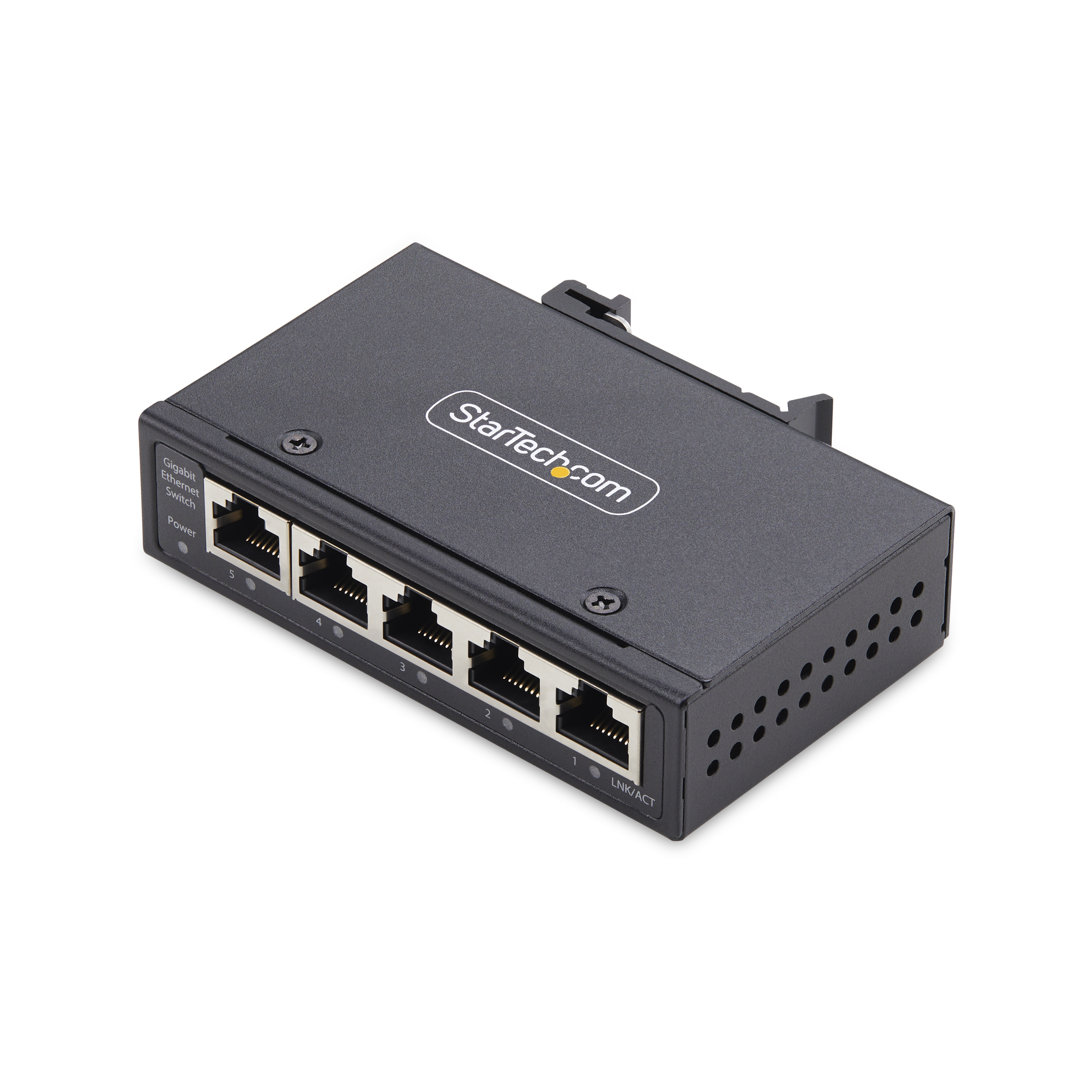

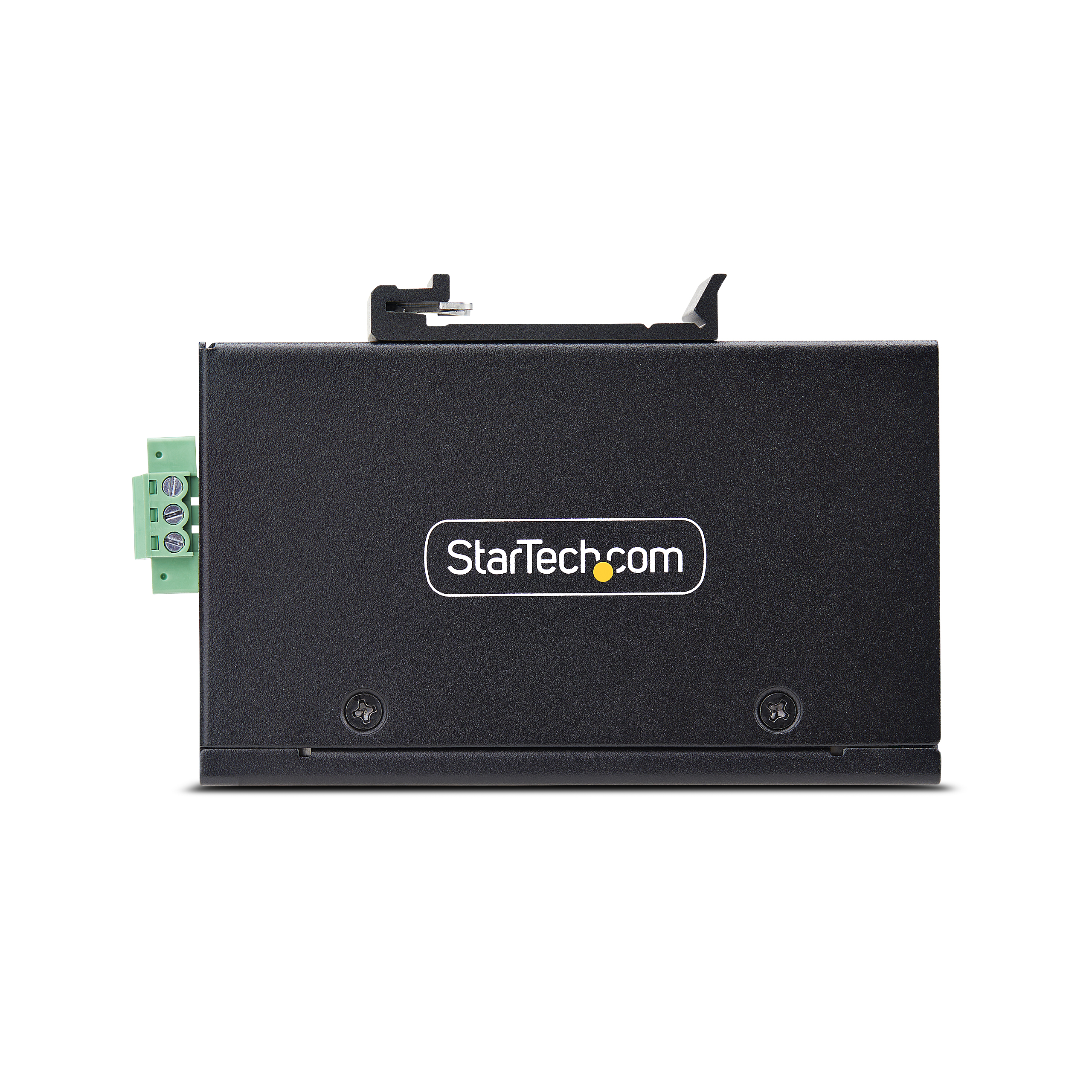

I51G-ETHERNET-SWITCH

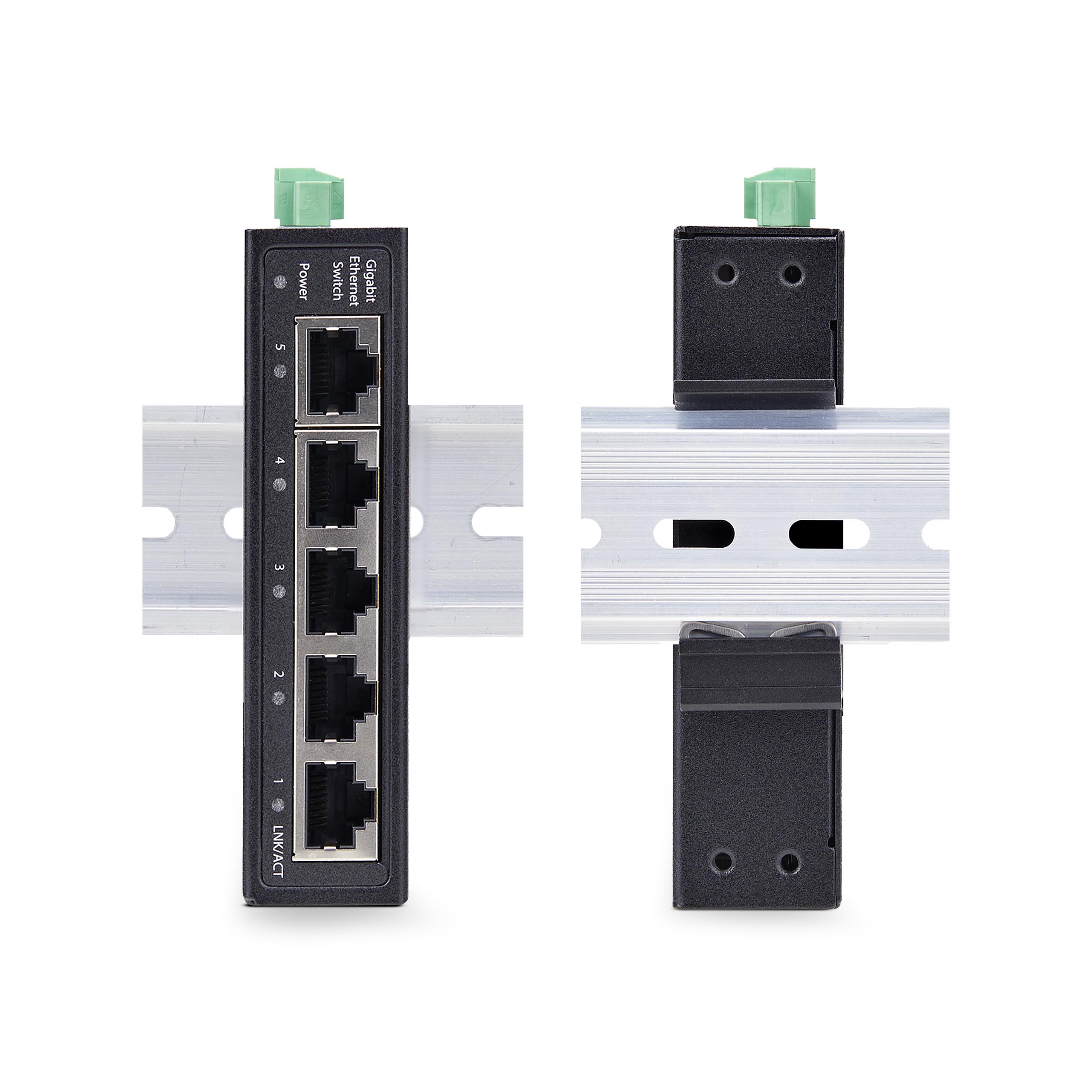

5-Port Gigabit Industrial Unmanaged Switch - DIN Rail
Expand your network connectivity with simple plug-and-play setup
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name 5-Port Gigabit Industrial Unmanaged Switch - DIN Rail Product Number I51G-ETHERNET-SWITCH UPC 065030909648 Lifecycle status Active Warranty 2 Years Weighted Opportunity 0 Taxonomy Product > Networking > Network Switches Category Level 1 Networking Category Level 2 Ethernet Switches and Extenders Category Level 3 Ethernet Switches Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX106X Product Title (Ultra-Short) 5-Port Switch - TAA Product Title (Short) 5-Port Industrial Ethernet Switch - IP30 Product Title (Medium) 5-Port Unmanaged Industrial Network Switch, 100/1000 Ethernet, -40-167F, 9~60VDC Product Title (Standard) 5-Port Unmanaged Industrial Network Switch, 10/100/1000 Ethernet, DIN Rail/Wall-Mount, IP30 Rated, -40F-167F, 9~60V DC, TAA Product Title (Long) 5-Port Unmanaged Industrial Network Switch, 100/1000 Ethernet, DIN Rail/Wall-Mountable, Rugged IP30 Gigabit Switch, -40F-167F, 9~60V DC, TAA Compliant Product Title (AMZ) 5-Port Unmanaged Industrial Network Switch, 100/1000 Ethernet, DIN Rail/Wall-Mount, IP30, -40-167F, 9~60VDC, TAA Title Ingram (Part 1) Unmanaged Switch 5-Port, TAA - Title Ingram (Part 2) 10/100/1000Mbps, Fanless, IP30 Website Product Headline Expand your network connectivity with simple plug-and-play setup Bullet 1 UNMANAGED 5-PORT GIGABIT SWITCH: Expand network connectivity with simple plug-and-play setup; 5x 10/100/1000Mbps RJ45 ports; Auto-negotiates speed; Level 4 ESD Protection; 3-Pin Terminal Block Power Input (9-60V DC); Fanless silent design; TAA Compliant Bullet 2 DESIGNED FOR HARSH ENVIRONMENTS: IP30 Rated Unmanaged Industrial Ethernet Switch with Over Current Protection auto-negotiates speed; Rugged metal enclosure rated for an extended operating temp range: -40°F-167°F (-40°C-75°C) Bullet 3 ENHANCED NETWORK PERFORMANCE: Switching capacity of 10Gbps; 9K Jumbo Frame for reduced packet overhead; Quality of Service (QoS)/Broadcast Storm Protection (BSP) improves network performance; Front-facing diagnostic link/activity LEDs on each RJ45 port Bullet 4 VERSATILE MOUNTING OPTIONS: Compact case design uses minimal space when installed on or under a work surface; Wall or DIN Rail mountable using the included Mounting Ears or DIN Rail Mounting Kit Bullet 5 INDUSTRIAL APPLICATIONS: Designed for demanding environments, including industrial settings & centralized control stations where device reliability is essential; Compact form factor makes it an ideal solution for Industrial Automation and IP Surveillance Bullets (Compact) Expand your network connectivity with simple plug-and-play setup; 5x 10/100/1000Mbps; 9-60V DC; Auto-negotiates speed; OCP; Rugged metal; Operating temp: -40°F-167°F; 9K Jumbo Frames; Front-facing LEDs; Mounting kits included; TAA Bullets (Consolidated) Expand your network connectivity with simple plug-and-play setup - 5x 10/100/1000Mbps RJ45 ports - 3-Pin Terminal Block Power Input (9-60V DC) - Silent fanless design - IP30 Rated; Auto-negotiates speed - Over Current Protection; Rugged metal enclosure w/extended operating temp: -40 DEGF-167 DEGF - 9K Jumbo Frame support - QOS/BSP improves network performance - Front-facing diagnostic link/activity LEDs for each port - Mounting Ears/DIN Rail Mounting Kit included Marketing Copy Marketing Copy (No HTML) Applications - Expand the number of available ports on a network
- Connect computers, printers, and other network devices in a small office or home office
Required Regulatory Compliance Marks - MET - Safety - Electrical - Canada / United States - cMETus Mark
- FCC - EMC/EMI - United States - FCC Part 15 Class A Digital Device Interference Full Statement
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class A Digital Device Product Label Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- CE - Safety - Electrical - European Union - Low Voltage Directive (LVD) 2014/35/EU
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Accessory Products - M45PATCH3BL
- 45PATCH10BK
- 45PATCH15GN
- C6PATCH50BL
- MCM110SC2P
Related Products - DS52000
- IES5102
- IES51000
- IES61002POE
- IES81000POE

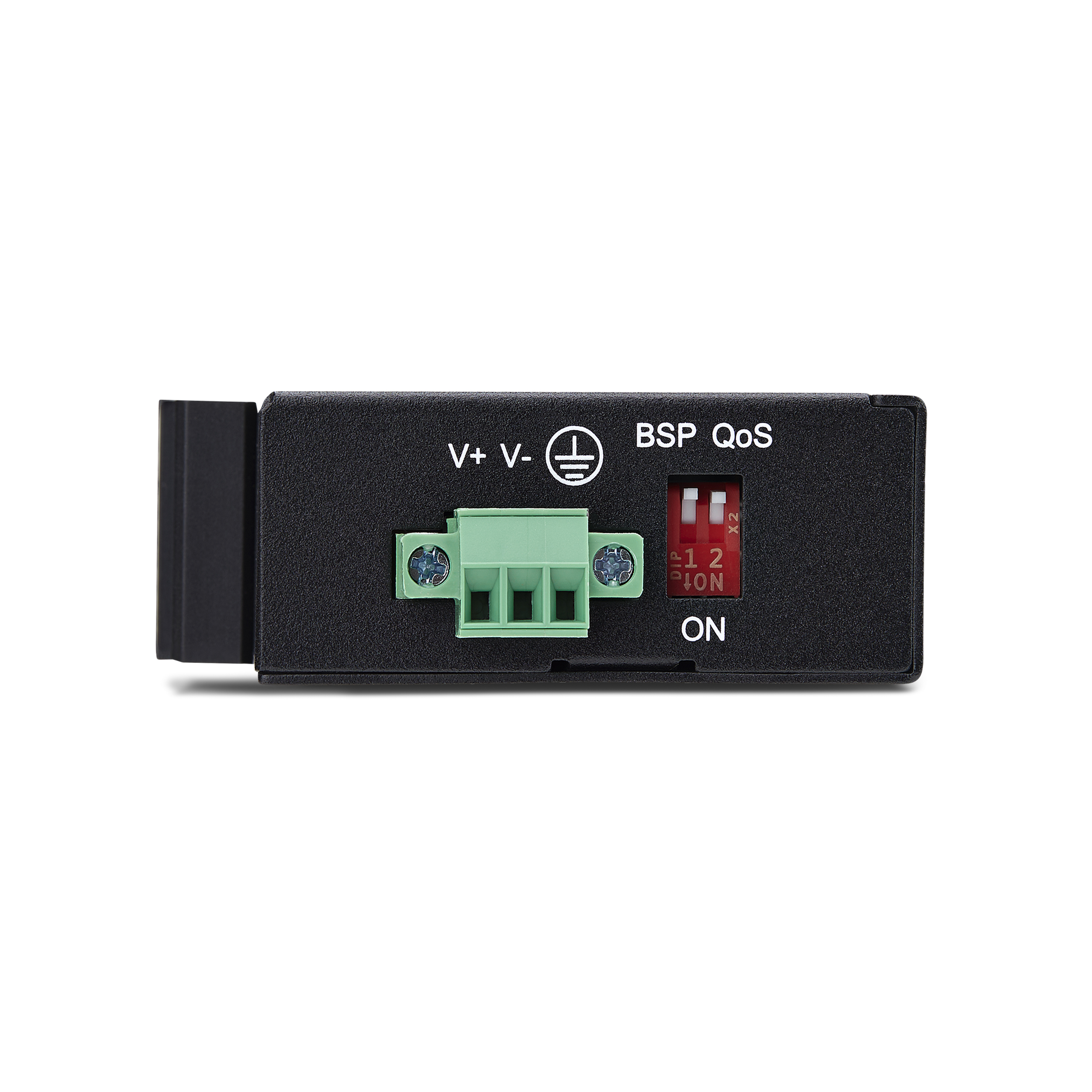

Input Voltage 9 ~ 60 DC Power Source Terminal Block Plug Type Terminal Block (3 Wire) Color Black Humidity 5~95% RH (Non-condensing) Material Metal Operating Temperature -40°C to 75°C (-40°F to 167°F) Primary Material Aluminum Product Length (mm) 100.500 Product Width (mm) 60.000 Product Height (mm) 25.500 Product Weight (g) 221.700 Storage Temperature -40°C to 85°C (-40°F to 183°F) TAA Compliant Yes Auto MDIX Yes Compatible Networks 10/100/1000 Mbps Full Duplex Support Yes Jumbo Frame Support 9K max. Maximum Data Transfer Rate 1 Gbps MTBF (hours) 556,710 hrs OS Compatibility OS Independent Promiscuous Mode No PXE Yes Switching Architecture Store-and-Forward Wake-On-LAN (WOL) Yes Chipset ID Realtek - RTL8367N Compatible Lock Slot Kensington Standard Slot (K-Slot) Industry Standards - IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T
- IEEE 802.1p (QoS)
- IEEE 802.3x (Full-Duplex)
Interface/Bridge RJ45 (Gigabit Ethernet) LED Indicators - 5 - Top Row LEDs - Green
- 5 - Bottom Row LEDs - Green

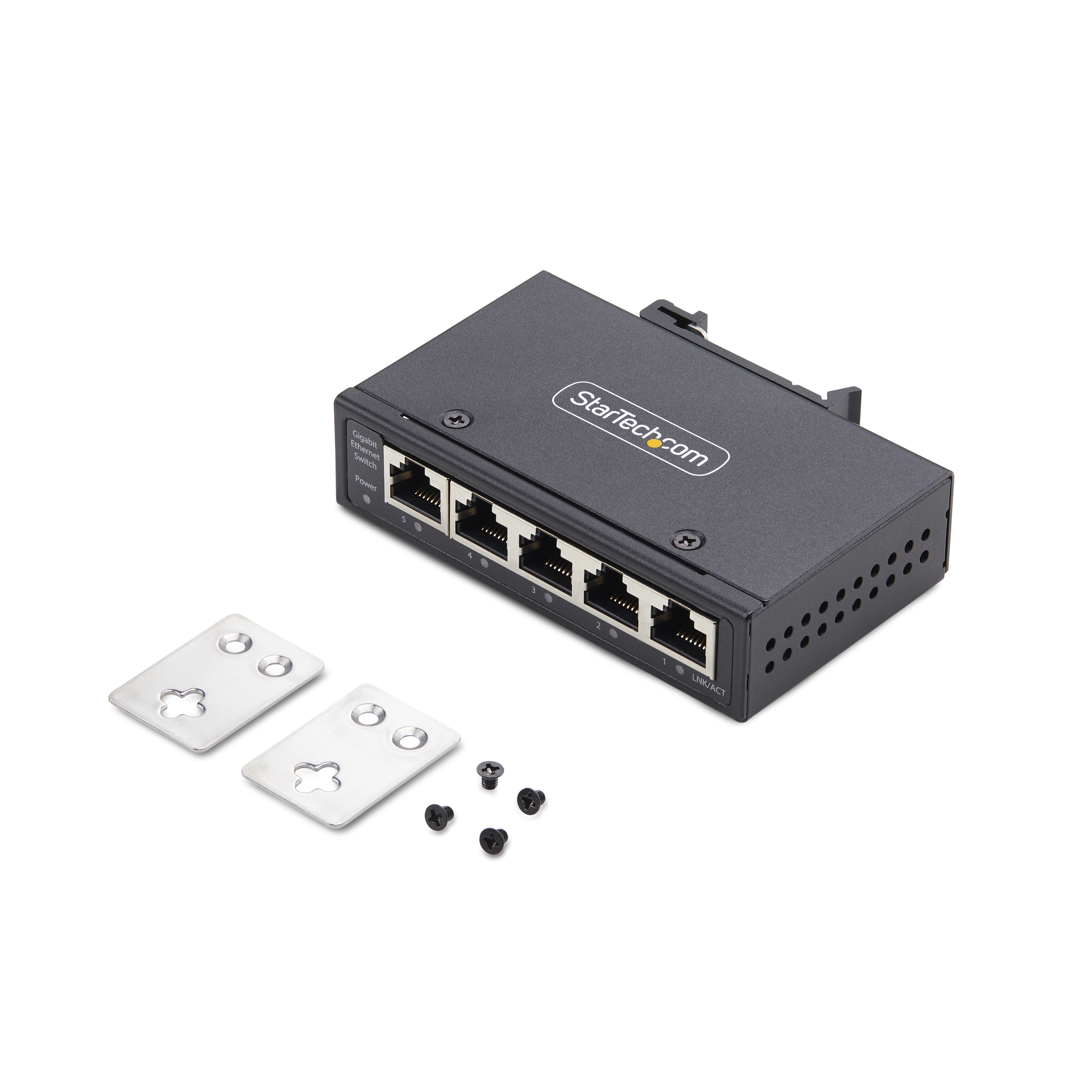

Carton Depth (mm) 355 Carton Height (mm) 335 Carton Quantity 30 Carton Weight Gross (g) 9500 Included in Package - 1 - Gigabit Switch
- 1 - 3-Pin Terminal Block
- 1 - DIN Rail Mounting Kit
- 1 - Quick-Start Guide
- 1 - Mounting Ear Kit
Package Depth (mm) 111 Package Height (mm) 58 Package Width (mm) 159 Package Quantity 1 Package Weight (g) 306 Packaging Description 5-Port Gigabit Ethernet Industrial Unmanaged Switch - DIN Rail Mountable Packaging Description India 5-Port Gigabit Ethernet Industrial Unmanaged Switch - DIN Rail Mountable Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 5 Connector 2 Terminal Block (3 Wire) Connector 2 (Quantity) 1 A+ Not Required Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Kathleen Marshall Application Photos Uploaded Artwork Due Date 2024-06-30 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Comparable SKU Comment 5 Port Unmanaged Industrial Gigabit Ethernet Switch - DIN Rail / Wall-Mountable Comparable SKU 2 Comment 5-Port Industrial Fast Ethernet Switch - DIN Rail Mountable Digital Content Due Date 2024-09-17 Enhanced Gallery Not Required Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 2 Graphic Designer Shane Arnett ID Label Silkscreened or a Label Sticker label - 37x20mm Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,FI,FR,IE,IN,IT,JP,NL,SE,UK,US Product Development Specialist Alex Sikora Product Information Creation Specialist (PICS) Maria Powell Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2024-05-17 Target Production Release 2024-06-30 Tech Lead Stefan Tirolese Technical Writer Maria Powell Technology Lifecycle Mainstream Video Not Required
