IC232485S

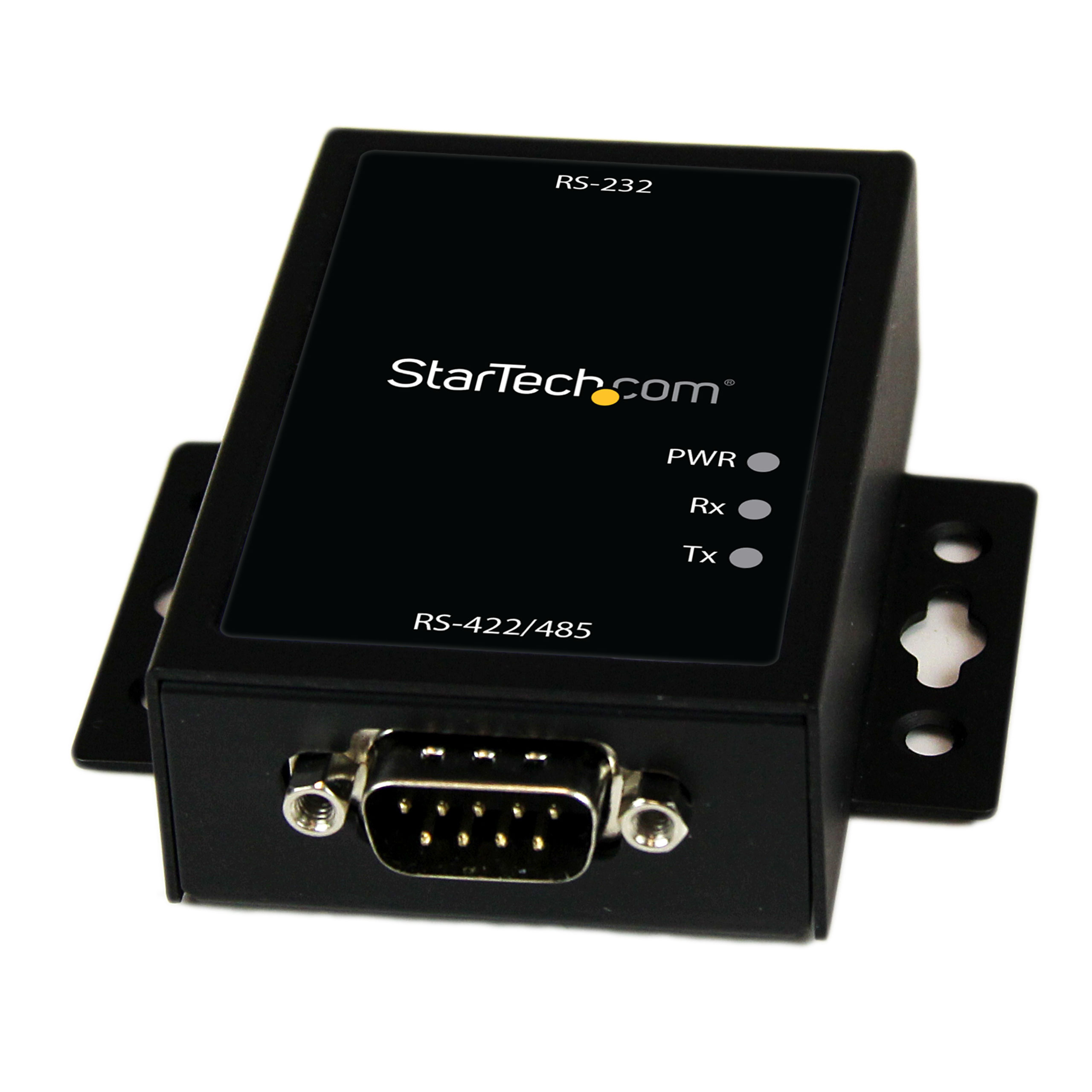

RS232 to RS422 RS485 Serial Port Adapter w ESD
Convert an RS232 data signal to either RS485 or RS422 with this wall-mountable, ESD-protected adapter
Main Image
Product Images
Product Images
BOM Image
Product Name RS232 to RS422 RS485 Serial Port Adapter w ESD Product Number IC232485S UPC 065030852555 Lifecycle status Active Warranty 2 Years Taxonomy Product > Extenders > Serial Extenders Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 Serial Extenders and Converters Family Serial Converters Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX076X Country of Origin History (2) Malaysia Country of Origin Revision (2) XXXXXX156X Product Title (Ultra-Short) RS232 to RS422 Product Title (Short) RS232 to 422/485 Serial Converter w/ ESD Product Title (Standard) Industrial RS232 to RS422/485 Serial Port Converter with 15KV ESD Protection Product Title (Long) Industrial RS232 to RS422/485 Serial Port Converter with 15KV ESD Protection Product Title (AMZ) Industrial RS232 to RS422/485 Serial Port Converter w/ 15KV ESD Protection - RS232 to RS 422 RS485 Converter Adapter (IC232485S) Title Ingram (Part 1) Industrial RS232 to RS422 / Title Ingram (Part 2) RS485 Serial Port Adapter w/ ESD Website Product Headline Convert an RS232 data signal to either RS485 or RS422 with this wall-mountable, ESD-protected adapter Bullet 1 RS232 to 2/4-wire RS485 or RS422 conversion Bullet 2 ±15KV ESD protection on all signal pins Bullet 3 Supports RS422 and RS485 auto detect and manual switching Bullet 4 Wall-mountable Bullet 5 Supports baud rates up to 921.6 Kbps Bullets (Consolidated) Serial adapter - RS-232 - RS-422/485 x 1 - black Marketing Copy Applications - Monitor or control RS-422/485 serial devices like PLCs and other industrial equipment
- Adapt and connect a scale, meter, scanner or one of several other control peripherals to a computer system with only RS232
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Accessory Products SVA5M3NEUA Input Current 0.5 A Input Voltage 100 - 240 AC Output Current 1 A Output Voltage (V) 5 DC Power Consumption (In Watts) 5 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 5~85% RH Material Steel Operating Temperature 0°C to 50°C (32°F to 122°F) Primary Material Steel Product Length (mm) 84 Product Width (mm) 73 Product Height (mm) 22 Product Weight (g) 143 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No Max Baud Rate 921.6 Kbps Maximum Cable Length (mm) 1200000 Supported Serial Protocol RS-232/422/485 Interface/Bridge Serial IO Card Port Style External Hub LED Indicators - 1 - Power (Green)
- 1 - Tx (Yellow)
- 1 - Rx (Yellow)

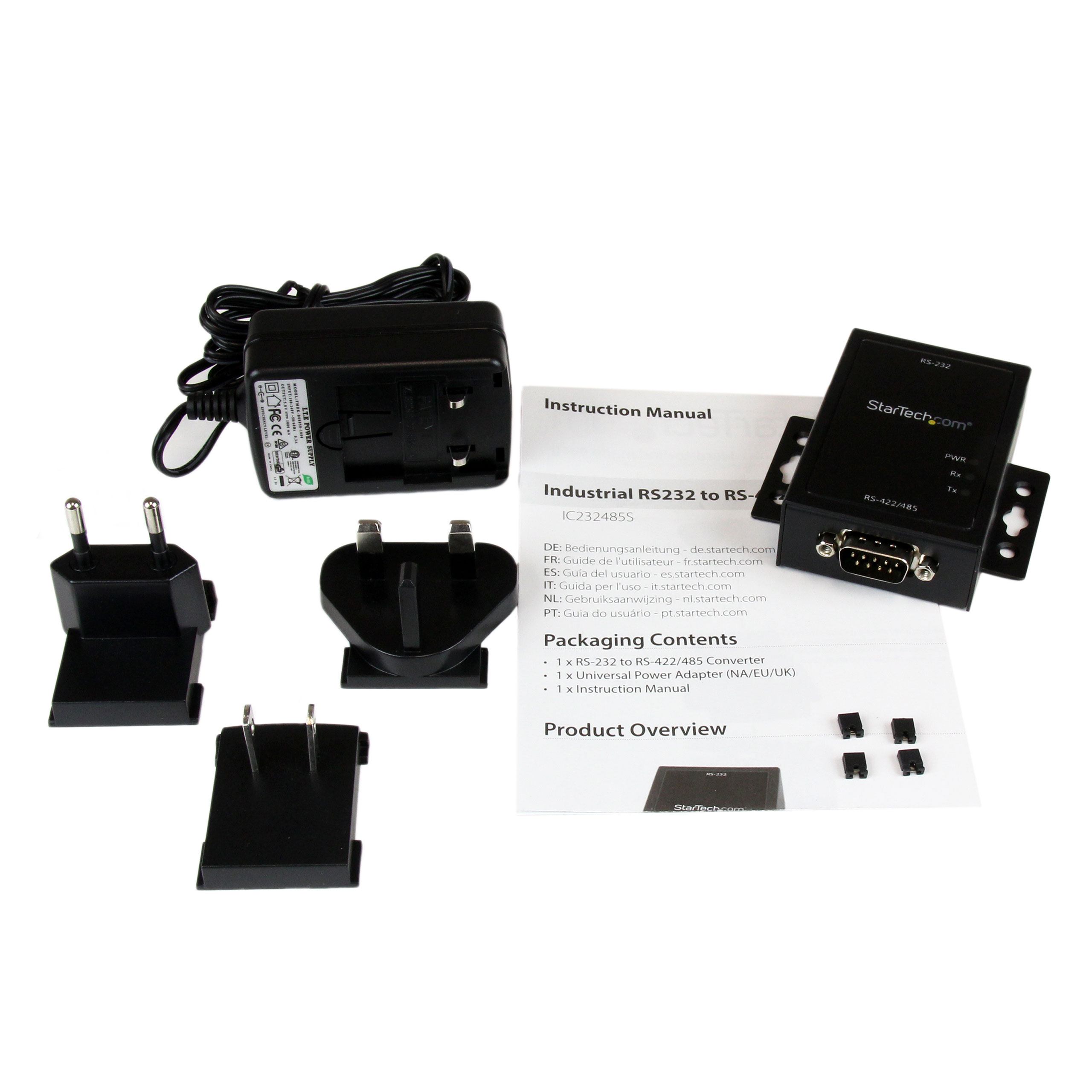

Carton Depth (mm) 316 Carton Height (mm) 446 Carton Quantity 40 Carton Weight Gross (g) 14192 Included in Package - 1 - RS-232 to RS-422/485 Converter
- 1 - Universal Power Adapter (NA/EU/UK)
- 1 - Instruction Manual

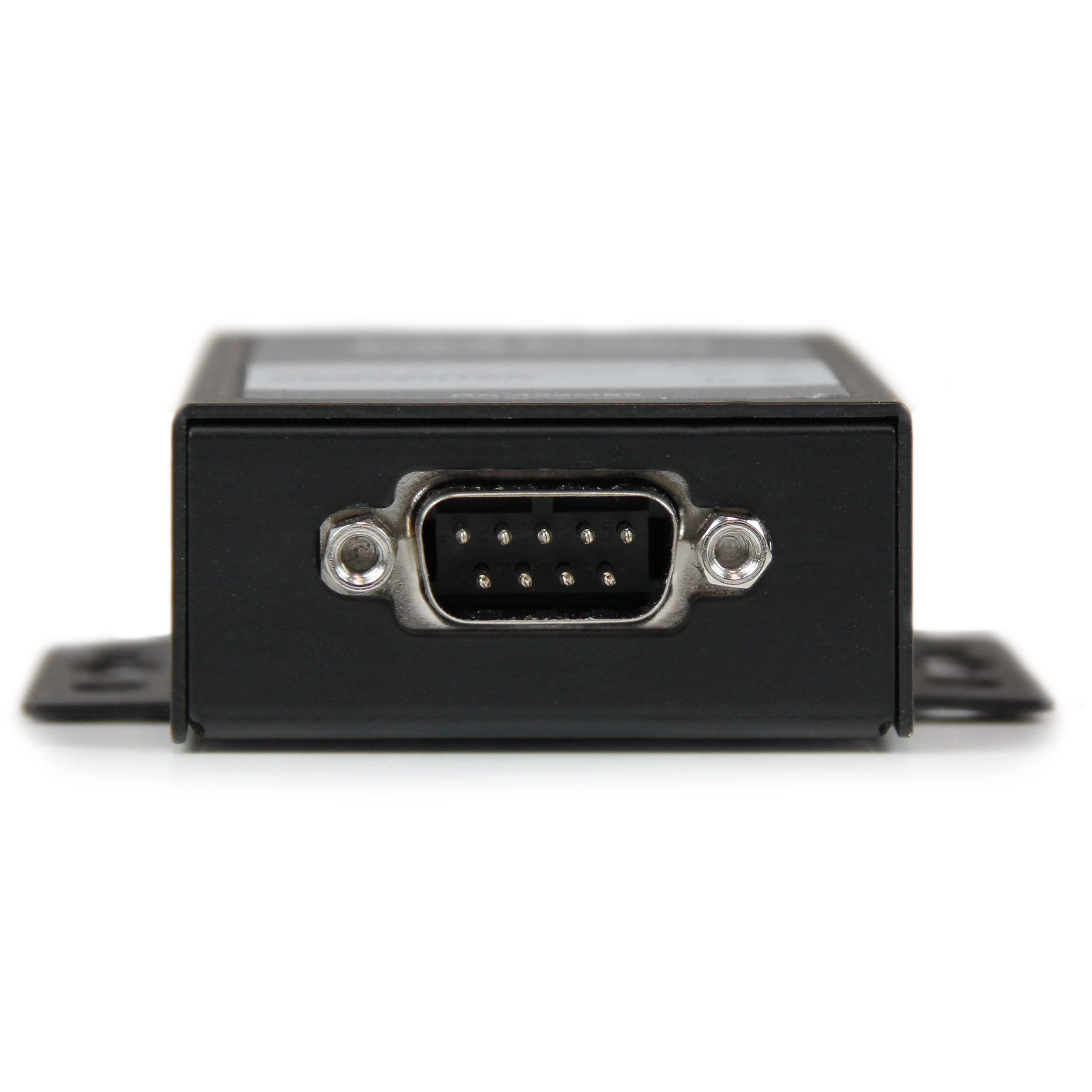

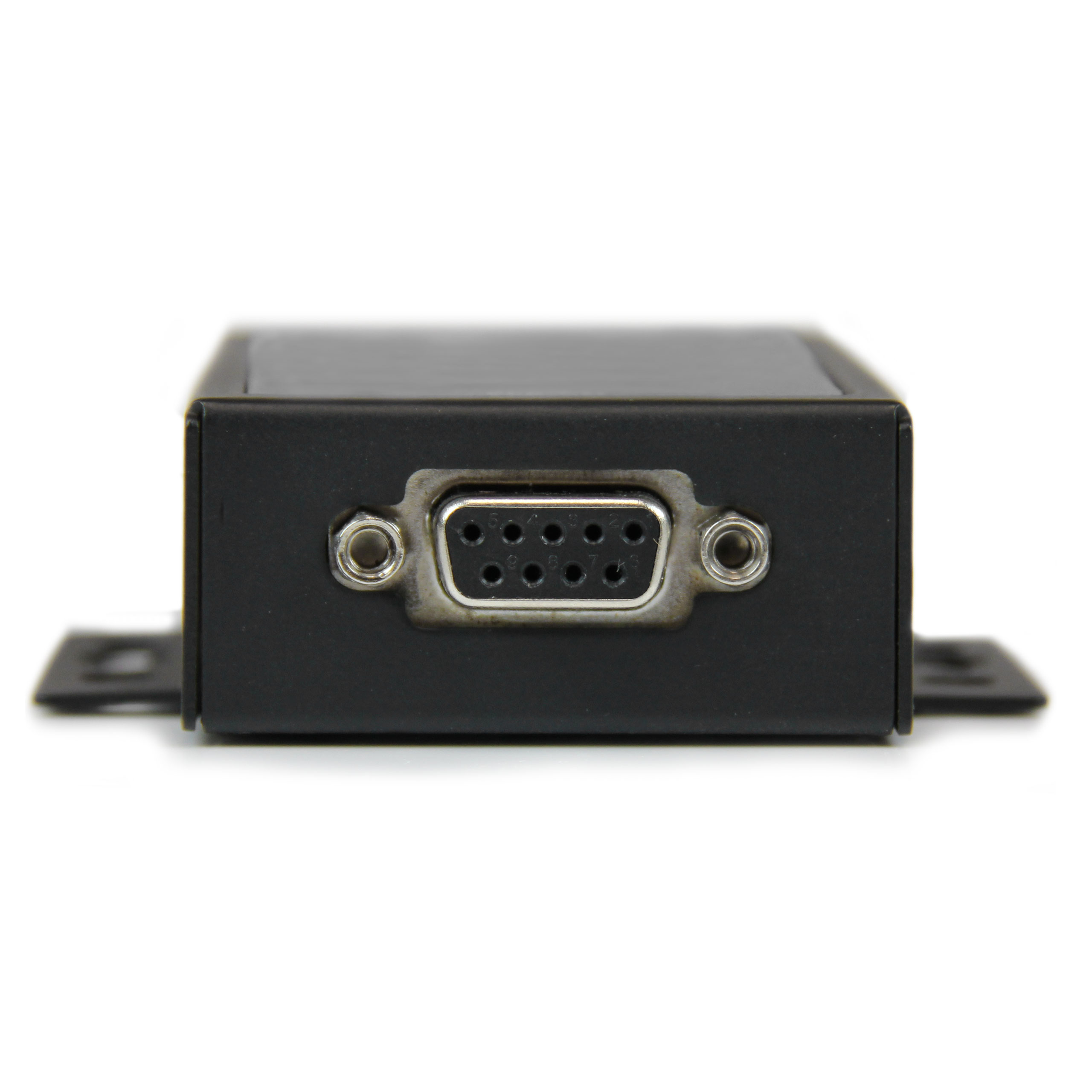

Package Depth (mm) 146 Package Height (mm) 44 Package Width (mm) 208 Package Quantity 1 Package Weight (g) 314 Packaging Description Industrial RS232 to RS-422/485 Serial Converter Packaging Description India Industrial RS232 to RS-422/485 Serial Converter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DB-9 Serial Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2013-07-19 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,EU,FR,IE,IT,MX,NL,SE,UK,US Primary Technology None Product Development Specialist kfarid Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None
