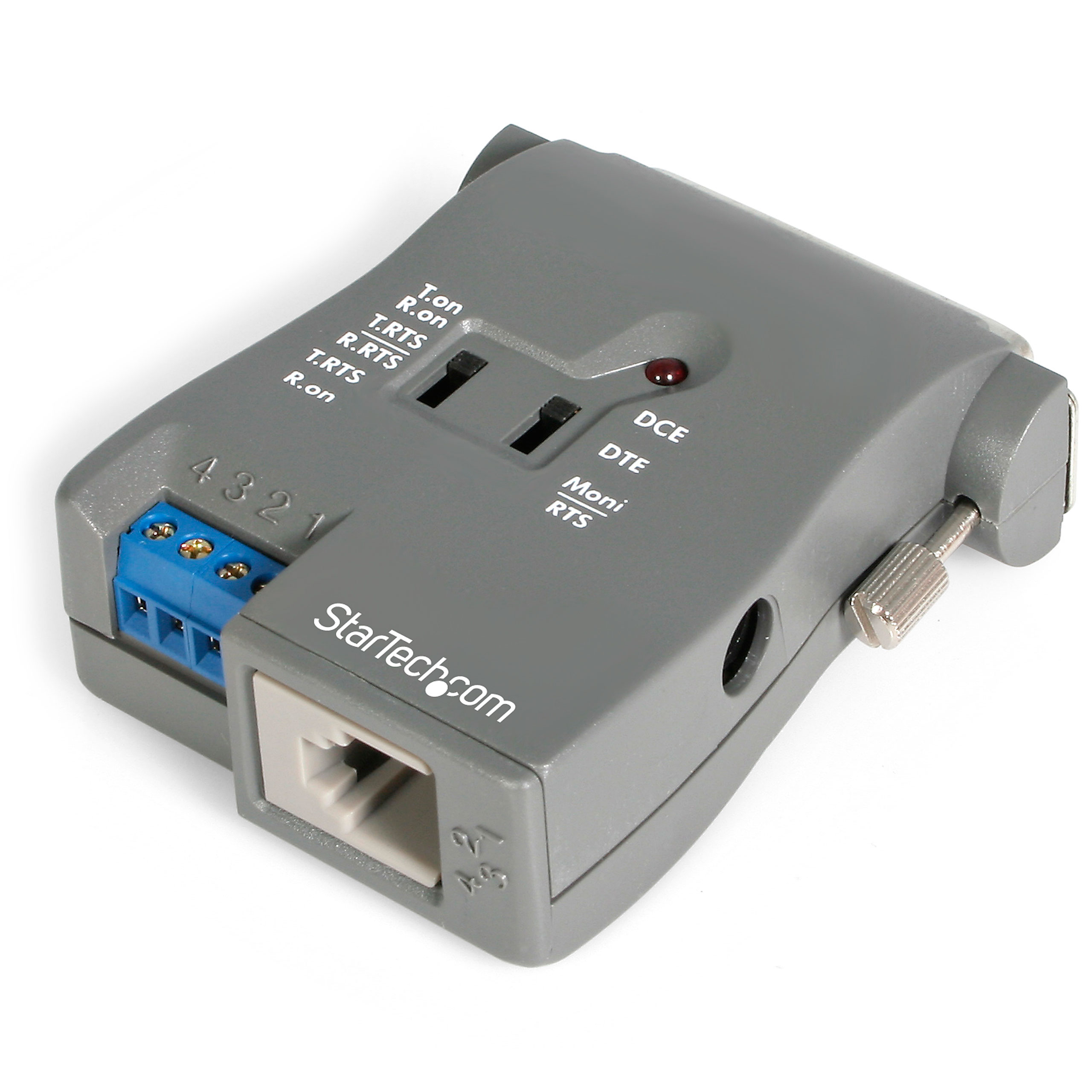

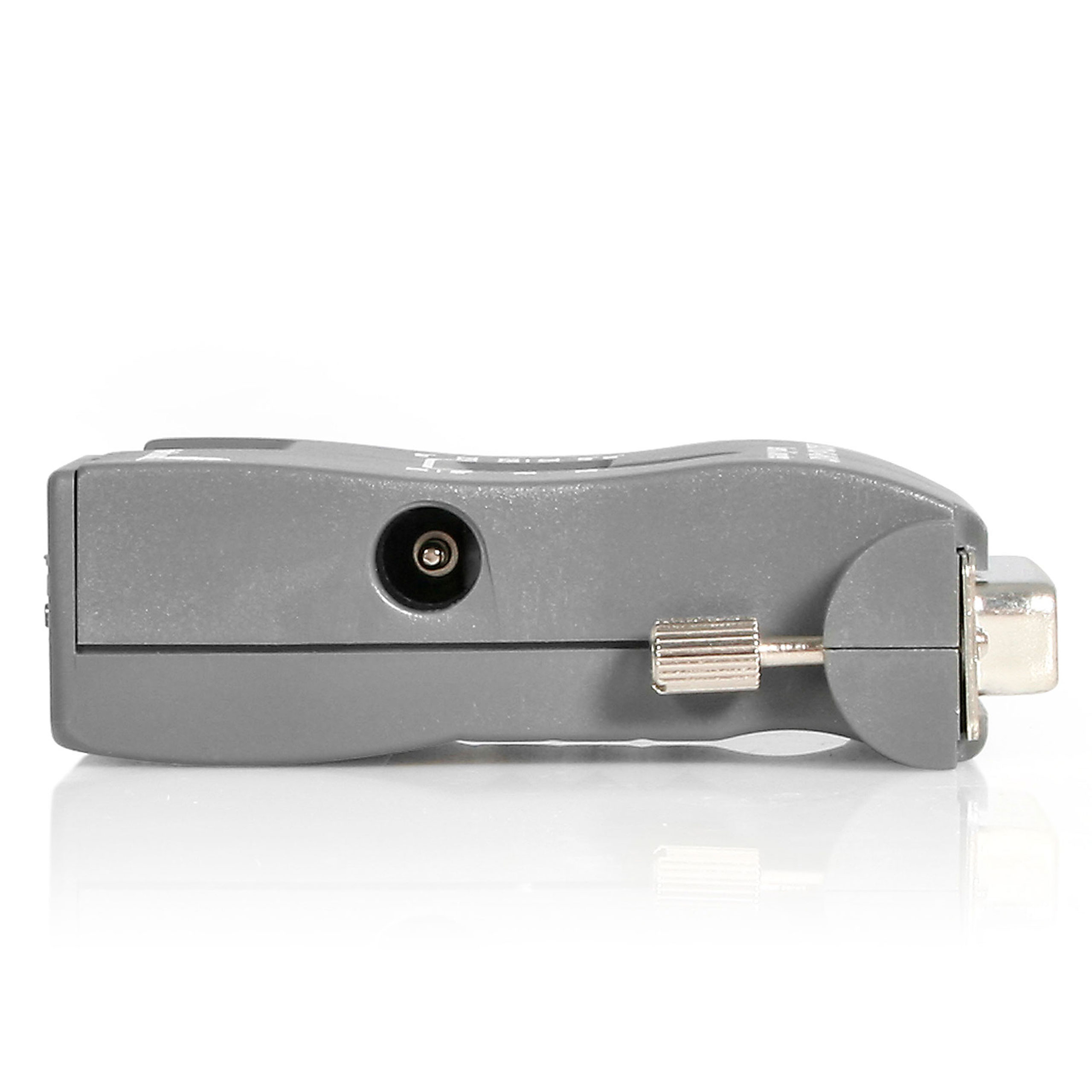

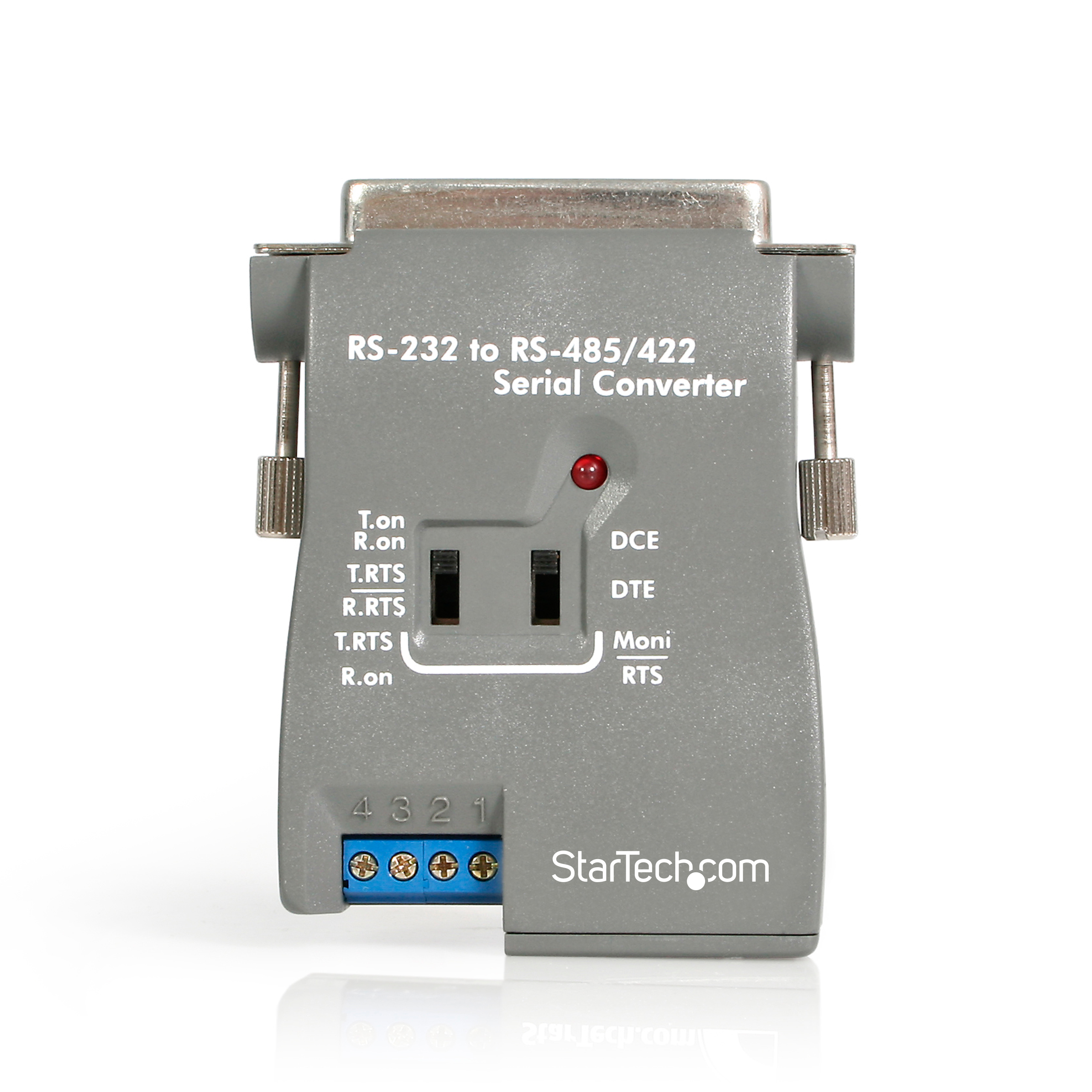

IC485S
RS-232 to RS-485/422 Serial Converter
Convert an RS232 data signal to either RS485 or RS422
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name RS-232 to RS-485/422 Serial Converter Product Number IC485S UPC 065030775458 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 Serial Extenders and Converters Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Short) RS-232 to RS485/422 Serial Converter Product Title (Standard) StarTech.com RS-232 to RS485/422 Serial Converter Product Title (Long) RS-232 to RS485/422 Serial Converter Title Ingram (Part 1) RS-232 to RS485/422 Serial Conve Title Ingram (Part 2) rter Website Product Headline Convert an RS232 data signal to either RS485 or RS422 Bullet 1 Supports up to 4000 ft cable length Bullet 2 Handy DCE/DTE mode selection switch Bullet 3 Supports point-to-point multidrop configuration Bullet 4 Can be used to monitor RS-485/422 signals Bullet 5 Monitor mode allows read only Bullets (Consolidated) Transceiver - RS-232 - RS-422 - RS-485 - serial RS-232 - serial RS-422 - serial RS-485 - RJ-11 - terminal block (screw)/25 pin D-Sub (DB-25) Marketing Copy Applications - Converts RS232C signals to either RS-485 or RS-422 signals
- Great for monitoring or controlling RS-422/485 devices like PLCs and other industrial equipment
- Ideal in office, warehouse, or other environments where RS-232 and RS-485/422 are used
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Accessory Products - MC3MF
- MC6MF
- MXT100
- MXT100_25
- AT925FF
- AT925FM
- AT925SFM
- SCNM925FM
- SCNM9FF
- SCNM9FF25
- SCNM9FM
- MXT100FF
- SVA9M2NEUA
- SVA12M2NEUA
- SVA12M5NA
Related Products - ICUSB422IS
- ICUSB232

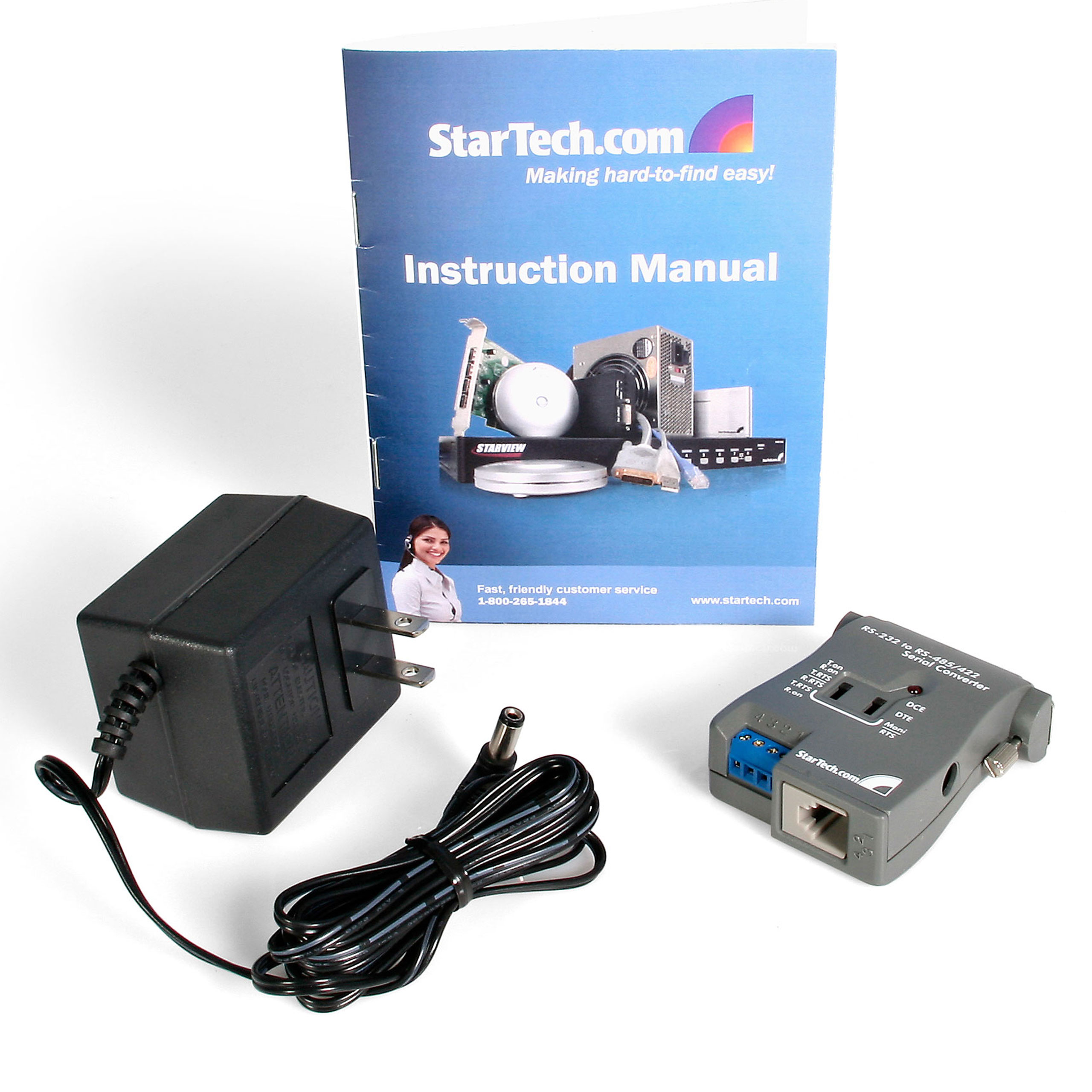

Replacement Product IC232485S Equivalent Part Number in the UK IC485SGB Output Current 0.3A Output Voltage (V) 9V DC Power Consumption (In Watts) 2.7 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Gray Humidity 0~80% RH Material Plastic Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 68 Product Width (mm) 54 Product Height (mm) 19 Product Weight (g) 47 Storage Temperature -20°C to 60°C (4°F to 140°F) TAA Compliant Yes Max Baud Rate 115.2 Kbps Maximum Cable Length (mm) 1219513 Maximum Data Transfer Rate 1MB/sec OS Compatibility Windows Vista Supported Serial Protocol RS-422/485 Interface/Bridge Serial IO Card Port Style Cable Adapters Carton Depth (mm) 307 Carton Height (mm) 282 Carton Quantity 24 Carton Weight Gross (g) 4790 Included in Package - 1 - INTERFACE CONVERTER
- 1 - ADAPTER
- 1 - MANUAL

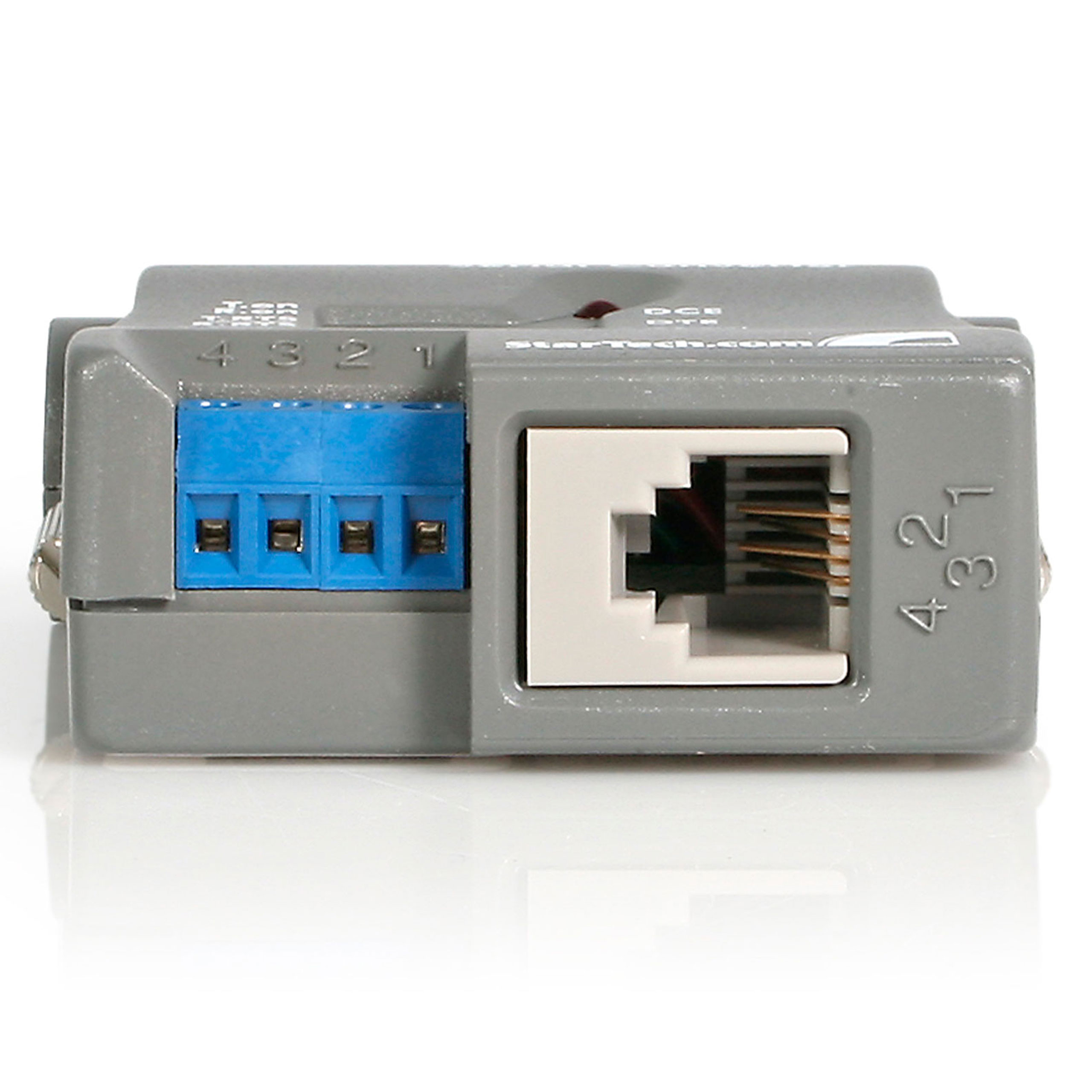

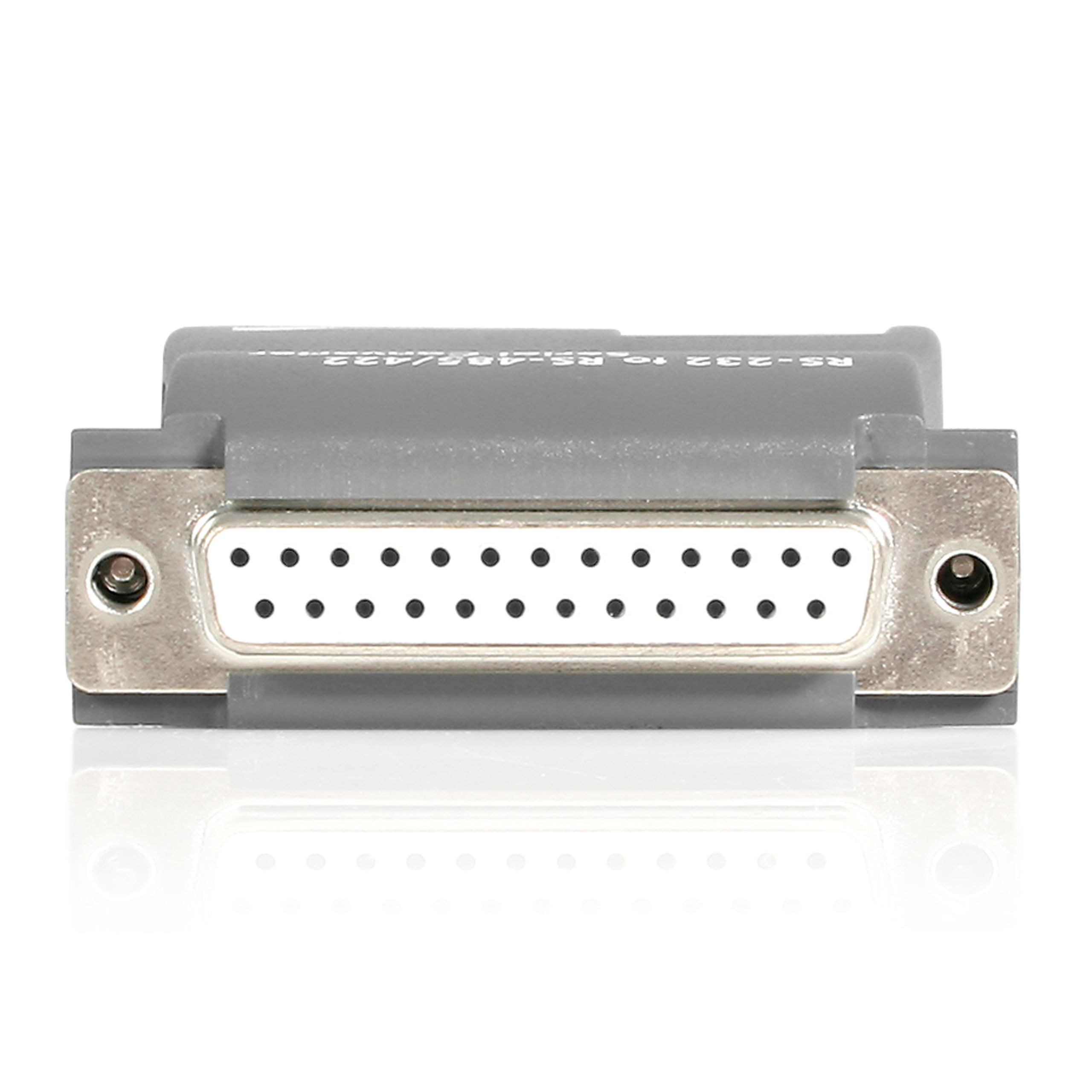

Package Depth (mm) 102 Package Height (mm) 70 Package Width (mm) 117 Package Quantity 1 Package Weight (g) 172 Packaging Description RS-232 to RS485/422 Serial Converter Packaging Description India RS-232 to RS485/422 Serial Converter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-11 Connector 1 (Quantity) 1 Connector 2 Terminal Block (4 Wire) Connector 2 (Quantity) 1 Connector 3 DB-25 Parallel / Serial Connector 3 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle Legacy
