IC485SGB
RS232 to RS485/422 Converter
Convert an RS232 data signal to either RS485 or RS422
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name RS232 to RS485/422 Converter Product Number IC485SGB UPC 065030800327 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 Serial Extenders and Converters Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Short) RS-232 to RS485/422 Converter Product Title (Standard) RS-232 to RS485/422 Converter Product Title (Long) RS-232 to RS485/422 Converter Title Ingram (Part 1) RS-232 to RS485/422 Converter Website Product Headline Convert an RS232 data signal to either RS485 or RS422 Bullet 1 Two in one converter-Converts RS232C to either RS-485 or RS-422 Bullet 2 DCE/DTE mode selectable Bullet 3 Supports point to point multidrop configuration Bullet 4 Can be used to monitor RS-485/422 signals Bullet 5 Full or half duplex operation Marketing Copy Applications - Converts RS232C signals to either RS-485 or RS-422 signals
- Great for monitoring or controlling RS-422/485 devices like PLCs and other industrial equipment
- Ideal in office, warehouse, or other environments where RS-232 and RS-485/422 are used
Required Regulatory Compliance Marks FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference Accessory Products - MC3MF
- MC6MF
- MXT100
- MXT100_25
- AT925FF
- AT925FM
- AT925SFM
- SCNM925FM
- SCNM9FF
- SCNM9FF25
- SCNM9FM
- MXT100FF
- SVA9M2NEUA
Related Products - ICUSB422IS
- ICUSB232

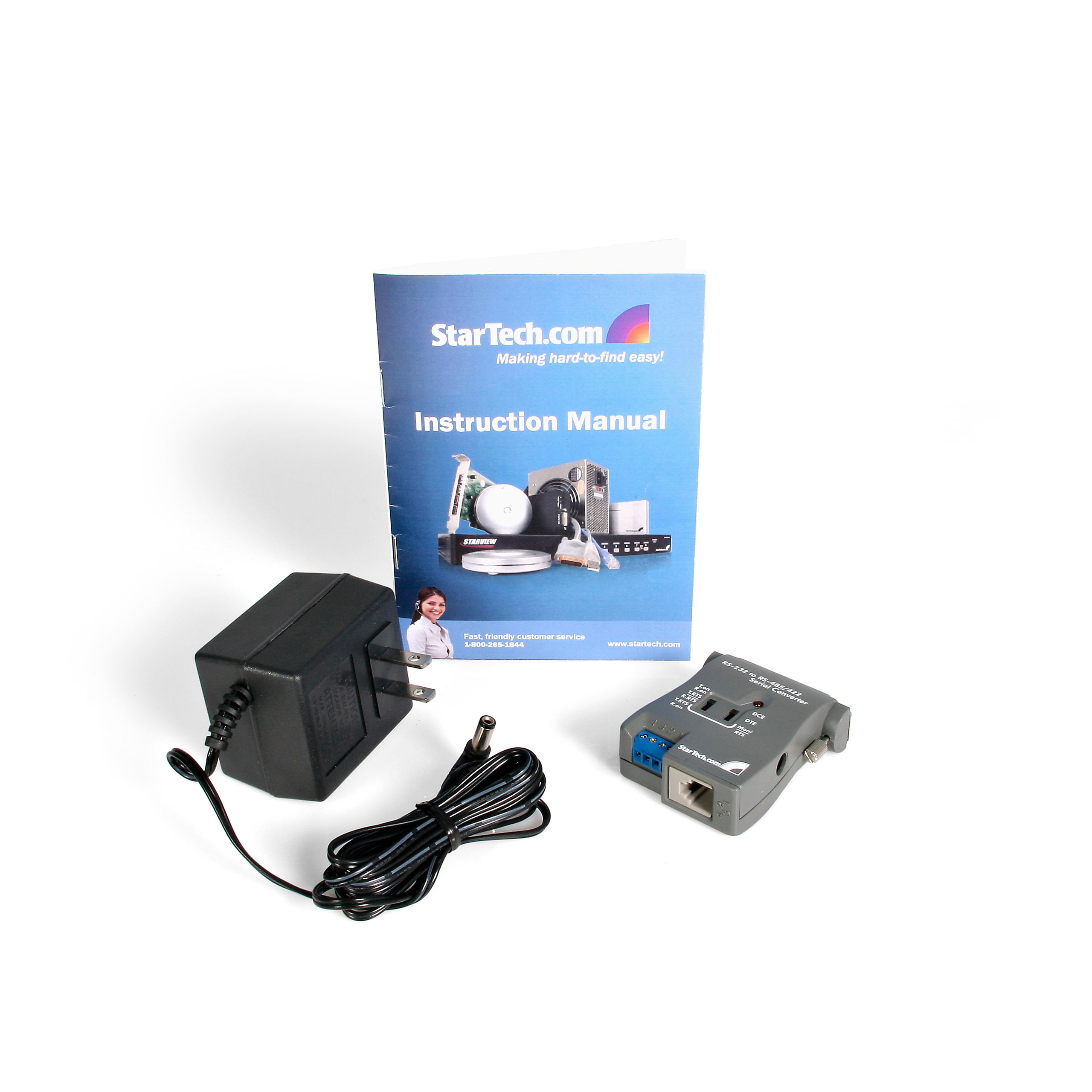

Replacement Product IC232485S Input Current 0.2 A Input Voltage 100 - 240 AC Output Current 0.6 A Output Voltage (V) 9V DC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Beige Product Length (mm) 68 Product Width (mm) 54 Product Height (mm) 19 Product Weight (g) 47 TAA Compliant No Maximum Cable Length (mm) 121950 Maximum Data Transfer Rate 1MB/sec OS Compatibility Windows Vista Supported Serial Protocol RS-422/485 Interface/Bridge Serial Carton Depth (mm) 347 Carton Height (mm) 340 Carton Quantity 20 Carton Weight Gross (g) 9000 Included in Package - 1 - INTERFACE CONVERTER
- 1 - ADAPTER
- 1 - MANUAL
Package Depth (mm) 59 Package Height (mm) 162 Package Width (mm) 240 Package Quantity 1 Package Weight (g) 430.92 Packaging Description RS-232 to RS485/422 Serial Converter Packaging Description India RS-232 to RS485/422 Serial Converter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-11 Connector 1 (Quantity) 1 Connector 2 DB-25 Parallel / Serial Connector 2 (Quantity) 1 Connector 3 Terminal Block (4 Wire) Connector 3 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle Legacy
