Main Image
IC485SISEU
Main Image

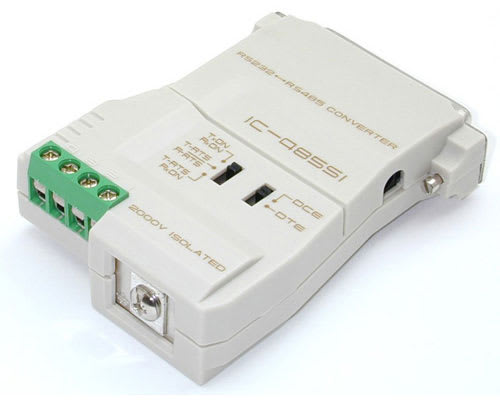

Product Name RS-232 to RS-485/422 Serial Interface Converter Product Number IC485SISEU UPC 065030812115 Warranty 2 Years Taxonomy Product > Legacy Discontinued Product Title (Long) RS-232 to RS-485/422 Serial Interface Converter Bullet 1 2-year warranty and FREE LIFETIME technical support Bullet 2 2000 Volt surge suppression protects your data and hardware Bullet 3 Can be used to monitor RS-485/422 signals Bullet 4 Draws power from connection or uses 9V power adapter (included) Bullet 5 Durable plastic construction protects interior components Marketing Copy Changing line signals is no longer a problem! StarTech.com’s IC485SISEU converts RS-232 serial interfaces to RS-485/422 serial interfaces for trouble free data transmission. This 2-in-1 converter converts RS232C to either the RS-485 or RS-422 interface, and is DCE/DTE mode selectable with the flip of a switch. Plus, the IC485SISEU features 2000 Volt surge suppression to protect your hardware and data from dangerous power surges. Other features include selectable modes, point-to-point multidrop configuration and RS 485/422 monitor mode. This serial interface converter is made of high grade plastic for durability in most environments and supports connections up to 4000 ft, with data transfer rates up to 1MB/sec. Comes with a 9V power adapter or draws power on its own. Backed by StarTech.com’s 2-year warranty and FREE lifetime tech support. Applications - Converts RS232C signals to either RS-485 or RS-422 signals
- Great for monitoring or controlling RS-422/485 devices like PLCs and other industrial equipment
- Ideal in office, warehouse, or other environments where RS-232 and RS-485/422 are used
Color Beige Product Length (mm) 74 Product Width (mm) 54 Product Height (mm) 19 TAA Compliant No General Specifications - Cable length: Up to 4000 ft.
- Data rate: Up to 1Mb/sec
- Dimensions (mm): 54 x 74 x 19
- Power: Self-powered or DC 9V 200mA (power adapter included)
- RS-232 connector: DB25 Female
- RS-485 connector: RJ11 Female or 4 terminal block
Maximum Data Transfer Rate 1000000 Included in Package - 1 - ADAPTOR
- 1 - INTERFACE CONVERTER
- 1 - MANUAL
Connector 1 DB-25 Parallel / Serial Connector 1 (Quantity) 1 Connector 2 Terminal Block (4 Wire) Connector 2 (Quantity) 1 en-US Content Approved Yes
