IC485SISGB
Main Image

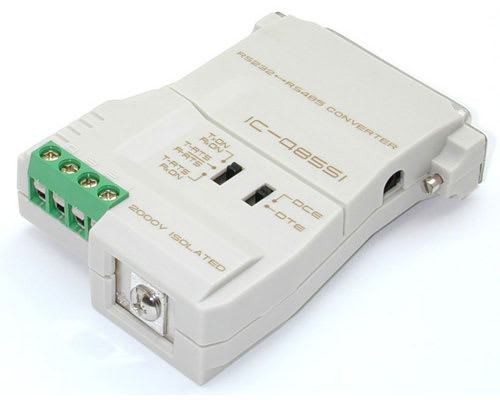

Product Name RS-232 to RS-485/422 Serial Interface Converter Product Number IC485SISGB UPC 065030809290 Warranty 2 Years Taxonomy Product > Legacy Discontinued Product Title (Long) RS-232 to RS-485/422 Serial Interface Converter Bullet 1 2000 Volt surge suppression protects your data and hardware Bullet 2 Supports up to 4000 ft cable length Bullet 3 Handy DCE/DTE mode selection switch Bullet 4 Supports point-to-point multidrop configuration Bullet 5 Can be used to monitor RS-485/422 signals Marketing Copy Changing line signals is no longer a problem! StarTech.com’s IC485S [IC485SIS] converts RS-232 serial interfaces to RS-485/422 serial interfaces for trouble free data transmission. This 2-in-1 converter converts RS232C to either the RS-485 or RS-422 interface, and is DCE/DTE mode selectable with the flip of a switch. Plus, the IC485SIS features 2000 Volt surge suppression to protect your hardware and data from dangerous power surges. Other features include selectable modes, point-to-point multidrop configuration and RS 485/422 monitor mode. This serial interface converter is made of high grade plastic for durability in most environments and supports connections up to 4000 ft, with data transfer rates up to 1MB/sec. Comes with a 9V power adapter or draws power on its own. Backed by StarTech.com’s 2-year warranty and FREE lifetime tech support. Applications - Converts RS232C signals to either RS-485 or RS-422 signals
- Great for monitoring or controlling RS-422/485 devices like PLCs and other industrial equipment
- Ideal in office, warehouse, or other environments where RS-232 and RS-485/422 are used
Color Beige TAA Compliant No General Specifications - Data rate: Up to 1Mb/sec
- Cable length: Up to 4000 ft.
- RS-232 connector: DB25 Female
- RS-485 connector: RJ11 Female or 4 terminal block
- Dimensions (mm): 54 x 74 x 19
- Power: Self-powered or DC 9V 200mA (power adapter included)
Maximum Data Transfer Rate 1000000 Connector 1 Terminal Block (4 Wire) Connector 1 (Quantity) 1 Connector 2 DB-25 Parallel / Serial Connector 2 (Quantity) 1 en-US Content Approved Yes
