ICRS232BT1
Main Image
Product Images
Product Images

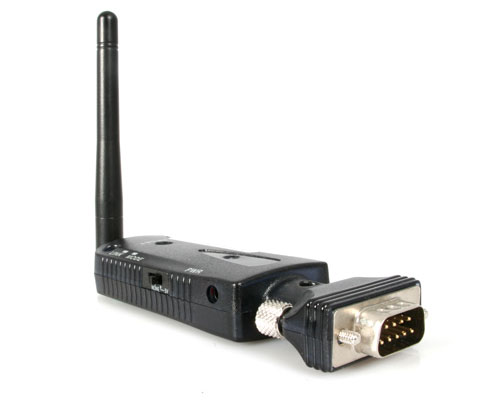

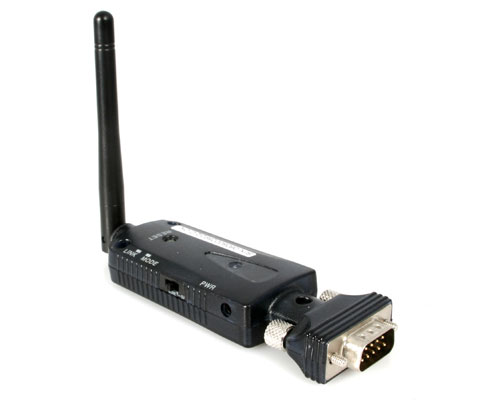

Product Name RS-232 to Class1 Bluetooth Adapter Product Number ICRS232BT1 UPC 065030820721 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Long) RS-232 Serial to Class 1 Bluetooth Adapter Bullet 1 Compliant with Bluetooth version 1.2 Bullet 2 Bluetooth class 1 allows for 100m range Bullet 3 Data Transfer Rate of 9,600 to 460,800 bps Bullet 4 5V DC power adapter included to power devices that require power through a DB9 port Bullet 5 LED’s to indicate power, status, and Bluetooth activity Marketing Copy Applications - Casino (video lottery terminals, slot machines)
- Consumer (modems, PDAs, digital cameras, printers)
- Environmental Control (lighting, temperature, clocks)
- Healthcare (patient monitoring equipment, nurses' stations, modems)
- Hospitality/Restaurant (credit card/debit card reader, serial printers)
- Hotel Front Desk (serial printers, bar code scanners, keyboard, mouse, receipt printer, credit/debit card reader)
- ISDN Networking
- Manufacturing (CNC machinery, process control equipment, bar code scanners, serial printers)
- POS (credit/debit card readers, receipt printers, bar code scanners, cash registers, scales)
- Security (UPS control, access key panels, video cameras, card readers, modems)
- Communicate with Bluetooth enabled PC's
Website Search Keyword - RS-232 to Bluetooth Adapter
- Serial to Bluetooth Adapter
- RoHS
System and Cable Requirements PC needs to be bluetooth enabled. A USB to Bluetooth Adapter is reccomended for use. Please see accessories. Accessory Products - USBBTOOTH1
- USBBTOOTH2
Power Consumption (In Watts) 5V DC Power Source AC Adapter Included Center Tip Polarity Positive Color Black Operating Temperature 0 to 60 Product Length (mm) 109 Product Width (mm) 34 Product Height (mm) 18 Product Weight (g) 58 Storage Temperature -10 to 70 TAA Compliant No General Specifications - Frequency: 2.4 to 2.4835 GHz unlicensed ISM band
- Modulation Method: GFSK, 1Mbps, 0.5BT Gaussian
- Spread Spectrum: FHSS (Frequency Hopping Spread Spectrum)
- Services Supported: Series Port Profile (SPP)
- Antenna: 2dBi chip embedded and external antenna
- Range: Up to 100 metres
- Sensitivity: <-88dBm at <0.1% BER
- Power Consumption: Tx Typical: 115mA
- : Rx Typical: 75mA
- : Standby Mode: 15mA
- I/O Interface: RS-232 DTE Mode
- Signal: RxD, TxD, RTS, CTS, DTR, DSR, DCD, GND
- OS Support: Windows 98SE/ME/2000/XP and Vista
Maximum Data Transfer Rate 960 - 460.8 OS Compatibility - Windows 98SE
- Windows ME
- Windows 2000
- Windows XP
- Windows Vista
Industry Standards - Bluetooth v1.2 compliant
- Bluetooth Class 1
LED Indicators - 1 - Power
- 1 - Bluetooth Active
- 1 - Mode Active
Carton Depth (mm) 548 Carton Height (mm) 390 Carton Quantity 50 Carton Weight Gross (g) 14700 Package Depth (mm) 48 Package Height (mm) 157 Package Width (mm) 216 Package Weight (g) 270 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DB-9 Serial Connector 1 (Quantity) 1 en-US Content Approved Yes Product Manager Carey Cline
