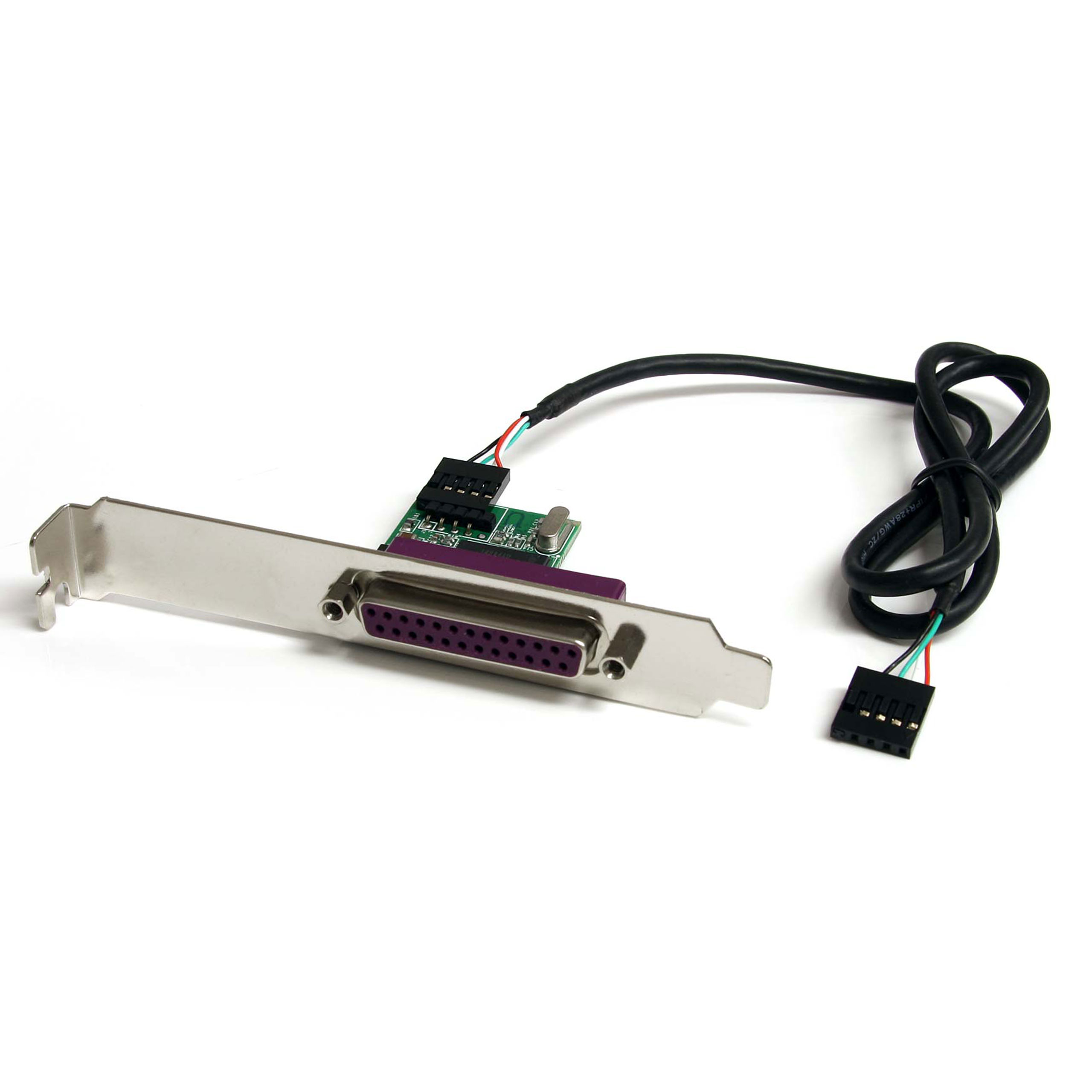

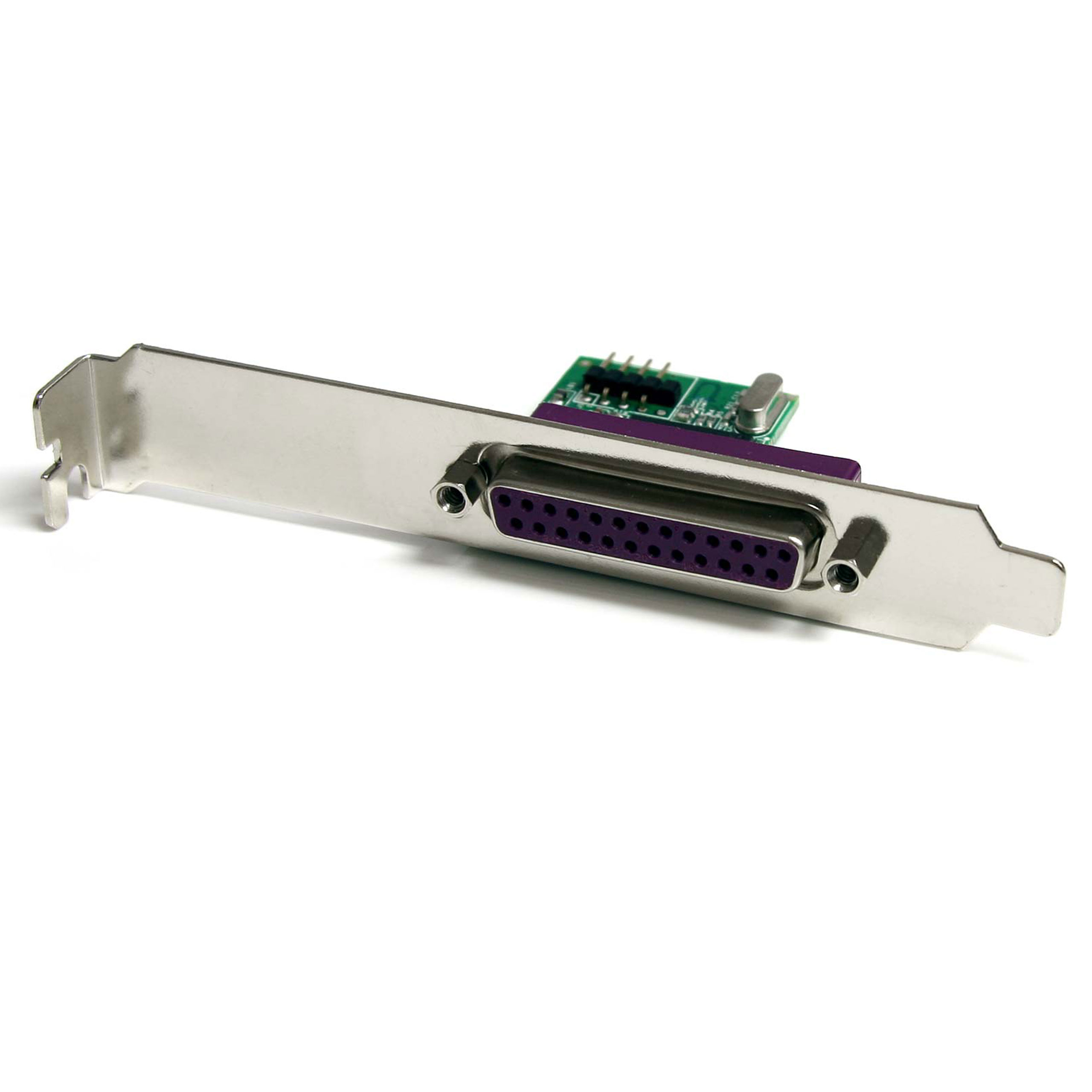

ICUSB1284INT
Internal USB to Parallel Adapter
Add a parallel port to any system with an available USB motherboard header
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name Internal USB to Parallel Adapter Product Number ICUSB1284INT UPC 065030842082 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Short) 24in USB Header to Parallel Adapter Product Title (Standard) 24in Internal USB Motherboard Header to Parallel Adapter Product Title (Long) 24in Internal USB Motherboard Header to Parallel Adapter Title Ingram (Part 1) 24in Internal USB Motherboard He Title Ingram (Part 2) ader to Parallel Adapter Website Product Headline Add a parallel port to any system with an available USB motherboard header Bullet 1 Bus-Powered – no separate power supply or battery required Bullet 2 On-chip transceivers and regulator for USB interface Bullet 3 Full compliance with IEEE 1284-1994 Bullet 4 USB 1.1 compatible Bullet 5 Fully automatic, high speed bi-directional parallel port Marketing Copy Applications - Perfect for system builders looking to add legacy functionality to newer motherboards that lack an integrated parallel port
- Quickly add a parallel port to your computer for use with printers utilizing DB25 connectors
Website Search Keyword - 10-pin
- 10pin
- IDC
- Internal USB
- Motherboard USB
- USB 2.0 to Parallel
- USB Header
- USB to Parallel
- USB to DB25
- USB to centronix
- centronix
- printer port
- printer header
- usb header
- motherboard adapter
Microsoft WHQL Certified Yes Accessory Products - 1284DB25_10
- PC6_1284
- PB6_
- 1284DB25
- PB10
- 1284DB25_20
- PC20_1284
- PC20
- PC30_1284
- PC30
- 1284DB25_35
Related Products - ICUSB1284D25
- ICUSB128410
- PCI1P
- PCI1PECP
- PEX1P
- PEX1PECP
- PEX2PECP
- ICUSB1284
Cable Length (mm) 610 Operating Temperature 0°C to 115°C (32°F to 239°F) Product Length (mm) 40 Product Width (mm) 53 Product Height (mm) 176 Product Weight (g) 55 Storage Temperature -55°C to 150°C (-67°F to 302°F) TAA Compliant No Maximum Data Transfer Rate 1.5Mbps OS Compatibility - Mac OS X Mavericks (10.9)
- Windows 8
- Windows Server 2012
- Linux
- Windows 7
- macOS Sierra (10.12)
- Windows Server 2016

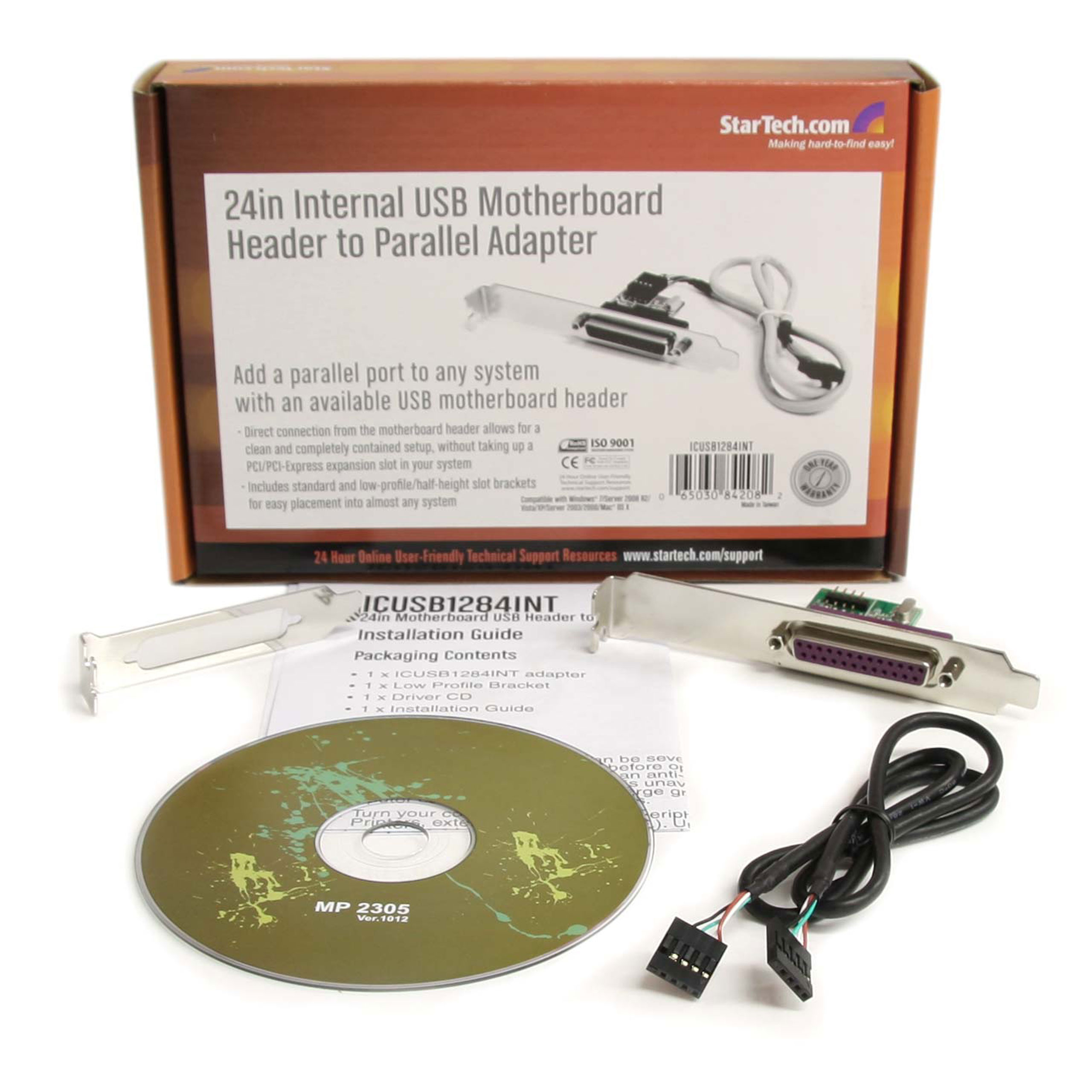

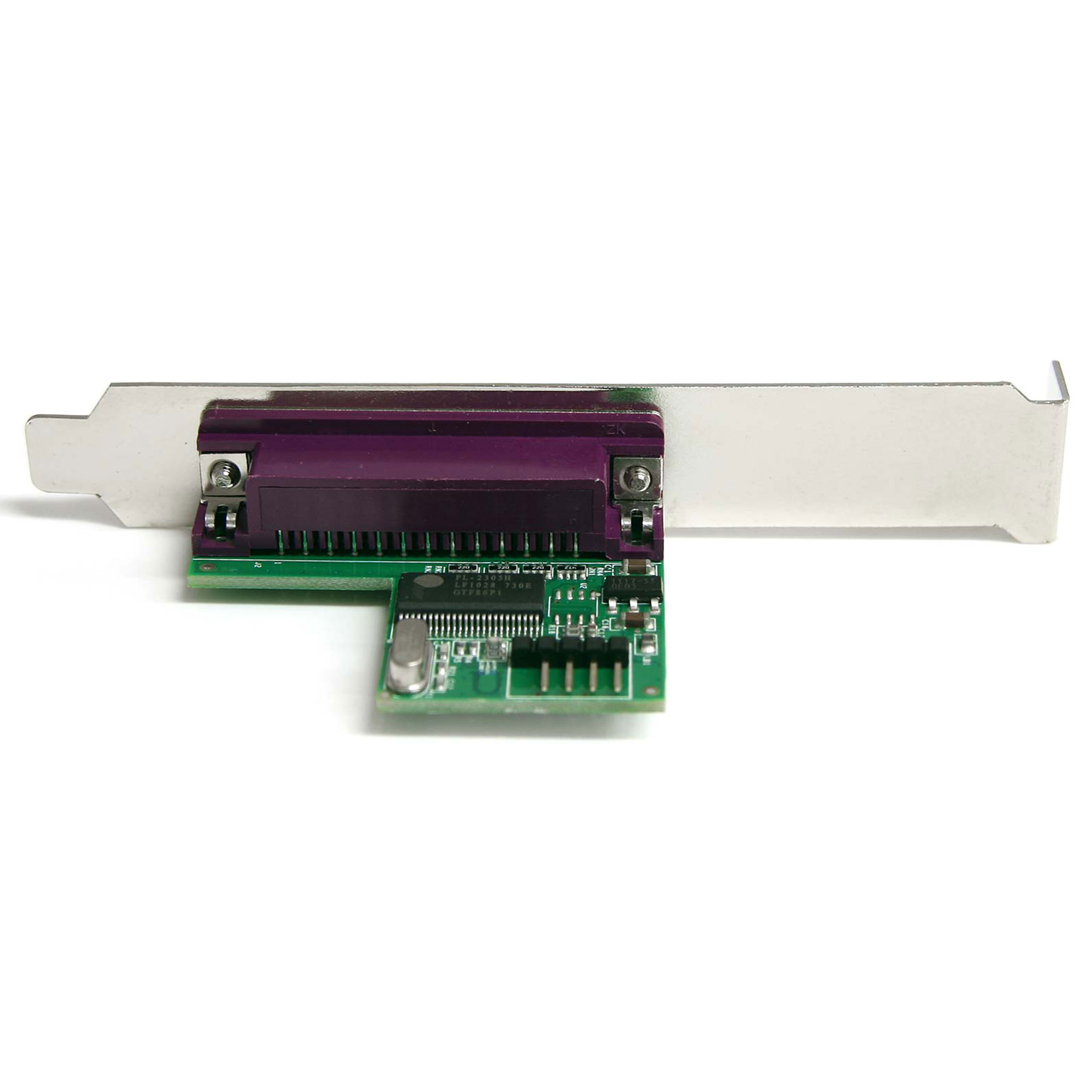

Bus Type Motherboard Header Card Type Standard Profile (LP bracket incl.) Chipset ID Prolific - PL2305 Industry Standards IEEE 1284 Interface/Bridge Parallel IO Card Port Style Integrated on Card Carton Depth (mm) 440 Carton Height (mm) 230 Carton Quantity 50 Carton Weight Gross (g) 7500 Included in Package - 1 - Driver CD
- 1 - Instruction Manual
- 1 - USB header to Parallel Adapter
- 1 - Low profile bracket
Package Depth (mm) 145 Package Height (mm) 40 Package Width (mm) 210 Package Weight (g) 130 Packaging Description 24in USB Header to Parallel Adapter Packaging Description India 24in USB Header to Parallel Adapter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DB-25 Parallel / Serial Connector 1 (Quantity) 1 Connector 2 IDC (10-Pin) Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager Rafal Gwozdz
