Main Image
ICUSB232

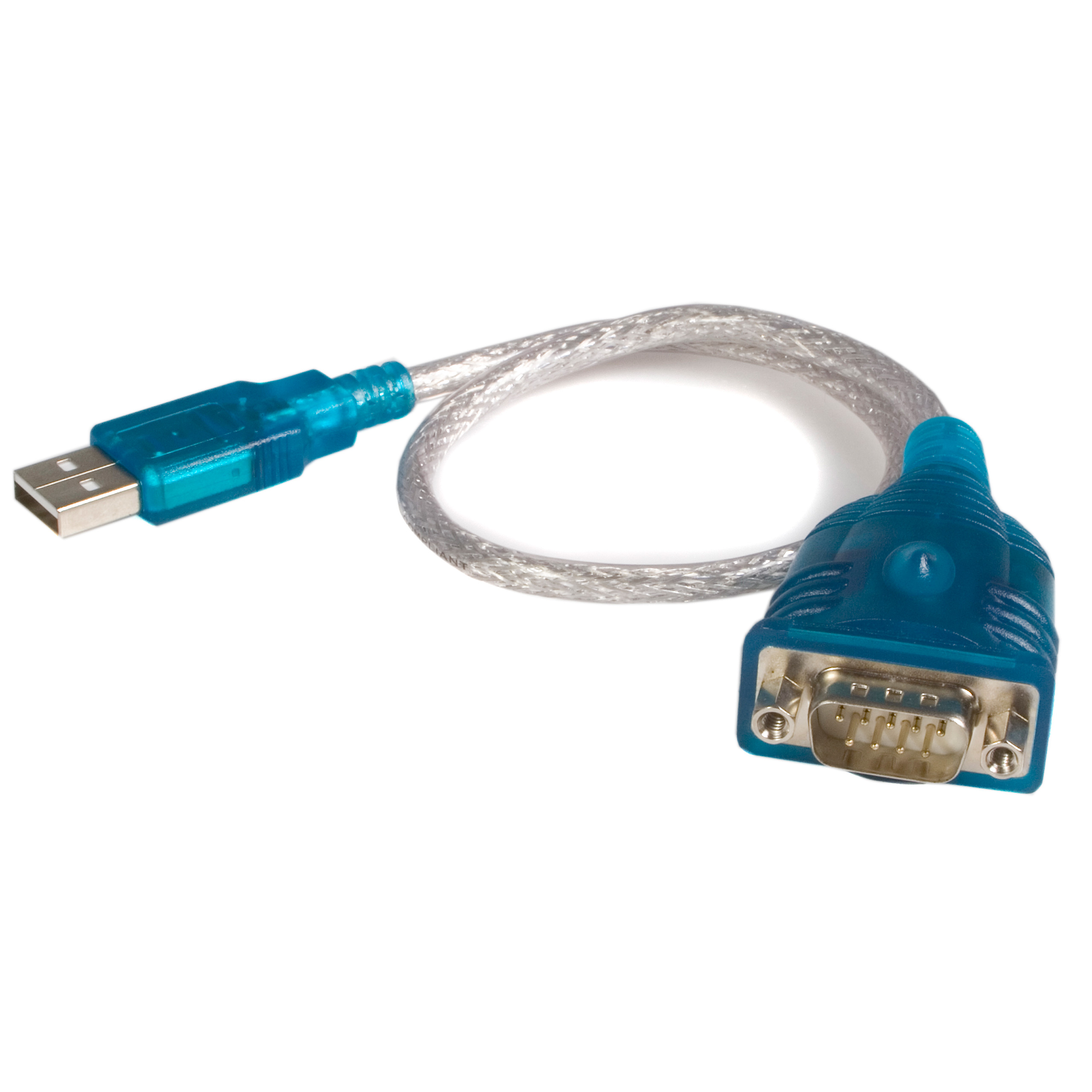

USB to RS-232 Serial DB9 Adapter
Add one serial RS-232 port to any laptop or computer with a USB port
Main Image
Product Images
Product Images
BOM Image
Product Name USB to RS-232 Serial DB9 Adapter Product Number ICUSB232 UPC 065030783392 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX045X Product Title (Short) USB to RS232 DB9 Serial Adapter Cable Product Title (Standard) StarTech.com USB to Serial Adapter Cable M/M - USB to RS232 DB9 - Serial Adapter - USB to RS-232 adapter - USB - RS-232 Product Title (Long) USB to RS232 DB9 Serial Adapter Cable - M/M Product Title (AMZ) USB to Serial RS232 Adapter - DB9 - USB Serial Adapter - Prolific USB to Serial Adapter - 1-Port (ICUSB232) Title Ingram (Part 1) USB to Serial Adapter Cable - US Title Ingram (Part 2) B to RS232 DB9 M/M Website Product Headline Add one serial RS-232 port to any laptop or computer with a USB port Bullet 1 Easy to setup and install Bullet 2 Compatible with all popular PDAs, modems, printers, bar code scanners, etc. Bullet 3 Thin cables and light weight makes it portable and easy to carry Bullet 4 No external power needed - draws power from the USB connection Bullet 5 Supports serial data transfer rates of up to 1 Mbits/sec Marketing Copy Applications - Perfect for IT Administrators looking to add legacy functionality to newer notebooks, PCs and servers that lack an integrated RS232 port
- Connect a satellite receiver, serial modem, or PDA with serial sync
- Connect bar code scanners, receipt printers and other point of sale devices
- Connect, monitor and control industrial/automotive sensors and equipment
- Connect and program LED and Digital signage boards with serial communication ports
- Compatible with nearly all PLC Brands (AllenBradley, Siemens, Modicon, Servos, Indramat, Siemens, AB, etc.)
Website Search Keyword - RoHS
- POSline
- Serial
Accessory Products - USB2FAAEXT15
- AT925FM
- AT925SFM
- SCNM9FM
- SCNM925FM
- MXT100
- MXT100_25
- MXT100FF
- MXT106
- RS232EXTC5
Related Products - ICUSB232C2
- ICUSB2321X
- ICUSB2322X
- ICUSB2324X
- ICUSB2328
- ICUSB2324
Replacement Product ICUSB232V2 Cable Length (mm) 304.8 Humidity 0~65% RH Material Plastic Operating Temperature 0°C to 60°C (32°F to 140°F) Product Length (mm) 370 Product Width (mm) 34 Product Height (mm) 18 Product Weight (g) 81.6 Storage Temperature -20°C to 80°C (-4°F to 176°F) TAA Compliant No FIFO 192 Bytes Max Baud Rate 921.6 Kbps OS Compatibility - Windows 7
- Mac OS X Mavericks (10.9)
- Linux
- Windows Server 2012
- Mac OS X Yosemite (10.10)
- Mac OS X El Capitan (10.11)
- Windows 8
- Windows 10
- macOS Big Sur (11.0)
- Windows 11
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- macOS Sonoma (14.0)
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)

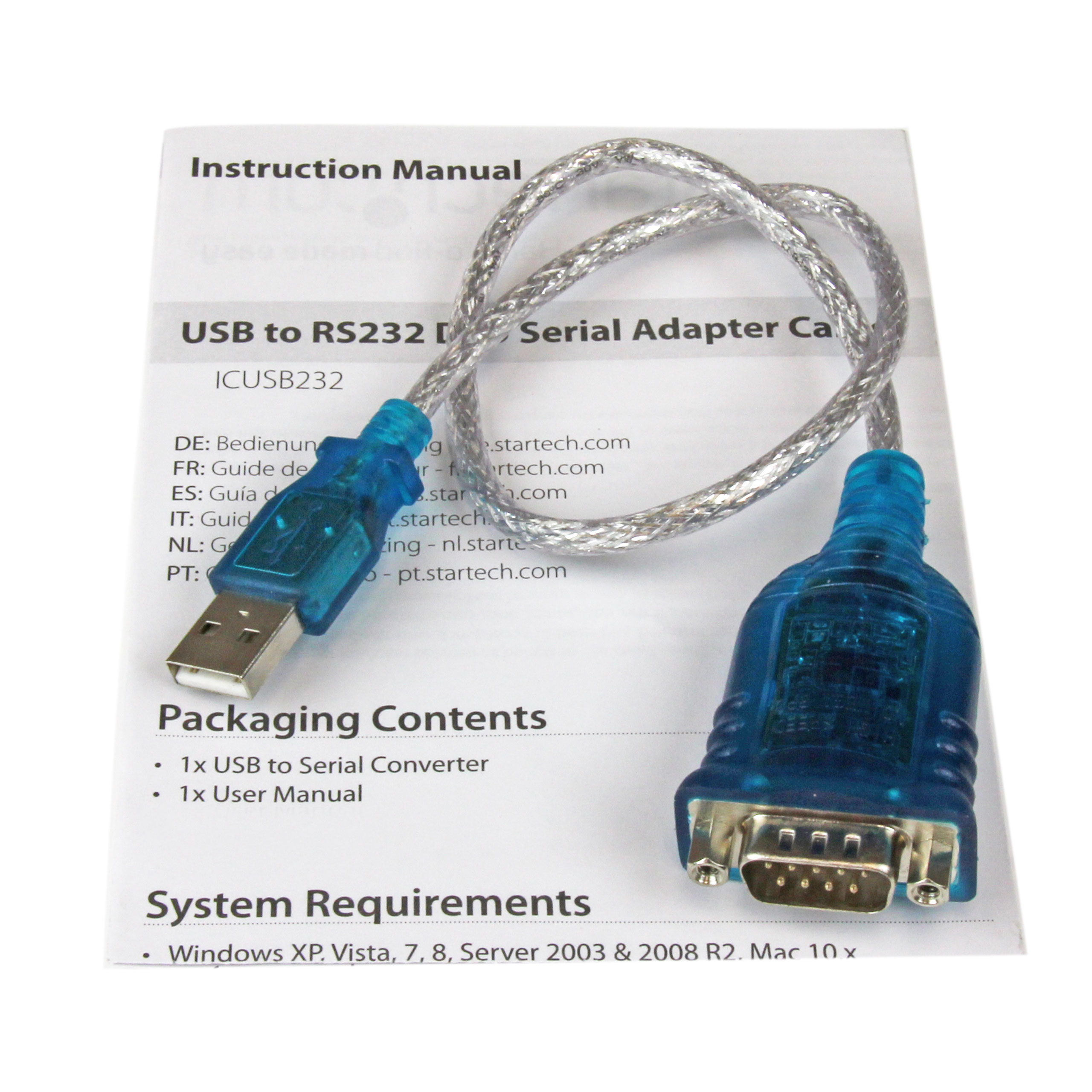

Supported Serial Protocol RS-232 Bus Type USB 2.0 Chipset ID Prolific - PL2303 Industry Standards Interface/Bridge Serial IO Card Port Style Cable Adapters Carton Depth (mm) 720 Carton Height (mm) 230 Carton Quantity 50 Carton Weight Gross (g) 5700 Included in Package - 1 - USB to Serial Converter
- 1 - User Manual
Package Depth (mm) 36 Package Height (mm) 214 Package Width (mm) 105 Package Weight (g) 90 Packaging Description USB to RS232 DB9 Serial Adapter Cable - M/M Packaging Description India USB to RS232 DB9 Serial Adapter Cable - M/M Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (480Mbps, 2.5W) Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager Rafal Gwozdz
