Main Image
ICUSB23208FD
8-Pt USB-to-Serial Adapter Hub - with Daisy Chain
Convert a single USB port into eight serial ports, and connect multiple hubs together for a scalable solution
Main Image
Product Images
Product Images
BOM Image
Product Name 8-Pt USB-to-Serial Adapter Hub - with Daisy Chain Product Number ICUSB23208FD UPC 065030866705 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > Serial and Parallel Cards & Adapters Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 USB Serial Host Adapter Interconnects Family Industrial USB to Serial Adapters - RS232 Only Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Ultra-Short) 8Pt Serial Adapter Product Title (Short) 8 Port USB to Serial RS232 Adapter Hub Product Title (Medium) 8-Port USB-to-Serial Adapter Hub - USB to RS232 Port Adapter with Daisy Chain Product Title (Standard) USB to Serial Hub – 8 Port – COM Port Retention – Rack Mount and Daisy Chainable – FTDI USB to RS232 Hub, TAA Product Title (Long) 8-Port USB-to-Serial Adapter Hub - TAA Product Title (AMZ) USB to Serial Hub - 8 Port - COM Port Retention - Rack Mount and Daisy Chainable - FTDI USB to RS232 Hub , TAA (ICUSB23208FD) Title Ingram (Part 1) 8 Port USB-to RS232 Adapter Hub Title Ingram (Part 2) RS232 Multiplexer with Daisy Chain Website Product Headline Convert a single USB port into eight serial ports, and connect multiple hubs together for a scalable solution Bullet 1 Gain eight RS232 serial port interfaces through a single USB port Bullet 2 Connect multiple hubs together through daisy chain functionality Bullet 3 921.6Kbps baud rate per port Bullet 4 256-byte transmit, 128-byte receive FIFO Bullet 5 Rack-mountable design with durable all-metal chassis Bullets (Compact) Convert a USB port into 8 RS232 serial ports in an industrial rack-mountable chassis, and daisy chain multiple hubs for a scalable solution - 8-Port USB-to-Serial Adapter Hub - USB to RS232 port adapter with FTDI chipset and COM port retention Bullets (Consolidated) Convert a USB port into 8 RS232 serial ports in an industrial rack-mountable chassis and daisy chain multiple hubs for a scalable solution - 8-Port USB-to-Serial Adapter Hub - USB to RS232 port adapter with FTDI chipset and COM port retention - Rack-mountable all-metal chassis - RS232 multiplexer with 921.6 Kbps baud per port - Meets the demands of industrial environments with extended operating temperature range: -40DEG C to 85DEG C (-40DEG F to 185DEG F) Marketing Copy Marketing Copy (No HTML) Applications - Ideal for industrial automation on factory and manufacturing floors
- Provides full control of your server room serial components from a single device
- Control and monitoring of surveillance and security cameras and systems
- Self-service automated machines and kiosks (grocery, airport) to control serial devices such as scales, touchscreens, magnetic-card readers, barcode scanners, receipt printers, label printers
- POS control of keyboards, cash drawers, receipt printers, card readers and card swipes, scales, and elevated displays on poles
- Bank teller workstations, in either full-profile or low-profile versions, to control serial devices such as cash drawers, card readers and card swipes, printers, keypads and pin pads, pen pads
Website Search Keyword - usb to serial adaptor with daisy chain
- usb to com adapter
- usb to rs232 adaptor
- usb to rs232 adapter
- usb to serial adaptor
- 8 port serial
- 8 port rs232
- serial hub
- rs232 hub
- usb to serial converter
- usb to rs232 converter
- ftdi usb to serial
- serial usb
- rs232 usb
- usb com port
- usb to rs-232
- multiplexer
- usb to rs 232
- multiplexor
- 8-Port USB-to-Serial Adapter Hub
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Accessory Products - MXT100
- MXT10010
- MXT100FF
- MXT100_25
- SCNM925FM
- SCNM9FM
- USB2HAB10
- USB2HAB2RA3
Related Products - ICUSB23216FD
- ICUSB2328
- PEX16S952LP
- PEX8S952
- PEX8S950LP
- PCI8S950LP
- ICUSB2324X
- ICUSB2324
- ICUSB2322X
- ICUSB232HUB2
- ICUSB2321F
Input Current 1.5 A Input Voltage 100 - 240 AC Output Current 3 A Output Voltage (V) 12V DC Power Consumption (In Watts) 36 Plug Type B Center Tip Polarity Positive Cable Length (mm) 900 Color Black Humidity 20~80% RH (Non-condensing) Material Aluminum Operating Temperature -40°C to 85°C (-40°F to 185°F) Primary Material Aluminum Product Length (mm) 430 Product Width (mm) 120 Product Height (mm) 45 Product Weight (g) 1351 Storage Temperature -65°C to 150°C (-85°F to 302°F) TAA Compliant Yes Data Bits 7, 8 FIFO 256 Bytes Max Baud Rate 921.6 Kbps Maximum Data Transfer Rate 480 Mbps MTBF (hours) 67,114 hours OS Compatibility - Windows Server 2012
- Windows 10
- Windows 8
- Linux
- Windows 7
- macOS Mojave (10.14)
- Windows Server 2019
- macOS High Sierra (10.13)
- macOS Sierra (10.12)
- macOS Catalina (10.15)
- macOS Big Sur (11.0)
- Windows 11
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- Windows Server 2022
- macOS Sonoma (14.0)
- Windows 11 ARM
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)
Parity Odd, Even, Mark, Space, None Stop Bits 1, 2 Supported Serial Protocol RS-232 Bus Type USB 2.0 Chipset ID FTDI - FT4232 Interface/Bridge Serial IO Card Port Style External Hub LED Indicators - 8 - Data Transmit
- 8 - Data Receive

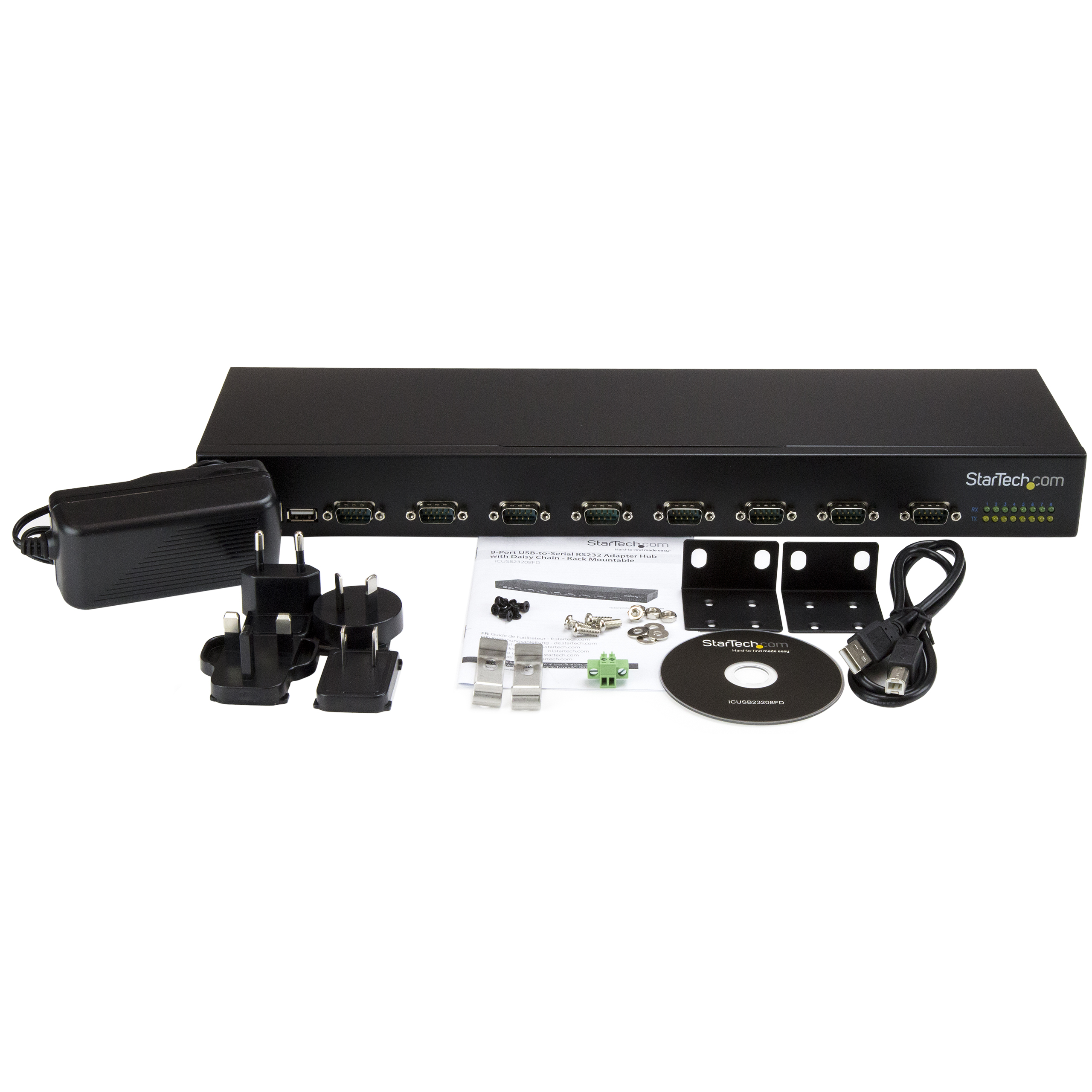

Carton Depth (mm) 342 Carton Height (mm) 244 Carton Quantity 5 Carton Weight Gross (g) 11008 Included in Package - 1 - 8-port USB to RS232 hub
- 1 - 18 in. [46 mm] USB 2.0 cable
- 2 - rack-mounting brackets
- 8 - rack-mounting screws
- 2 - DIN-rail mounting brackets
- 4 - DIN-rail mounting screws
- 4 - washers
- 4 - nuts
- 1 - universal power adapter (NA/JP, UK, EU, ANZ)
- 1 - driver CD
- 1 - quick-start guide
- 1 - terminal block plug
Included In Package for Label - 1 - USB Rs232 Hub
- 1 - USB Cable
- 2 - Mounting Brackets
- 1 - PSU
- 1 - CD
- 1 - Manual
- 1 - Hardware Kit
- 1 - Terminal Block Plug
Package Depth (mm) 218 Package Height (mm) 64 Package Width (mm) 454 Package Quantity 1 Package Weight (g) 2070 Packaging Description 8-Port USB-to-Serial Adapter Hub with Daisy Chain Packaging Description India 8-Port USB-to-Serial Converter Hub with Daisy Chain Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-B (480Mbps, 2.5W) Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 8 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2016-06-27 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2016-08-08 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FR,HK,IE,IN,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Development Completion Date 2016-06-01 Target Production Release 2016-06-24 Tech Lead Brian Linseman Technical Writer Alex Garcia Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
