Main Image
ICUSB2321284

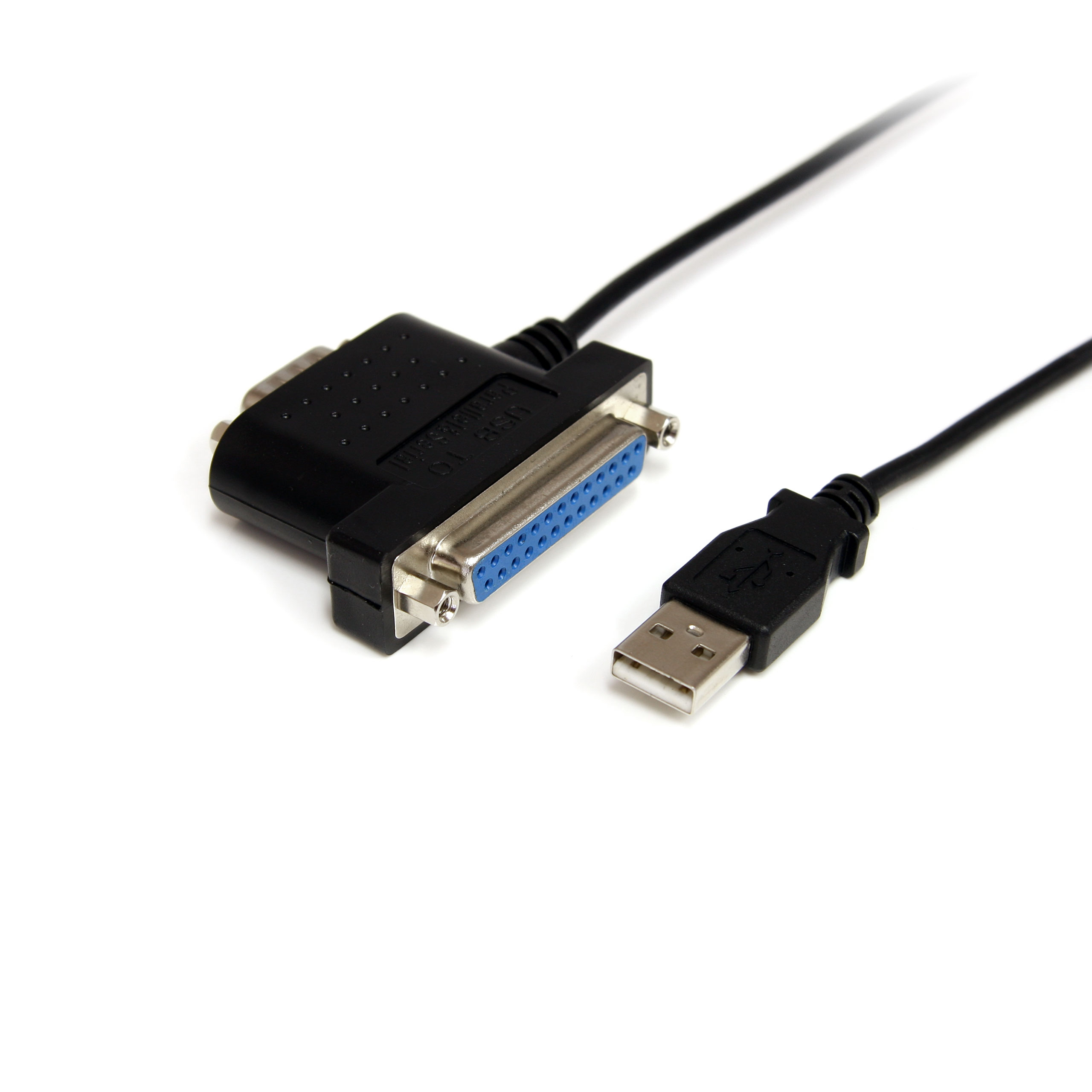

USB to Serial RS232 and Parallel Adapter Cable
Add one RS232 Serial, and one IEEE 1284 Parallel port to your computer through a single USB connection
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name USB to Serial RS232 and Parallel Adapter Cable Product Number ICUSB2321284 UPC 065030845113 Lifecycle status Discontinued Warranty 3 Years Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 USB Serial Host Adapter Interconnects Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX045X Product Title (Short) 3 ft 1s1p USB to Serial Parallel Adapter Product Title (Standard) USB to Serial and Parallel Adapter – DB9 / DB25 – 3 ft / 1m – USB Serial Adapter – USB to RS232 and IEEE 1284 Product Title (Long) 3 ft 1s1p USB to Serial Parallel Port Adapter Cable Product Title (AMZ) USB to Serial and Parallel Adapter - DB9 / DB25 - 3 ft / 1m - USB Serial Adapter - USB to RS232 and IEEE 1284 (ICUSB2321284) Title Ingram (Part 1) 3 ft 1s1p USB to Serial Parallel Title Ingram (Part 2) Port Adapter Cable Website Product Headline Add one RS232 Serial, and one IEEE 1284 Parallel port to your computer through a single USB connection Bullet 1 Compatible with modems, printers, bar code scanners, servers, PDUs, and most other serial RS232 or Parallel equipment Bullet 2 Easy to setup and install - plug and play for most operating systems Bullet 3 No external power needed - draws power from the USB connection Bullet 4 Supports serial baud rates of up to 921.6 Kbps Bullet 5 Thin, lightweight design Bullets (Consolidated) Add one RS232 Serial and one IEEE 1284 Parallel port to your computer through a single USB connection - 3 ft USB to Serial Parallel - 3ft USB to Serial/Parallel Adapter Cable - No external power needed - draws power from the USB connection - Single cable USB to Serial and Parallel design enables two legacy devices to be connected to a host computer through a single USB port Marketing Copy Applications - Connect a satellite receiver, serial modem, or PDA with serial sync
- Connect bar code scanners, receipt printers and other point of sale devices
- Connect, monitor and control industrial/automotive sensors and equipment
- Perfect for IT Administrators looking to add legacy functionality to newer laptops, desktops and servers that lack integrated RS-232 Serial and/or Parallel ports
- Connect to console ports, UPS, and other devices in the server room/server closet
Website Search Keyword - POSline
- USB 2.0 to serial
- USB 2.0 to RS232
- USB to RS-232
- USB 2.0 to RS-232
- USB to DB9
- RS232
- USB to serial and parallel cable
- serial parallel cable
- USB 2.0 to parallel
- USB to Parallel
- USB to IEEE 1284
- usb to printer
- usb to multi
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Accessory Products - AT925FM
- AT925SFM
- MXT100
- MXT100_25
- MXT100FF
- MXT106
- RS232EXTC5
- SCNM925FM
- SCNM9FM
- USB2FAAEXT15
- RS232EXTC1
Related Products - ICUSB2321X
- ICUSB2322X
- ICUSB2324
- ICUSB2324X
- ICUSB2328
- ICUSB232C2
- ICUSB232PRO
- ICUSB2321F
- ICUSB422
- ICUSB1284
- ICUSB232SM3
Cable Length (mm) 915 Color Black Humidity 0~65% RH Material Plastic Operating Temperature 0°C to 60°C (32°F to 140°F) Product Length (mm) 1000 Product Weight (g) 69 Storage Temperature -20°C to 80°C (-4°F to 176°F) TAA Compliant No Data Bits 5, 6, 7, 8 FIFO 192 Bytes Max Baud Rate 921.6 Kbps OS Compatibility - Linux
- Windows 7
- Windows Server 2012
- Windows 8
- Windows 10
- Windows Server 2016
- Windows Server 2019
- Windows 11

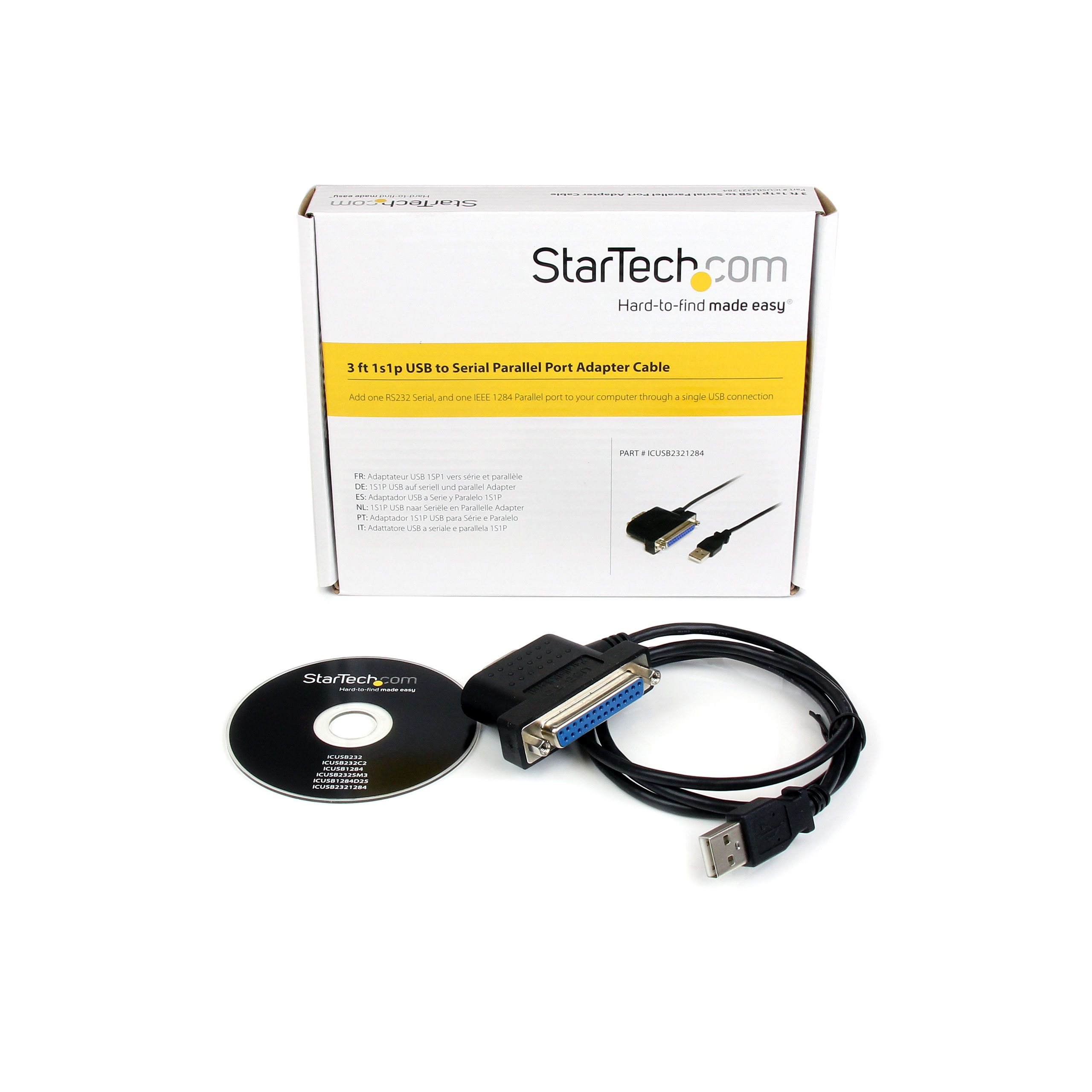

Parity Even, Odd, Mark, Space, None Supported Serial Protocol RS-232 Bus Type USB 2.0 Chipset ID ASIX - MCS7715 Industry Standards RS232, IEEE 1284, USB 1.1 Interface/Bridge Serial IO Card Port Style Cable Adapters Carton Depth (mm) 371 Carton Height (mm) 276 Carton Quantity 38 Carton Weight Gross (g) 5268 Included in Package - 1 - USB to Serial & Parallel cable
- 1 - User Manual
Package Depth (mm) 175 Package Height (mm) 32 Package Width (mm) 143 Package Quantity 1 Package Weight (g) 114 Packaging Description 1S1P USB to Serial and Parallel Adapter Packaging Description India 1S1P USB to Serial and Parallel Adapter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DB-9 Serial Connector 1 (Quantity) 1 Connector 2 DB-25 Parallel / Serial Connector 2 (Quantity) 1 Connector 3 USB-A (480Mbps, 2.5W) Connector 3 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AU,CA,CL,EU,JP,NZ,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle Legacy
