ICUSB23216F

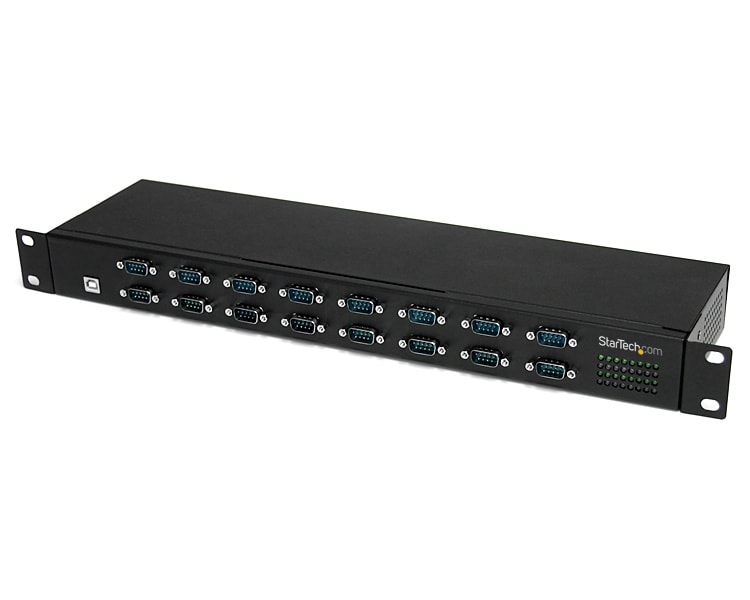

16 Port Pro USB to Serial Adapter Hub FTD
Convert a Single USB Port into 16 RS232 Serial Ports in a Hardened Industrial-grade Rack-mountable Chassis
Main Image
Product Images
Product Images
Product Images
Product Images
Product Name 16 Port Pro USB to Serial Adapter Hub FTD Product Number ICUSB23216F UPC 065030844789 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 USB Serial Host Adapter Interconnects Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Ultra-Short) 16Pt USB to Serial Product Title (Short) 16 Port Rackmount USB to Serial Adapter Product Title (Standard) USB to Serial Hub – 16 Port – COM Port Retention – Rack Mount – FTDI USB to RS232 Hub – USB Serial DB9 (9-pin) Product Title (Long) 16 Port Rackmount FTDI USB to Serial COM Adapter Hub - RS232 Multiplexer Product Title (AMZ) USB to Serial Hub - 16 Port - COM Port Retention - Rack Mount - FTDI USB to RS232 Hub - USB Serial DB9 (9-pin) (ICUSB23216F) Title Ingram (Part 1) 16 Port Rackmount FTDI USB to Se Title Ingram (Part 2) rial Adapter - Multiplexer Website Product Headline Convert a Single USB Port into 16 RS232 Serial Ports in a Hardened Industrial-grade Rack-mountable Chassis Bullet 1 -40°C to 85°C (-40°F to 185°F) extended operating temperature range Bullet 2 All metal chassis Bullet 3 Rack-mountable design Bullet 4 16 RS232 interfaces through a single USB port Bullet 5 921.6 Kbps baud per port Bullets (Consolidated) Convert a Single USB Port into 16 RS232 Serial Ports in a Hardened Industrial-grade Rack-mountable Chassis - USB to Serial - USB to RS232 - USB to DB9 - USB to Serial Adapter - USB to Serial Port Marketing Copy Applications - Ideal for industrial automation on factory/manufacturing floors
- Self-service automated machines and kiosks (grocery, airport) to control serial devices such as scales, touchscreens, magnetic card readers, bar code scanners, receipt printers, label printers
- POS control of keyboards, cash drawers, receipt printers, card readers/card swipes, scales, and elevated displays on poles
- Bank teller workstations in either full profile or low profile versions, to control their serial devices such as cash drawers, card readers / card swipes, printers, keypads / pinpads, pen pads
- Control/monitoring of surveillance/security cameras and systems
- Full control of your server room serial components from a single device
Website Search Keyword - usb to com adpater
- usb to rs232 adaptor
- usb to rs232 adapter
- usb to serial adaptor
- 16 port serial
- 16 port rs232
- serial hub
- rs232 hub
- usb to serial converter
- usb to rs232 converter
- ftdi usb to serial
- serial usb
- rs232 usb
- usb com port
- usb to rs-232
- multiplexer
- usb to rs 232
- multiplexor
- serial multiplexer interface adapter smia usb rs232 16 port db9
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Accessory Products - MXT100
- MXT10010
- MXT100FF
- MXT100_25
- SCNM925FM
- SCNM9FM
- USB2HAB10
- USB2HAB2RA3
Related Products - ICUSB2328
- ICUSB2324X
- ICUSB2324
- ICUSB2322X
- ICUSB232HUB2
- ICUSB2321F
- PEX16S952LP
- PEX8S952
- PEX8S950LP
- PCI8S950LP
Replacement Product ICUSB23216FD Input Current 0.8A Input Voltage 100 - 240 AC Output Current 2.5A Output Voltage (V) 12V DC Power Consumption (In Watts) 30 Power Source AC Adapter Included Plug Type N Center Tip Polarity Positive Color Black Humidity 20~80% RH (Non-condensing) Material Steel Operating Temperature -40°C to 85°C (-40°F to 185°F) Product Length (mm) 430 Product Width (mm) 120 Product Height (mm) 45 Product Weight (g) 1520 Storage Temperature -65°C to 150°C (-85°F to 302°F) TAA Compliant Yes Data Bits 7, 8 FIFO 256 Bytes Max Baud Rate 921.6 Kbps Maximum Data Transfer Rate 480 Mbps OS Compatibility - Mac OS X Mavericks (10.9)
- Windows 8
- Linux
- Windows Server 2012
- Windows 7
- Mac OS X Yosemite (10.10)
- Windows 10
- Mac OS X El Capitan (10.11)
- macOS Sierra (10.12)
- Windows Server 2016
- macOS Big Sur (11.0)
- Windows 11
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- Windows Server 2022
- Windows Server 2019
- macOS Sonoma (14.0)
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)
Parity Odd, Even, Mark, Space, None Stop Bits 1, 2 Supported Serial Protocol RS-232 Bus Type USB 2.0 Chipset ID FTDI - FT232RL Interface/Bridge Serial IO Card Port Style External Hub LED Indicators - 16 - Data Transmit
- 16 - Data Receive

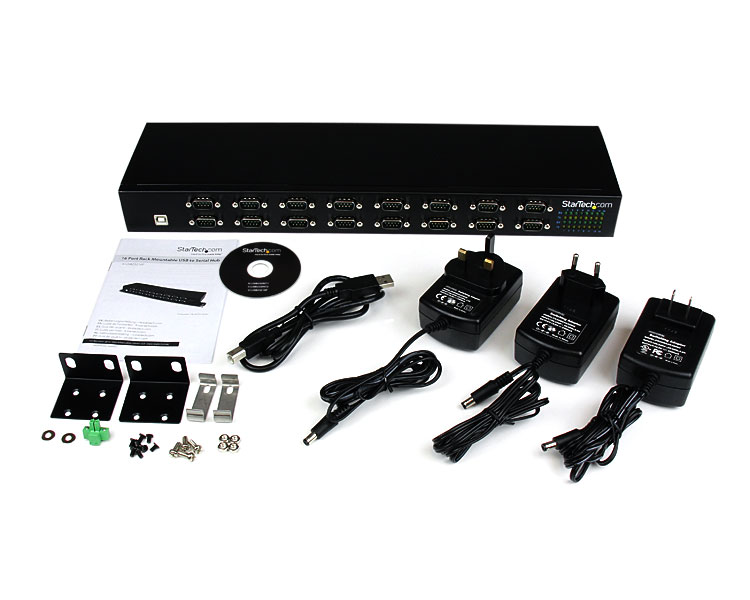

Carton Depth (mm) 320 Carton Height (mm) 270 Carton Quantity 8 Carton Weight Gross (g) 21000 Included in Package - 1 - 16 port USB to RS232 Hub
- 1 - Universal power adapter: comes ready for NA/EU/UK only when you buy in NA/EU/UK; comes ready for Australia and New Zealand only when you buy in Australia and New Zealand
- 1 - Driver CD
- 1 - Instruction Manual
- 2 - Rack Mount Ears
- 1 - USB Cable
- 2 - DIN mount brackets
Package Depth (mm) 215 Package Height (mm) 61 Package Width (mm) 448 Package Quantity 1 Package Weight (g) 2500 Packaging Description 16 Port Rackmount USB to RS232 Serial Hub Packaging Description India 16 Port Rackmount USB to RS232 Serial Hub Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-B (480Mbps, 2.5W) Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 16 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
