ICUSB23216FD

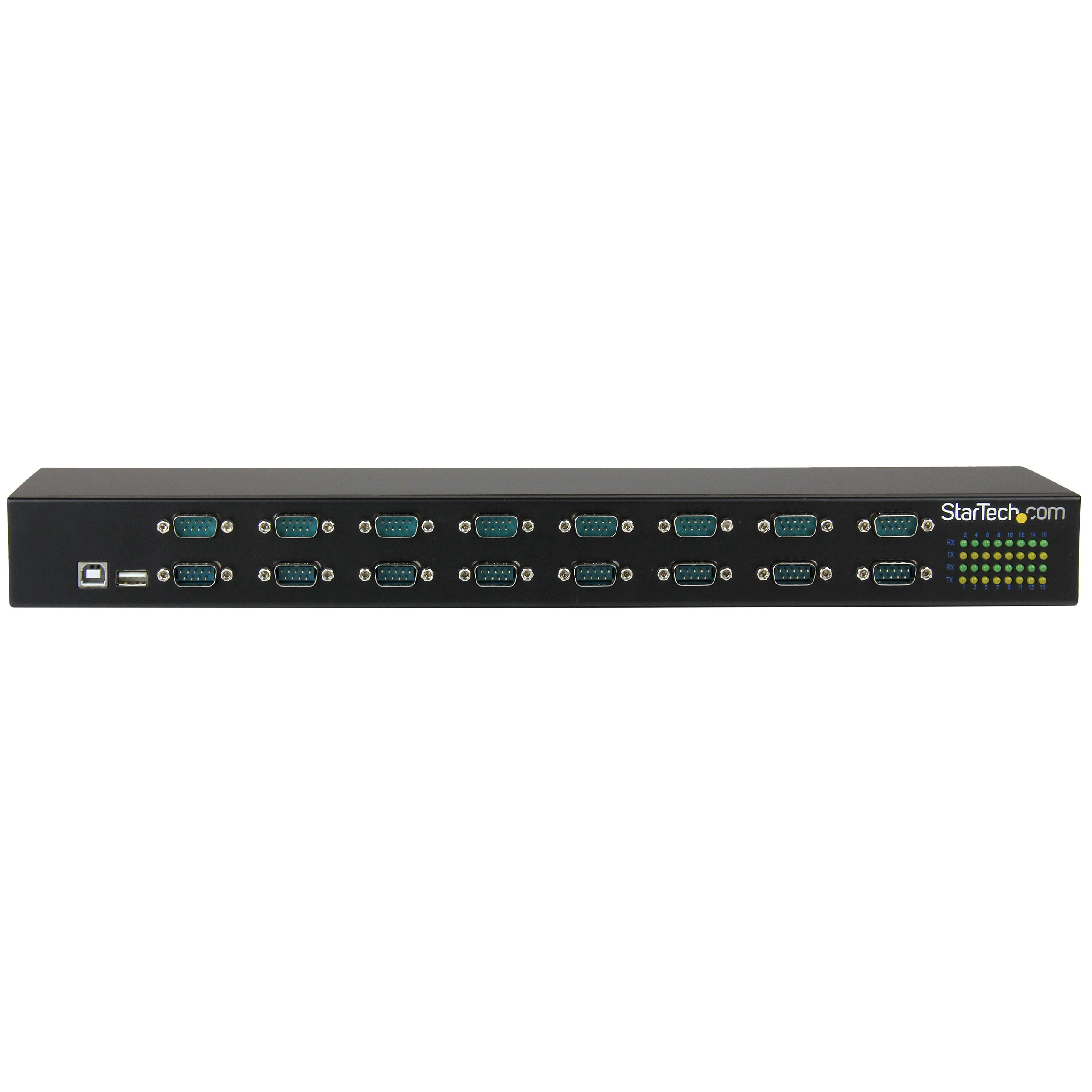

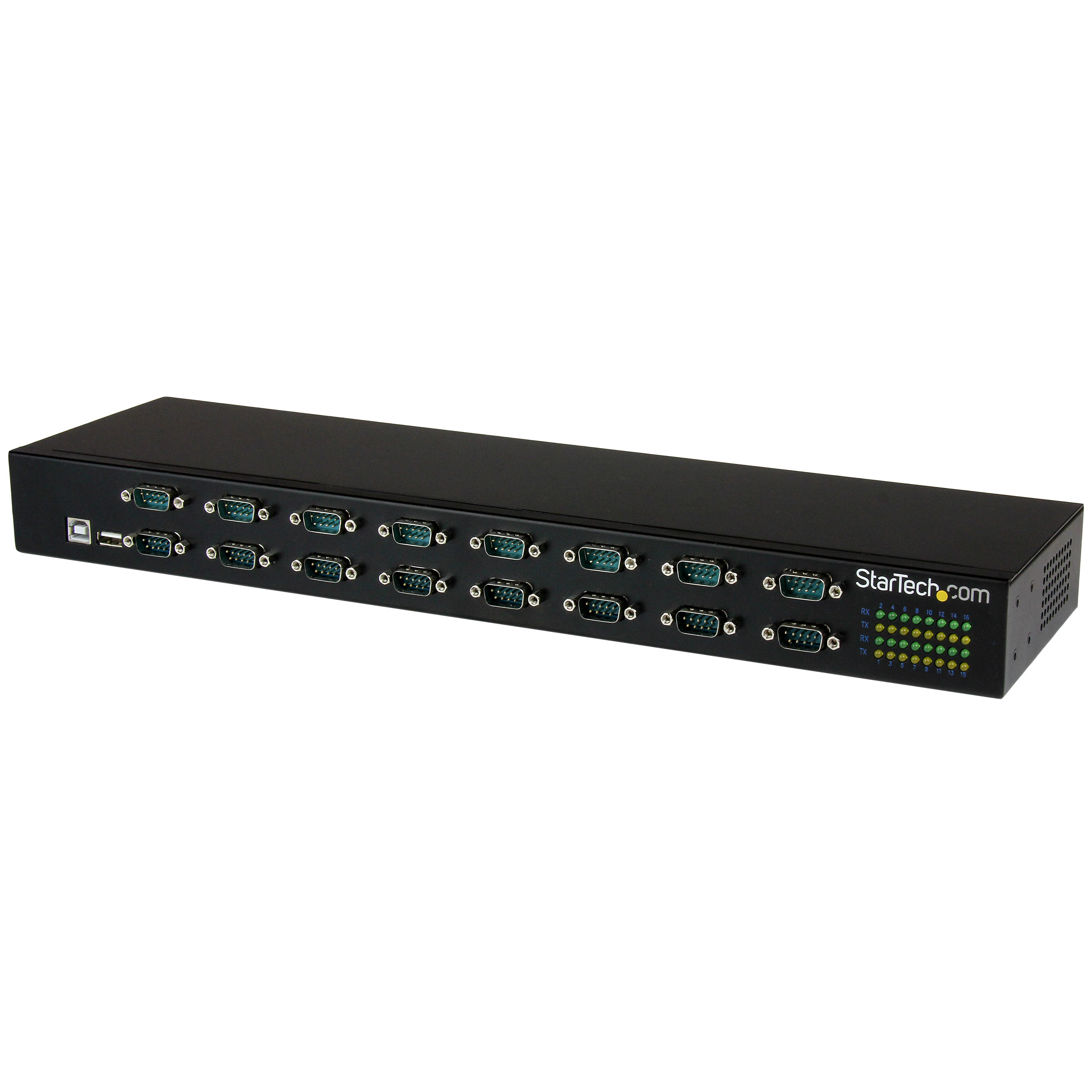

16-Port USB-to-Serial Adapter Hub with Daisy Chain
Convert a USB port into 16 RS232 serial ports in an industrial rack-mountable chassis - and daisy chain multiple hubs for a scalable solution
Main Image
Product Images
Product Images
BOM Image
Product Name 16-Port USB-to-Serial Adapter Hub with Daisy Chain Product Number ICUSB23216FD UPC 065030864763 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > Serial and Parallel Cards & Adapters Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 USB Serial Host Adapter Interconnects Family Industrial USB to Serial Adapters - RS232 Only Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Ultra-Short) 16-Pt Serial Adapter Product Title (Short) 16 Port USB to Serial RS232 Adapter Hub Product Title (Medium) 16 Port USB-to-Serial Adapter Hub - USB to RS232 Port Adapter with Daisy Chain Product Title (Standard) USB to Serial Hub, 16 Port, COM Port Retention, Rack Mount and Daisy Chainable, USB to RS232 Hub, TAA Product Title (Long) 16-Port USB-to-Serial Adapter Hub - TAA Product Title (AMZ) USB to Serial Hub - 16 Port - COM Port Retention - Rack Mount and Daisy Chainable - USB to RS232 Hub, TAA Title Ingram (Part 1) 16-Pt USB-to-Serial Adapter Hub Title Ingram (Part 2) -RS232 Multiplexer with Daisy Chain Website Product Headline Convert a USB port into 16 RS232 serial ports in an industrial rack-mountable chassis - and daisy chain multiple hubs for a scalable solution Bullet 1 Gain 16 RS232 serial port interfaces through a single USB port Bullet 2 Connect multiple hubs together through daisy chain functionality Bullet 3 921.6Kbps baud per port Bullet 4 256-byte transmit, 128-byte receive FIFO Bullet 5 Rack-mountable design Bullets (Compact) Convert a USB port into 16 RS232 serial ports in an industrial rack-mountable chassis, and daisy chain multiple hubs for a scalable solution - 16-Port USB-to-Serial Adapter Hub - USB to RS232 port adapter with Terminus chipset and COM port retention Bullets (Consolidated) Convert a USB port into 16 RS232 serial ports in an industrial rack-mountable chassis and daisy chain multiple hubs for a scalable solution - 16-Port USB-to-Serial Adapter Hub - USB to RS232 port adapter with Terminus chipset and COM port retention - Rackmountable all-metal chassis - RS232 multiplexer with 921.6 Kbps baud per port - Meets the demands of industrial environments with extended operating temperature range: -40 DEGC to 85 DEGC (-40 DEGF to 185 DEGF) Marketing Copy Applications - Ideal for industrial automation on factory and manufacturing floors
- Provides full control of your server room serial components from a single device
- Control and monitoring of surveillance and security cameras and systems
- Self-service automated machines and kiosks (grocery, airport) to control serial devices such as scales, touchscreens, magnetic card readers, bar code scanners, receipt printers, label printers
- POS control of keyboards, cash drawers, receipt printers, card readers and card swipes, scales, and elevated displays on poles
- Bank teller workstations, in either full-profile or low-profile versions, to control serial devices such as cash drawers, card readers and card swipes, printers, keypads and pin pads, pen pads
Website Search Keyword - usb to com adapter
- usb to rs232 adaptor
- usb to rs232 adapter
- usb to serial adaptor
- 16 port serial
- 16 port rs232
- serial hub
- rs232 hub
- usb to serial converter
- usb to rs232 converter
- ftdi usb to serial
- serial usb
- rs232 usb
- usb com port
- usb to rs-232
- multiplexer
- usb to rs 232
- multiplexor
- serial multiplexer interface adapter smia usb rs232 16 port db9
- usb to serial adaptor with daisy chain
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Accessory Products - MXT100
- MXT10010
- MXT100FF
- MXT100_25
- SCNM925FM
- SCNM9FM
- USB2HAB10
- USB2HAB2RA3
Related Products - ICUSB2328
- PEX16S952LP
- PEX8S952
- PEX8S950LP
- PCI8S950LP
- ICUSB2324X
- ICUSB2324
- ICUSB2322X
- ICUSB232HUB2
- ICUSB2321F
Input Current 1.5 A Input Voltage 100 - 240 AC Output Current 3 A Output Voltage (V) 12V DC Power Consumption (In Watts) 36 Power Source AC Adapter Included Plug Type N Center Tip Polarity Positive Color Black Humidity 20~80% RH (Non-condensing) Material Steel Operating Temperature -40°C to 85°C (-40°F to 185°F) Primary Material Steel Product Length (mm) 430 Product Width (mm) 120 Product Height (mm) 45 Product Weight (g) 1550 Storage Temperature -65°C to 150°C (-85°F to 302°F) TAA Compliant Yes Data Bits 7, 8 FIFO 256 Bytes Max Baud Rate 921.6 Kbps Maximum Data Transfer Rate 480 Mbps MTBF (hours) 49,337 hours OS Compatibility - Windows 8
- Linux
- Windows Server 2012
- Windows 7
- Windows 10
- macOS Sierra (10.12)
- macOS High Sierra (10.13)
- macOS Mojave (10.14)
- Windows Server 2019
- macOS Catalina (10.15)
- macOS Big Sur (11.0)
- Windows 11
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- Windows Server 2022
- macOS Sonoma (14.0)
- Windows 11 ARM
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)
Parity Odd, Even, Mark, Space, None Stop Bits 1, 2 Supported Serial Protocol RS-232 Bus Type USB 2.0 Chipset ID - Terminus - FE2.1
- FTDI - FT4232HL x4
Interface/Bridge Serial IO Card Port Style External Hub LED Indicators - 16 - Data Transmit
- 16 - Data Receive

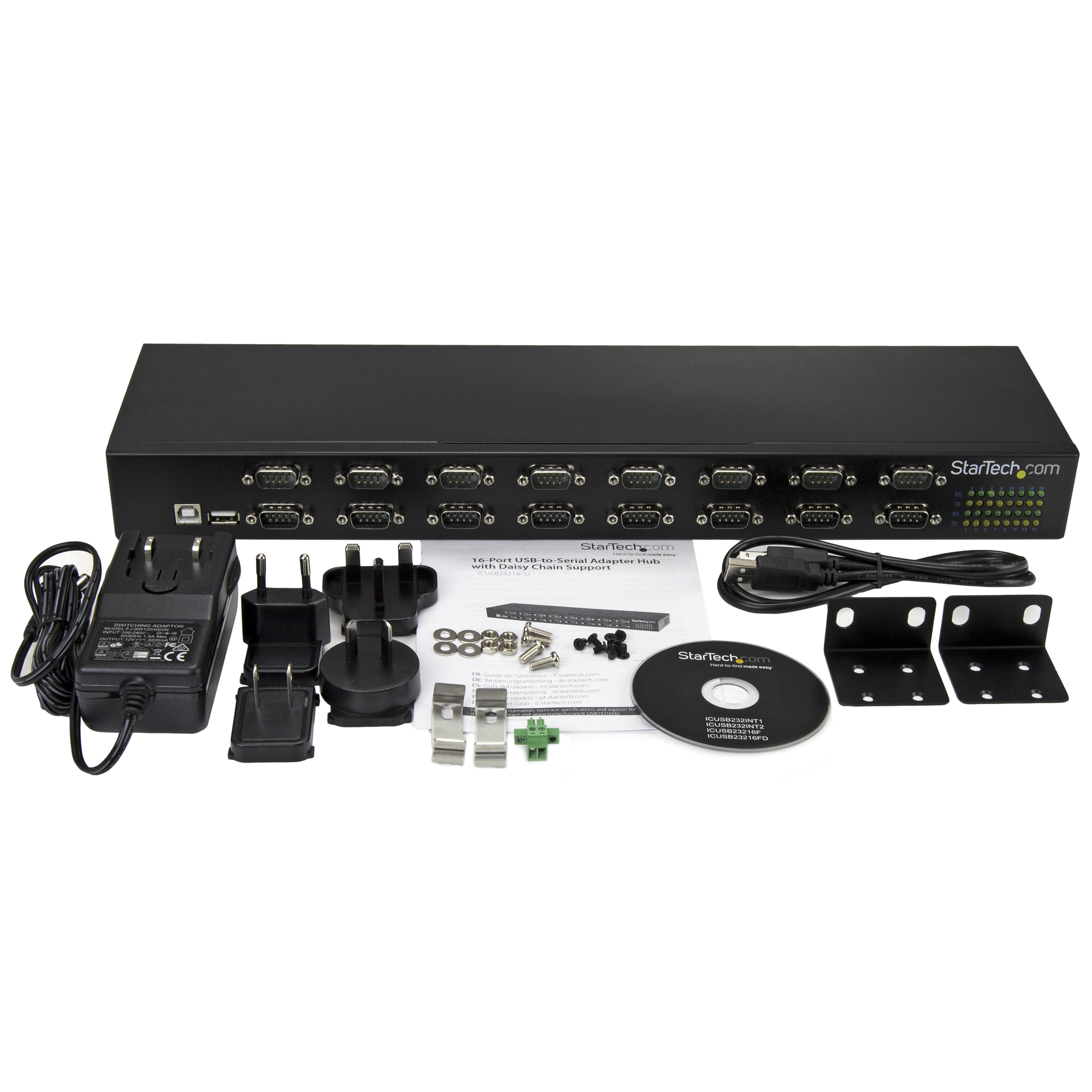

Carton Depth (mm) 864 Carton Height (mm) 246 Carton Quantity 5 Carton Weight Gross (g) 11424 Included in Package - 1 - 16-port USB to RS232 hub
- 2 - rack mounting brackets
- 8 - rack mounting screws
- 1 - universal power adapter (NA/JP, EU, UK, ANZ)
- 1 - driver CD
- 1 - quick-start guide
- 2 - DIN rail mounting brackets
- 4 - DIN rail mounting screws
- 4 - washers
- 4 - nuts
- 1 - USB cable
- 1 - terminal block plug
Included In Package for Label - 1 - USB Rs232 Hub
- 1 - USB Cable
- 2 - Mounting Brackets
- 1 - Hardware Kit
- 1 - PSU
- 1 - CD
- 1 - Terminal Block Plug
- 1 - Manual
Package Depth (mm) 508 Package Height (mm) 66 Package Width (mm) 405 Package Weight (g) 2164 Packaging Description 16-Port USB-to-Serial Adapter Hub with Daisy Chain Packaging Description India 16-Port USB-to-Serial Converter Hub with Daisy Chain Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-B (480Mbps, 2.5W) Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 16 Connector 3 USB-A (480Mbps, 2.5W) Connector 3 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2016-02-19 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2016-05-12 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FR,HK,IE,IN,IT,JP,NL,NZ,PE,SE,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Production Release 2016-03-25 Tech Lead Brian Linseman Technical Writer Alex Garcia Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
