ICUSB2321X

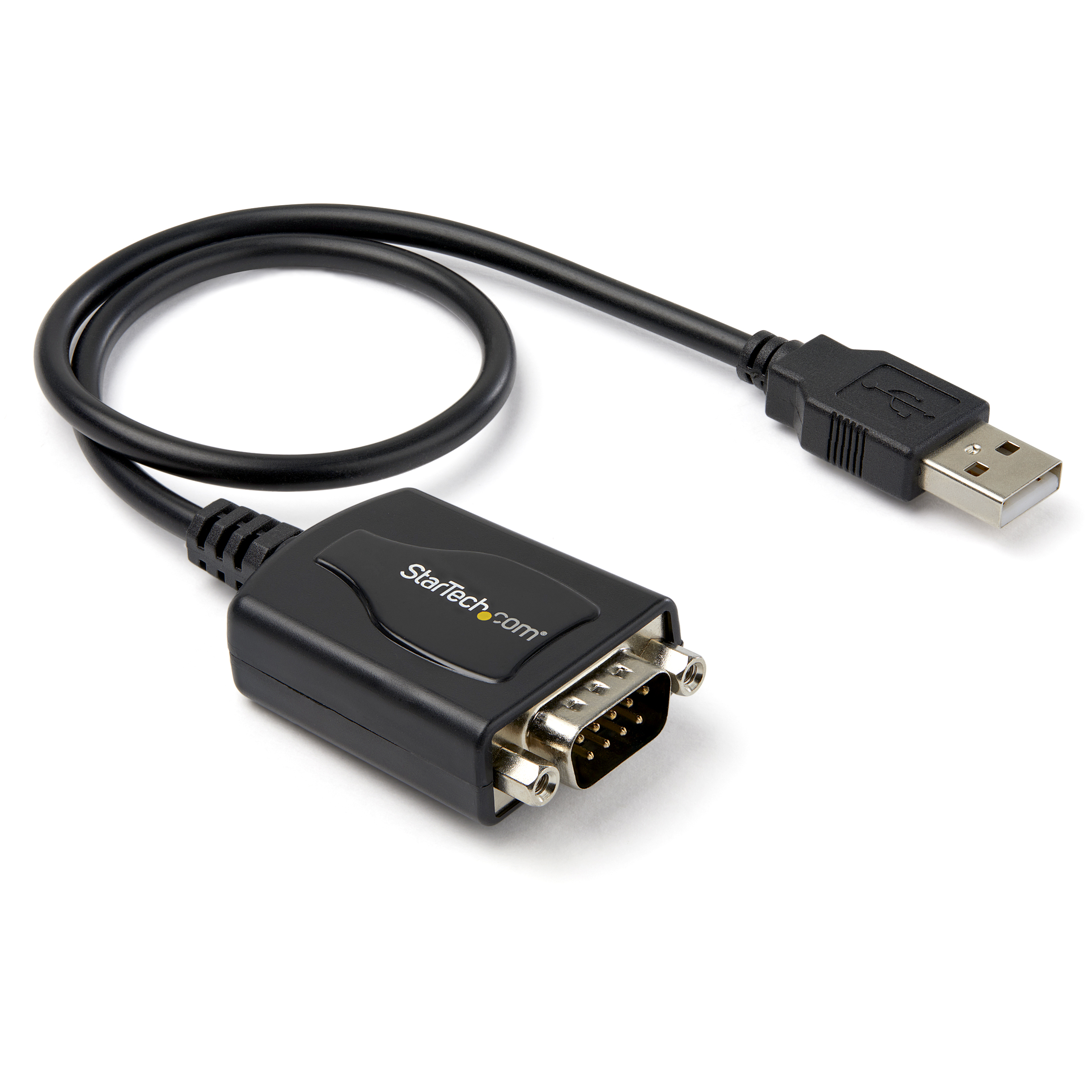

Professional USB to RS-232 Serial Adapter
Add one serial RS-232 port with com retention to any laptop or computer with a USB port
Main Image
Product Images
Product Images
BOM Image
Product Name Professional USB to RS-232 Serial Adapter Product Number ICUSB2321X UPC 065030827270 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > Serial and Parallel Cards & Adapters Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 USB Serial Host Adapter Interconnects Family USB to Serial Adapter Cables - USB-A - TI Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Short) 1 Port USB 2.0 to Serial Adapter Cable Product Title (Medium) x Product Title (Standard) 1ft (30cm) 1-Port Professional USB to Serial Adapter Cable with COM Retention, USB to RS232 Adapter - TAA Product Title (Long) 1ft (30cm) 1-Port Professional USB to Serial Adapter Cable with COM Retention, USB to RS232 Adapter - TAA Product Title (AMZ) 1ft (30cm) 1-Port Professional USB to Serial Adapter Cable with COM Retention, USB to RS232 Adapter - TAA Title Ingram (Part 1) One Port USB to Serial Adapter Title Ingram (Part 2) Cable with COM Retention - RS-232 Website Product Headline Add one serial RS-232 port with com retention to any laptop or computer with a USB port Bullet 1 TECH SPECS: 12-inches (30cm); Texas Instruments TIUSB3410 Chipset; Max Baud Rate: 230.4 Kbps; 32 Bytes FIFO; Dual buffers for upstream and downstream data transfer; TAA Compliant Bullet 2 EASY INSTALLATION: This serial adapter ensures easy installation and operation with COM port retention that provides robust serial connectivity for legacy devices Bullet 3 MULTI-USE FUNCTIONALITY: This versatile USB to serial RS232 adapter is perfect for a range of applications, from digital signage to connecting point-of-sale systems and barcode scanners Bullet 4 WINDOWS ONLY: This USB to Serial adapter is only compatible with Windows and does not support macOS, ChromeOS, Linux; You need administrator privileges to install the required drivers; Windows 8.1 and up only supported by REV 2 Bullet 5 USB TO SERIAL: Easily connect serial RS232 (DB9) devices to a Windows computer with this USB to serial adapter; COM retention between reboots Bullets (Compact) USB to serial RS232 (DB9) adapter for Windows; Windows 8.1 & up is only supported by REV2 - Does not support macOS, ChromeOS, Linux - COM retention - Simple install / operation - 12in (30cm); TIUSB3410 Chipset; Dual buffers for data transfer; TAA Bullets (Consolidated) - USB to serial RS232 (DB9) adapter for Windows computers - Windows only; Does not support macOS, ChromeOS, Linux; Windows 8.1 and up is only supported by REV2 - Reliably connect, configure, and monitor serial devices; COM retention between reboots - Simple installation / operation with robust serial connectivity for legacy devices - 12in (30cm) lenght; Texas Instruments TIUSB3410 Chipset; 230.4 Kbps Max. Baud Rate; 32 Bytes FIFO; Dual buffers for up/downstream data transfer; TAA Compliant Marketing Copy Applications - Perfect for IT Administrators looking to add legacy functionality to newer notebooks, PCs and servers that lack an integrated RS232 port
- Connect, monitor and control industrial/automotive sensors and equipment
- Connect bar code scanners, receipt printers and other point of sale devices
- Connect a satellite receiver, serial modem, or PDA with serial sync
- Connect and program LED and Digital signage boards with serial communication ports
Website Search Keyword - USB to RS-232
- Serial
- serial adapter
- U209-000-R
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
System and Cable Requirements One available USB 1.1 (or above) port Accessory Products - PCI420USB
- USB2FAAEXT15
- ST4205USB
- AT925FF
- SCNM9FM
- SCNM925FM
Related Products - ICUSB232PRO
- ICUSB232
- ICUSB232_4
Constrained SKU Alternatives (Limited Stock) - ICUSB2321F
- ICUSB232PRO
Cable Length (mm) 304.8 Color Black Humidity 5~85% RH Material Plastic Operating Temperature -10°C to 80°C (14°F to 176°F) Primary Material Plastic Product Length (mm) 304.800 Product Width (mm) 35.000 Product Height (mm) 13.7 Product Weight (g) 30.000 Storage Temperature -20°C to 100°C (-4°F to 212°F) TAA Compliant Yes FIFO 32 Bytes Max Baud Rate 230.4 Kbps MTBF (hours) 453,206 hours OS Compatibility - Windows 8
- Windows Server 2012
- Windows 7
- Windows 10
- Windows 8.1
- Windows 11

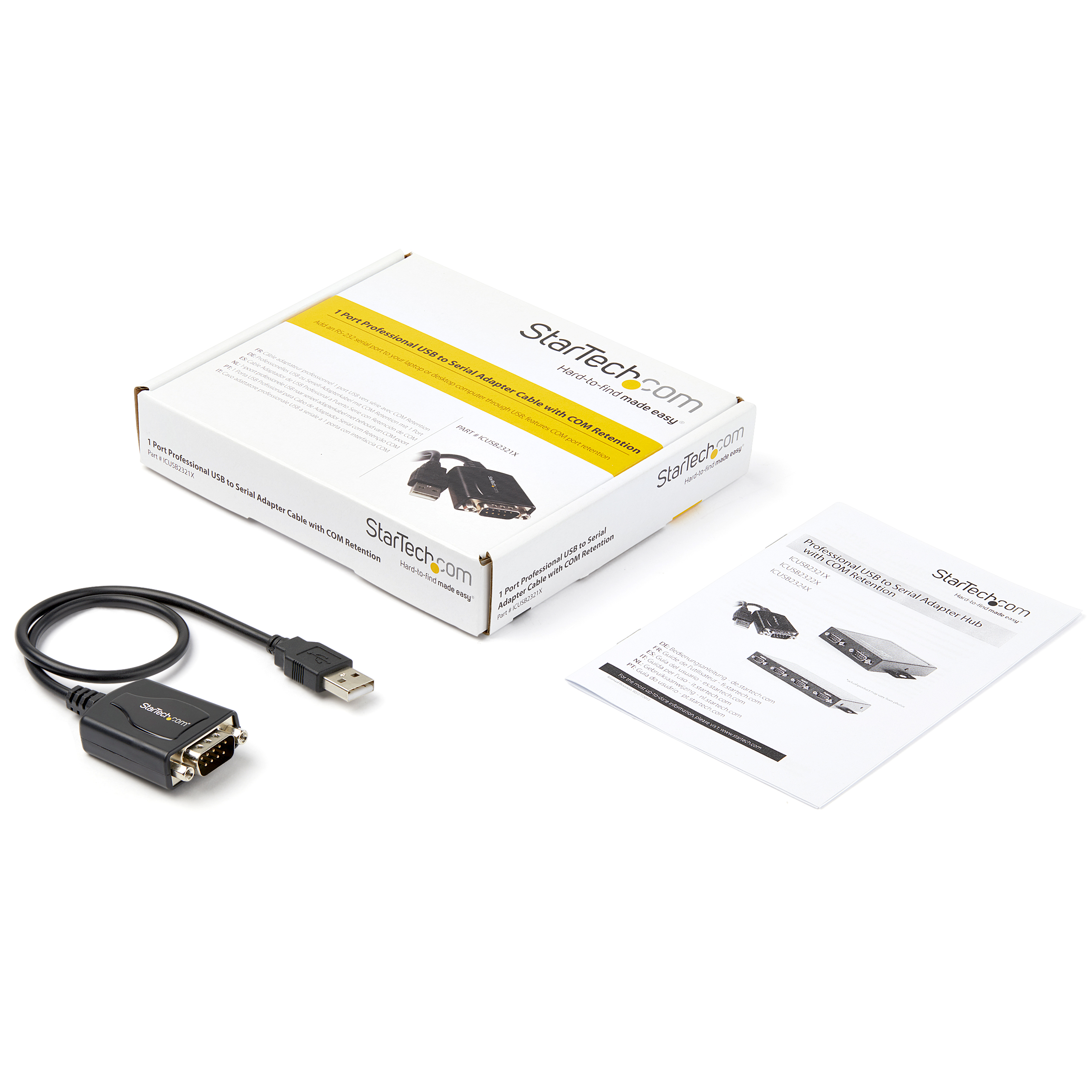

Supported Serial Protocol RS-232 Bus Type USB 2.0 Chipset ID Texas Instruments - TIUSB3410 Interface/Bridge Serial IO Card Port Style Cable Adapters Carton Depth (mm) 693 Carton Height (mm) 325 Carton Quantity 75 Carton Weight Gross (g) 8346 Included in Package - 1 - USB to Serial Adapter
- 1 - Instruction Manual
Included In Package for Label - 1 - Instruction Manual
- 1 - USB To Serial Converter
Package Depth (mm) 144 Package Height (mm) 32 Package Width (mm) 175 Package Quantity 1 Package Weight (g) 98 Packaging Description 1 Port USB 2.0 to Serial Adapter Cable Packaging Description India 1 Port USB 2.0 to Serial Converter Cable Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (480Mbps, 2.5W) Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None
