ICUSB2322F

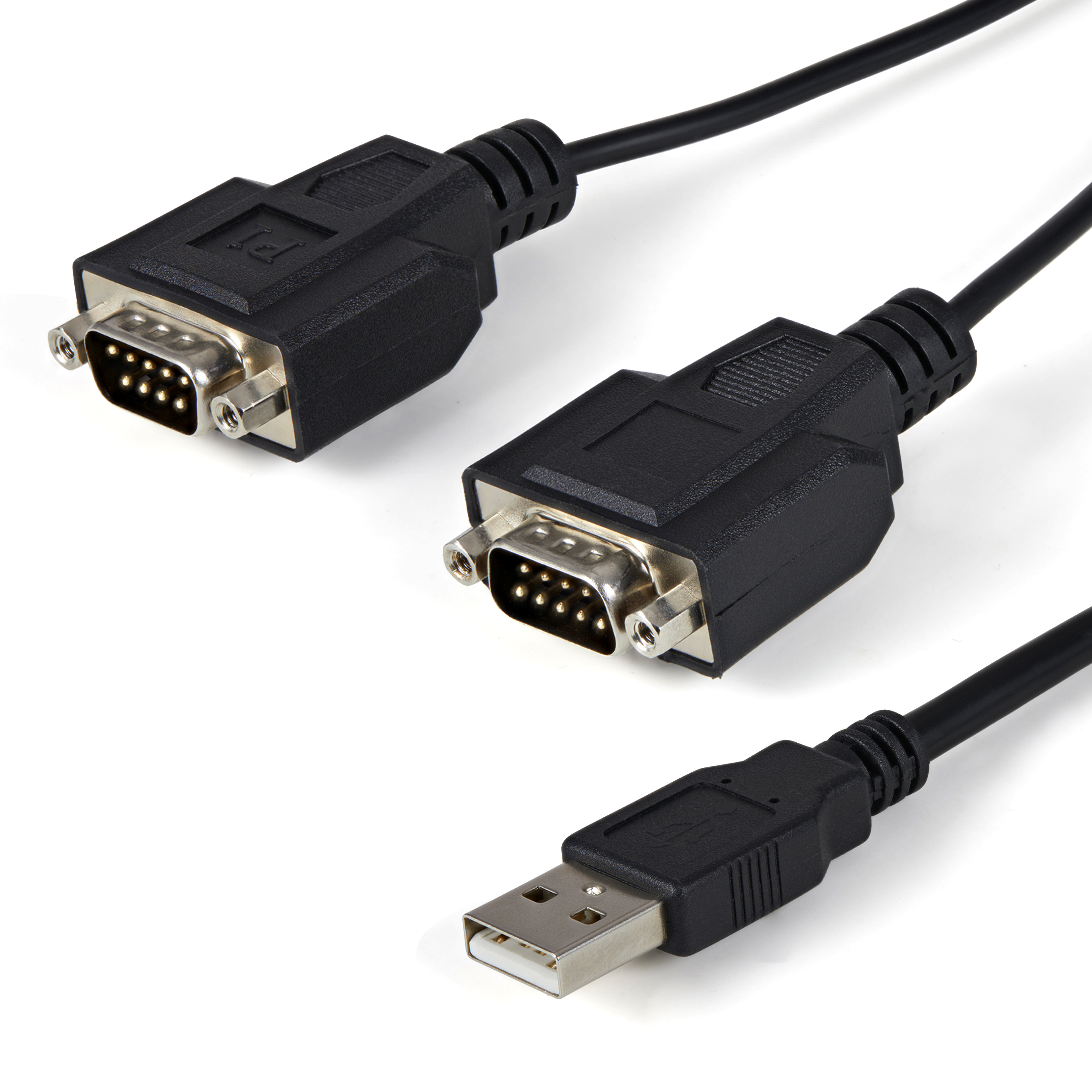

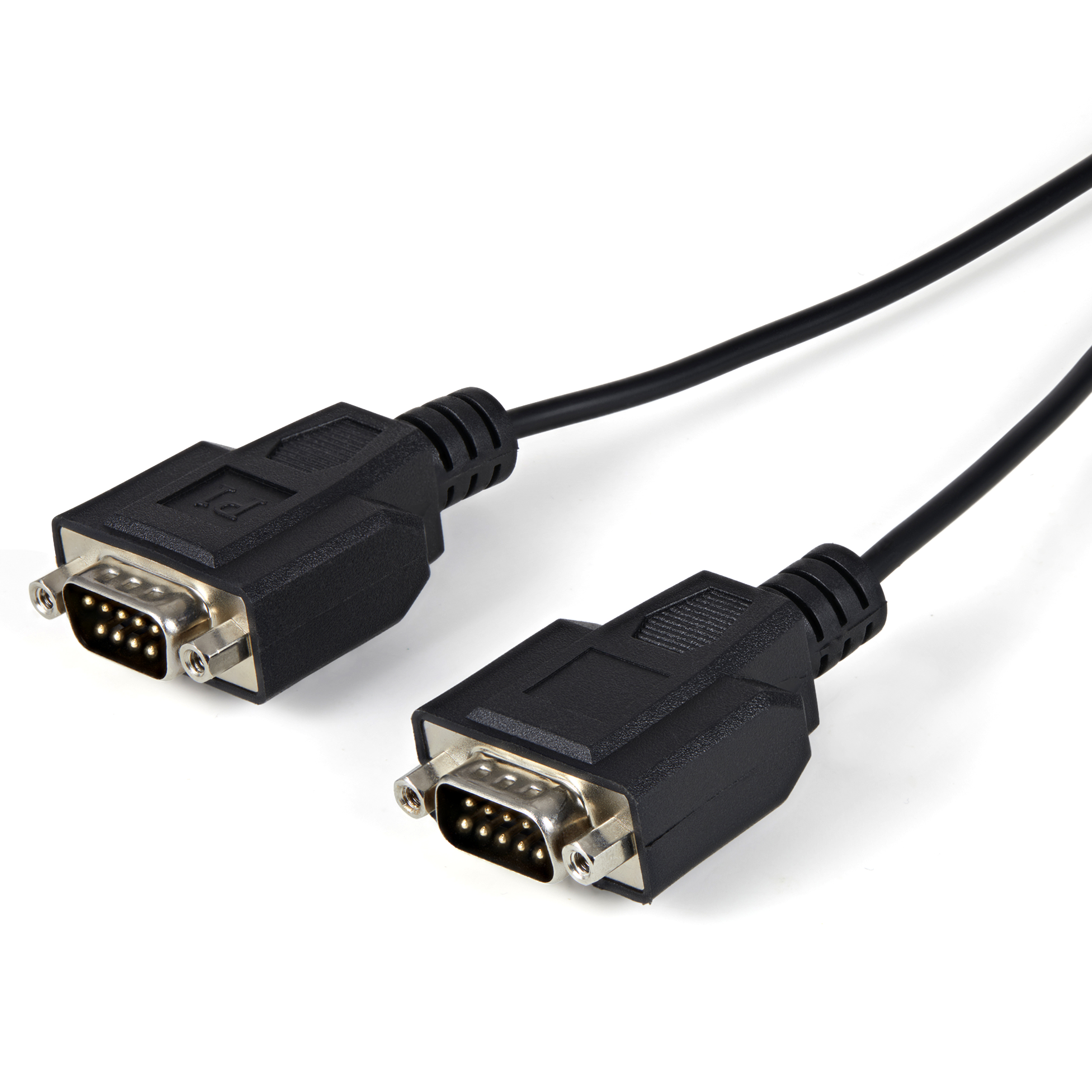

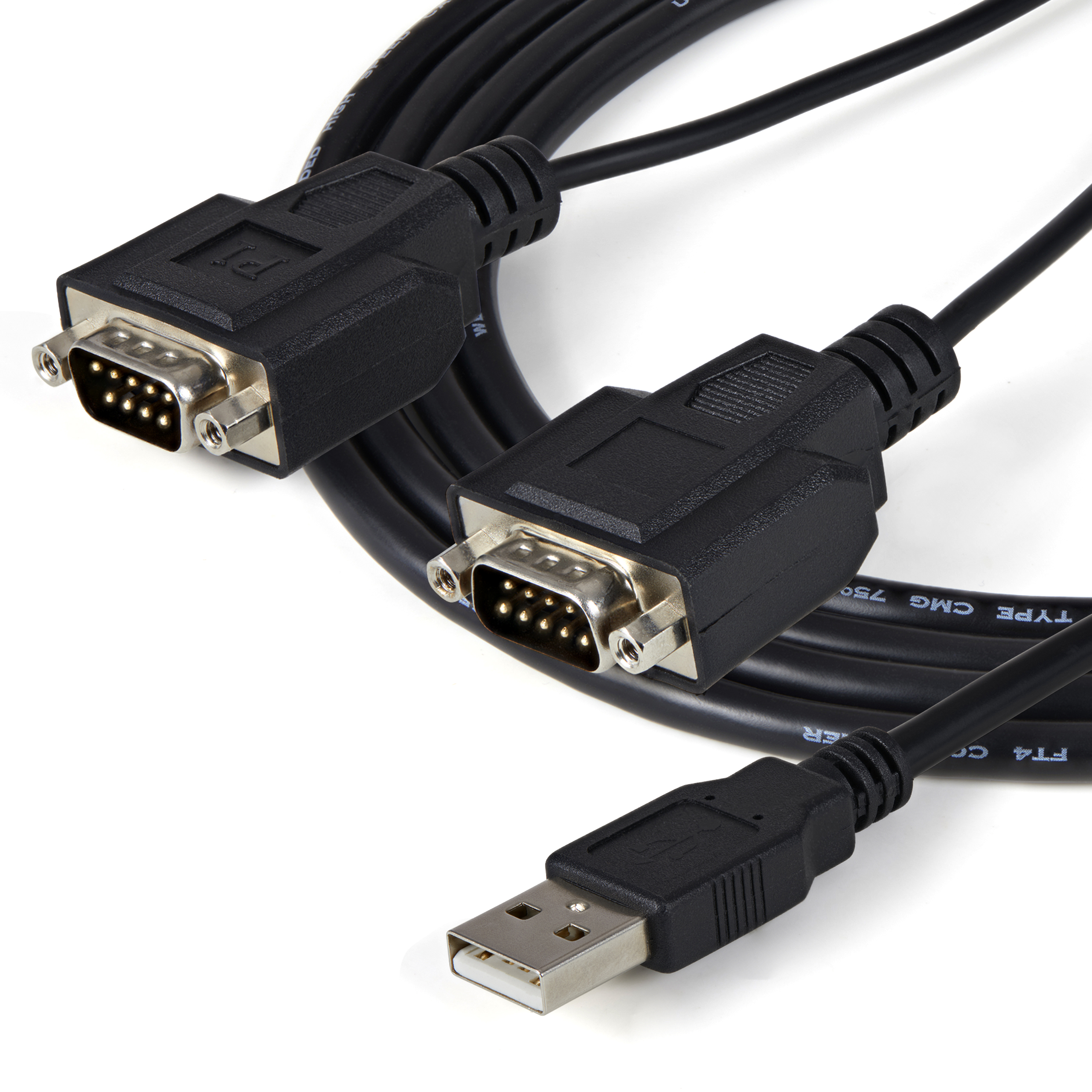

USB to 2 Port RS232 DB9 Serial Adapter Cable
Add two RS232 serial ports with COM retention to your laptop or desktop computer through USB
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name USB to 2 Port RS232 DB9 Serial Adapter Cable Product Number ICUSB2322F UPC 065030843492 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > Serial and Parallel Cards & Adapters Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 USB Serial Host Adapter Interconnects Family USB to Serial Adapter Cables - USB-A - FTDI Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX013X Product Title (Short) FTDI USB to Serial Adapter Cable w/ COM Product Title (Medium) x Product Title (Standard) 6ft (1.8m) 2-Port FTDI USB to Serial RS232 Adapter Cable with COM Retention, USB to RS232 Adapter - TAA Product Title (Long) 6ft (1.8m) 2-Port FTDI USB to Serial RS232 Adapter Cable with COM Retention, USB to RS232 Adapter - TAA Product Title (AMZ) 6ft (1.8m) 2-Port FTDI USB to Serial RS232 Adapter Cable with COM Retention, USB to RS232 Adapter - TAA Title Ingram (Part 1) 2 Port FTDI USB to Serial Adapte Title Ingram (Part 2) r Cable with COM Retention Website Product Headline Add two RS232 serial ports with COM retention to your laptop or desktop computer through USB Bullet 1 EASY INSTALLATION: This serial adapter ensures easy installation and operation with COM port retention that provides robust serial connectivity for legacy devices Bullet 2 CUSTOMIZABLE SOLUTION: This USB serial hub features an FTDI chipset, making it highly customizable and compatible, and the ideal solution for any setup; Integrated 2500Vrms Optical Isolation Circuits Bullet 3 COMPACT DESIGN: Designed with a small form factor, this serial RS232 converter is USB powered and requires no bulky power adapters or an outlet; Wall mountable design Bullet 4 TECH SPECS: 6 feet (1.8 meters); FTDI FT2232D Chipset; Max Baud Rate: 921.6 Kbps; 128 Bytes FIFO; None/Odd/Even/Mark/Space Parity Modes; 7 or 8 Data Bits; 1 or 2 Stop bits; TAA Compliant Bullet 5 MULTI-USE FUNCTIONALITY: This versatile USB to serial RS232 adapter is perfect for a range of applications, from digital signage to connecting point-of-sale systems and barcode scanners Bullets (Compact) Dual-Port USB to serial RS232 adapter - Integrated 2500Vrms Optical Isolation Circuits - Small form factor, this serial RS232 converter is USB powered - Simple installation / operation with COM port retention - 6ft (1.8m); FTDI FT2232D Chipset; TAA Bullets (Consolidated) - Dual-Port USB to serial RS232 adapter - FTDI chipset, making it highly customizable and compatible; Integrated 2500Vrms Optical Isolation Circuits - Small form factor, this serial RS232 converter is USB powered and requires no bulky power adapters or an outlet - Simple installation / operation with COM port retention that provides robust connectivity for legacy devices - 6 feet (1.8 meters); FTDI FT2232D Chipset; Max Baud Rate: 921.6 Kbps; 128 Bytes FIFO; 7 / 8 Data Bits; 1 or 2 Stop bits; TAA Marketing Copy Applications - Connect a satellite receiver, RS232 serial modem, or PDU
- Connect and program LED and Digital signage boards with serial communication ports
- Connect bar code scanners, receipt printers and other point of sale devices
- Connect, monitor and control industrial/automotive sensors and equipment
- Perfect for IT Administrators looking to add legacy functionality to newer laptops, PCs and servers that lack an integrated RS232 port
Website Search Keyword - Serial
- serial adapter
- USB to RS-232
- RS-232 adapter
- USB Serial
- USB RS-232
- USB RS232
- serial cable
- usb serial cable
- connect serial to pc
- pc serial connect
- ftdi
- U209-006-2
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
System and Cable Requirements One available USB 1.1 (or better) port Accessory Products - AT925FF
- PCI420USB
- SCNM925FM
- SCNM9FM
- ST4205USB
- USB2FAAEXT15
- ST7202USB
- PEXUSB400
Related Products - ICUSB232
- ICUSB2321F
- ICUSB232PRO
- ICUSB2321X
- ICUSB2322X
- ICUSB2324X
- ICUSB232C2
- ICUSB2324
- ICUSB2328
- ICUSB232INT1
- ICUSB232INT2
- ICUSB232DB25
Constrained SKU Alternatives (Limited Stock) ICUSB2322X Power Source USB-Powered Cable Length (mm) 1830 Color Black Humidity 5~95% RH Material Plastic Operating Temperature 0°C to 55°C (32°F to 131°F) Primary Material Plastic Product Length (mm) 2133 Product Width (mm) 45 Product Height (mm) 20 Product Weight (g) 156 Storage Temperature -20°C to 85°C (-4°F to 185°F) TAA Compliant Yes Data Bits 7, 8 FIFO 128 Bytes Max Baud Rate 921.6 Kbps OS Compatibility - Windows Server 2012
- Linux
- Windows 8
- Windows 7
- Windows 10
- macOS Sierra (10.12)
- Windows Server 2016
- macOS High Sierra (10.13)
- macOS Mojave (10.14)
- Windows Server 2019
- macOS Catalina (10.15)
- macOS Big Sur (11.0)
- Windows 11
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- Windows Server 2022
- macOS Sonoma (14.0)
- Windows 11 ARM
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)

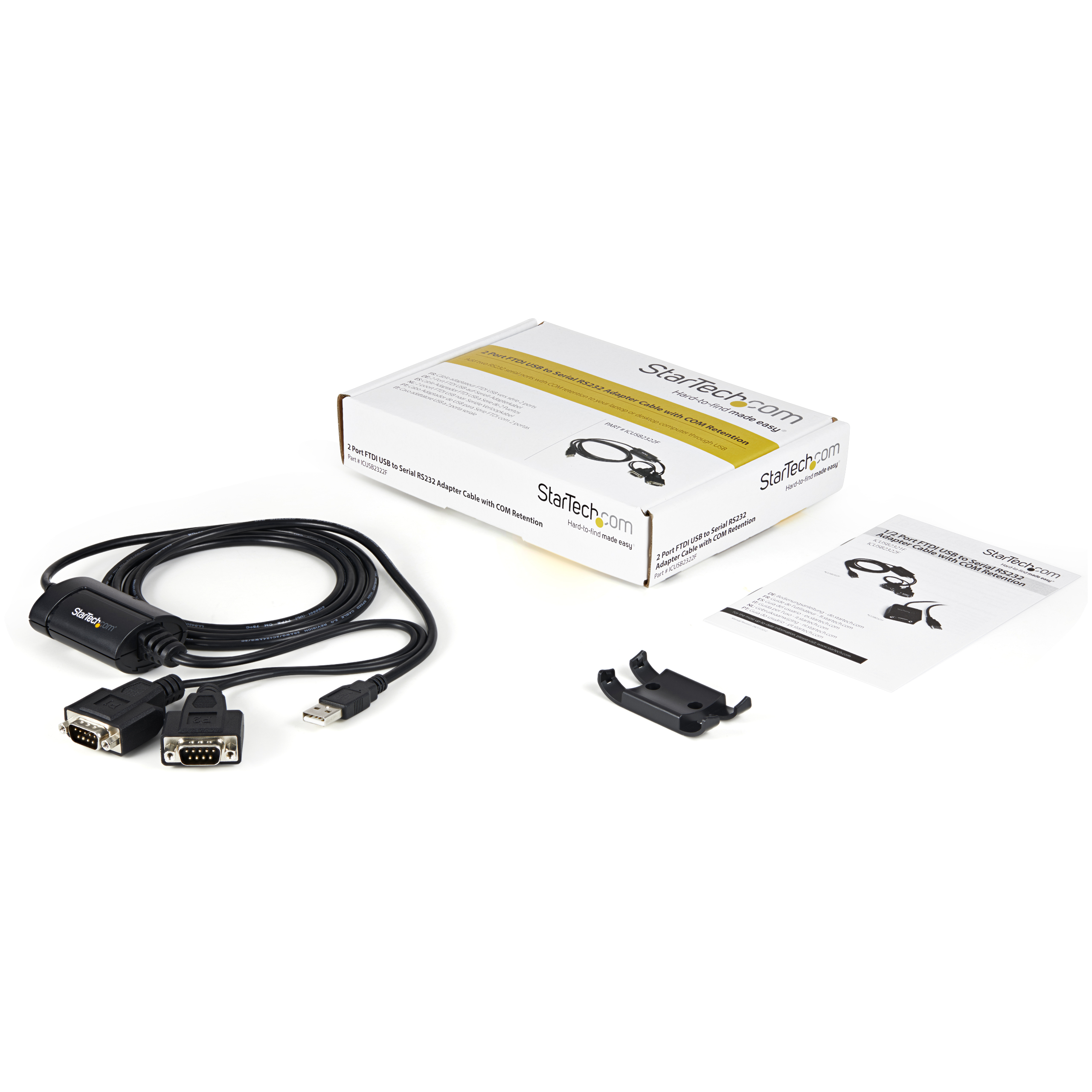

Parity None, Odd, Even, Mark, Space Stop Bits 1, 2 Supported Serial Protocol RS-232 Bus Type USB 2.0 Chipset ID FTDI - FT2232D Interface/Bridge Serial IO Card Port Style Cable Adapters Carton Depth (mm) 523 Carton Height (mm) 325 Carton Quantity 40 Carton Weight Gross (g) 11932 Included in Package - 1 - Driver CD
- 1 - Instruction Manual
- 1 - 2 Port USB to RS-232 Serial Adapter
- 1 - Wall Mounting Kit
Included In Package for Label - 1 - Wall Mounting Kit
- 1 - 2 Port USB To Rs-232 Serial Converter
- 1 - Instruction Manual
- 1 - Driver CD
Package Depth (mm) 146 Package Height (mm) 42 Package Width (mm) 211 Package Quantity 1 Package Weight (g) 284 Packaging Description 2 Port FTDI USB to Serial Adapter Cable Packaging Description India 2 Port FTDI USB to Serial Converter Cable Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DB-9 Serial Connector 1 (Quantity) 2 Connector 2 USB-A (480Mbps, 2.5W) Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,DE,DK,ES,EU,FR,HK,IE,IN,IT,JP,MX,NL,NZ,SE,SG,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None
