ICUSB2322RJ
USB to Dual RS232 Serial Adapter 2 Port Hub
Add two RS232 serial RJ45 connections to a PC or Server through USB, with this DIN Rail and wall-mountable adapter
Main Image
Product Images
Product Images
BOM Image
Product Name USB to Dual RS232 Serial Adapter 2 Port Hub Product Number ICUSB2322RJ UPC 065030846608 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 USB Serial Host Adapter Interconnects Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX013X Product Title (Ultra-Short) USB to Serial RJ45 Product Title (Short) 2 Port USB to Serial Adapter - DIN Rail Product Title (Standard) USB to Serial Adapter – 2 RJ45 Ports – Wall Mount – COM Port Retention – FTDI – USB to Serial RS232 Adapter Product Title (Long) 2 Port Industrial USB to Serial RJ45 Adapter - Wallmount and DIN Rail Product Title (AMZ) USB to Serial Adapter - 2 RJ45 Ports - Wall Mount - COM Port Retention - FTDI - USB to Serial RS232 Adapter (ICUSB2322RJ) Title Ingram (Part 1) 2 Port USB to Serial RJ45 Adapte Title Ingram (Part 2) r Wall Mountable & DIN Rail Website Product Headline Add two RS232 serial RJ45 connections to a PC or Server through USB, with this DIN Rail and wall-mountable adapter Bullet 1 Adds 2 RS232 serial RJ45 connectors via a single USB port Bullet 2 Includes wallmount and Top-Hat DIN rail mounting brackets Bullet 3 Supports data rates up to 921.6 Kbps Bullet 4 COM Port retention Bullet 5 USB 2.0 High Speed (480Mbps) and Full Speed (12Mbps) supported Bullets (Compact) Add two RS232 serial RJ45 connections to your PC or server through USB, using this DIN rail and wall-mountable adapter - USB powered for easy operation - Supports data rates up to 921.6 Kbps - Rugged all-metal enclosure - Supports COM port retention Bullets (Consolidated) Add two RS232 serial RJ45 connections to a PC or Server through USB - with this DIN Rail and wall-mountable adapter - USB to Serial - USB to RS232 - USB to serial Adapter - USB to serial port - USB to RJ45 serial - Wall Mount and DIN Rail - USB Powered Marketing Copy Applications - Perfect for IT Administrators looking to add legacy functionality to newer laptops, PCs and servers that lack integrated RS232
- Connect, monitor and control industrial/automotive sensors and equipment
Website Search Keyword - usb to rs232 rj45
- usb to serial rj45
- usb to rs232 serial rj45
- usb 2.0 to serial rj45
- usb 2.0 to rs232 rj45
- usb to serial with rj45
- usb to rs232 serial with rj45
- rs232 to rj45
- rs232 rj45 cable
- usb to rj45 serial adapter
- usb to 2 port rs232 rj45
- usb to 2 port serial rj45
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Accessory Products - ADJDINKIT
- C6PATCH10BL
- C6PATCH10BK
- GC98FF
- GC258FF
Related Products - ICUSB2321F
- ICUSB2322F
- ICUSB2322X
Power Source USB-Powered Color Black Humidity 5~95% RH Material Steel Operating Temperature 0°C to 55°C (32°F to 131°F) Product Length (mm) 65 Product Width (mm) 42 Product Height (mm) 20 Product Weight (g) 78 Storage Temperature -20°C to 85°C (-4°F to 185°F) TAA Compliant Yes Data Bits 7, 8 FIFO 128 Bytes Max Baud Rate 921.6 Kbps OS Compatibility - Windows 8
- Linux
- Windows 7
- Windows Server 2012
- Windows 10
- Mac OS X El Capitan (10.11)
- macOS Sierra (10.12)
- Windows Server 2016
- macOS High Sierra (10.13)
- macOS Mojave (10.14)
- macOS Big Sur (11.0)
- Windows 11
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- Windows Server 2022
- Windows Server 2019
- macOS Sonoma (14.0)
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)

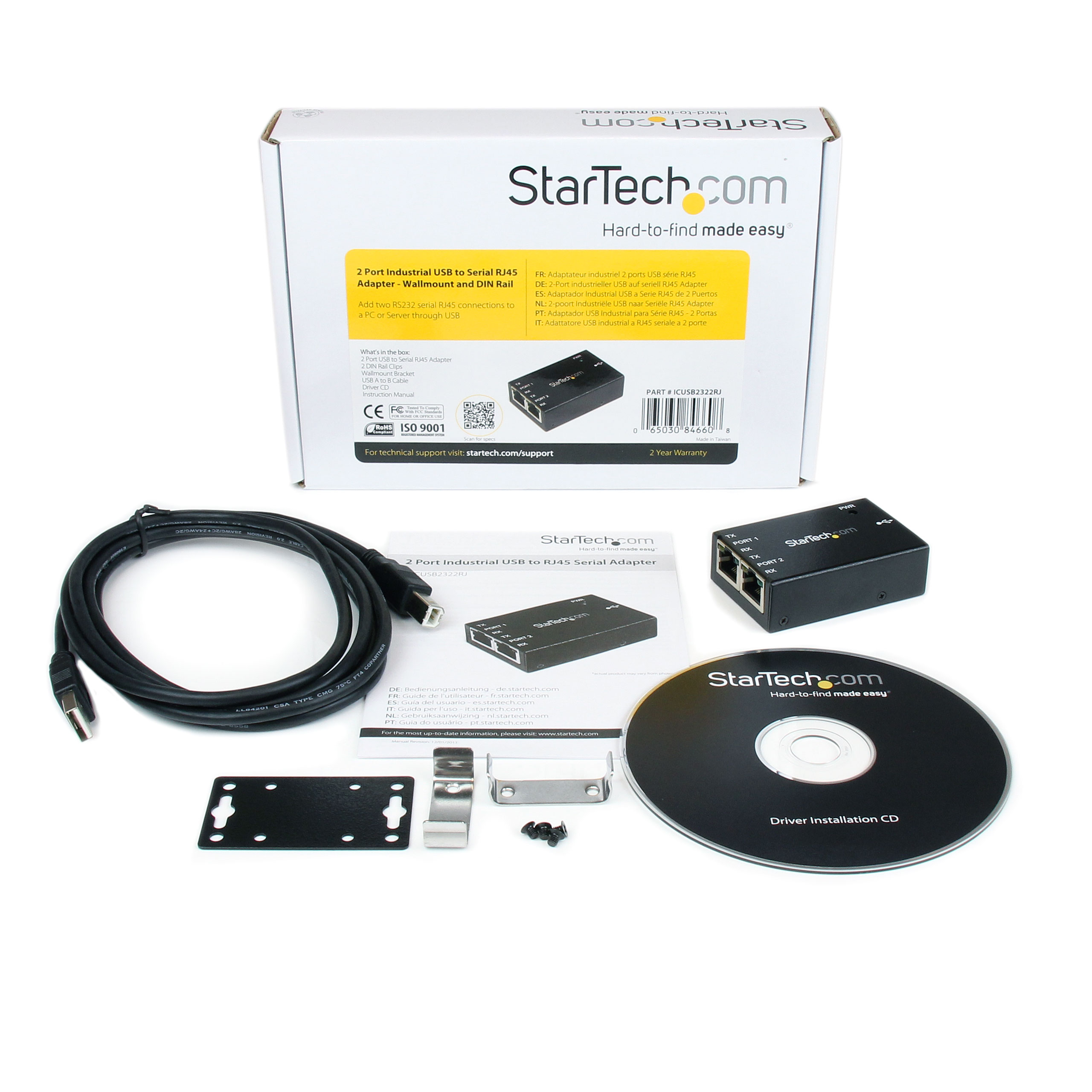

Parity Odd, Even, Mark, Space, None Stop Bits 1, 2 Supported Serial Protocol RS-232 Bus Type USB 2.0 Chipset ID FTDI - FT232R Interface/Bridge Serial IO Card Port Style External Hub Carton Depth (mm) 433 Carton Height (mm) 269 Carton Quantity 60 Carton Weight Gross (g) 9690 Included in Package - 1 - 2 Port USB to Serial RJ45 Adapter
- 2 - DIN Rail Clips
- 1 - Wallmount Bracket
- 1 - Driver CD
- 1 - Instruction Manual
- 1 - USB A to B Cable
Package Depth (mm) 144 Package Height (mm) 41 Package Width (mm) 211 Package Quantity 1 Package Weight (g) 290 Packaging Description 2 Port Industrial USB to Serial RJ45 Adapter Packaging Description India 2 Port Industrial USB to Serial RJ45 Adapter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-B (480Mbps, 2.5W) Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 2 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle Legacy
