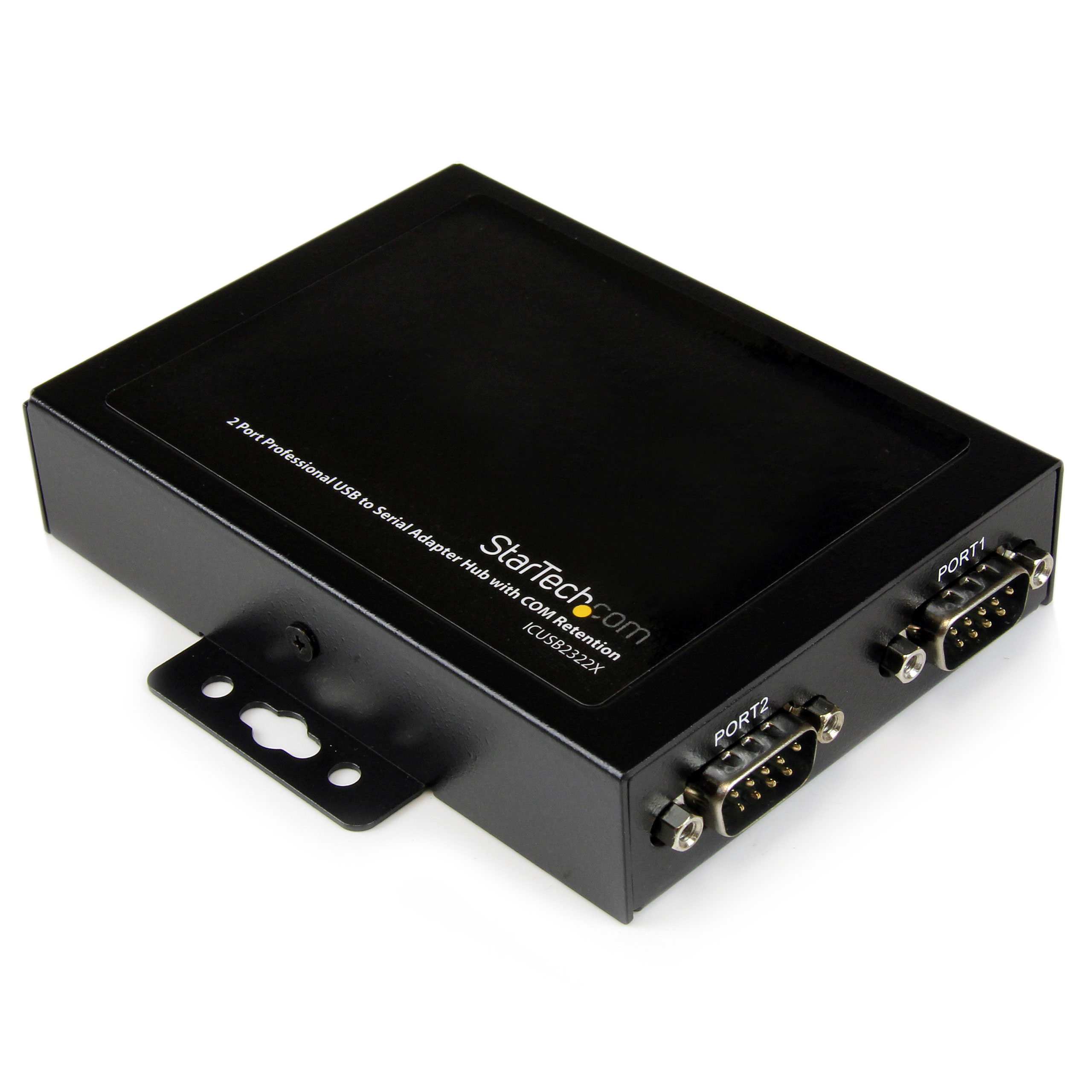

Main Image
ICUSB2322X
2 Port USB to RS232 Adapter with COM Retention
Add 2 serial RS-232 ports to any laptop or computer with a USB port
Main Image
Product Images
Product Images
BOM Image
Product Name 2 Port USB to RS232 Adapter with COM Retention Product Number ICUSB2322X UPC 065030831734 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 USB Serial Host Adapter Interconnects Family USB Serial Host Adapter TI Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Short) 2 Port USB 2.0 to Serial Adapter Hub Product Title (Standard) USB to Serial Adapter – 2 Port – Wall Mount – COM Port Retention – Texas Instruments – USB to Serial RS232 Adapter Product Title (Long) 2 Port Wall Mountable USB to Serial Adapter Hub with COM Retention Product Title (AMZ) 2 Port USB to Serial RS232 Adapter - Wall Mountable USB to Serial Port Adapter Hub w/ COM Retention - Compatible w/ Windows XP/Vista/7/8; Windows Server 2003/2008 R2/2012 (ICUSB2322X) Title Ingram (Part 1) 2 Port USB to Serial Adapter Hub Title Ingram (Part 2) with COM Retention Website Product Headline Add 2 serial RS-232 ports to any laptop or computer with a USB port Bullet 1 Baud Rate up to 230 Kbps Bullet 2 COM Port assignments maintained across reboot Bullet 3 Designed to make serial port expansion quick and simple Bullet 4 Enables and disables enumerations Bullet 5 Powered by an available USB port - no external power adapter required Bullets (Consolidated) Serial adapter - USB - RS-232 x 2 - black Marketing Copy Applications - Perfect for IT Administrators looking to add legacy functionality to newer notebooks, PCs and servers that lack an integrated RS232 port
- Connect, monitor and control industrial/automotive sensors and equipment
- Connect bar code scanners, receipt printers and other point of sale devices
- Connect a satellite receiver, serial modem, or PDA with serial sync
- Connect and program LED and Digital signage boards with serial communication ports
Website Search Keyword - Serial
- serial adapter
- USB to RS-232
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Accessory Products - AT925FF
- PCI420USB
- SCNM925FM
- SCNM9FM
- ST4205USB
- USB2FAAEXT15
Related Products - ICUSB232
- ICUSB232_4
- ICUSB232PRO
Constrained SKU Alternatives (Limited Stock) ICUSB2322F Input Voltage 9 ~ 36 DC Power Source Not Included (not required for standard applications) Plug Type N Color Black Humidity 5~85% RH Material Steel Operating Temperature -10°C to 80°C (14°F to 176°F) Primary Material Steel Product Length (mm) 113.000 Product Width (mm) 80.000 Product Height (mm) 23.000 Product Weight (g) 300.000 Storage Temperature -20°C to 100°C (-4°F to 212°F) TAA Compliant Yes FIFO 32 Bytes Max Baud Rate 230.4 Kbps OS Compatibility - Windows 8
- Windows Server 2012
- Windows 7
- Windows 10
- Windows 8.1
- Windows 11

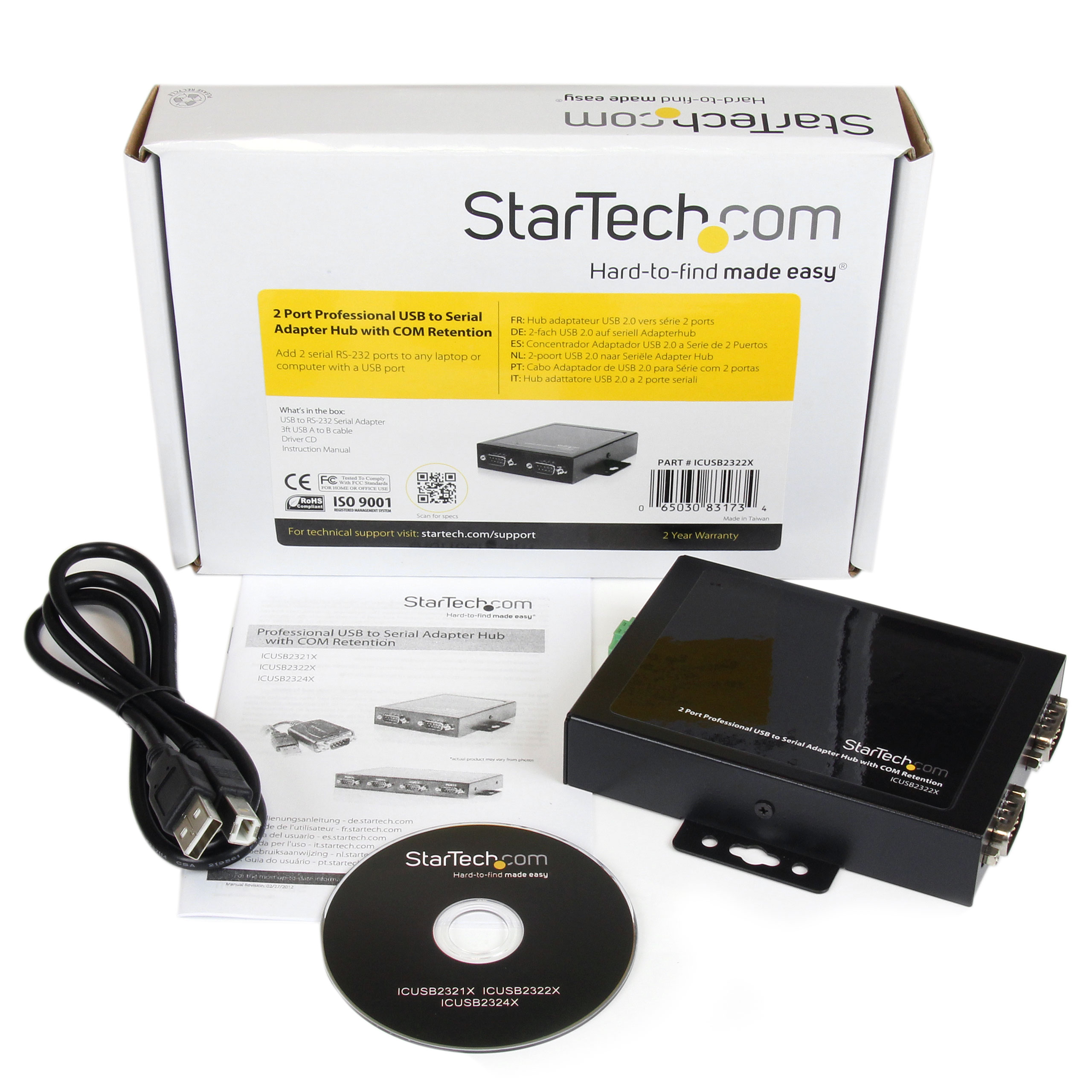

Supported Serial Protocol RS-232 Bus Type USB 2.0 Chipset ID Texas Instruments - TIUSB3410 Interface/Bridge Serial IO Card Port Style External Hub Carton Depth (mm) 510 Carton Height (mm) 400 Carton Quantity 50 Carton Weight Gross (g) 23700 Included in Package - 1 - Instruction Manual
- 1 - USB to RS-232 Serial Adapter
- 1 - 3ft USB A to B cable
Package Depth (mm) 143 Package Height (mm) 42 Package Width (mm) 203 Package Quantity 1 Package Weight (g) 450 Packaging Description 2 Port USB 2.0 to Serial Adapter Hub Packaging Description India 2 Port USB 2.0 to Serial Adapter Hub Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-B (480Mbps, 2.5W) Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 2 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,EU,FR,IE,IT,NL,SE,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None
