Main Image
ICUSB2324
4 port USB to RS232 Adapter
Add four RS232 serial ports to any notebook or desktop computer using a single USB port
Main Image
Product Images
Product Images
BOM Image
Product Name 4 port USB to RS232 Adapter Product Number ICUSB2324 UPC 065030825177 Lifecycle status Active Warranty Lifetime Taxonomy Product > Cards & Adapters > Serial and Parallel Cards & Adapters Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 USB Serial Host Adapter Interconnects Family Desktop USB to Serial Adapters - FTDI Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX013X Product Title (Ultra-Short) 4Pt USB to RS232 Hub Product Title (Short) 4 Port USB to RS232 Serial Adapter Hub Product Title (Medium) x Product Title (Standard) USB to Serial Adapter Hub – 4 Port – Bus Powered – DB9 (9-pin) – USB Serial – FTDI USB to Serial Adapter, TAA Product Title (Long) 4 Port USB to RS232 Serial DB9 Adapter Hub - TAA Product Title (AMZ) 4 Port USB to Serial RS232 Adapter - DB9M - RS232 Extension - Serial to USB , TAA (ICUSB2324) Title Ingram (Part 1) 4 Port USB to RS232 Serial DB9 A Title Ingram (Part 2) dapter Hub Website Product Headline Add four RS232 serial ports to any notebook or desktop computer using a single USB port Bullet 1 Bus powered, no external power adapter required Bullet 2 Easy Plug-and-Play installation Bullet 3 Fully compliant with USB 1.1 specifications and compatible with USB 2.0 Bullet 4 Provides you with four additional RS232 serial ports Bullets (Consolidated) Add four RS232 Serial ports to any notebook or desktop computer using a single USB port - USB to Serial - USB to RS232 - USB to DB9 - USB to Serial Adapter - USB to Serial port - 4 Port Hub Marketing Copy Applications - Connect modems, digitizer tablets, mice, bar code scanners, GPS receivers, ISDN terminal adapters, mobile phones, scanners, UPSes and POS equipment to your system
- Connect and program LED and Digital signage boards with serial communication ports
Website Search Keyword - 4 Port USB
- USB to RS232
- Adapter
- USA-49WG
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- UKCA - Environmental - United Kingdom - UK Restriction of Hazardous Substances (RoHS) 2012
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
System and Cable Requirements One free USB port Accessory Products - MXT10050CMBK
- MXT1001MBK
- MXT1002MBK
- MXT1003MBK
- SCNM9FM1MBK
- SCNM9FM2MBK
- MXT106
- MXT10010
- MXT100_25
- USB2HAB1
- USB2HAB3
- USB2HAB6
- USB2HAB10
- USB2HAB15
Related Products - ICUSB2324I
- ICUSB2324X
- ICUSB2328
- ICUSB2328I
- ICUSB23208FD
- ICUSB23216FD
- ICUSB23216F
- ICUSB2322RJ
- ICUSB232FTN
- ICUSB2321F
- ICUSB232PRO
- ICUSB232V2
- ICUSB232DB25
- ICUSB2321FIS
- ICUSB2321X
- ICUSB232SM3
- ICUSB232IS
- ICUSBANDR232
- ICUSB232D
- ICUSB2321284
- ICUSB2322X
- ICUSB232C2
- ICUSB2322F
- ICUSB2322I
- ICUSB2324852
Power Consumption (In Watts) 1 ~ 1.5W Cable Length (mm) 1830 Color Black Humidity 5~95% RH Material Plastic Operating Temperature 0°C to 55°C (32°F to 131°F) Primary Material Plastic Product Length (mm) 150 Product Width (mm) 66.5 Product Height (mm) 26 Product Weight (g) 146 Storage Temperature -20 to 85°C (-4 to 185°F) TAA Compliant Yes FIFO 256 Bytes Max Baud Rate 921.6 Kbps OS Compatibility - Linux
- Windows 8
- Windows Server 2012
- Windows 7
- Windows 10
- macOS Sierra (10.12)
- Windows Server 2016
- macOS High Sierra (10.13)
- macOS Mojave (10.14)
- Windows Server 2019
- macOS Catalina (10.15)
- macOS Big Sur (11.0)
- Windows 11
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- Windows Server 2022
- macOS Sonoma (14.0)
- Windows 11 ARM
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)
- Windows Server 2025
Supported Serial Protocol RS-232 Bus Type USB 2.0 Chipset ID FTDI - FT232RL Industry Standards - RS232
- USB 1.1

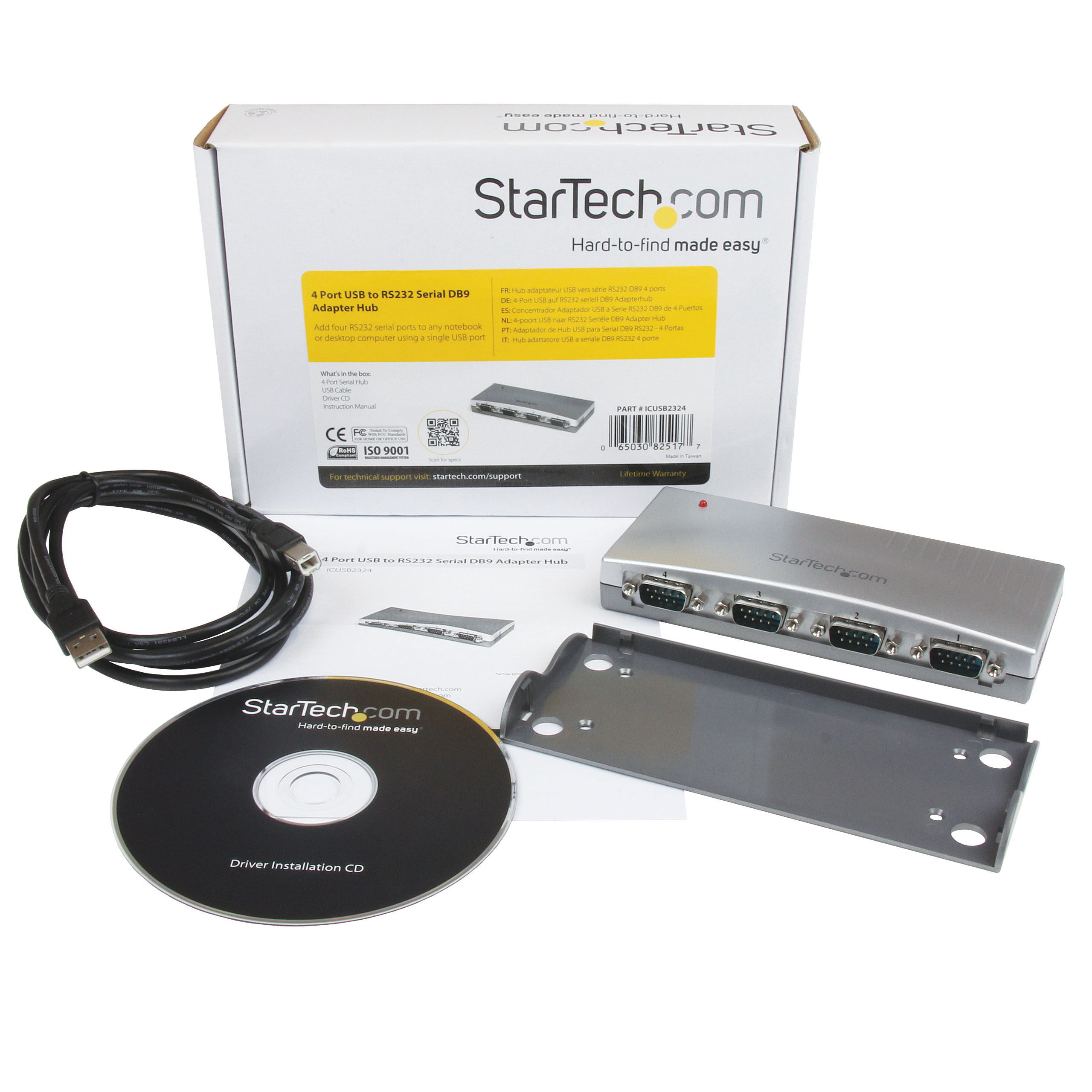

Interface/Bridge Serial IO Card Port Style External Hub Carton Depth (mm) 432 Carton Height (mm) 268 Carton Quantity 25 Carton Weight Gross (g) 10174 Included in Package - 1 - 4 Port Serial Hub
- 1 - USB Cable
- 1 - Driver CD
- 1 - Instruction Manual
- 1 - Mounting Bracket
Included In Package for Label - 1 - Instruction Manual
- 1 - Driver CD
- 1 - USB Cable
- 1 - 4 Port Serial Hub
- 1 - Mounting Bracket
Package Depth (mm) 150 Package Height (mm) 52 Package Width (mm) 216 Package Quantity 1 Package Weight (g) 368 Packaging Description 4 Port USB to RS232 Serial DB9 Adapter Hub Packaging Description India 4 Port USB to RS232 Serial DB9 Converter Hub Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (480Mbps, 2.5W) Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 4 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AU,CA,CL,ES,EU,FR,HK,IE,IN,IT,JP,MX,NZ,SG,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None
