Main Image
ICUSB2324852

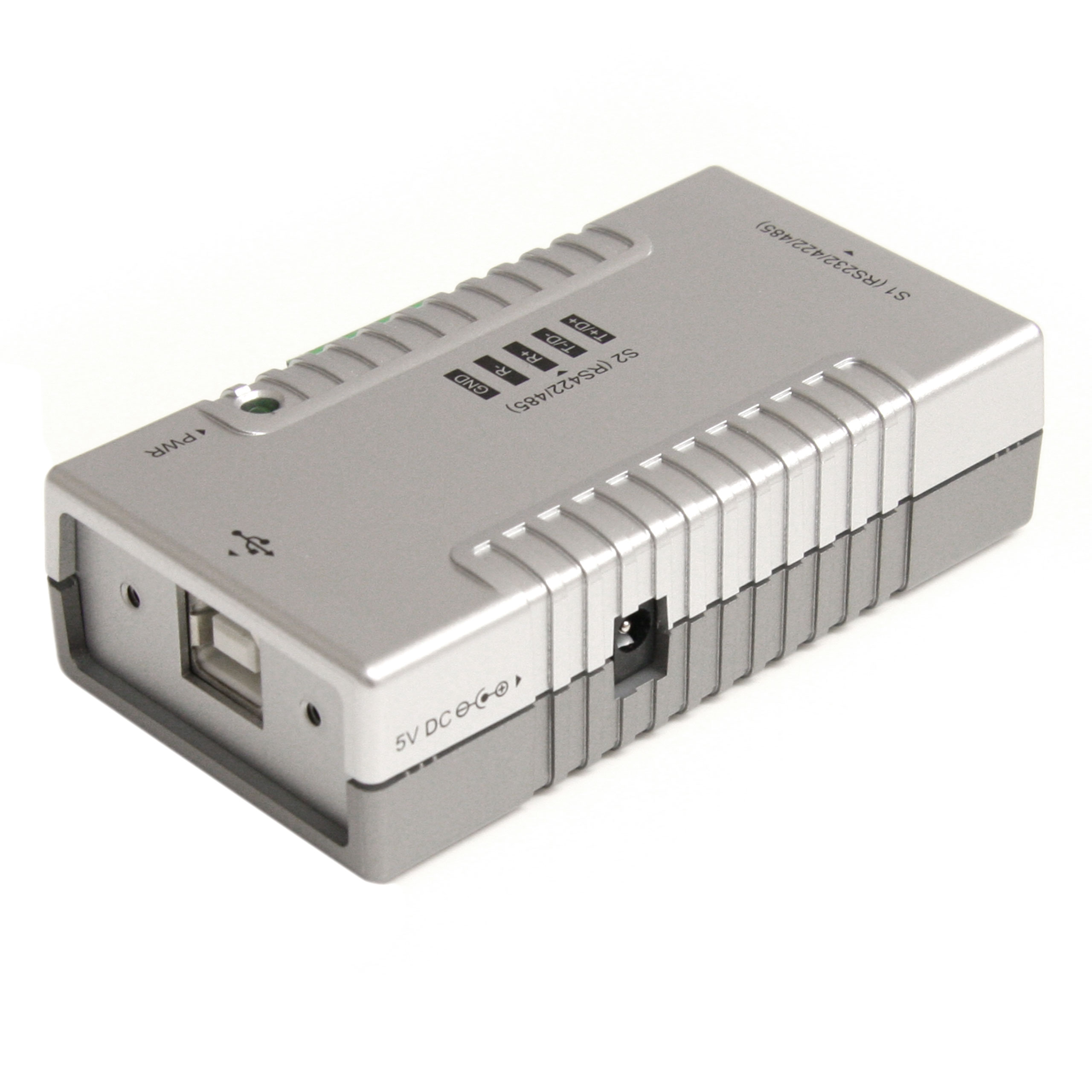

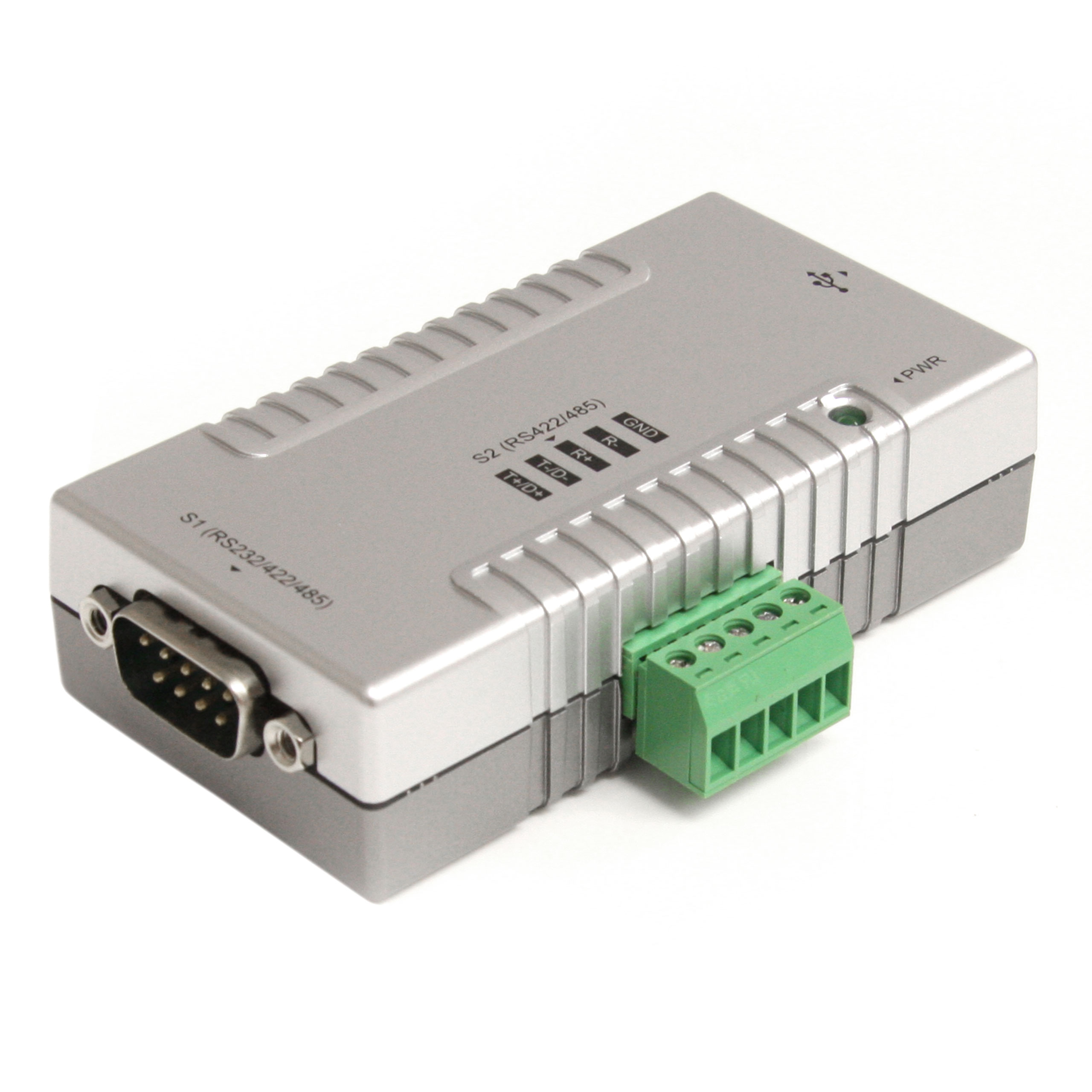

USB to Serial Adapter with COM Retention
Add RS232, RS422 and RS485 support to your laptop or desktop computer via USB
Main Image
Product Images
BOM Image
Product Name USB to Serial Adapter with COM Retention Product Number ICUSB2324852 UPC 065030840965 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > Serial and Parallel Cards & Adapters Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 USB Serial Host Adapter Interconnects Family Desktop USB to Serial Adapters - FTDI Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX013X Product Title (Short) USB to RS232/422/485 Serial Adapter Product Title (Standard) USB to Serial Adapter – 2 Port – RS232 RS422 RS485 – COM Port Retention – FTDI USB to Serial Adapter – USB Serial, TAA Product Title (Long) 2 Port USB to RS232 RS422 RS485 Serial Adapter with COM Retention - TAA Product Title (AMZ) USB to Serial Adapter - 2 Port - RS232 RS422 RS485 - COM Port Retention - FTDI USB to Serial Adapter - USB Serial , TAA (ICUSB2324852) Title Ingram (Part 1) 2 Port USB to RS232/422/485 Seri Title Ingram (Part 2) al Adapter w/ COM Retention Website Product Headline Add RS232, RS422 and RS485 support to your laptop or desktop computer via USB Bullet 1 Backwards compatible with USB 1.1 Bullet 2 Ability to rename devices for easy recognition Bullet 3 COM Port assignments maintained after reboot Bullet 4 Port 1 (DB9) configurable for RS232, RS422, or RS485; Port 2 (Terminal Block) configurable for RS422 or RS485 Bullet 5 Supports RS-485 Auto Transceiver Turn Around by Unique Featured ATTA Hardware Bullets (Consolidated) Serial adapter - USB 2.0 - RS-232 - RS-422 - RS-485 - 2 ports - gray Marketing Copy Applications - Adapting and expanding POS systems
- Great for Industrial programmers looking to test new code with serial devices
- Connect serial RS232, RS422, or RS485 devices to notebooks or tablet PC’s through the USB port
- Perfect for controlling, monitoring, and diagnosing manufacturing machines (CNC, Process Control Equipment, Bar Code Scanners, Serial Printers)
- Security device control (key panels, cameras, card readers)
Website Search Keyword - Adapter Cable
- RS-422
- RS-485
- Serial
- serial adapter
- Serial Converter
- USB 2.0
- USB converter
- USB to
- RS485
- Two port
- 2 port
- Terminal Block
- RS232
- RS422
- RS-232
- universal serial
- mixed serial
- serial combo
- U208-002-IND
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Accessory Products - C9PCF
- C9PSF
- FIBCLDB9MF3
- FIBCLDB9MF6
- GC98FF
- GC99MFRA2
- GC9SF
- MC6MF
- MXT100
- MXT100_25
- MXT100FF
Related Products - CB1S485
- ICUSB232
- ICUSB2321X
- ICUSB2322X
- ICUSB2324X
- ICUSB232PRO
- ICUSB422IS
- NETRS2321E
- PCI2S422ISO
- PCI2S485
- PCI4S422DB9
- ICUSB422
- ICUSB232C2
Output Current 0.385A Output Voltage (V) 5 DC Power Source Not Included (not required for standard applications) Plug Type B Center Tip Polarity Positive Color Gray Humidity 5~95% RH Material Plastic Operating Temperature 0°C to 55°C (32°F to 131°F) Primary Material Plastic Product Length (mm) 82.3 Product Width (mm) 44.2 Product Height (mm) 23.2 Product Weight (g) 300 Storage Temperature -20°C to 85°C (-4°F to 185°F) TAA Compliant Yes Data Bits 7, 8 FIFO 128 Bytes Flow Control Xon/Xoff, Hardware, and None Max Baud Rate 921.6 Kbps MTBF (hours) 340,077 Hours OS Compatibility - Linux
- Windows Server 2012
- Windows 8
- Windows 7
- Windows 10
- macOS Sierra (10.12)
- Windows Server 2016
- macOS High Sierra (10.13)
- macOS Mojave (10.14)
- Windows Server 2019
- macOS Catalina (10.15)
- macOS Big Sur (11.0)
- Windows 11
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- Windows Server 2022
- macOS Sonoma (14.0)
- Windows 11 ARM
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)

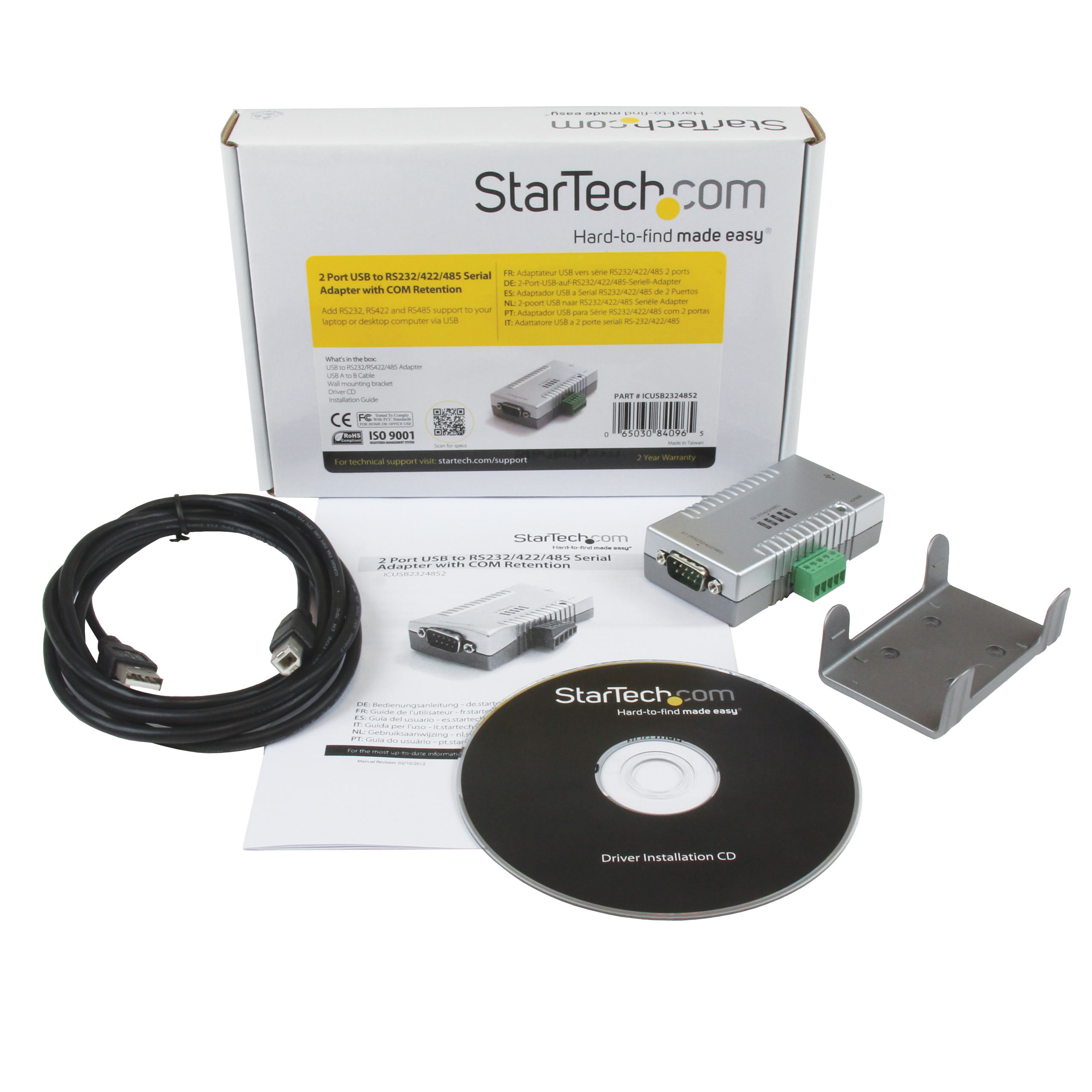

Parity Odd, Even, Mark, Space, and None Stop Bits 1, 2 Supported Serial Protocol RS-232/422/485 Bus Type USB 2.0 Chipset ID FTDI - FT2232H Interface/Bridge Serial IO Card Port Style External Hub LED Indicators 1 - Red - Power LED Carton Depth (mm) 406 Carton Height (mm) 330 Carton Quantity 40 Carton Weight Gross (g) 11588 Included in Package - 1 - Driver CD
- 1 - Installation Guide
- 1 - USB to RS232/RS422/485 Adapter
- 1 - Wall mounting bracket
- 1 - USB A to B Cable
Included In Package for Label - 1 - Driver CD
- 1 - Installation Guide
- 1 - USB To Rs232/Rs422/485 Converter
- 1 - Wall Mounting Bracket
- 1 - USB A To B Cable
Package Depth (mm) 145 Package Height (mm) 45 Package Width (mm) 209 Package Quantity 1 Package Weight (g) 264 Packaging Description 2 Port USB to RS232/422/485 Serial Adapter Packaging Description India 2 Port USB to RS232/422/485 Serial Converter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (480Mbps, 2.5W) Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 1 Connector 3 Terminal Block (5 Wire) Connector 3 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,IE,IN,IT,MX,NL,PE,SE,SG,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None
