ICUSB2324I

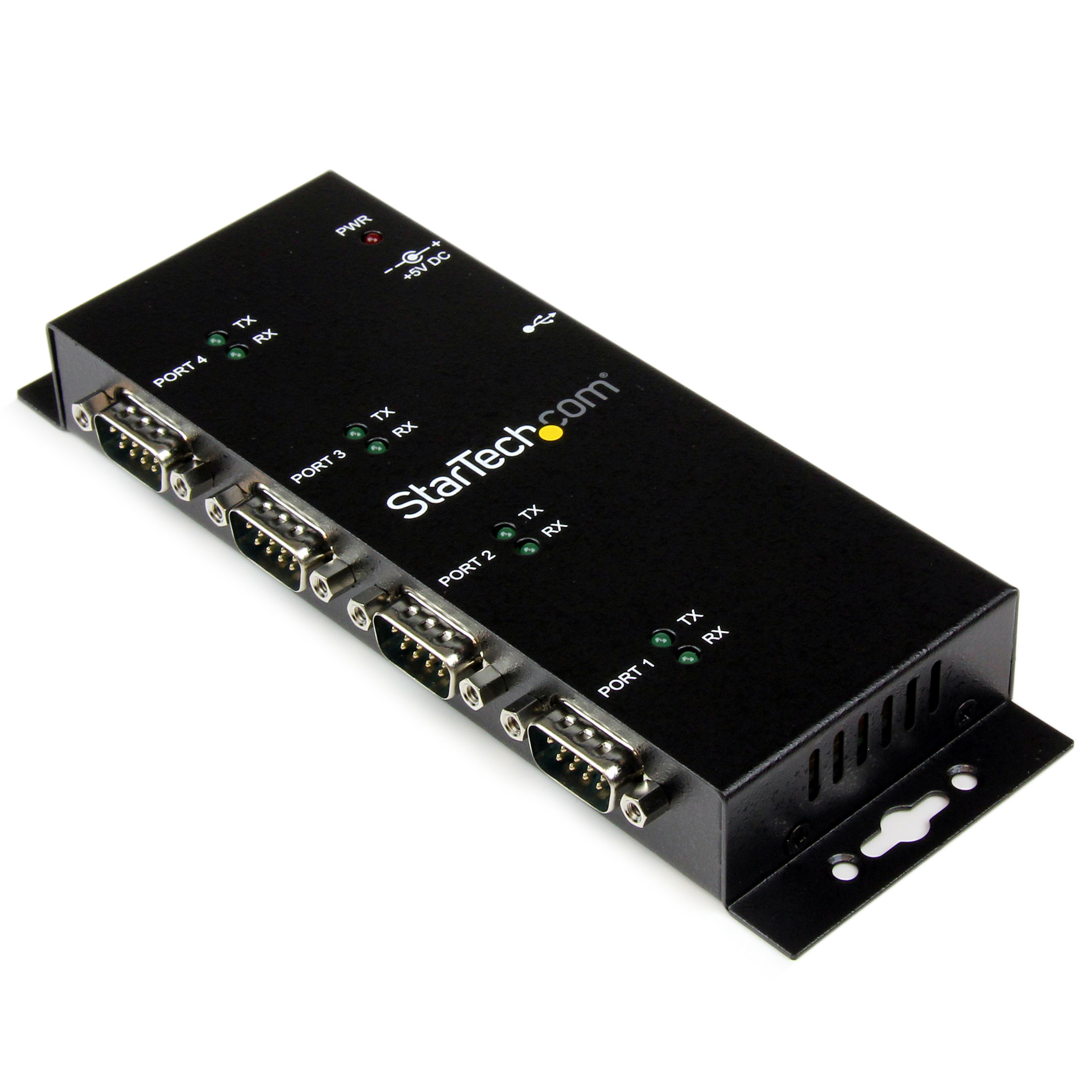

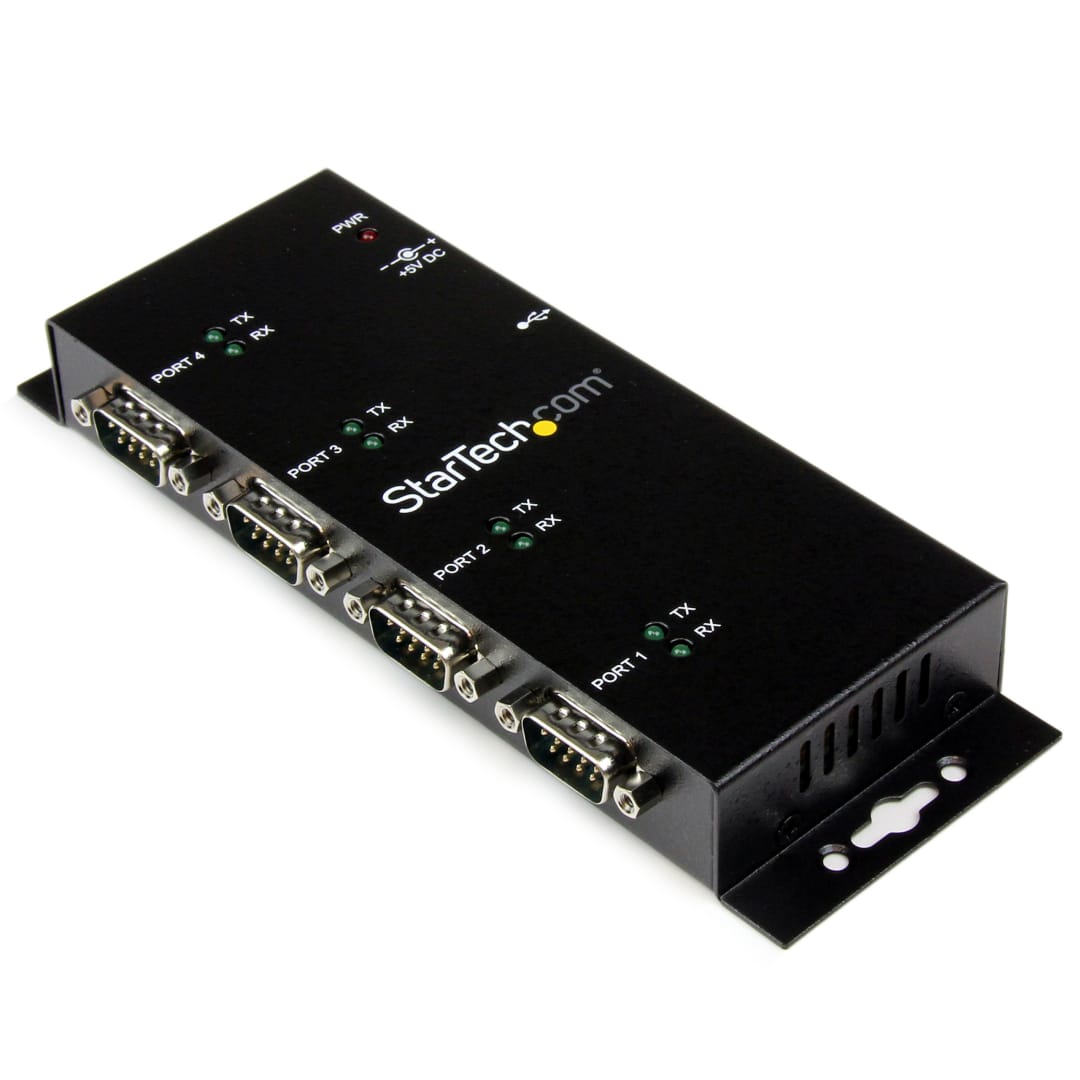

4-Port Wall/DIN Mount USB to RS232 Serial Hub
Add 4 DIN Rail-mountable RS232 Serial ports to any system through USB
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Video Link YouTube
Product Name 4-Port Wall/DIN Mount USB to RS232 Serial Hub Product Number ICUSB2324I UPC 065030848343 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > Serial and Parallel Cards & Adapters Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 USB Serial Host Adapter Interconnects Family Industrial USB to Serial Adapters - RS232 Only Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX013X Product Title (Short) 4 Port USB to DB9 RS232 Serial Adapter Product Title (Medium) x Product Title (Standard) USB to Serial Adapter Hub – 4 Port – Industrial – Wall Mount – Din Rail – COM Port Retention – FTDI USB Serial, TAA Product Title (Long) 4 Port USB to DB9 RS232 Serial Adapter Hub – Industrial DIN Rail and Wall Mountable - TAA Product Title (AMZ) 4 Port USB to Serial RS232 Adapter - Wall Mount - Din Rail - COM Port Retention - FTDI USB to DB9 RS232 Hub , TAA (ICUSB2324I) Title Ingram (Part 1) USB Serial Hub - 4Port USB to DB Title Ingram (Part 2) 9 RS232 Serial Adapter Hub Website Product Headline Add 4 DIN Rail-mountable RS232 Serial ports to any system through USB Bullet 1 Baud Rate up to 921.6 Kbps Bullet 2 COM retention: COM Port assignments maintained across reboot Bullet 3 Powered by an available USB port - no external power adapter required Bullet 4 Rugged metal construction Bullet 5 Wall-mountable, with included DIN Rail clips Bullets (Consolidated) Add 4 DIN Rail-mountable RS232 Serial ports to any system through USB - 4 Port USB to DB9 RS232 Serial Adapter Hub - Industrial DIN Rail and Wall Mountable/USB to RS 232 Serial Adapter 4-Port/USB to Serial Converter - Rugged all-metal enclosure for added durability in harsh environments/Wall-mountable with included DIN Rail clips - Supports baud rates up to up to 921.6 Kbps/USB powered with easy plug and play installation Marketing Copy Marketing Copy (No HTML) Applications - Perfect for IT Administrators looking to add legacy functionality to newer notebooks, PCs and servers that lack an integrated RS232 port
- Connect, monitor and control industrial/automotive sensors and equipment

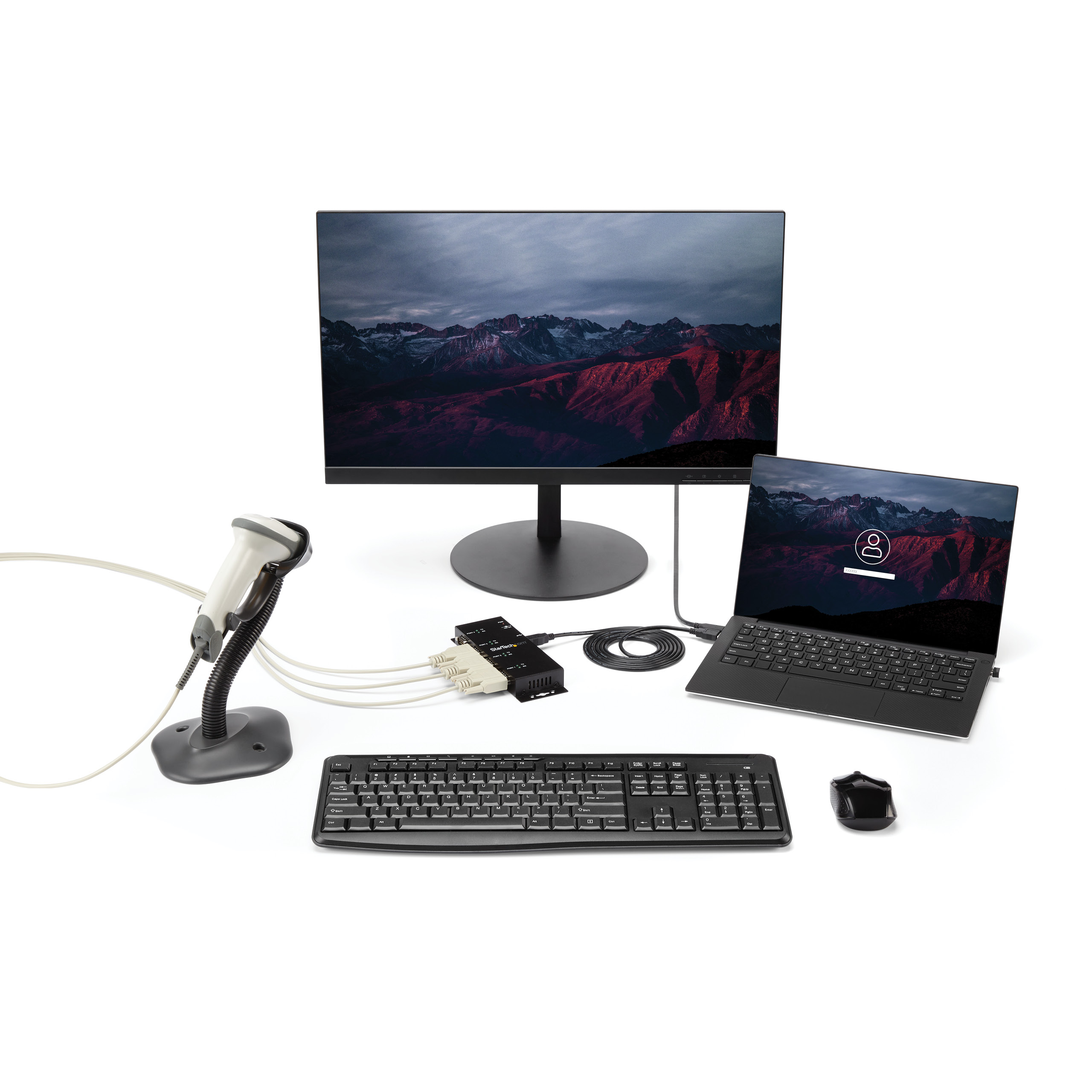

- Connect bar code scanners, receipt printers and other point of sale devices
- Connect a satellite receiver, serial modem, or PDA with serial sync
- Connect and program LED and Digital signage boards with serial communication ports
Website Search Keyword - Serial
- serial adapter
- USB to RS-232
- USB Serial
- USB RS-232
- USB RS232
- connect serial to pc
- pc serial connect
- USA49WG
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Accessory Products - MXT10050CMBK
- MXT1001MBK
- MXT1002MBK
- MXT1003MBK
- SCNM9FM1MBK
- SCNM9FM2MBK
- MXT106
- MXT10010
- MXT100_25
- USB2HAB1
- USB2HAB3
- USB2HAB6
- USB2HAB10
- USB2HAB15
Related Products - ICUSB2324
- ICUSB2324X
- ICUSB2328
- ICUSB2328I
- ICUSB23208FD
- ICUSB23216FD
- ICUSB23216F
- ICUSB2322RJ
- ICUSB232FTN
- ICUSB2321F
- ICUSB232PRO
- ICUSB232V2
- ICUSB232DB25
- ICUSB2321FIS
- ICUSB2321X
- ICUSB232SM3
- ICUSB232IS
- ICUSBANDR232
- ICUSB232D
- ICUSB2321284
- ICUSB2322X
- ICUSB232C2
- ICUSB2322F
- ICUSB2322I
- ICUSB2324852
Constrained SKU Alternatives (Limited Stock) ICUSB2324X Input Voltage 5V DC Power Source USB-Powered Plug Type M Color Black Humidity 5~95% RH Material Steel Operating Temperature 0°C to 55°C (32°F to 131°F) Primary Material Steel Product Length (mm) 178 Product Width (mm) 59 Product Height (mm) 23.2 Product Weight (g) 300 Storage Temperature -20°C to 85°C (-4°F to 185°F) TAA Compliant Yes Data Bits 7, 8 FIFO 256 Bytes Max Baud Rate 921.6 Kbps Maximum Data Transfer Rate 921.6Kbps MTBF (hours) 282713.5 hours OS Compatibility - Windows Server 2012
- Linux
- Windows 8
- Windows 7
- Windows 10
- macOS Sierra (10.12)
- Windows Server 2016
- macOS High Sierra (10.13)
- macOS Mojave (10.14)
- Windows Server 2019
- macOS Catalina (10.15)
- macOS Big Sur (11.0)
- Windows 11
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- Windows Server 2022
- macOS Sonoma (14.0)
- Windows 11 ARM
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)

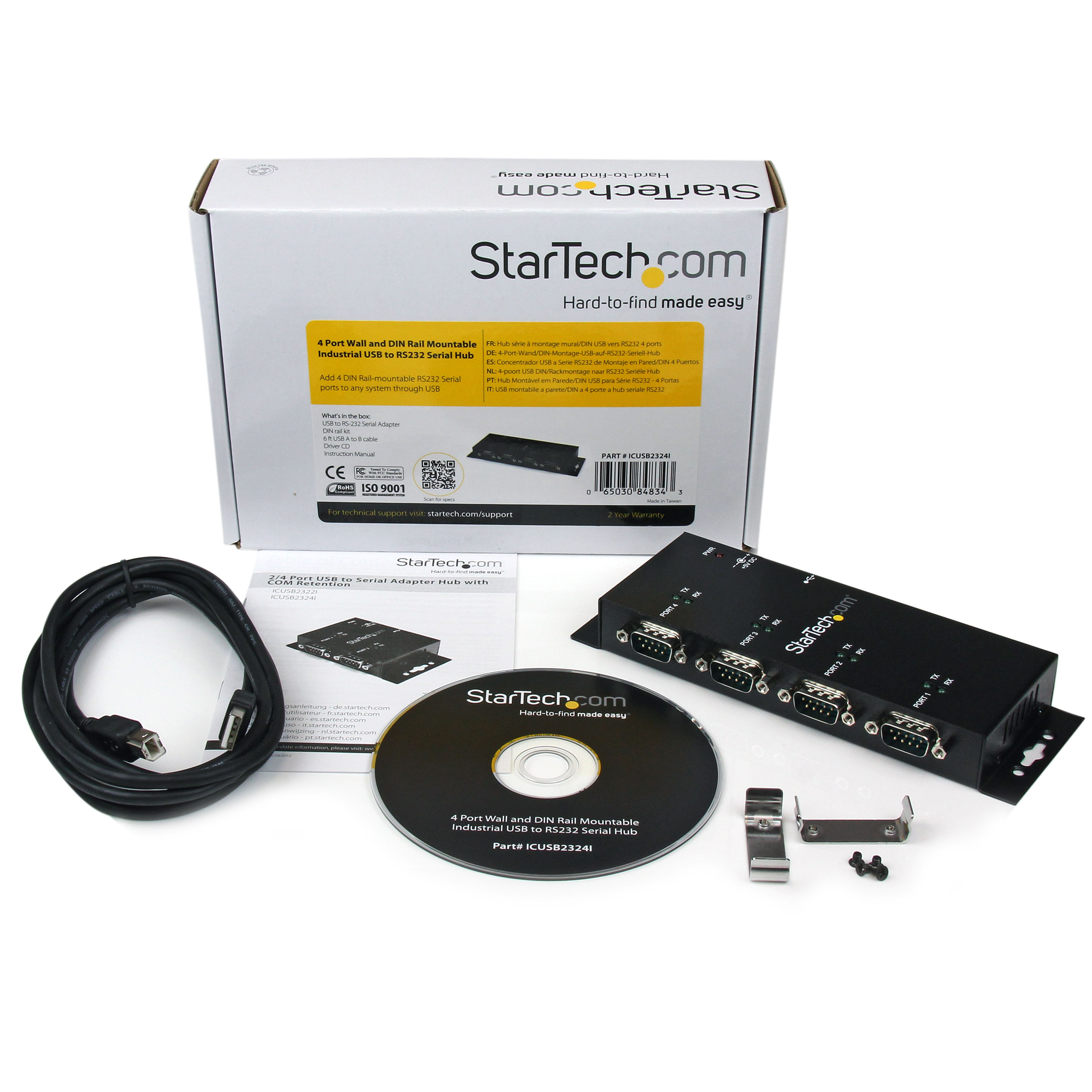

Parity Odd, Even, Mark, Space, None Stop Bits 1, 2 Supported Serial Protocol RS-232 Bus Type USB 2.0 Chipset ID FTDI - FT4232HL Interface/Bridge Serial IO Card Port Style External Hub LED Indicators 4 - Each, Tx/Rx Activity indicators Carton Depth (mm) 430 Carton Height (mm) 270 Carton Quantity 25 Carton Weight Gross (g) 13250 Included in Package - 1 - Driver CD
- 1 - Instruction Manual
- 1 - USB to RS-232 Serial Adapter
- 1 - 6 ft USB A to B cable
- 1 - DIN rail kit
Included In Package for Label - 1 - Driver CD
- 1 - Instruction Manual
- 1 - USB to RS-232 Serial Converter
- 1 - 6 ft USB A to B cable
- 1 - DIN rail kit
Package Depth (mm) 150 Package Height (mm) 50 Package Width (mm) 215 Package Quantity 1 Package Weight (g) 494 Packaging Description 4 Port Wall/DIN Mount USB to RS232 Serial Hub Packaging Description India 4-Port Wall/DIN Mount USB to RS232 Serial Hub Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-B (480Mbps, 2.5W) Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 4 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2013-08-21 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 2 Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None
