ICUSB232D

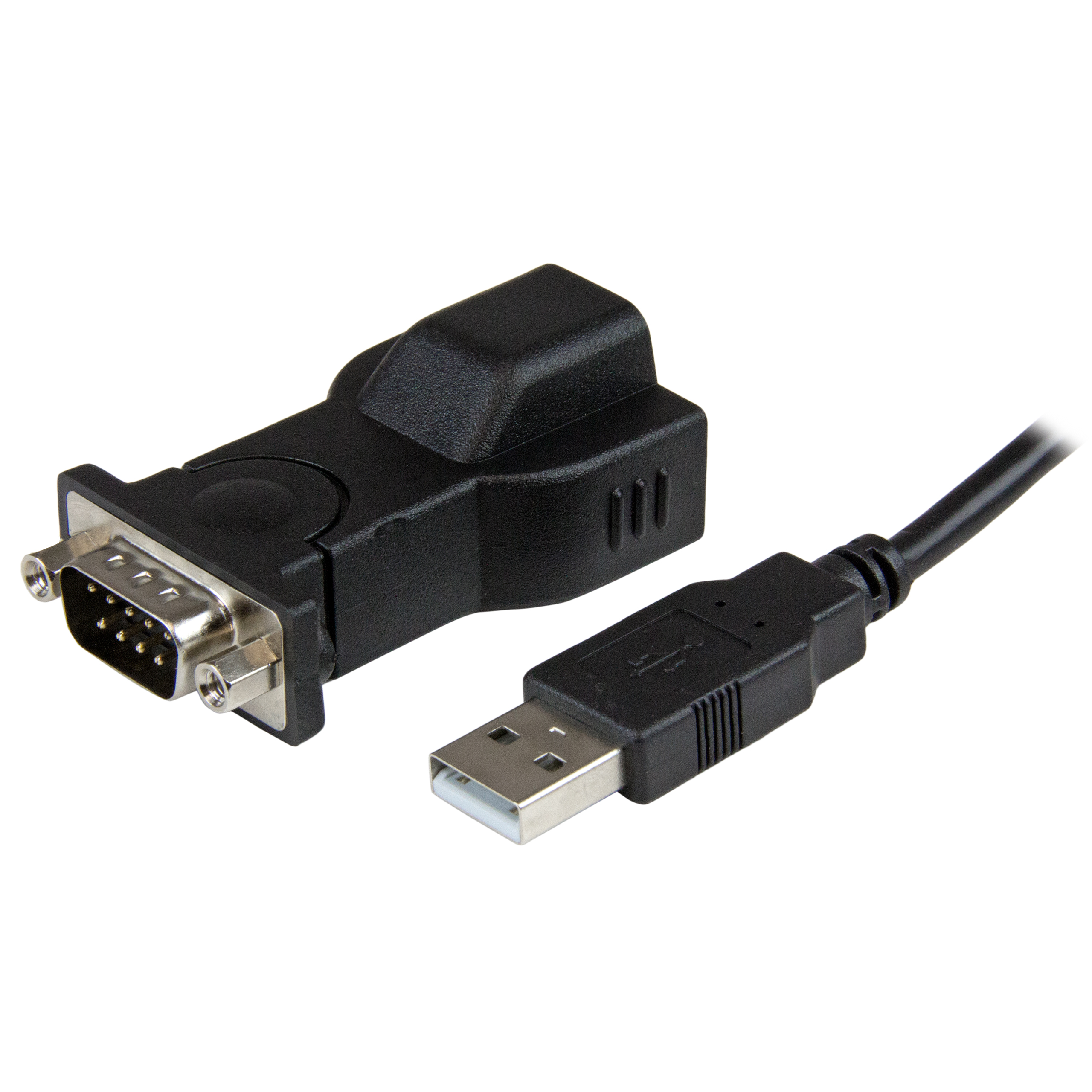

USB to Serial Converter w/ Removable USB Cable
Add an RS232 serial port to your laptop or desktop computer through a detachable USB cable
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name USB to Serial Converter w/ Removable USB Cable Product Number ICUSB232D UPC 065030859448 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 USB Serial Host Adapter Interconnects Family No Family Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX012X Product Title (Ultra-Short) USB Serial Adapter Product Title (Short) USB to Serial Adapter w/ Detachable USB Product Title (Medium) 1 Port USB to RS232 DB9 Serial Adapter with Detachable 6ft USB A to B Cable Product Title (Standard) USB to Serial Adapter – Detachable 6 ft USB A-B Cable – Prolific PL-2303 – USB to RS232 Adapter Cable Product Title (Long) 1 Port USB to RS232 DB9 Serial Adapter with Detachable 6ft USB A to B Cable Product Title (AMZ) USB to Serial Adapter - Detachable 6 ft USB A-B Cable - Prolific PL-2303 - USB to RS232 Adapter Cable (ICUSB232D) Title Ingram (Part 1) 1Port USB to Serial RS232 Title Ingram (Part 2) Converter w/ Removable USB Cable Website Product Headline Add an RS232 serial port to your laptop or desktop computer through a detachable USB cable Bullet 1 Provides USB to straight-through RS232 serial connectivity Bullet 2 Detachable USB cable design (6ft / 1.8m USB A-B cable included) Bullet 3 Supports baud rates up to 128Kbps Bullet 4 Compatible with Windows, Mac OS and Linux platforms Bullet 5 Compatible with USB 1.1 or higher ports Bullets (Consolidated) Add an RS232 serial port to your laptop or desktop computer through USB with a detachable USB cable - 1 Port USB to RS232 DB9 Serial Adapter with Detachable 6ft USB A to B Cable - USB to Serial Adapter - USB to RS232 Converter - USB to Serial Cable - Detachable USB cable design (6ft/1.8m USB A-B cable included) Marketing Copy Applications - Connect bar code scanners, receipt printers and other point of sale devices
- Connect, monitor and control industrial/automotive sensors and other sensitive equipment
- Connect and program LED and digital signage boards
- Add legacy functionality to newer notebooks, PCs and servers that lack an integrated RS232 port
Website Search Keyword - USB to serial adapter
- usb to serial converter
- usb to rs232 serial
- usb to rs232
- usb to rs232 converter
- usb to serial rs232
- usb serial adapter
- usb rs232 adapter
- rs232 adapter
- rs232 to usb
- serial to usb
- serial rs232 to usb
- db9 serial adapter
- db9 serial converter
- serial adapter with cable
- rs 232 to usb adapter
- rs 232 to usb converter
- serial to usb adapter
- serial to usb converter
- usb to serial port
- rs232 serial adapter
- usb to rs232 serial adapter
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
System and Cable Requirements Available USB 1.1 (or above) port Accessory Products - USB2HAB15
- USB2HAB50AC
- USB2HAB30AC
- USB2HAB2RA3
- USB2HAB10
- USBAB3ML
- USB2HAB65AC
- MXT1003MBK
- MXT1002MBK
- MXT10050CMBK
- MXT10010
- MXT1003
- MC6MF
Related Products - ICUSB232V2
- ICUSBANDR232
- ICUSB232IS
- ICUSB232FTN
Constrained SKU Alternatives (Limited Stock) ICUSB2321X Power Source USB-Powered Cable Length (mm) 1828 Color Black Humidity 5~95% RH (Non-Condensing) Material Plastic Operating Temperature 0°C to 70°C (32°F to 158°F) Primary Material Plastic Product Length (mm) 59.000 Product Width (mm) 32.000 Product Height (mm) 22.000 Product Weight (g) 34.000 Storage Temperature -10°C to 80°C (14°F to 176°F) TAA Compliant No Data Bits 5, 6, 7, 8 FIFO 512 Bytes Flow Control None, Xon/Xoff, RTS/CTS, DCD/DTR/DSR Max Baud Rate 128 Kbps OS Compatibility - Windows 8
- Windows 7
- Windows Server 2012
- Linux
- Windows 10
- macOS Sierra (10.12)
- Windows Server 2016
- macOS High Sierra (10.13)
- macOS Mojave (10.14)
- Windows Server 2019
- macOS Catalina (10.15)
- macOS Big Sur (11.0)
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- macOS Sonoma (14.0)
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)

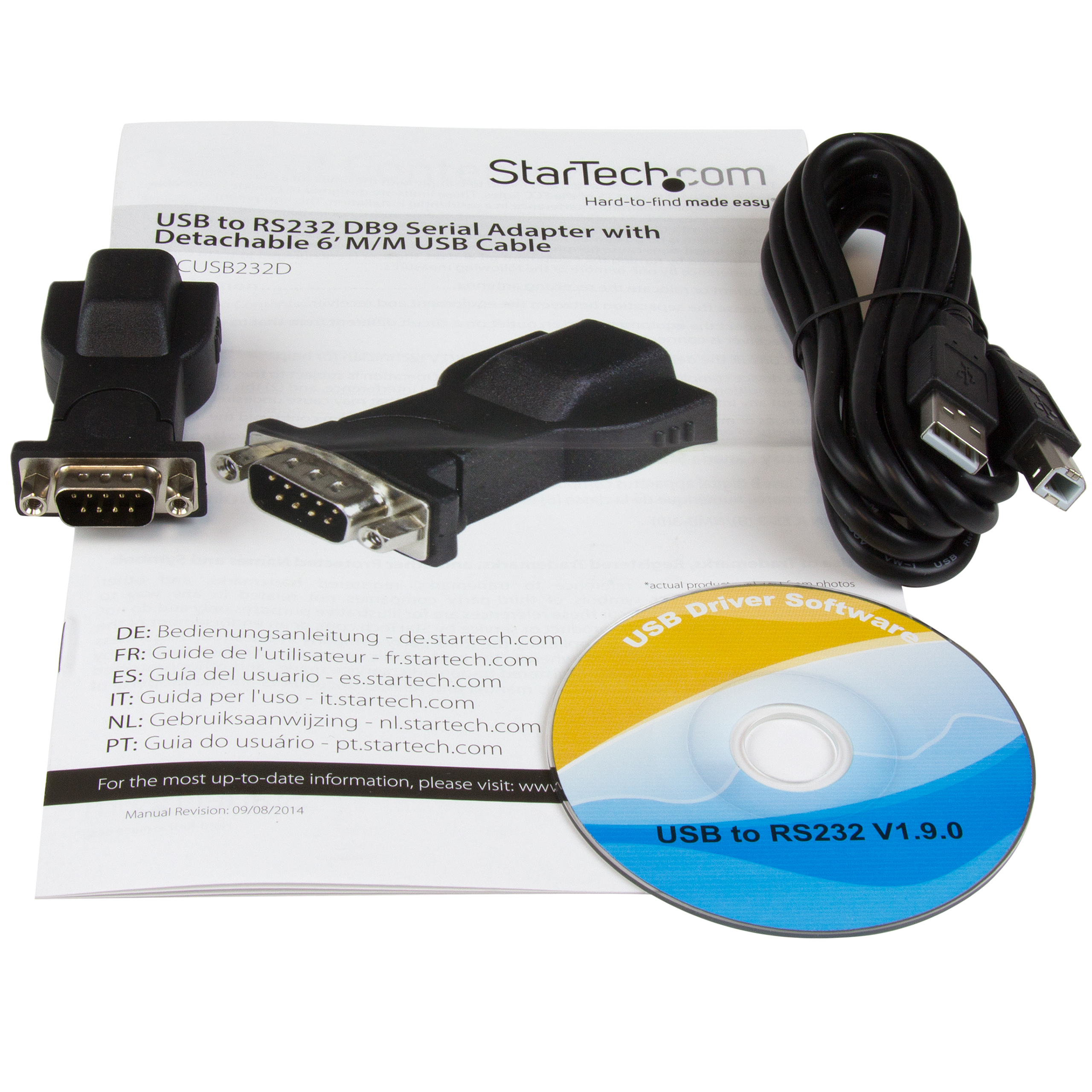

Parity None, Odd, Even, Mark, Space Stop Bits 1, 1.5, 2 Supported Serial Protocol RS-232 Bus Type USB 2.0 Chipset ID Prolific - PL2303TA Industry Standards Interface/Bridge Serial IO Card Port Style Cable Adapters Carton Depth (mm) 432 Carton Height (mm) 328 Carton Quantity 72 Carton Weight Gross (g) 15744 Included in Package - 1 - USB to RS232 Adapter
- 1 - 6ft USB Cable - A to B
- 1 - Driver CD
- 1 - Instruction Manual
Package Depth (mm) 144 Package Height (mm) 34 Package Width (mm) 168 Package Quantity 1 Package Weight (g) 202 Packaging Description USB to RS232 DB9 Serial Adapter w/ Detachable Cable Packaging Description India USB to RS232 DB9 Serial Adapter w/ Detachable Cable Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-B (480Mbps, 2.5W) Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-27 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,EU,FR,IE,IT,NL,SE,UK,US Primary Technology None Product Development Specialist kfarid Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None
