ICUSB232FTN

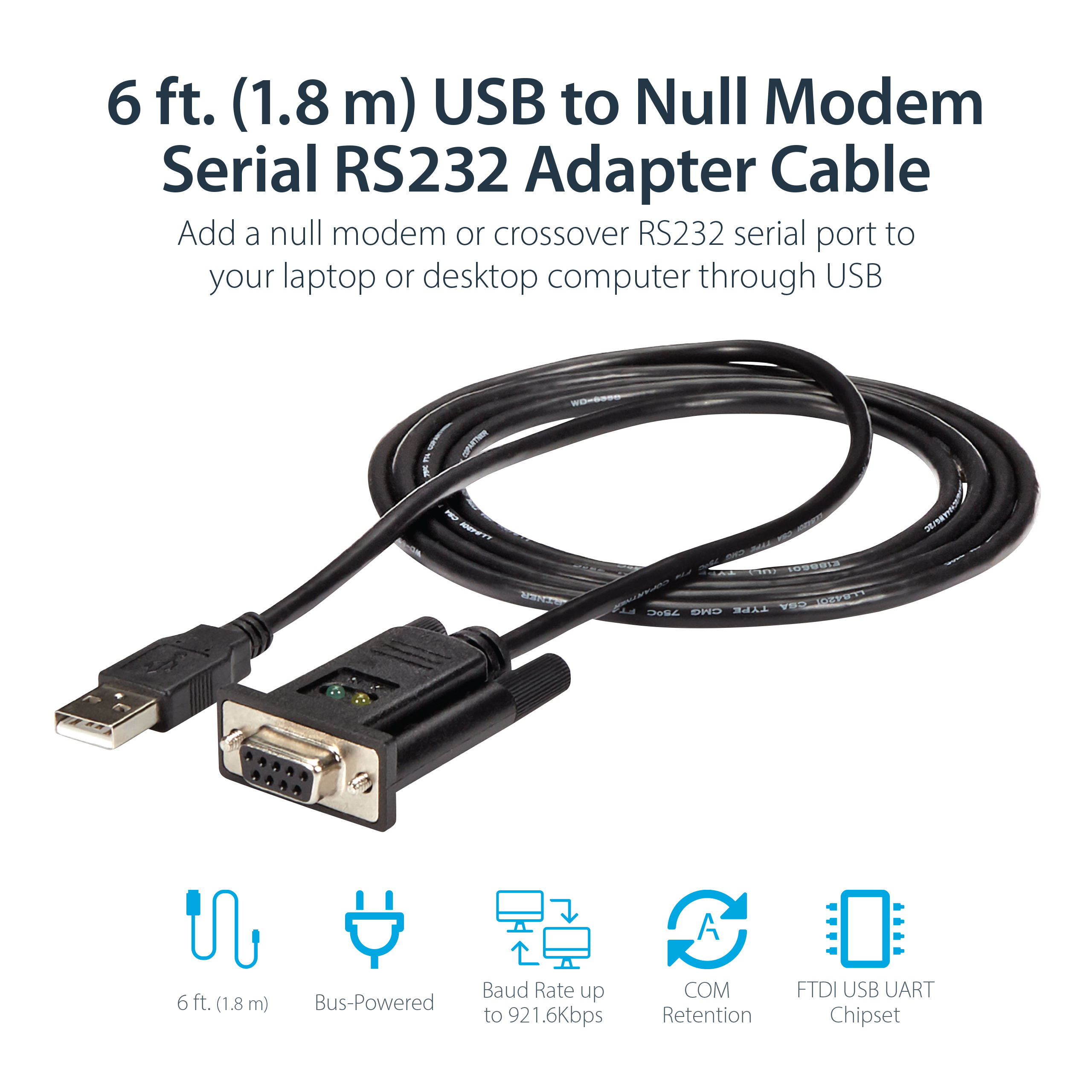

1-Port FTDI USB to RS232 Null Modem Converter

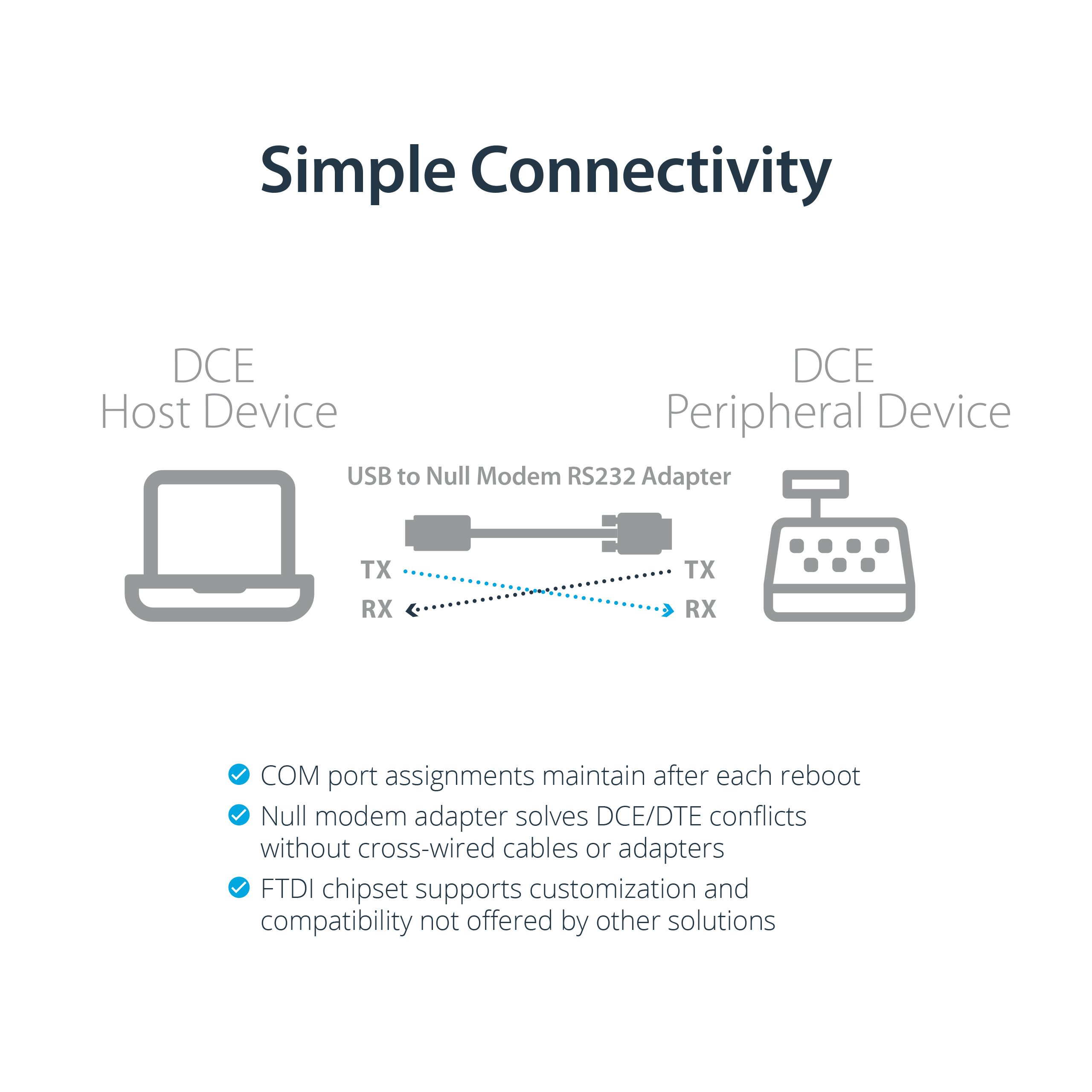

Add a Null Modem RS232 serial port to your laptop or desktop computer through USB
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Video Link YouTube
Product Name 1-Port FTDI USB to RS232 Null Modem Converter Product Number ICUSB232FTN UPC 065030846837 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > Serial and Parallel Cards & Adapters Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 USB Serial Host Adapter Interconnects Family USB to Serial Adapter Cables - USB-A - FTDI - Null Modem Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX013X Product Title (Short) USB to Null Modem Serial DCE Adapter Product Title (Medium) x Product Title (Standard) 6ft (1.8m) 1-Port USB to Serial RS232 Adapter, FTDI DB9 Serial DCE Adapter Cable, Null Modem, USB 2.0 - TAA Product Title (Long) 6ft (1.8m) 1-Port USB to Serial RS232 Adapter, FTDI DB9 Serial DCE Adapter Cable, Null Modem, USB 2.0 - TAA Product Title (AMZ) 6ft (1.8m) 1-Port USB to Serial RS232 Adapter, FTDI DB9 Serial DCE Adapter Cable, Null Modem, USB 2.0 - TAA Title Ingram (Part 1) USB to Null Modem RS232 DB9 Seri Title Ingram (Part 2) al DCE Adapter Cable w/ FTDI Website Product Headline Add a Null Modem RS232 serial port to your laptop or desktop computer through USB Bullet 1 BROAD COMPATIBILITY: Compatible with your USB 1.0 or 2.0 ports, this RS232 converter works with your Windows, Mac or Linux systems Bullet 2 FAST TRANSFER SPEEDS: Experience fast speeds with this serial adapter, supporting a Baud Rate up to 921.6Kbps Bullet 3 TECH SPECS: 6 feet (1.8 meters); FTDI FT232RL Chipset; Max Baud Rate: 921.6 Kbps; 256 Bytes FIFO; None/Odd/Even/Mark/Space Parity Modes; 7 or 8 Data Bits; 1 or 2 Stop bits; TAA Compliant Bullet 4 CORRECT DTE/DCE CONFLICTS: Convert your available USB port into a null modem RS232 DB9 serial port, resolving any DTE/DCE conflicts Bullet 5 MAXIMIZED PORTABILITY: This USB to serial RS232 adapter with FTDI features a single cable design removing the need for additional adapters and cables Bullets (Compact) USB to serial RS232 adapter with FTDI chipset - Null modem RS232 DB9 serial adapter resolves any DTE/DCE conflicts - Compatible with Windows, Mac or Linux - Supports Baud Rate up to 921.6Kbps - 6ft (1.8m); FTDI FT232RL Chipset; TAA Compliant Bullets (Consolidated) - USB to serial RS232 adapter with FTDI chipset - Convert your available USB port into a null modem RS232 DB9 serial port, resolving any DTE/DCE conflicts - Compatible with your USB 1.0 or 2.0 ports, this RS232 converter works with your Windows, Mac or Linux systems - Experience fast speeds with this serial adapter, supporting a Baud Rate up to 921.6Kbps - 6ft (1.8m); FTDI FT232RL Chipset; 921.6 Kbps Max Baud Rate; 256 Bytes FIFO; 7 or 8 Data Bits; 1 or 2 Stop bits; TAA Compliant Marketing Copy Marketing Copy (No HTML) Applications - Connect a satellite receiver, serial modem, or PDU
- Connect and program LED and Digital signage boards with serial communication ports
- Connect bar code scanners, receipt printers and other point of sale devices
- Connect, monitor and control industrial/automotive sensors and equipment
- Perfect for IT Administrators looking to add legacy functionality to newer notebooks, PCs and servers that lack an integrated RS232 port
Website Search Keyword - USB to Serial
- USB to serial adapter
- USB to RS-232
- RS-232 adapter
- USB Serial
- USB RS-232
- USB RS232
- serial cable
- usb serial cable
- connect serial to pc
- pc to serial connect
- USB null modem
- USB rs232 null modem
- usb to serial cross wired
- U209-18N-NULL
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
System and Cable Requirements One available USB 1.1 (or better) port Related Products - ICUSB2321F
- ICUSB232PRO
- ICUSB232V2
- ICUSB232DB25
- ICUSB2321FIS
- ICUSB2321X
- ICUSB232SM3
- ICUSB232IS
- ICUSBANDR232
- ICUSB232D
- ICUSB2321284
- ICUSB2322X
- ICUSB232C2
- ICUSB2322F
- ICUSB2322I
- ICUSB2324
- ICUSB2324I
- ICUSB2324X
- ICUSB2328
- ICUSB2328I
- ICUSB23208FD
- ICUSB23216FD
- ICUSB23216F
- ICUSB2322RJ
- ICUSB2324852

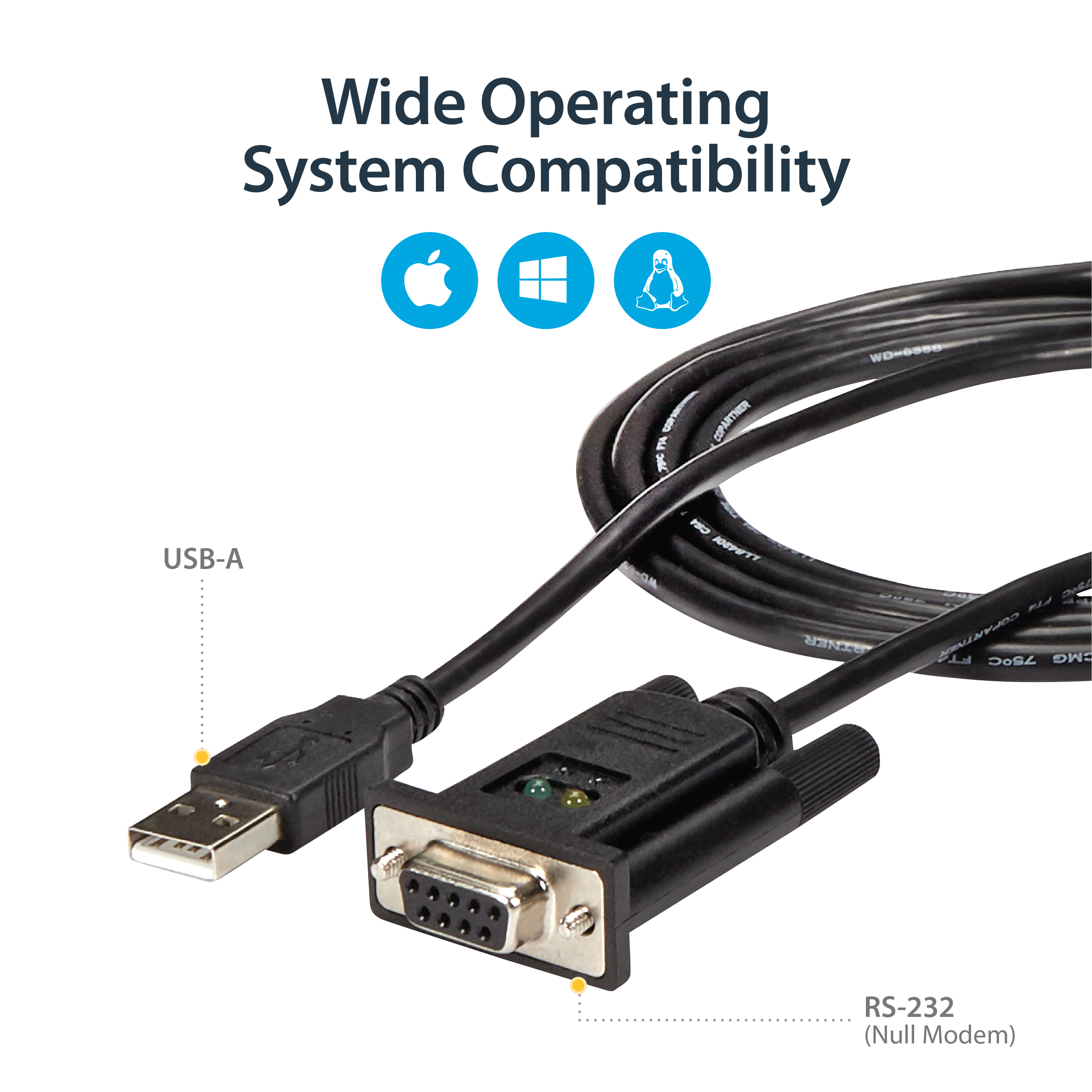

Power Source USB-Powered Cable Length (mm) 1800 Color Black Humidity 5~95% RH Material Plastic Operating Temperature 0°C to 55°C (32°F to 131°F) Primary Material Plastic Product Length (mm) 1800.000 Product Width (mm) 33.500 Product Height (mm) 16.000 Product Weight (g) 86 Storage Temperature -20°C to 85°C (-4°F to 185°F) TAA Compliant Yes Data Bits 7, 8 FIFO 256 Bytes Max Baud Rate 921.6 Kbps MTBF (hours) 541,728 hours OS Compatibility - Linux
- Windows 8
- Windows Server 2012
- Windows 7
- Windows 10
- Mac OS X El Capitan (10.11)
- macOS Sierra (10.12)
- Windows Server 2016
- macOS High Sierra (10.13)
- macOS Mojave (10.14)
- Windows Server 2019
- macOS Catalina (10.15)
- macOS Big Sur (11.0)
- Windows 11
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- Windows Server 2022
- macOS Sonoma (14.0)
- Windows 11 ARM
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)
- Windows Server 2025
Parity None, Odd, Even, Mark, Space Stop Bits 1, 2 Supported Serial Protocol RS-232 Bus Type USB 2.0 Chipset ID FTDI - FT232RL Interface/Bridge Serial IO Card Port Style Cable Adapters Carton Depth (mm) 537 Carton Height (mm) 339 Carton Quantity 50 Carton Weight Gross (g) 10932 Included in Package - 1 - Driver CD
- 1 - Instruction Manual
- 1 - USB to RS-232 Null Modem Adapter
Included In Package for Label - 1 - Driver CD
- 1 - Instruction Manual
- 1 - USB to RS-232 Null Modem Converter
Package Depth (mm) 211 Package Height (mm) 40 Package Width (mm) 145 Package Quantity 1 Package Weight (g) 188 Packaging Description 1 Port FTDI USB to RS232 Null Modem Adapter Packaging Description India 1-Port FTDI USB to RS232 Null Modem Converter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DB-9 Serial Connector 1 (Quantity) 1 Connector 2 USB-A (480Mbps, 2.5W) Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration Yes Buying Center - Data Center Yes Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 2 Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,HK,IE,IN,IT,JP,MX,NL,NZ,SE,SG,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None
