Main Image
ICUSB232INT2

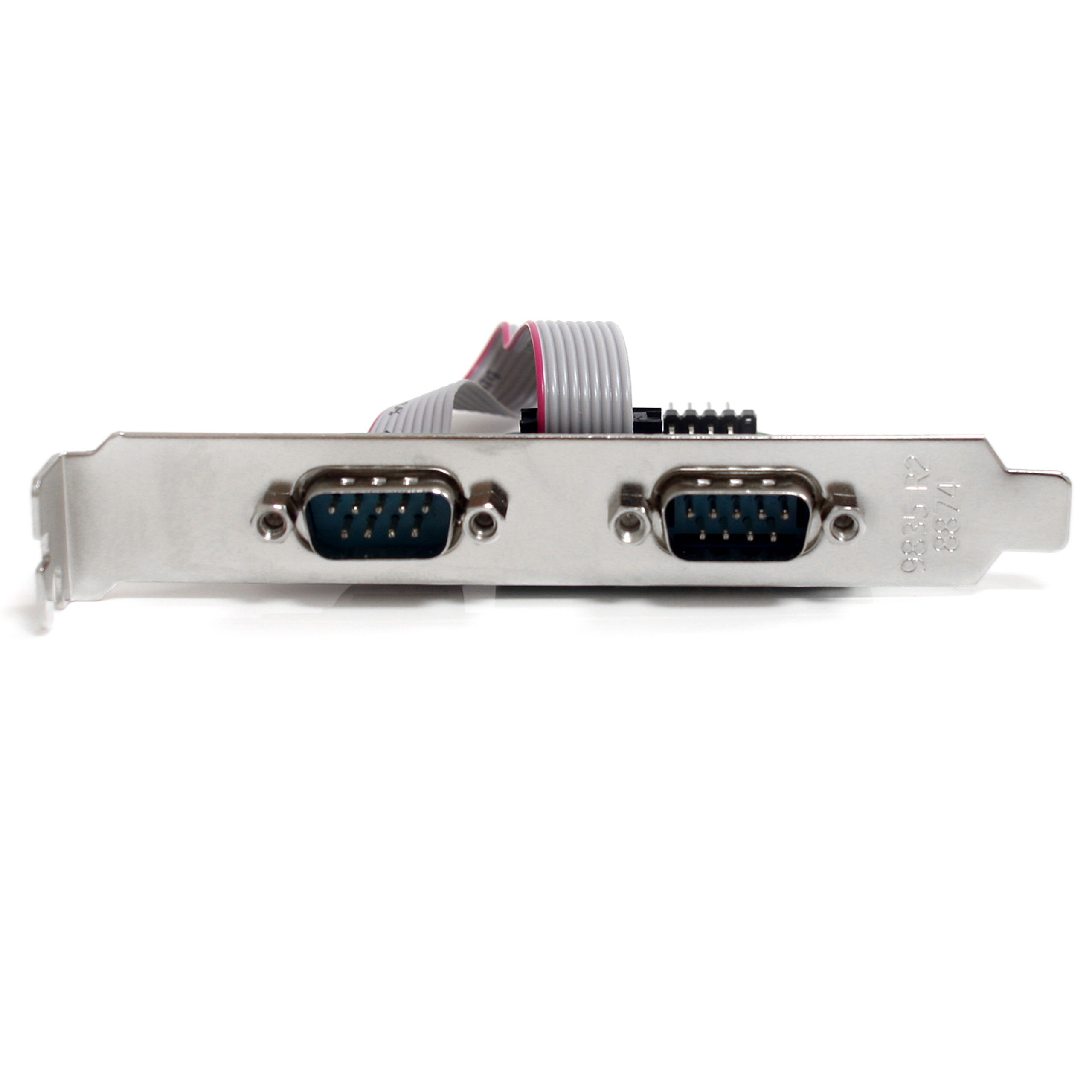

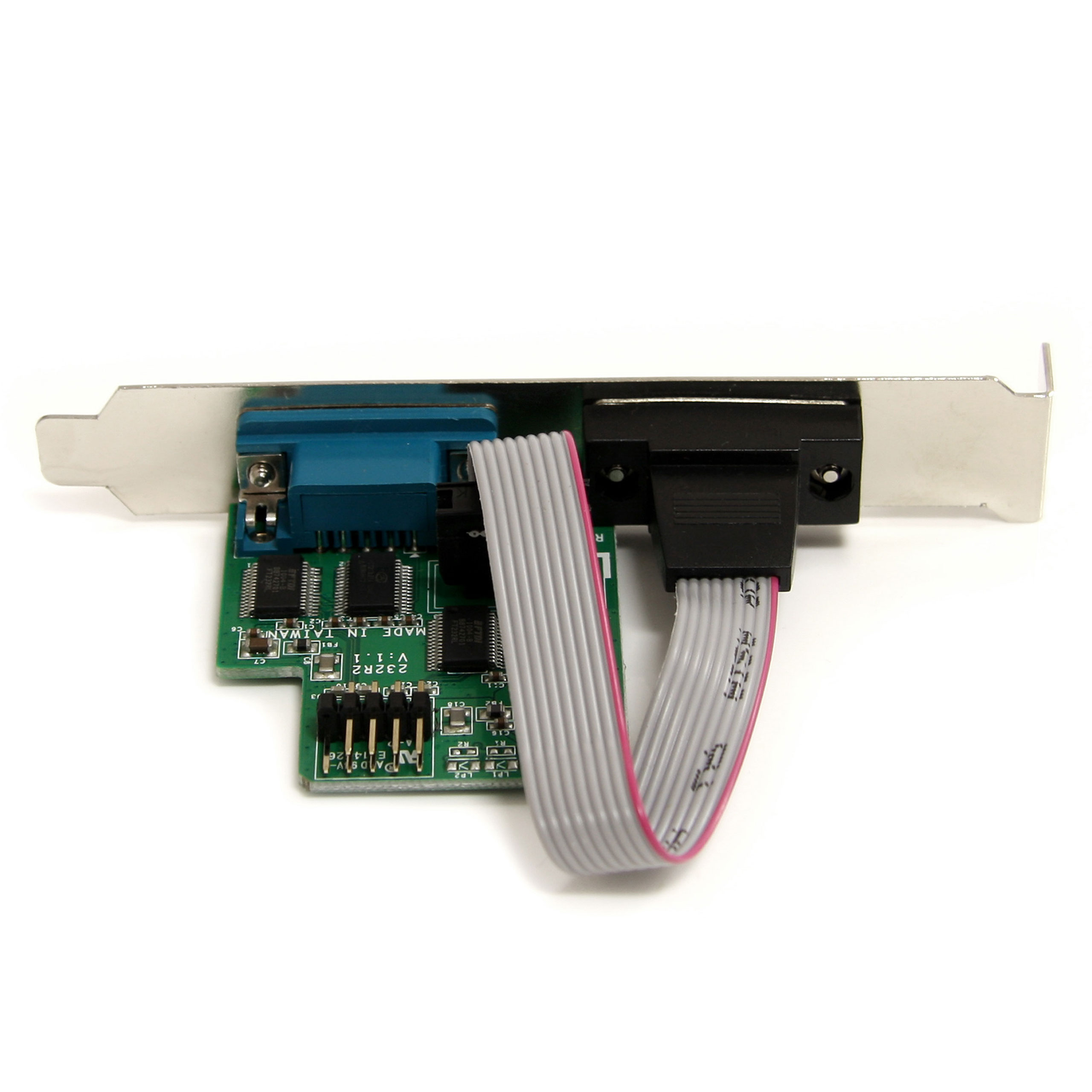

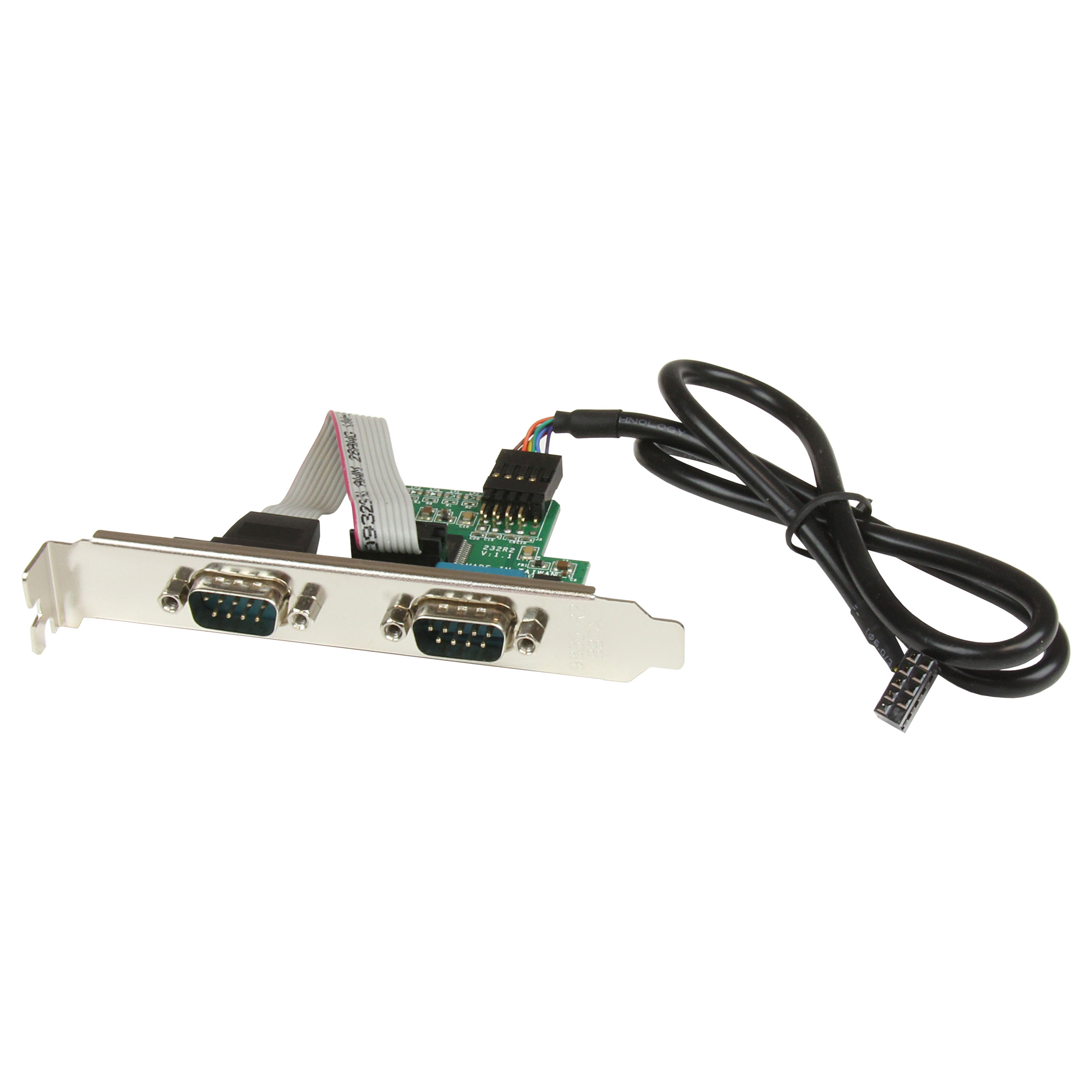

Internal 2 Port USB to Serial Converter Adapter
Add two RS232 serial ports to any system with an available USB motherboard header
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name Internal 2 Port USB to Serial Converter Adapter Product Number ICUSB232INT2 UPC 065030841528 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > Serial and Parallel Cards & Adapters Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 USB Serial Host Adapter Interconnects Family USB Motherboard Header to Serial Adapters Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Ultra-Short) . Product Title (Short) 24in Int USB Header to Serial Adapter Product Title (Standard) Motherboard Serial Port – Internal – 2 Port – Bus Powered – FTDI USB to Serial Adapter – USB to RS232 Adapter, TAA Product Title (Long) 24in Internal USB Motherboard Header to 2 Port Serial RS232 Adapter - TAA Product Title (AMZ) Motherboard Serial Port - Internal - 2 Port - Bus Powered - FTDI USB to Serial Adapter - USB to RS232 Adapter , TAA (ICUSB232INT2) Title Ingram (Part 1) 24in Int USB Motherboard Header Title Ingram (Part 2) to 2 Port Serial Adapter Website Product Headline Add two RS232 serial ports to any system with an available USB motherboard header Bullet 1 Bus Powered – no separate power supply or battery required Bullet 2 FIFO receive and transmit buffers for high data throughput. Bullet 3 Single chip USB to asynchronous serial data transfer interface Bullet 4 Supports COM port retention Bullet 5 Synchronous and asynchronous bit bang interface options with RD# and WR# strobes Marketing Copy Marketing Copy (No HTML) Applications - Connect a satellite receiver, serial modem, or PDA with serial sync
- Connect bar code scanners, receipt printers and other serial devices to an internal USB motherboard header
- Connect, monitor and control industrial/automotive sensors and equipment
- Perfect for system builders looking to add legacy functionality to newer motherboards that lack an integrated RS232 port
Website Search Keyword - 10-pin
- 10pin
- IDC
- Motherboard USB
- RS232
- USB 2.0 to Serial
- USB Header
- USB to Serial
- Internal USB
Microsoft WHQL Certified Yes Required Regulatory Compliance Marks - CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
Accessory Products - AT925FF
- GC99MFRA1
- GC99MFRA2
- MC6MF
- MXT100
- MXT100_25
- MXT100FF
- MXT106
- SCNM925FM
- SCNM9FF
- SCNM9FF25
Related Products - ICUSB232
- ICUSB2321X
- ICUSB2322X
- ICUSB2324
- ICUSB2324X
- ICUSB2328
- ICUSB232C2
- ICUSB232HUB2
- ICUSB232INT1
- ICUSB232PRO
Cable Length (mm) 609.6 Color Green Humidity 5~85% RH Material Steel Operating Temperature -10°C to 80°C (14°F to 176°F) Primary Material Steel Product Length (mm) 68.000 Product Width (mm) 120.000 Product Height (mm) 19.000 Product Weight (g) 40.000 Storage Temperature -20°C to 100°C (-4°F to 212°F) TAA Compliant Yes Data Bits 7, 8 FIFO 256 Bytes Max Baud Rate 115.2 Kbps OS Compatibility - Linux
- Windows Server 2012
- Windows 8
- Windows 7
- Mac OS X Yosemite (10.10)
- Windows 10
- Mac OS X El Capitan (10.11)
- macOS Sierra (10.12)
- Windows Server 2016
- Windows Server 2019
- macOS Big Sur (11.0)
- Windows 11
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- Windows Server 2022
- macOS Sonoma (14.0)
- Windows 11 ARM
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)
- Windows Server 2025

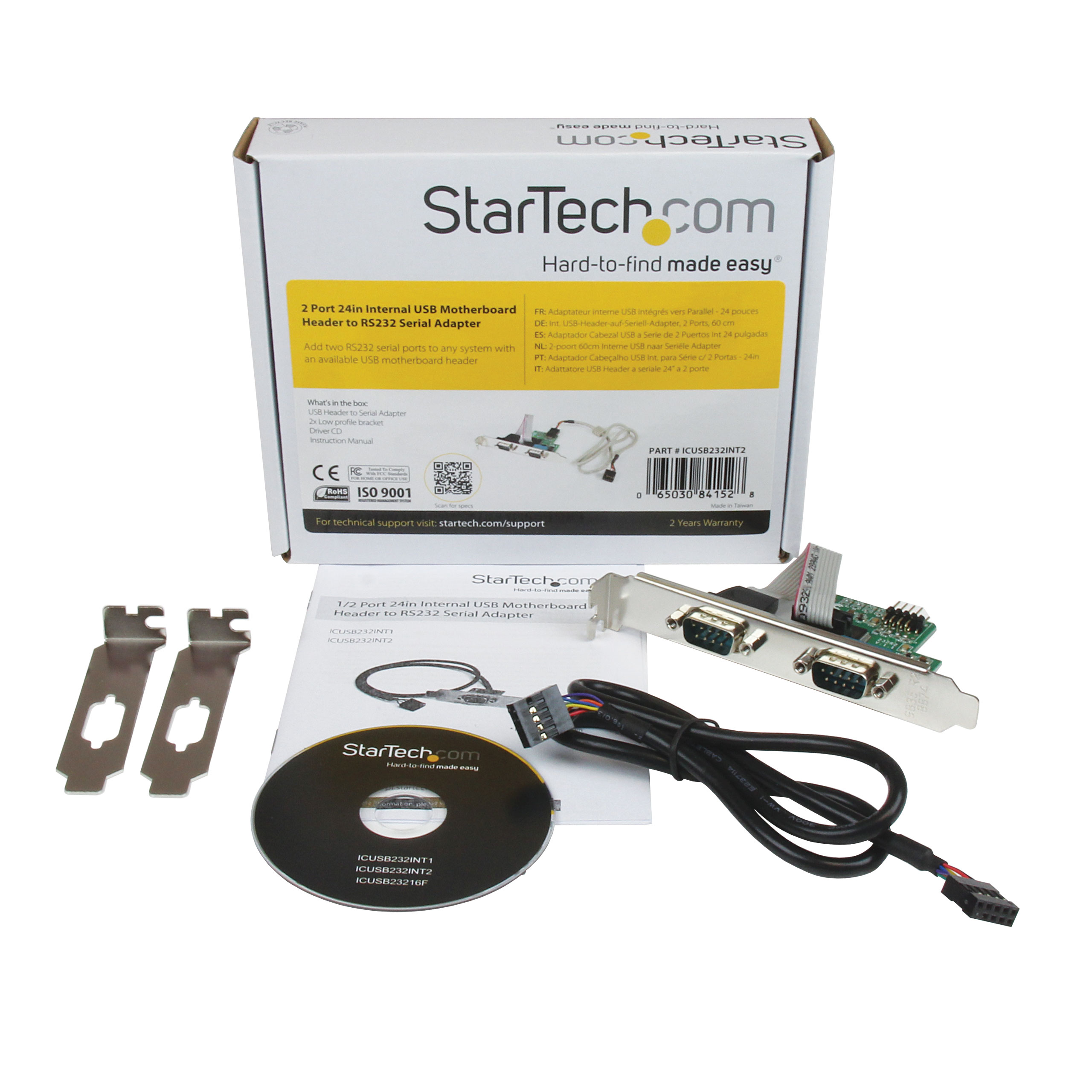

Parity None, Odd, Even, Space, Mark Stop Bits 1, 2 Supported Serial Protocol RS-232 Bus Type Motherboard Header Card Type Standard Profile (LP bracket incl.) Chipset ID FTDI - FT232RL Interface/Bridge Serial IO Card Port Style Integrated on Card Carton Depth (mm) 350 Carton Height (mm) 314 Carton Quantity 75 Carton Weight Gross (g) 11850 Included in Package - 2 - Low profile bracket
- 1 - USB Header to Serial Adapter
- 1 - Instruction Manual
- 1 - Driver CD
Included In Package for Label - 1 - Instruction Manual
- 1 - Driver CD
- 1 - USB Header To Serial Converter
- 2 - Low Profile Bracket
Package Depth (mm) 142 Package Height (mm) 33 Package Width (mm) 174 Package Quantity 1 Package Weight (g) 146 Packaging Description 2 Port 24in Int USB Header to Serial Adapter Packaging Description India 2 Port 24in Int USB Header to Serial Converter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DB-9 Serial Connector 1 (Quantity) 2 Connector 2 IDC (10-Pin) Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,EU,FR,IE,IN,IT,NL,SE,SG,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None
