ICUSB232IS
1 Port USB to Serial Converter - USB RS232 Adapter
Add a galvanically isolated RS232 serial port with ESD protection through a USB port - DIN Rail Mountable
Main Image
Product Images
Product Images
BOM Image
Product Name 1 Port USB to Serial Converter - USB RS232 Adapter Product Number ICUSB232IS UPC 065030852104 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 USB Serial Host Adapter Interconnects Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX018X Product Title (Ultra-Short) 1Pt USB RS232 Serial Product Title (Short) 1 Port USB to RS232 Serial Adapter Product Title (Standard) USB to Serial Adapter – Industrial – 5KV Isolation and 15KV ESD Protection – FTDI – USB to RS232 Adapter Cable Product Title (Long) 1 Port Industrial USB to RS232 Serial Adapter with 5KV Isolation and 15KV ESD Protection Product Title (AMZ) USB to Serial Adapter - Industrial - 5KV Isolation and 15KV ESD Protection - FTDI - USB to RS232 Adapter Cable (ICUSB232IS) Title Ingram (Part 1) 1Port USB to Serial Converter - Title Ingram (Part 2) 921K USB RS232 DB9 Adapter Website Product Headline Add a galvanically isolated RS232 serial port with ESD protection through a USB port - DIN Rail Mountable Bullet 1 Industrial DIN rail mountable design Bullet 2 15KV ESD protection Bullet 3 USB to Straight-Through RS232 Serial Adapter Bullet 4 High speed 921.6 Kbps baud rate Bullet 5 Integrated 5000Vrms Galvanic Isolation Circuits Bullets (Consolidated) Serial adapter - USB - RS-232 x 1 - black Marketing Copy Applications - Connect, monitor and control industrial/automotive sensors and other sensitive equipment
- Connect and program LED and Digital signage boards with serial communication ports
- Connect a satellite receiver, serial modem, or PDU
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
System and Cable Requirements Available USB Port Accessory Products - AT925FF
- SCNM925FM
- SCNM9FM
- ST7202USB
- PEXUSB400
- MXT1001MBK
- MXT1003
- MXT1003MBK
Related Products - PEX2S553S
- ICUSB2321FIS
- ICUSB2328I
- ICUSB2322I
- ICUSB2322RJ
- ICUSB2324I
- PEX4S553S
Power Source USB-Powered Cable Length (mm) 1000 Color Black Humidity 5~95% RH (Non-Condensing) Material Plastic Operating Temperature -30°C to 75°C (-22°F to 167°F) Product Length (mm) 84.000 Product Width (mm) 42.000 Product Height (mm) 22.000 Product Weight (g) 50.000 Storage Temperature -40°C to 85°C (-40°F to 185°F) TAA Compliant Yes Data Bits 7, 8 FIFO 256 Bytes Flow Control None, Xon/Xoff, RTS/CTS Max Baud Rate 921.6 Kbps OS Compatibility - Windows 8
- Linux
- Windows 7
- Windows 10
- Windows Server 2012
- macOS Sierra (10.12)
- Windows Server 2016
- macOS High Sierra (10.13)
- macOS Mojave (10.14)
- Windows Server 2019
- macOS Catalina (10.15)
- macOS Big Sur (11.0)
- Windows 11
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- Windows Server 2022
- macOS Sonoma (14.0)
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)

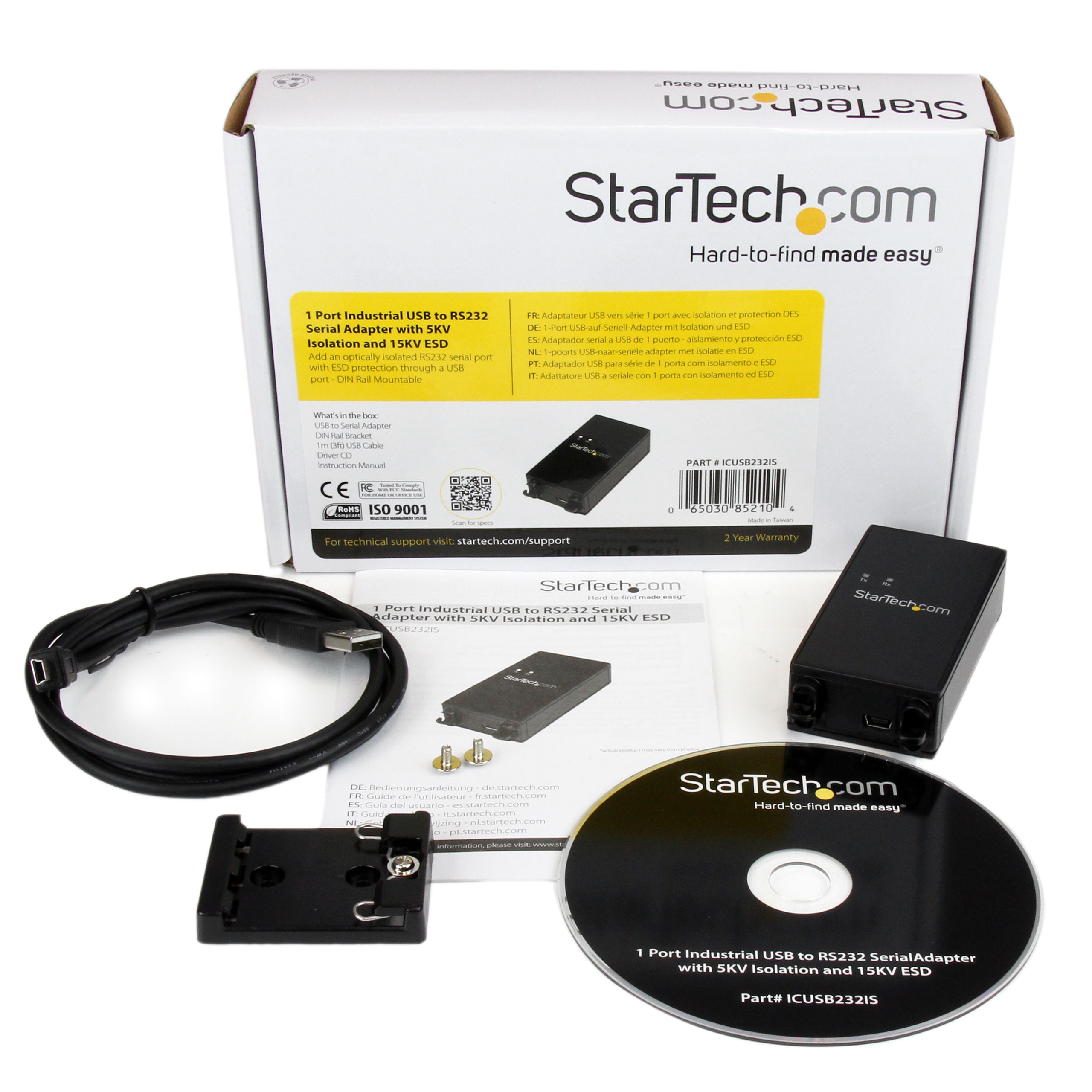

Parity None, Odd, Even, Mark, Space Stop Bits 1, 2 Supported Serial Protocol RS-232 Surge Protection 15KV ESD Bus Type USB 2.0 Chipset ID FTDI - FT232RL IO Card Port Style Cable Adapters LED Indicators 2 - Tx / Rx Activity Carton Depth (mm) 311 Carton Height (mm) 244 Carton Quantity 32 Carton Weight Gross (g) 7460 Included in Package - 1 - USB to Serial Adapter
- 1 - DIN Rail Bracket
- 1 - 1m (3ft) USB Cable
- 1 - Instruction Manual
- 1 - Driver CD
Package Depth (mm) 146 Package Height (mm) 41 Package Width (mm) 211 Package Quantity 1 Package Weight (g) 212 Packaging Description 1 Port USB to Serial Adapter w/ Isolation and ESD Packaging Description India 1 Port USB to Serial Adapter w/ Isolation and ESD Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DB-9 Serial Connector 1 (Quantity) 1 Connector 2 USB Mini-B (480Mbps, 2.5W) Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2013-06-13 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) BE,CA,DK,ES,EU,FR,IT,NL,SE,UK,US Primary Technology None Product Development Specialist kfarid Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None
