ICUSB232PLN

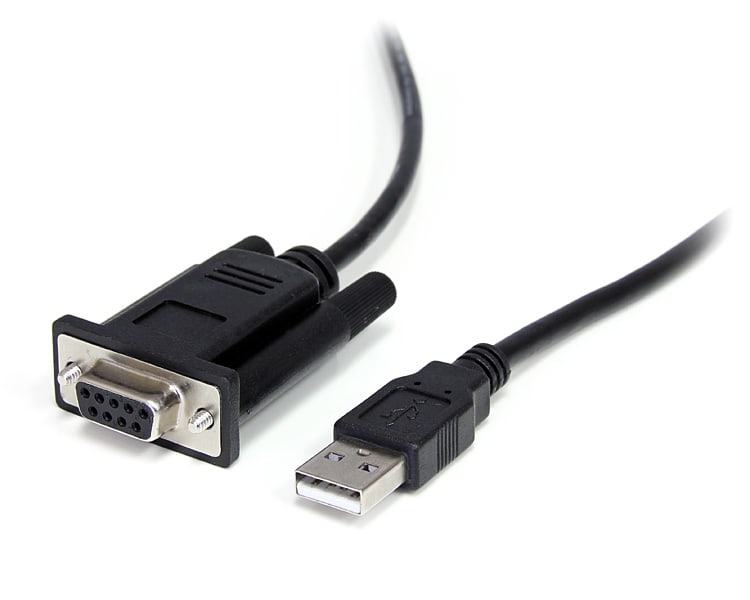

1 Port USB to Serial Null Modem RS232 DB9 DCE Adapter Cable with Prolific
Add a Null Modem RS232 serial port to your laptop or desktop computer through USB
Main Image
Product Images
Product Images
Product Name 1 Port USB to Serial Null Modem RS232 DB9 DCE Adapter Cable with Prolific Product Number ICUSB232PLN UPC 065030847025 Warranty 2 Years Taxonomy Product > Legacy Discontinued Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) 1 Country of Origin History (2) Taiwan Product Title (Short) USB to Serial Null Modem DCE Adapter Product Title (Standard) 1 Port USB to Serial Null Modem RS232 DB9 DCE Adapter Cable with Prolific Product Title (Long) 1 Port USB to Serial Null Modem RS232 DB9 DCE Adapter Cable with Prolific Title Ingram (Part 1) 1 Port USB to Serial Null Modem Title Ingram (Part 2) DCE Adapter Cable - Prolific Website Product Headline Add a Null Modem RS232 serial port to your laptop or desktop computer through USB Bullet 1 Baud Rate up to 921.6Kbps Bullet 2 Powered by the USB port - no external power adapter required Bullet 3 Single cable design for portability Bullet 4 Integrated Prolific USB UART Chip Bullet 5 Compatible with Windows®, Mac OS and Linux Marketing Copy Applications - Connect a satellite receiver, serial modem, or PDU
- Connect and program LED and Digital signage boards with serial communication ports
- Connect bar code scanners, receipt printers and other point of sale devices
- Connect, monitor and control industrial/automotive sensors and equipment
- Perfect for IT Administrators looking to add legacy functionality to newer notebooks, PCs and servers that lack an integrated RS232 port
Website Search Keyword - USB to Serial
- USB to serial adapter
- USB to RS-232
- RS-232 adapter
- USB Serial
- USB RS-232
- USB RS232
- serial cable
- usb serial cable
- connect serial to pc
- pc to serial connect
- USB null modem
- USB rs232 null modem
- usb to serial cross wired
System and Cable Requirements One available USB 1.1 (or better) port Accessory Products - AT925FF
- PCI420USB
- ST4205USB
- USB2FAAEXT15
- ST7202USB
- PEXUSB400
- MXT100
- MXT100MM
Related Products - ICUSB232
- ICUSB2322F
- ICUSB232PRO
- ICUSB2321X
- ICUSB2322X
- ICUSB2324X
- ICUSB232C2
- ICUSB2324
- ICUSB2328
- ICUSB232INT1
- ICUSB232INT2
- ICUSB232FTN
Power Source USB-Powered Cable Length (mm) 1000 Color Black Humidity 5~95% RH Material Plastic Operating Temperature 0°C to 55°C (32°F to 131°F) Product Length (mm) 45 Product Width (mm) 41.5 Product Height (mm) 22 Product Weight (g) 140 Storage Temperature -20°C to 85°C (32°F to 185°F) TAA Compliant No Data Bits 5, 6, 7, 8 FIFO 256 byte Transmit, 256 byte Receive buffer Max Baud Rate 921.6 Kbps OS Compatibility - Windows 2000
- Windows 2003
- Windows 7
- Windows Vista
- Windows XP
- Windows Server 2008 R2
- Linux
- Windows CE
- macOS Big Sur (11.0)
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- macOS Sonoma (14.0)
Parity None, Odd, Even, Mark, Space Stop Bits 1, 1.5, 2 Supported Serial Protocol RS-232 Bus Type USB 2.0 Chipset ID Prolific - PL2303 Interface/Bridge - USB 1.1
- USB 2.0
Included in Package - 1 - Driver CD
- 1 - Instruction Manual
- 1 - USB to RS-232 Null Modem Adapter
Packaging Description 1 Port Prolific USB to RS232 Null Modem Adapter Packaging Description India 1 Port Prolific USB to RS232 Null Modem Adapter Connector 1 DB-9 Serial Connector 1 (Quantity) 1 Connector 2 USB-A (480Mbps, 2.5W) Connector 2 (Quantity) 1 en-US Content Approved Yes
