ICUSB232PROC

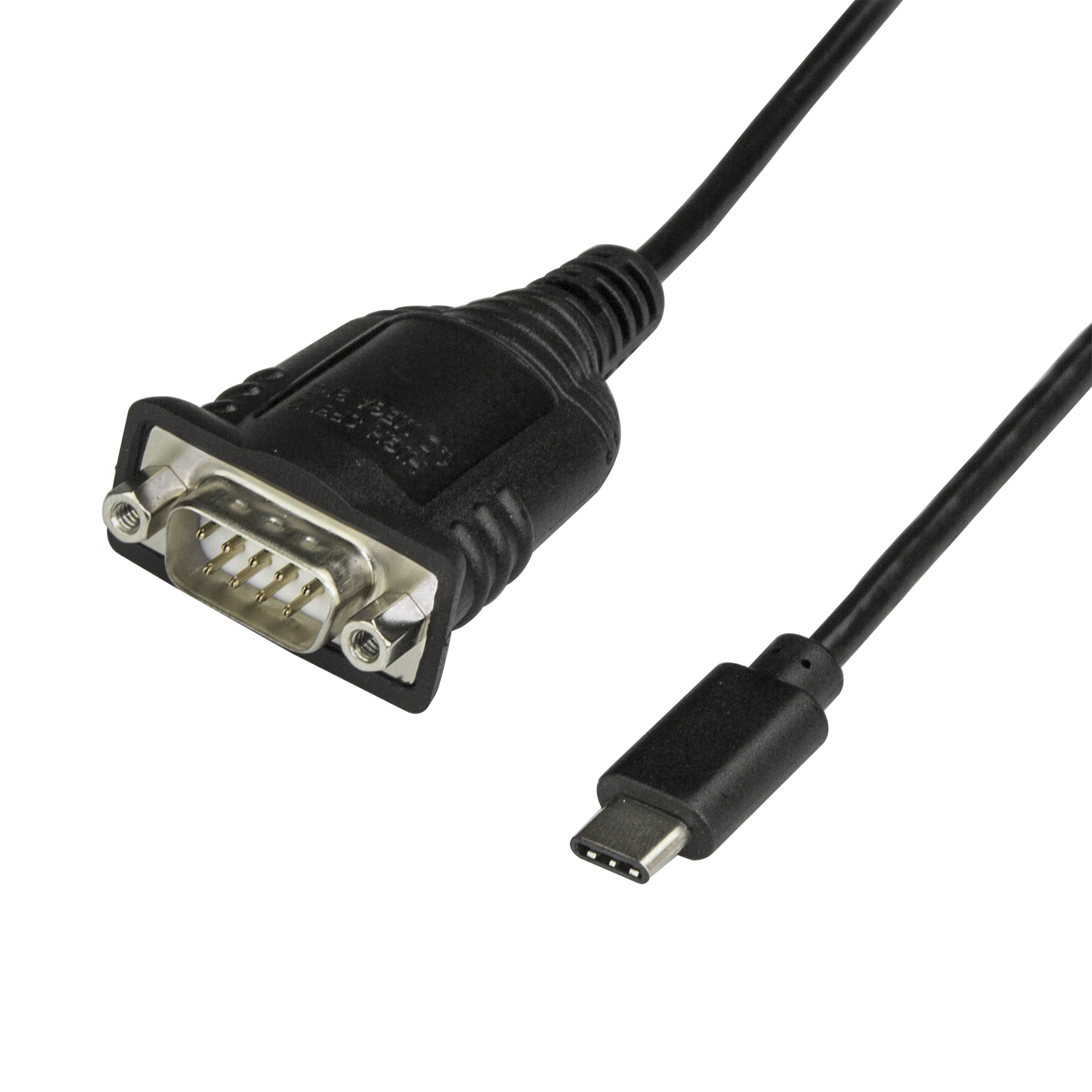

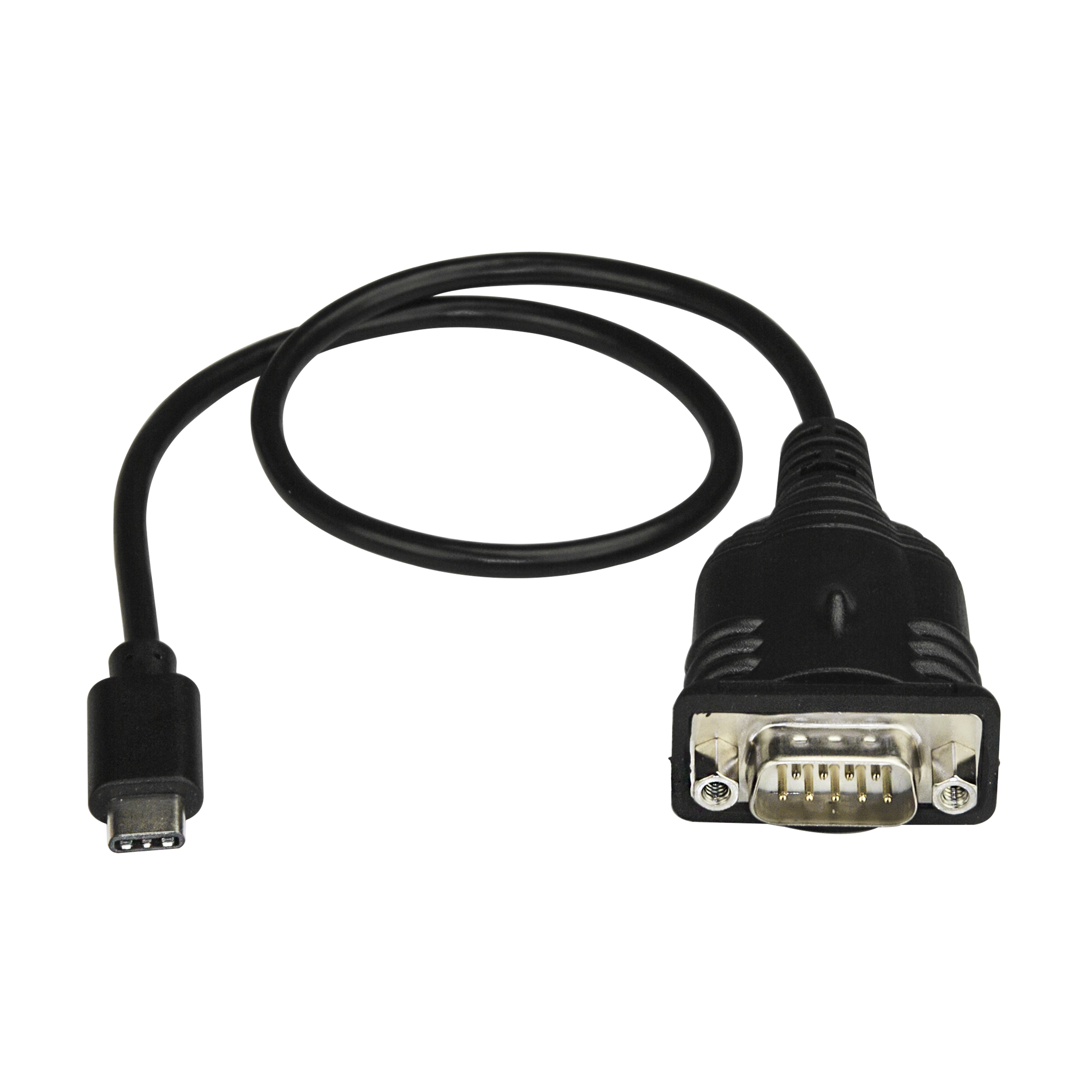

USB C to Serial Adapter with COM Retention
Add a serial port with this USB C to serial with COM port retention
Main Image
Product Images
Quick-Start Guide
Product Name USB C to Serial Adapter with COM Retention Product Number ICUSB232PROC UPC 065030872003 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > Serial and Parallel Cards & Adapters Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 USB Serial Host Adapter Interconnects Family USB to Serial Adapter Cables - USB-C - Prolific Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX045X Country of Origin History (2) Malaysia Country of Origin Revision (2) XXXXXX156X Product Title (Ultra-Short) USB C to RS232 Cable Product Title (Short) USB C to Serial Adapter w/ COM Retention Product Title (Medium) USB C to Serial Adapter with COM Retention - USB C to Serial Converter Product Title (Standard) USB C to Serial Adapter Cable with COM Port Retention, 16" (40cm) USB Type-C to RS232 DB9 Converter Cable, Windows/Mac/Linux Product Title (Long) USB C to Serial Adapter Cable with COM Port Retention - 16" (40cm) USB Type C to RS232 (DB9) Serial Converter Cable - For PLCs, Scanners, Printers - Windows/Mac/Linux Product Title (AMZ) USB C to Serial Adapter Cable with COM Port Retention - 16" (40cm) USB Type C to RS232 (DB9) Serial Converter Cable - For PLCs, Scanners, Printers - Windows/Mac/Linux (ICUSB232PROC) Title Ingram (Part 1) USB C to Serial Adapter with Title Ingram (Part 2) COM Retention Website Product Headline Add a serial port with this USB C to serial with COM port retention Bullet 1 USB-C TO SERIAL ADAPTER CABLE: Interface with Serial RS-232 (DB9) equipment using this USB Type-C Serial adapter converter cable w/ COM port retention; Male DB9 connector features screw-lock nuts; Cable length of 16" [40 cm] Bullet 2 TECH SPECS: 921.6 Kbps baud | 512 byte FIFO | Data bits of 5/6/7/8 and stop bits 1/1.5/2 | Parity Modes of None, Xon/Xoff, RTS/CTS, DTR/DSR | Flow control options Odd/Even/Mark/Space/None | Black Bullet 3 COM PORT CONFIGURATION RETENTION: Using built in, non-volatile memory, this adapter is able to save assigned serial COM port values and automatically re-assign them, even when reconnected to a different port Bullet 4 APPLICATIONS: Using your laptop's USB-C port, control serial RS232 equipment such as PLCs, scanners, sensors, oscilloscopes, medical equipment, scales or receipt printers; Use in scientific/laboratory, & manufacturing/automation applications Bullet 5 HOST COMPATIBILITY: Driverless setup for easy install; Tested on major operating systems, including Windows 7 and up, macOS 10.11 and up, Linux 2.6 and up; USB bus powered; Backed for 2-years Bullets (Compact) 16in USB-C to Serial adapter converter cable RS232 DB9 - 921.6 Kbps baud - 512 byte FIFO - Data bits of 5/6/7/8 w/stop bits 1/1.5/2 - COM port config retention - Industrial/commercial USB Type-C to RS-232 cable - Auto install - Windows/macOS/Linux Bullets (Consolidated) Portable 16" USB-C to serial adapter converter cable RS232 DB9 - TECH SPECS: 921.6 Kbps baud | 512 byte FIFO | Data bits of 5/6/7/8 | Stop bits 1/1.5/2 | Parity Modes: None/Xon/Xoff/RTS/CTS/DTR/DSR | Flow control opts available - COM port retention re-assigns saved COM values each time adapter is reconnected - Control RS-232 equipment over USB Type-C laptop like PLC/sensors/oscilloscopes/receipt printers - Driverless setup | Windows 7 and up / macOS 10.11 and up / Linux 2.6 and up | Male/Male Marketing Copy Applications - Perfect for IT Administrators looking to add legacy functionality to newer notebooks, PCs and servers that lack an integrated RS232 port
- Connect, monitor and control industrial/automotive sensors and equipment
- Connect bar code scanners, receipt printers and other point-of-sale devices
- Connect a satellite receiver, serial modem, or PDA with serial sync
- Connect and program LED and digital signage boards with serial communication ports
Website Search Keyword - RS-232, DB9
- rs232
- rs 232
- keyspan
- usb to serial adapter
- rs 232 cable
- rs232 cable
- rs232 to usb
- serial to usb adapter
- usb to serial
- serial to usb
- usb to rs232
- usb to rs-232
- usb serial adapter
- db9 cable
- usb to serial converter
- usb to serial cable
- db9 to usb
- usb to db9
- usb serial
- usb to rs232 adapter
- usb to rs232 cable
- serial to usb cable
- rs232 to usb adapter
- rs232 adapter
- serial adapter
- usb to rs232 converter
- usb serial cable
- usb serial converter
- usb rs232
- usb to serial adapter windows 10
- serial to usb converter
- rs232 to usb converter
- rs232 db9
- usb to serial port adapter
- rs232 serial cable
- rs-232 serial cable
- db9 serial cable
- bus powered
- db9 adapter
- serial cable to usb
- serial port cable
- serial port to usb adapter
- rs232 to usb cable
- rs232 usb
- db9 serial
- plastic casing
- serial usb adapter
- usb to com port adapter
- usb rs232 adapter
- usb c to serial
- usb to serial com port
- usb to serial port cable
- usb to serial adapter cable
- usb to db9 cable
- usb to rs232 converter cable
- usb to serial converter cable
- usb c to serial adapter
- usb c rs232
- usb c serial
- usb c serial cable
- usb c to db9
- usb c to rs232
- serial to usb c
- compatible with Windows, Mac and Linux
- usb type c to serial
- usb type c to serial com port
- USB-C to RS232 adapter
- usb type c to com port adapter
- com port retention
- com retention
- serial to usb c adapter
- usb 3 to rs232
- usb serial adapter with com retention
- usb c to com port adapter
- usb c to serial com port
- usb c to serial converter
- usb c to serial with COM port retention
- usb c to serial with COM retention
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
System and Cable Requirements One available USB-C port Accessory Products - ST4200USB
- AT925FF
- AT925FM
- SCNM9FM
- SCNM925FM
- MXT100
- MXT106
- MXT100_25
- MXT100FF
Related Products - ICUSB232
- ICUSB232_4
- ICUSB232_2
- ICUSB232C
- ICUSB232PRO
Power Source USB-Powered Cable Length (mm) 428 Color Black Humidity 5~85% RH Operating Temperature -10°C to 80°C (14°F to 176°F) Primary Material Plastic Product Length (mm) 428 Product Width (mm) 35 Product Height (mm) 20 Product Weight (g) 36 Storage Temperature -20°C to 100°C (-4°F to 212°F) TAA Compliant No Data Bits 5, 6, 7, 8 FIFO 512 Bytes Flow Control None, Xon/Xoff, RTS/CTS, DTR/DSR Max Baud Rate 921.6 Kbps MTBF (hours) 30,000 Hours OS Compatibility - Windows 7
- Linux
- Windows Server 2012
- Windows 10
- Windows 8
- macOS Sierra (10.12)
- Windows Server 2016
- macOS High Sierra (10.13)
- macOS Mojave (10.14)
- Windows Server 2019
- macOS Catalina (10.15)
- macOS Big Sur (11.0)
- Windows 11
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- Windows Server 2022
- macOS Sonoma (14.0)
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)
Parity Odd, Even, Mark, Space, or None Parity Modes Stop Bits 1, 1.5, 2 Supported Serial Protocol RS-232 Bus Type USB-C Chipset ID Prolific - PL2303GT Industry Standards USB 1.1/2.0 RS232 Interface/Bridge Serial IO Card Port Style Cable Adapters Amount of recycled material in plastic packaging At Least 30% Carton Depth (mm) 372 Carton Height (mm) 280 Carton Quantity 200 Carton Weight Gross (g) 11602 Included in Package - 1 - serial adapter cable
- 1 - quick-start guide
Included In Package for Label - 1 - Quick-Start Guide
- 1 - Serial Converter Cable
Number of Sub-Cartons 20 Package Depth (mm) 199 Package Height (mm) 22 Package Width (mm) 117 Package Quantity 1 Package Weight (g) 50 Packaging Description USB-C to RS232 Serial DB9 Adapter Cable - COM Retention Packaging Description India USB-C to RS232 Serial DB9 Converter Cable - COM Retention Sub-Carton Depth (mm) 253 Sub-Carton Height (mm) 71 Sub-Carton Width (mm) 314 Sub-Carton Quantity 10 Sub-Carton Weight (g) 530 Connector 1 USB-C (480Mbps, 2.5W) Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2017-05-05 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2017-07-24 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology USB-C Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Development Completion Date 2017-04-14 Target Production Release 2017-05-05 Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None
