ICUSB232SM3

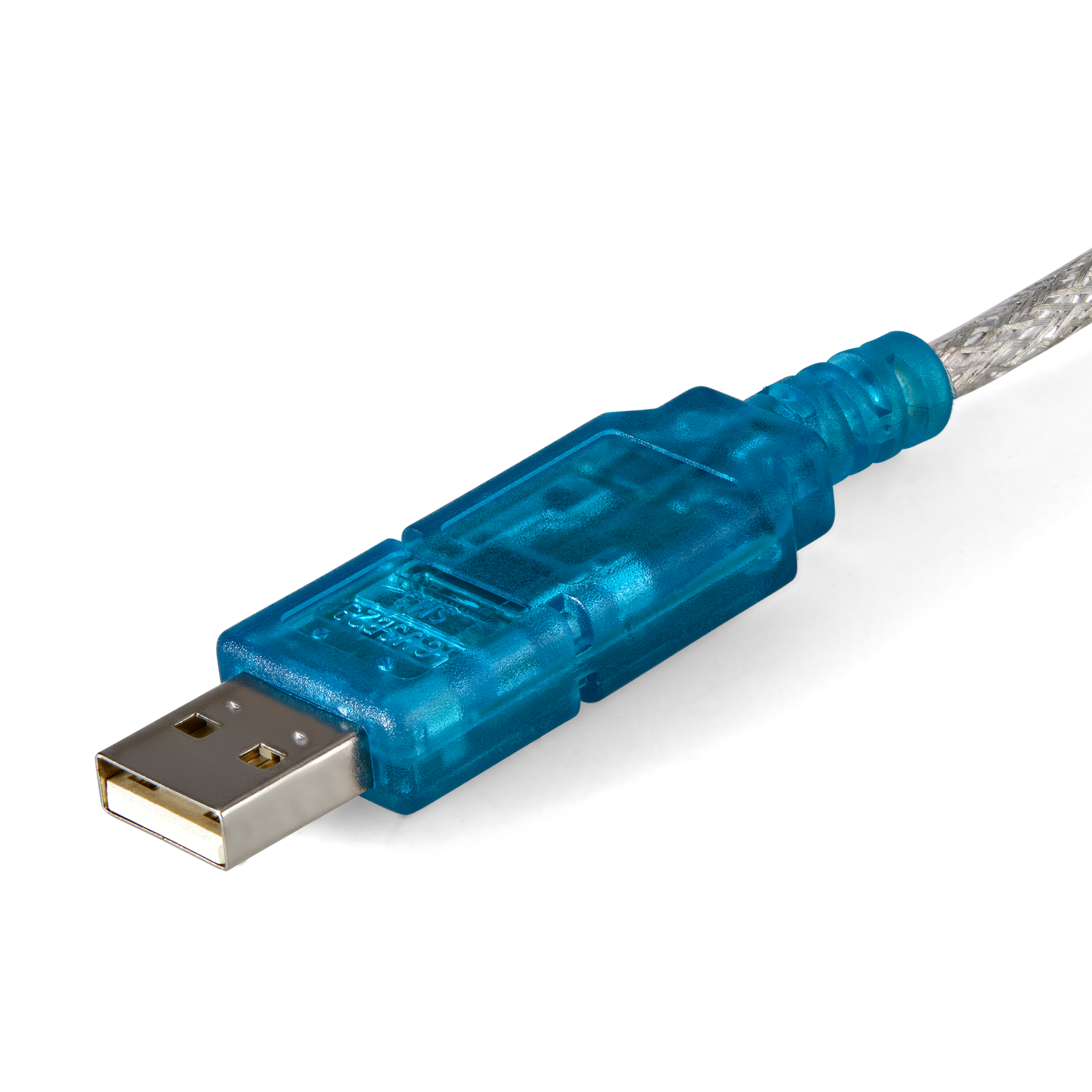

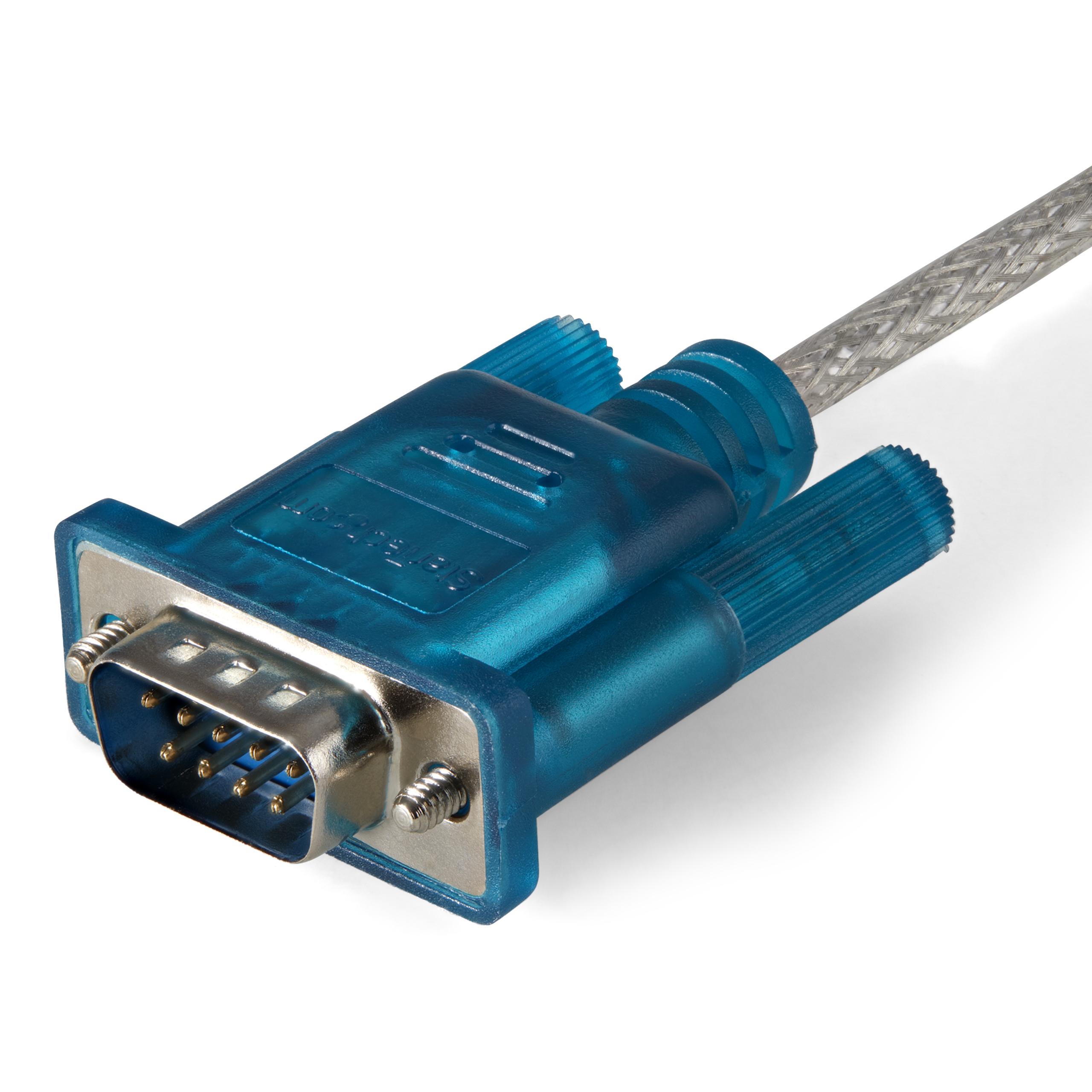

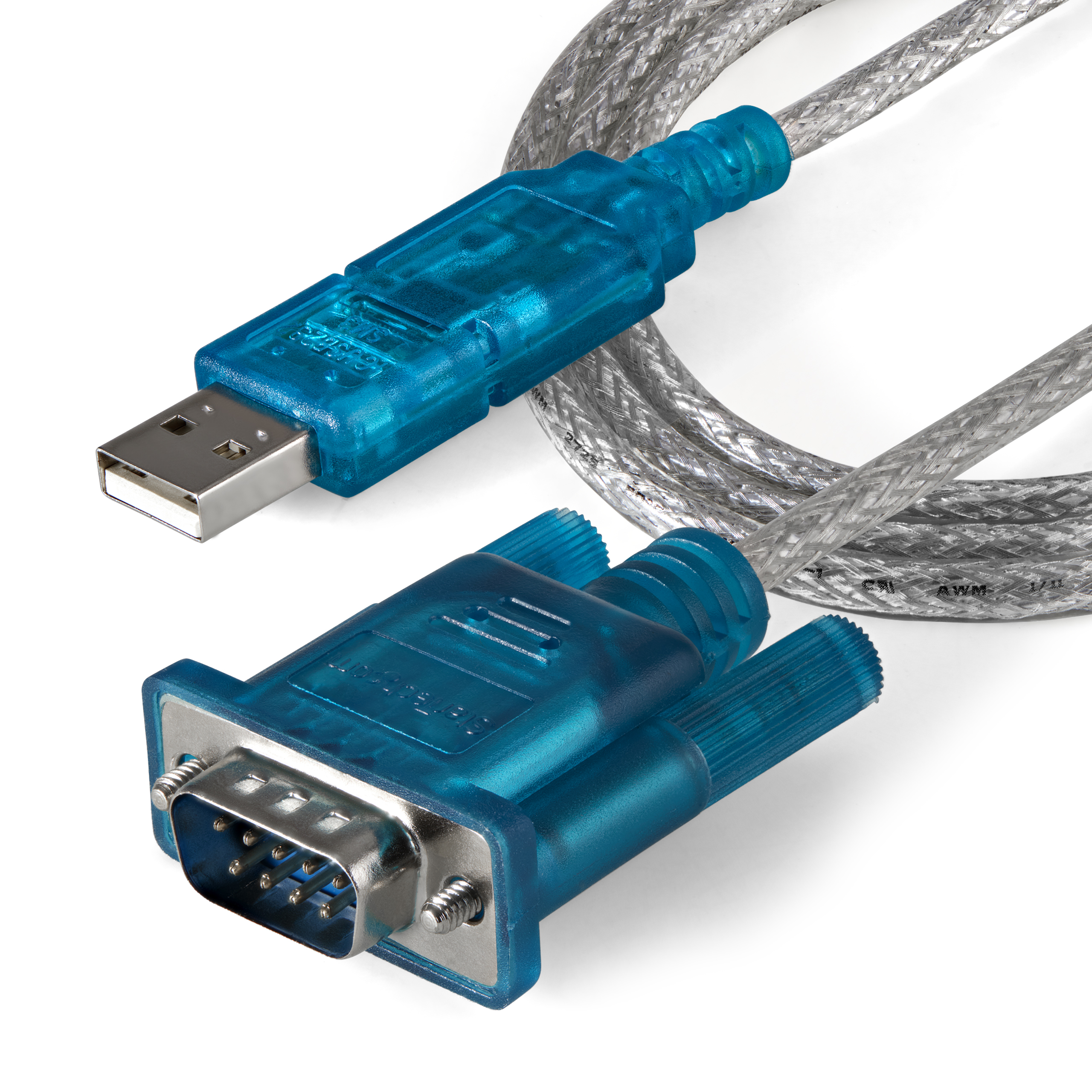

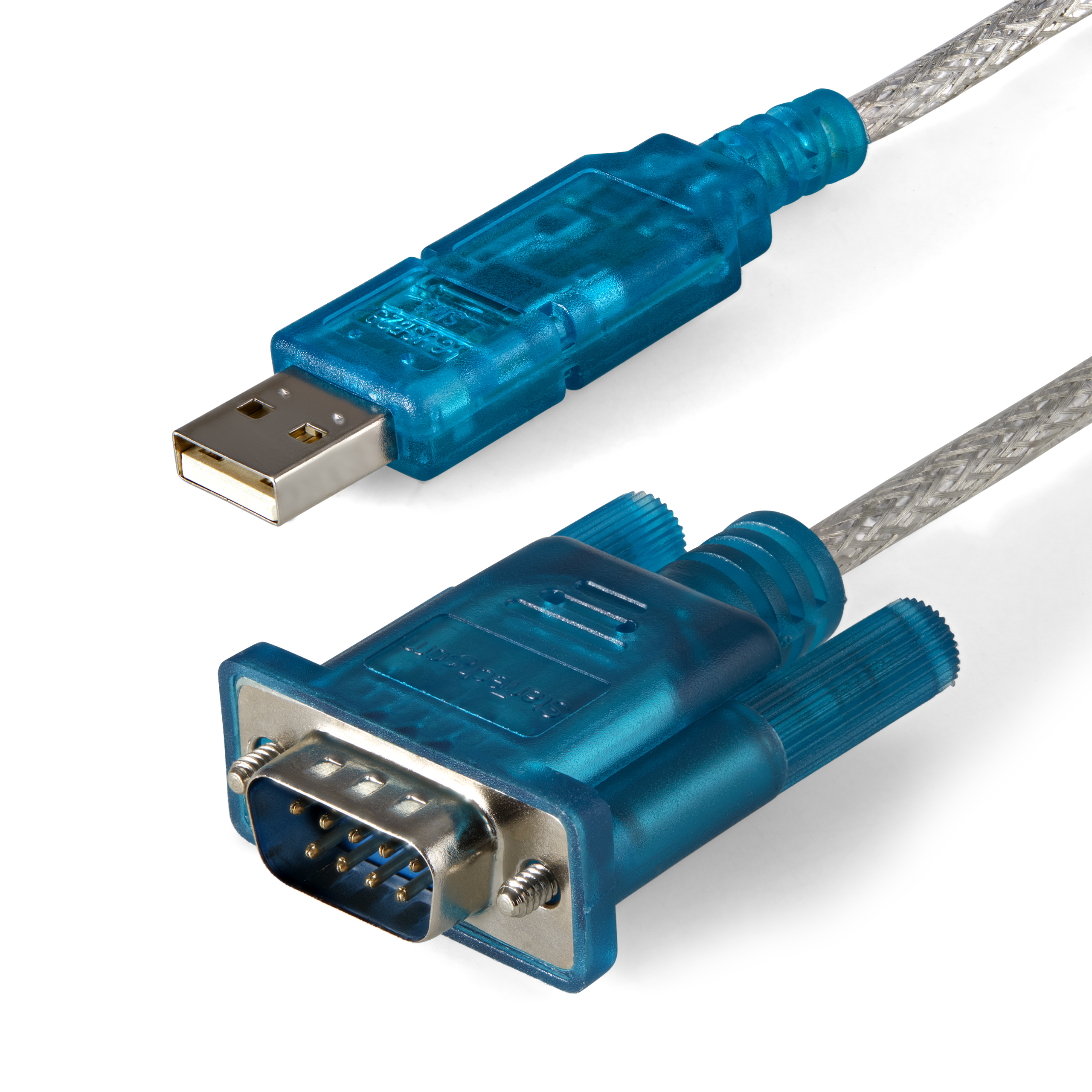

90cm USB to RS232 Serial Converter Cable
Add an RS232 serial port to your laptop or desktop computer through USB
Main Image
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name 90cm USB to RS232 Serial Converter Cable Product Number ICUSB232SM3 UPC 065030842440 Lifecycle status Active Warranty Lifetime Taxonomy Product > Cards & Adapters > Serial and Parallel Cards & Adapters Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 USB Serial Host Adapter Interconnects Family USB to Serial Adapter Cables - USB-A - Prolific Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX076X Country of Origin History (2) Malaysia Country of Origin Revision (2) XXXXXX156X Product Title (Short) 3" USB to RS232 DB9 Serial Adapter Cable Product Title (Medium) x Product Title (Standard) 3ft (91cm) 1-Port USB to RS232 DB9 Serial Adapter Cable, USB to Serial Adapter Cable - M/M Product Title (Long) 3ft (91cm) 1-Port USB to RS232 DB9 Serial Adapter Cable, USB to Serial Adapter Cable - M/M Product Title (AMZ) 3ft (91cm) 1-Port USB to RS232 DB9 Serial Adapter Cable, USB to Serial Adapter Cable - M/M Title Ingram (Part 1) USB to Serial Adapter Cable - US Title Ingram (Part 2) B to RS232 DB9 M/M Website Product Headline Add an RS232 serial port to your laptop or desktop computer through USB Bullet 1 MAXIMUM COMPATIBILITY: Simple to install and use, this USB serial adapter is a cost-effective solution that bridges the compatibility gap between modern computers and legacy serial peripherals Bullet 2 TECH SPECS: 3 feet (91 cm); Prolific PL2303GC Chipset; Max Baud Rate: 921.6 Kbps; 192 Bytes FIFO Bullet 3 UNIQUE CONVERTER CHIP: Unlike typical USB to serial cables where the conversion takes place at the DB9 end, this USB to serial RS232 adapter features a converter chip on the USB end Bullet 4 ADD LEGACY FUNCTIONALITY: The USB to Serial (DB9) adapter lets you connect DB9 RS232 serial devices to your device through an available USB port, as though the computer offered a DB9M connector Bullet 5 OVERCOME DISTANCE LIMITATIONS: Converting at the USB source overcomes the 15ft (4.6m) technical limit of USB cables; this USB to RS232 adapter cable allows for a much greater serial DB-9 extension cable Bullets (Compact) USB to serial DB9 adapter - Cable features a converter chip on the USB end - Overcomes the 15ft. technical limit of USB cables - Connect modern computers and legacy serial peripherals - 3ft (91cm); Prolific PL2303GC Chipset; 921.6 Kbps Max Baud Rate Bullets (Consolidated) - USB to serial adapter lets you connect DB9 RS232 serial devices to your device through an available USB port - USB to RS232 cable features a converter chip on the USB end - This adapter cable overcomes the 15ft. technical limit of USB cables allowing for a much greater serial DB-9 extension cable - Cost-effective solution that bridges the compatibility gap between modern computers and legacy serial peripherals - 3ft (91cm); Prolific PL2303GC Chipset; 921.6 Kbps Max Baud Rate; 192 Bytes FIFO Marketing Copy Marketing Copy (No HTML) The 3ft USB to Serial RS232 Adapter Cable lets you connect DB9 RS232 serial devices to your Mac or PC laptop or desktop computer through an available USB port, as though the computer offered an onboard DB9M connector. Unlike typical USB to serial converter cables where the conversion takes place at the DB9 end, the StarTech.com USB to RS232 adapter cable features a converter chip on the USB end. Converting at the USB source overcomes the 15ft. technical limit of USB cables, allowing for a much greater serial DB-9 extension cable (50ft.+ is possible depending on the application) if necessary. Simple to install and use, this USB to Serial adapter is a cost-effective solution that bridges the compatibility gap between modern computers and legacy serial peripherals. This USB to VGA adapter is backed by a StarTech.com lifetime warranty and free lifetime technical support. Applications - Connect a satellite receiver, serial modem, or PDA with serial sync
- Connect bar code scanners, receipt printers and other point of sale devices
- Connect, monitor and control industrial/automotive sensors and equipment
- Perfect for IT Administrators looking to add legacy functionality to newer notebooks, PCs and servers that lack an integrated RS232 port
Website Search Keyword - POSline
- Serial
- USB 2.0 to serial
- USB 2.0 to RS232
- USB to RS-232
- USB 2.0 to RS-232
- USB to DB9
- long distance serial
- long serial
- serial over distance
- usb converter chip
- RS232
- USB to serial cable
- serial cable
- U209-000-R
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- UKCA - Environmental - United Kingdom - UK Restriction of Hazardous Substances (RoHS) 2012
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- TSCA - Environmental - United States - EPA TSCA Title VI Compliant
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
Accessory Products - AT925FM
- AT925SFM
- MXT100
- MXT100_25
- MXT100FF
- MXT106
- RS232EXTC5
- SCNM925FM
- SCNM9FM
- USB2FAAEXT15
- RS232EXTC1
Related Products - ICUSB2321X
- ICUSB2322X
- ICUSB2324
- ICUSB2324X
- ICUSB2328
- ICUSB232C2
- ICUSB232
Cable Length (mm) 914.4 Color Blue Humidity 0~65% RH Material Plastic Operating Temperature 0°C to 60°C (32°F to 140°F) Primary Material Plastic Product Length (mm) 914.400 Product Width (mm) 35.000 Product Height (mm) 15.000 Product Weight (g) 56.000 Storage Temperature -20°C to 80°C (-4°F to 176°F) TAA Compliant No FIFO 192 Bytes Max Baud Rate 921.6 Kbps OS Compatibility - Windows 8
- Linux
- Windows Server 2012
- Windows 7
- Windows 10
- Mac OS X El Capitan (10.11)
- macOS Sierra (10.12)
- Windows Server 2016
- macOS High Sierra (10.13)
- macOS Mojave (10.14)
- Windows Server 2019
- macOS Catalina (10.15)
- macOS Big Sur (11.0)
- macOS Monterey (12.0)
- Windows 11
- macOS Ventura (13.0)
- Windows Server 2022
- macOS Sonoma (14.0)
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)
Supported Serial Protocol RS-232 Bus Type USB 2.0 Chipset ID Prolific - PL2303GC Industry Standards RS232, USB 1.1/2.0 Interface/Bridge Serial IO Card Port Style Cable Adapters Carton Depth (mm) 579 Carton Height (mm) 305 Carton Quantity 100 Carton Weight Gross (g) 8368 Included in Package - 1 - USB to Serial Converter
- 2 - Cable Nuts
Included In Package for Label - 1 - USB to Serial Converter
- 2 - Cable Nuts
Number of Sub-Cartons 10 Package Depth (mm) 142 Package Height (mm) 23 Package Width (mm) 119 Package Quantity 1 Package Weight (g) 68 Packaging Description 3ft USB to RS232 Serial Adapter Cable Packaging Description India 90cm USB to RS232 Serial Converter Cable Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Quantity 10 Sub-Carton Weight (g) 1549 Connector 1 USB-A (480Mbps, 2.5W) Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None
