Main Image
ICUSB232V2

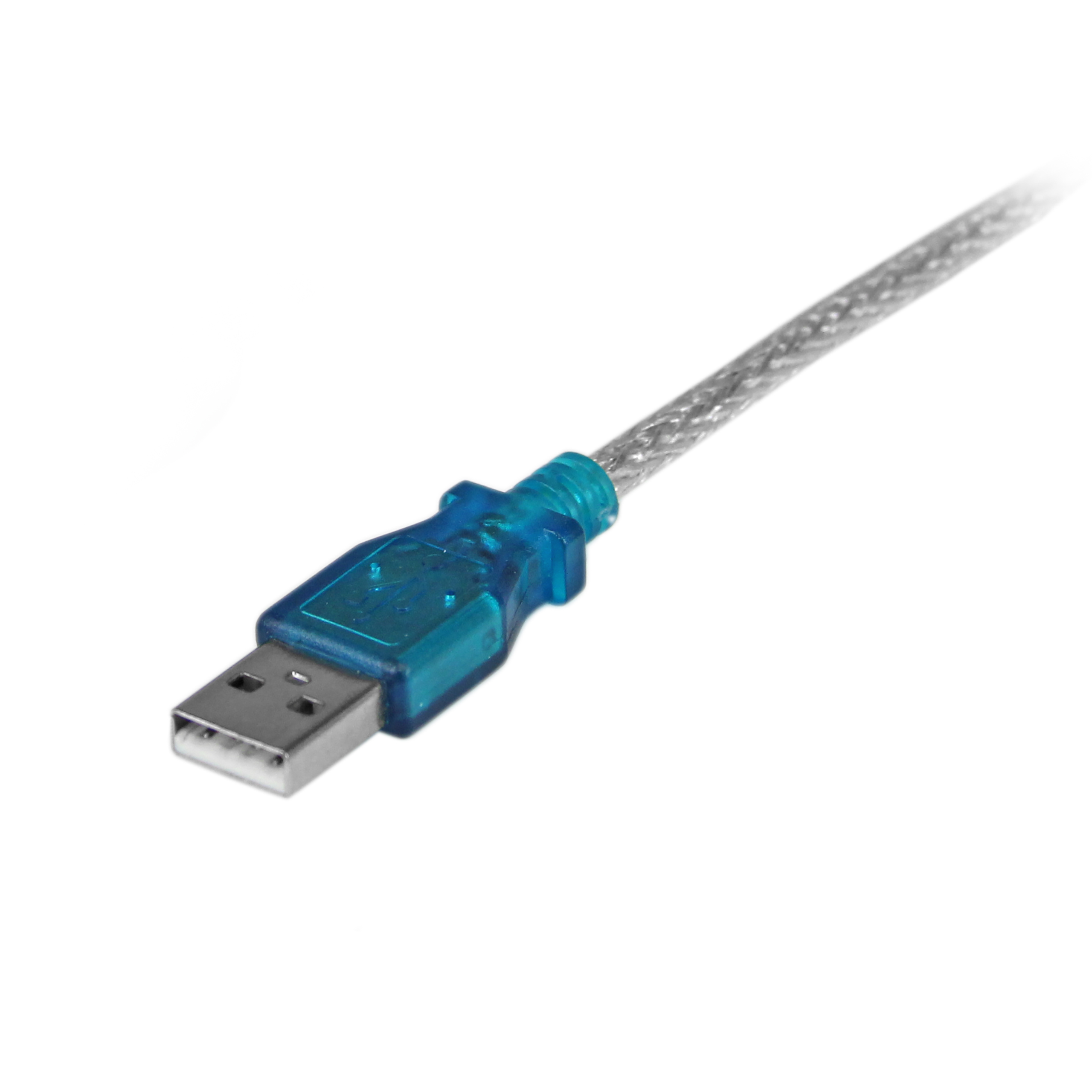

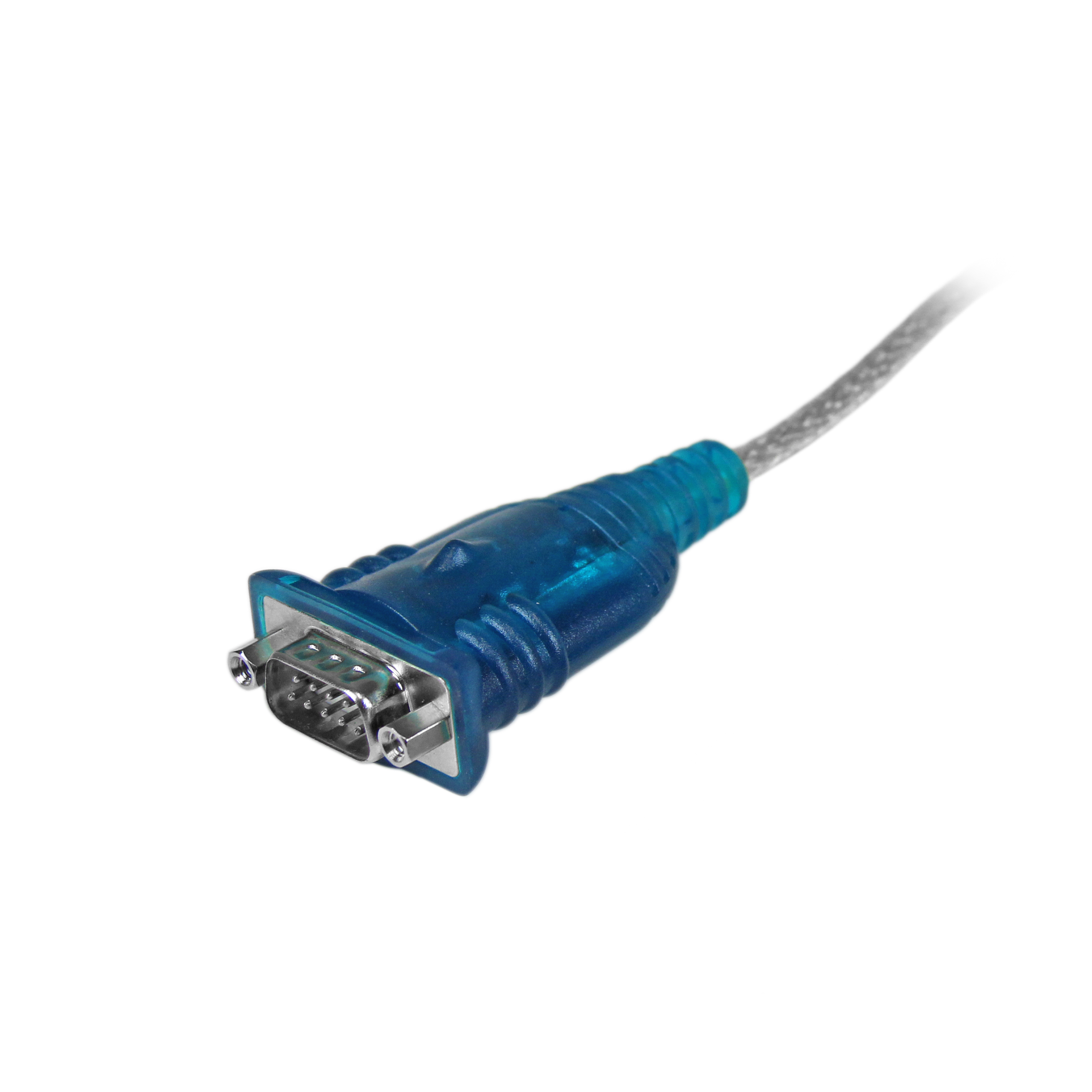

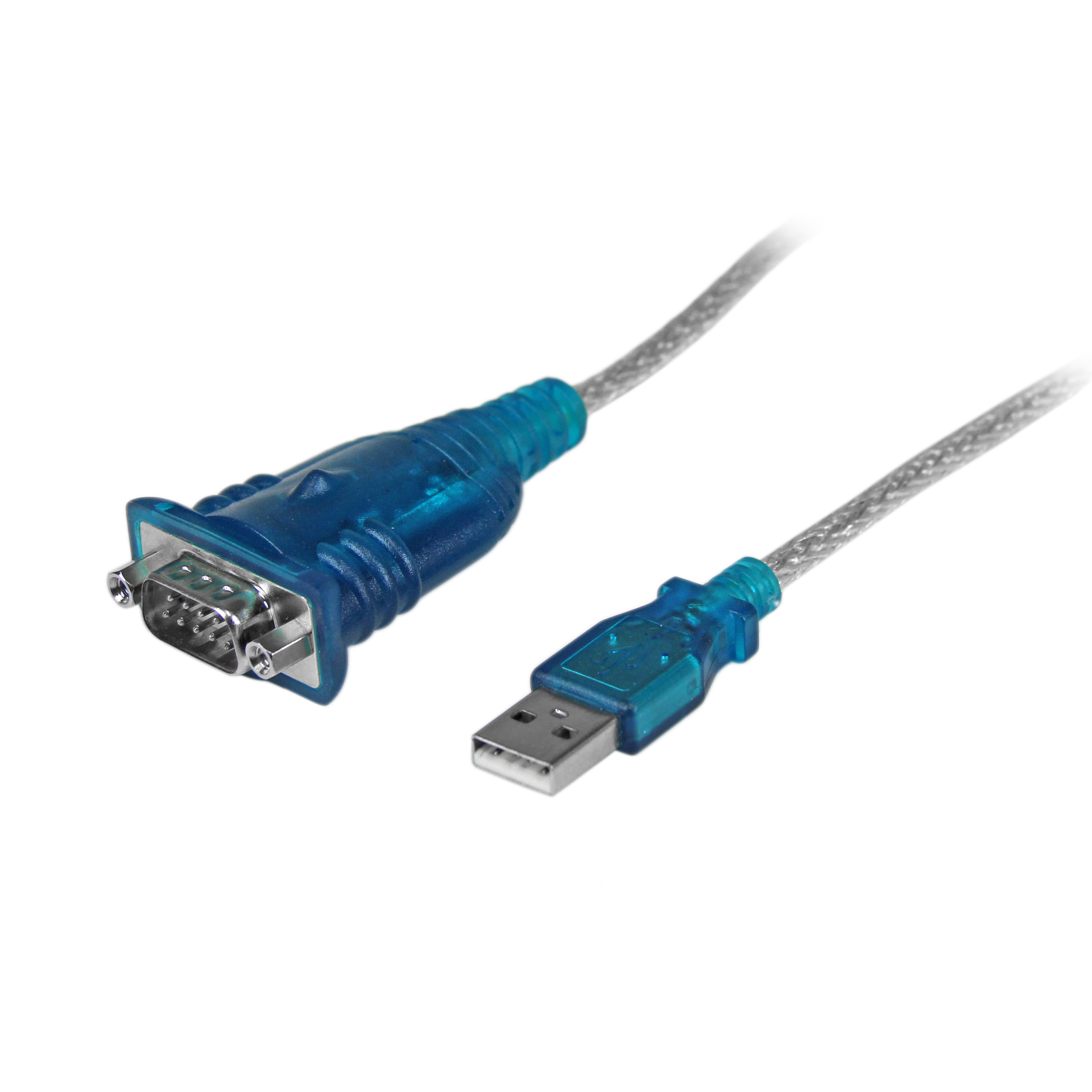

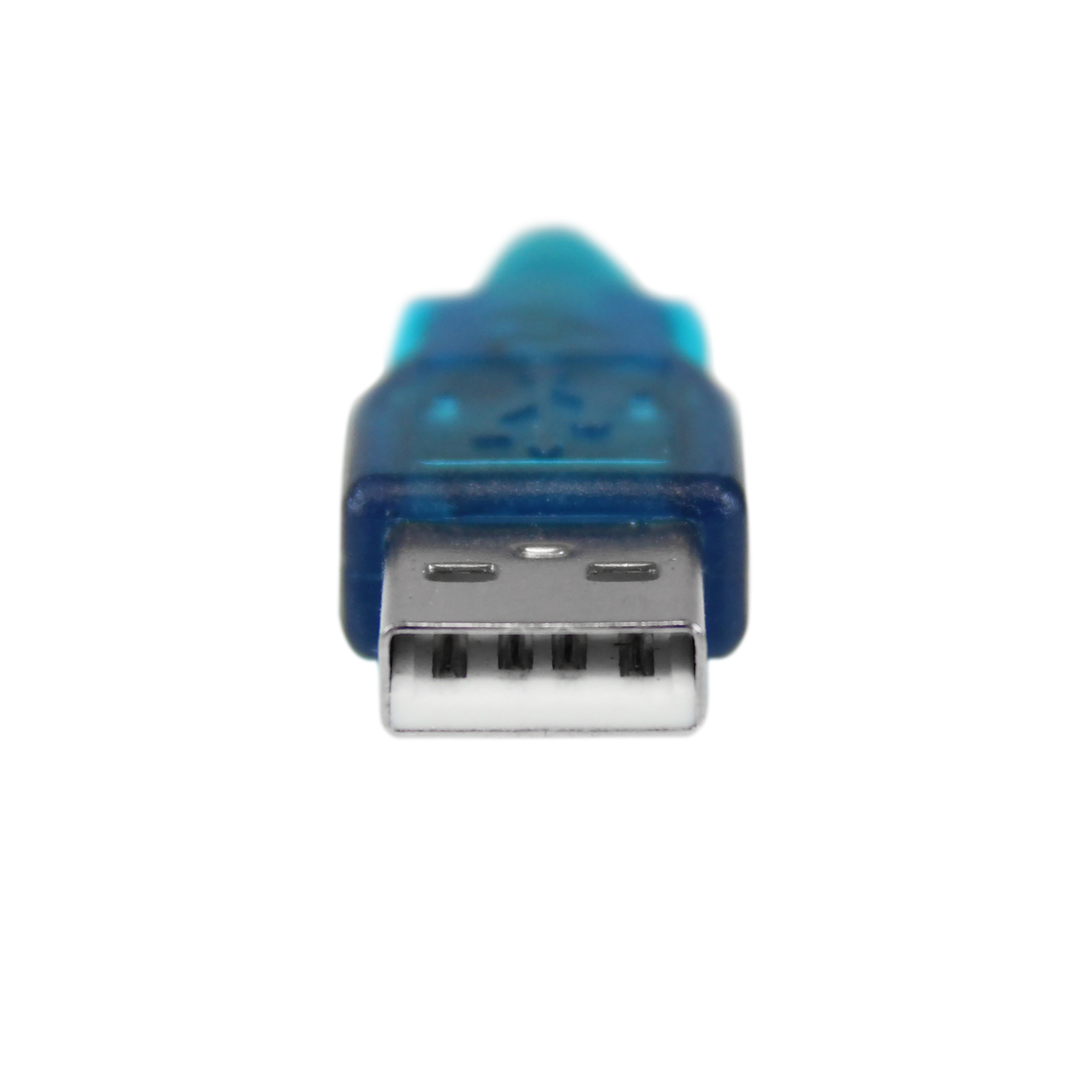

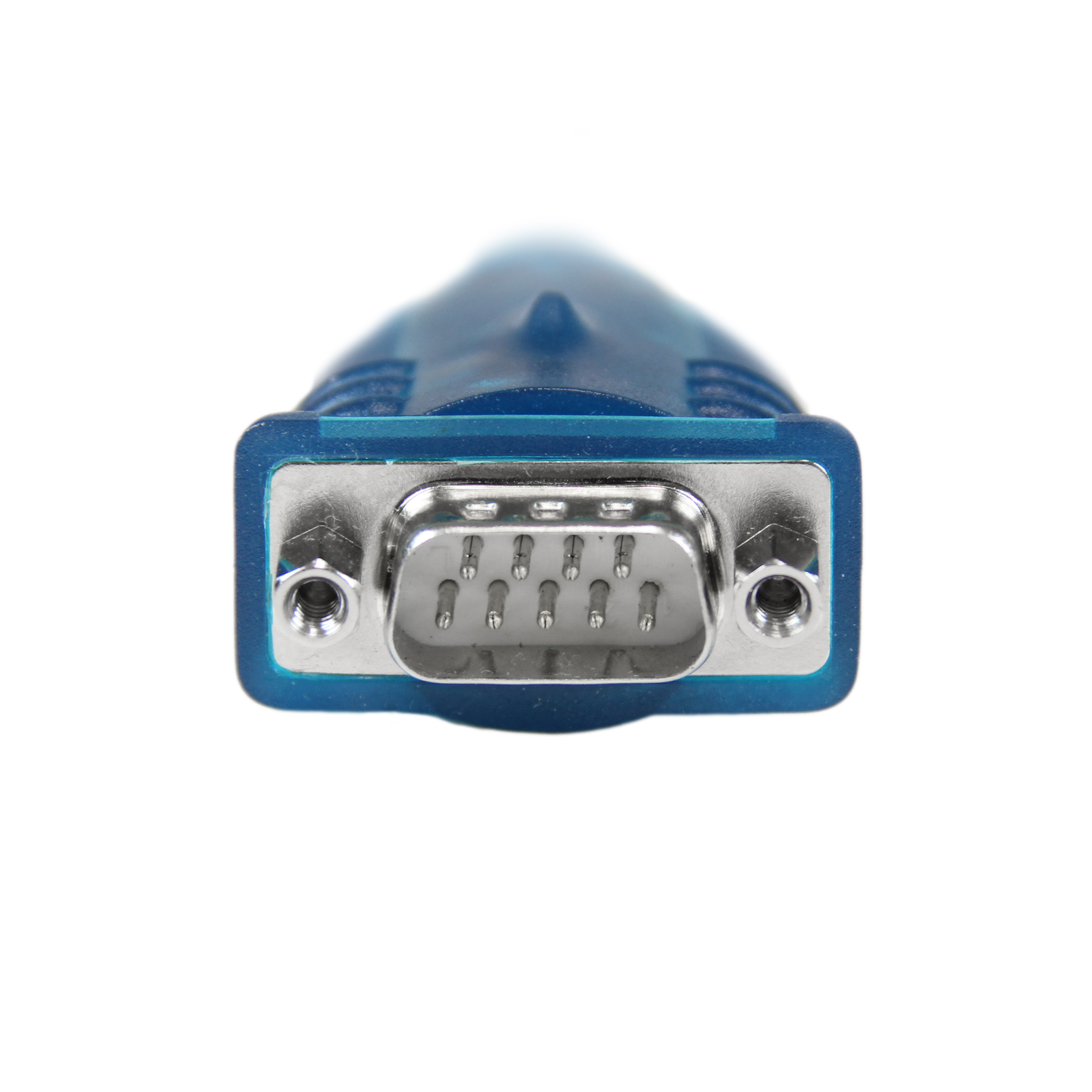

USB to RS232 DB9 Serial Converter Cable - M/M
Add an RS232 serial port to your laptop or desktop computer through USB
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name USB to RS232 DB9 Serial Converter Cable - M/M Product Number ICUSB232V2 UPC 065030852609 Lifecycle status Active Warranty 3 Years Taxonomy Product > Cards & Adapters > Serial and Parallel Cards & Adapters Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 USB Serial Host Adapter Interconnects Family USB to Serial Adapter Cables - USB-A - Prolific Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX076X Country of Origin History (2) Malaysia Country of Origin Revision (2) XXXXXX156X Product Title (Ultra-Short) USB Serial Adapter Product Title (Short) 1 Port USB to RS232 DB9 Serial Adapter Product Title (Medium) x Product Title (Standard) 17in (43cm) 1-Port USB to Serial Adapter Cable, USB-A to DB9 RS232, USB to RS232 Adapter, Prolific Chipset - M/M Product Title (Long) 17in (43cm) 1-Port USB to Serial Adapter Cable, USB-A to DB9 RS232, USB to RS232 Adapter, Prolific Chipset - M/M Product Title (AMZ) 17in (43cm) 1-Port USB to Serial Adapter Cable, USB-A to DB9 RS232, USB to RS232 Adapter, Prolific Chipset - M/M Title Ingram (Part 1) 1port USB to Serial Converter - Title Ingram (Part 2) Windows 8 USB to RS232 Port Website Product Headline Add an RS232 serial port to your laptop or desktop computer through USB Bullet 1 MAXIMIZED PORTABILITY: This USB to serial RS232 adapter converts a USB port into an RS232 DB9 serial port; Compatible with barcode readers/scanners, networks switches, receipt printers, PLCs, medical devices, oscilloscopes, scales, etc. Bullet 2 PORTABLE DESIGN: Powered by a USB port, this USB to RS232 serial adapter cable features a lightweight design that conveniently fits into your carrying case, making it ideal for professionals on the go Bullet 3 BROAD COMPATIBILITY: Compatible with your USB 1.0, 2.0 or 3.0 ports, this USB-A to RS232 converter works with your Windows, MacOS or Linux system Bullet 4 THE IT PRO'S CHOICE: Designed and built for IT Professionals, this USB to serial converter cable is backed for 3-years, including free lifetime 24/5 multi-lingual technical assistance Bullet 5 USB TO SERIAL ADAPTER SPECS: 17in (43cm) Cable Length | Max Baud 921.6 Kbps | 512 Byte FIFO | Supports Windows, macOS, and Linux | Prolific PL2303GT Chipset | Odd, Even, Mark, Space, or None Parity Modes | 5/6/7/8 Data Bits Bullets (Compact) USB to serial RS232 adapter; USB Powered; Prolific Chipset - Converts a USB port into an RS232 DB9 serial port - Windows, Mac or Linux; Works with your USB 1.0 or 2.0 ports - Baud Rate up to 921.6Kbps - USB to RS232 serial has a lightweight design Bullets (Consolidated) - USB to serial RS232 adapter converts a USB port into an RS232 DB9 serial port to connect to, monitor, and control a serial device - Compatible with your USB 1.0 or 2.0 ports, this USB to RS232 converter works with your Windows, Mac or Linux system - Fast speeds with this USB to DB9 serial adapter, supporting a Baud Rate up to 921.6Kbps - Powered by a USB port; This USB to RS232 serial adapter cable features a lightweight design, making it ideal for professionals on the go - Prolific Chipset Marketing Copy Marketing Copy (No HTML) Applications - IT Administrators looking to add legacy functionality to newer notebooks, PCs and servers that lack an integrated RS232 port
- Connect and program LED and digital signage boards
- Connect, monitor and control industrial/automotive sensors and other sensitive equipment
- Connect bar code scanners, receipt printers and other point of sale devices
Website Search Keyword - ICUSB232
- U209-000-R
- usb to serial cable
- db9 male to usb
- rs232 to usb converter
- serial to usb converter
- usb to com port adapter
- usb to rs232 cable
- usb to rs232 serial adapter
- USB to serial Adapter
- USB to serial port
- usb to serial prolific
- Prolific Chipset
Microsoft WHQL Certified Yes Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
System and Cable Requirements One available USB 1.1 (or above) port Accessory Products - MXT10050CMBK
- MXT1001MBK
- MXT1002MBK
- MXT1003MBK
- SCNM9FM1MBK
- SCNM9FM2MBK
- MXT106
- MXT10010
- MXT100_25
- USBEXTAA3BK
- USBEXTAA6BK
- USBEXTAA10BK
Related Products - ICUSB2321F
- ICUSB232PRO
- ICUSB232DB25
- ICUSB2321FIS
- ICUSB2321X
- ICUSB232SM3
- ICUSB232IS
- ICUSBANDR232
- ICUSB232D
- ICUSB2321284
- ICUSB2322X
- ICUSB232C2
- ICUSB2322F
- ICUSB2322I
- ICUSB2324
- ICUSB2324I
- ICUSB2324X
- ICUSB2328
- ICUSB2328I
- ICUSB23208FD
- ICUSB23216FD
- ICUSB23216F
- ICUSB2322RJ
- ICUSB232FTN
- ICUSB2324852
Constrained SKU Alternatives (Limited Stock) ICUSB232SM3 Cable Length (mm) 430 Color Silver & Blue Humidity 0~65% RH Material Plastic Operating Temperature 0°C to 60°C (32°F to 140°F) Primary Material Plastic Product Length (mm) 430.000 Product Width (mm) 34.500 Product Height (mm) 20.000 Product Weight (g) 40.000 Storage Temperature -20°C to 80°C (-4°F to 176°F) TAA Compliant No Data Bits 5, 6, 7, 8 FIFO 512 Bytes Flow Control None, Xon/Xoff, RTS/CTS, DTR/DSR Max Baud Rate 921.6 Kbps MTBF (hours) 30,000 Hours OS Compatibility - Windows 8
- Linux
- Windows 7
- Windows Server 2012
- Windows 10
- Mac OS X El Capitan (10.11)
- macOS Sierra (10.12)
- Windows Server 2016
- macOS High Sierra (10.13)
- macOS Mojave (10.14)
- Windows Server 2019
- macOS Catalina (10.15)
- macOS Big Sur (11.0)
- macOS Monterey (12.0)
- Windows 11
- macOS Ventura (13.0)
- Windows Server 2022
- macOS Sonoma (14.0)
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)

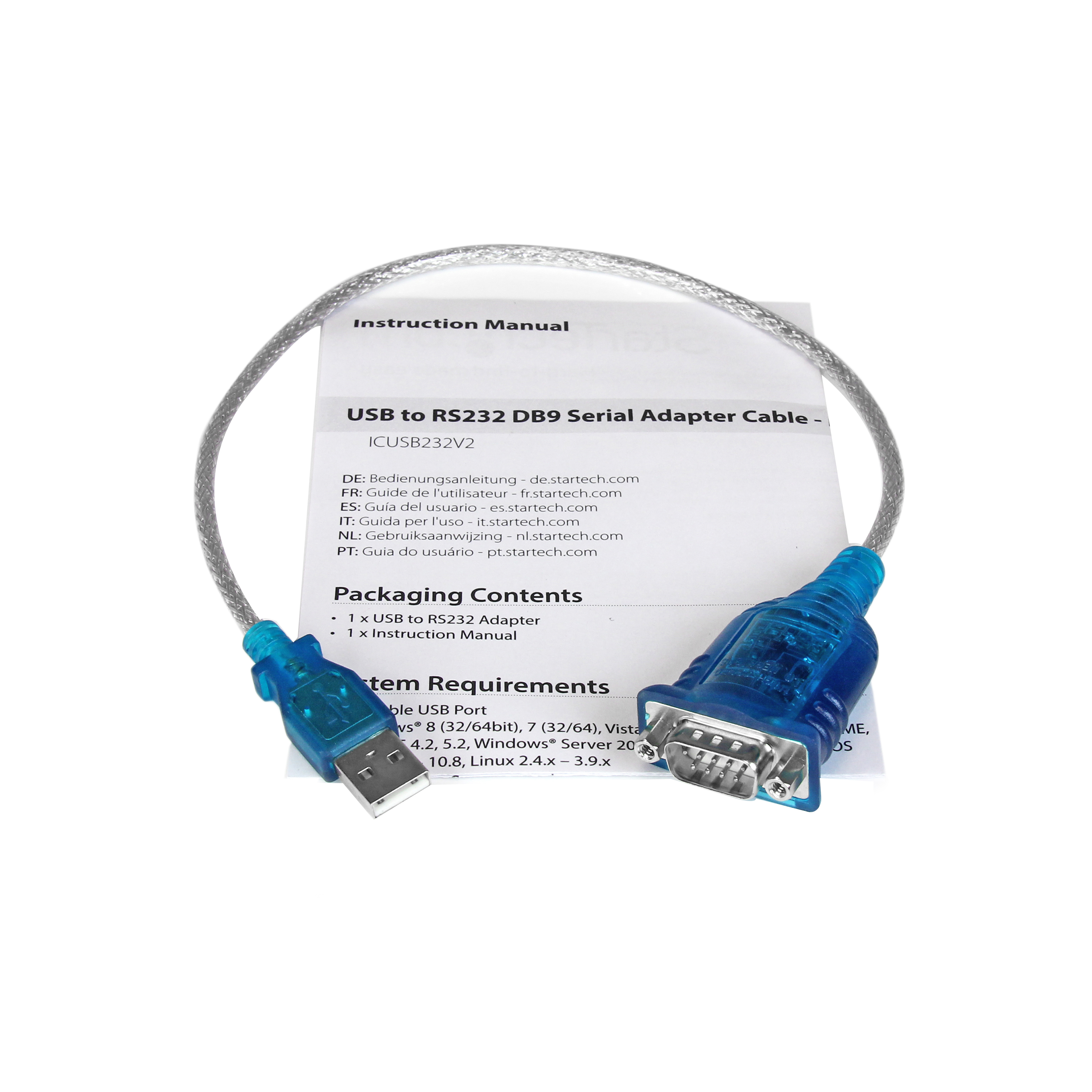

Parity Odd, Even, Mark, Space, or None Parity Modes Stop Bits 1, 1.5, 2 Supported Serial Protocol RS-232 Bus Type USB 2.0 Chipset ID Prolific - PL2303GT Industry Standards Interface/Bridge Serial IO Card Port Style Cable Adapters Amount of recycled material in plastic packaging At Least 30% Carton Depth (mm) 580 Carton Height (mm) 302 Carton Quantity 100 Carton Weight Gross (g) 7070 Included in Package - 1 - USB to RS232 Adapter
- 1 - Instruction Manual
Included In Package for Label - 1 - USB to RS232 Converter
- 1 - Instruction Manual
Number of Sub-Cartons 10 Package Depth (mm) 198 Package Height (mm) 21 Package Width (mm) 138 Package Weight (g) 60 Packaging Description USB to RS232 DB9 Serial Adapter Cable - M/M Packaging Description India USB to RS232 DB9 Serial Converter Cable - M/M Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Quantity 10 Sub-Carton Weight (g) 568 Connector 1 USB-A (480Mbps, 2.5W) Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2013-07-30 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 1 Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None
