ICUSB234854I

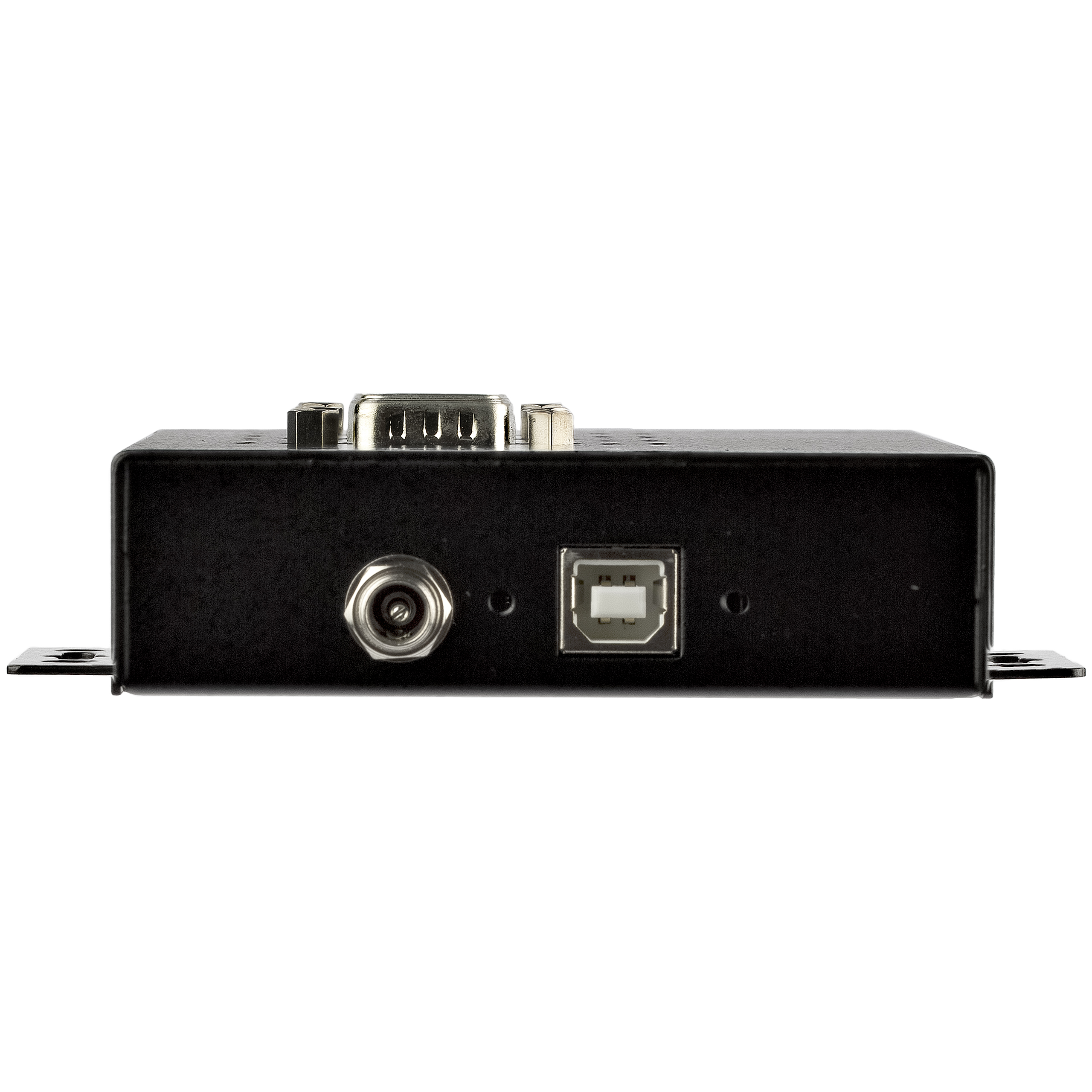

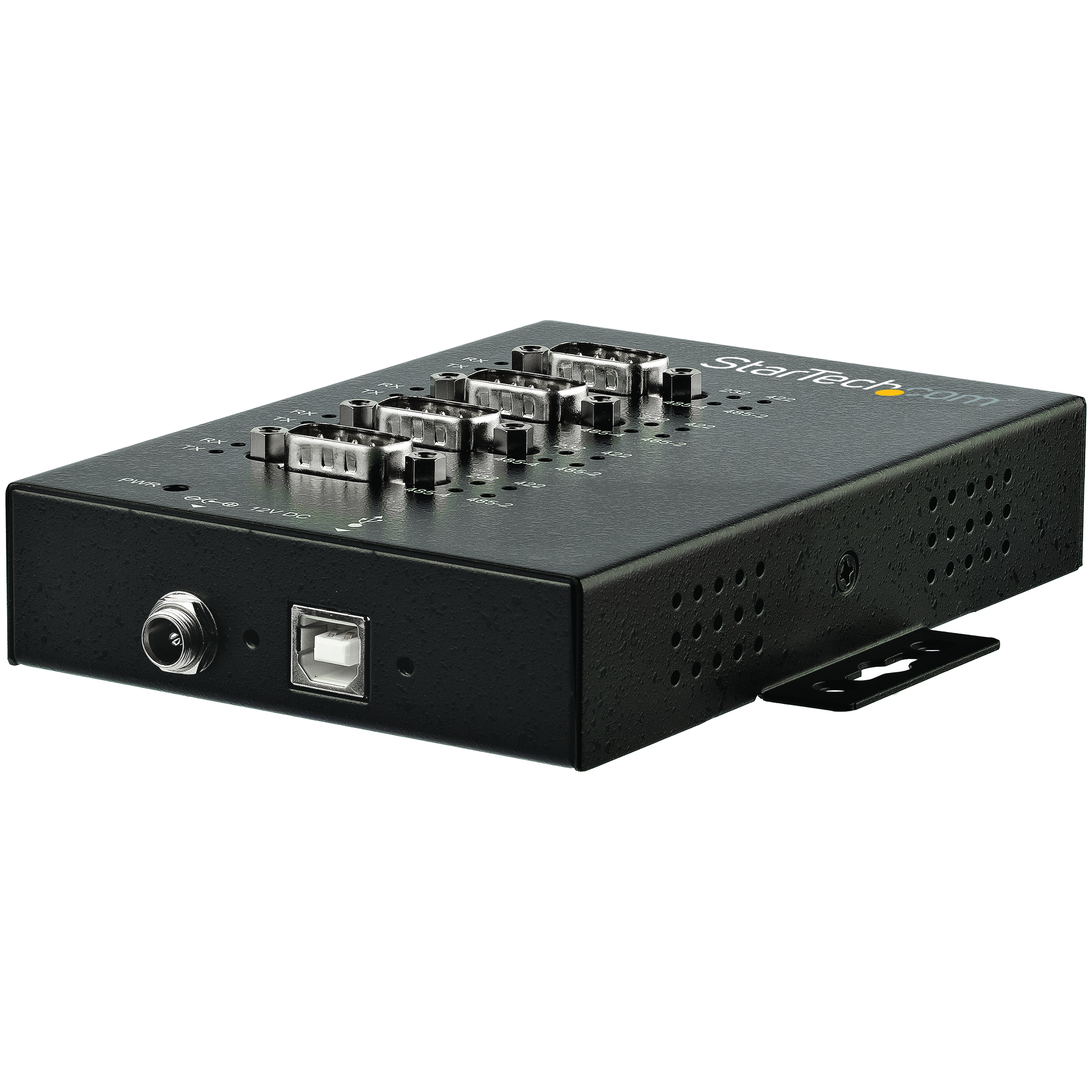

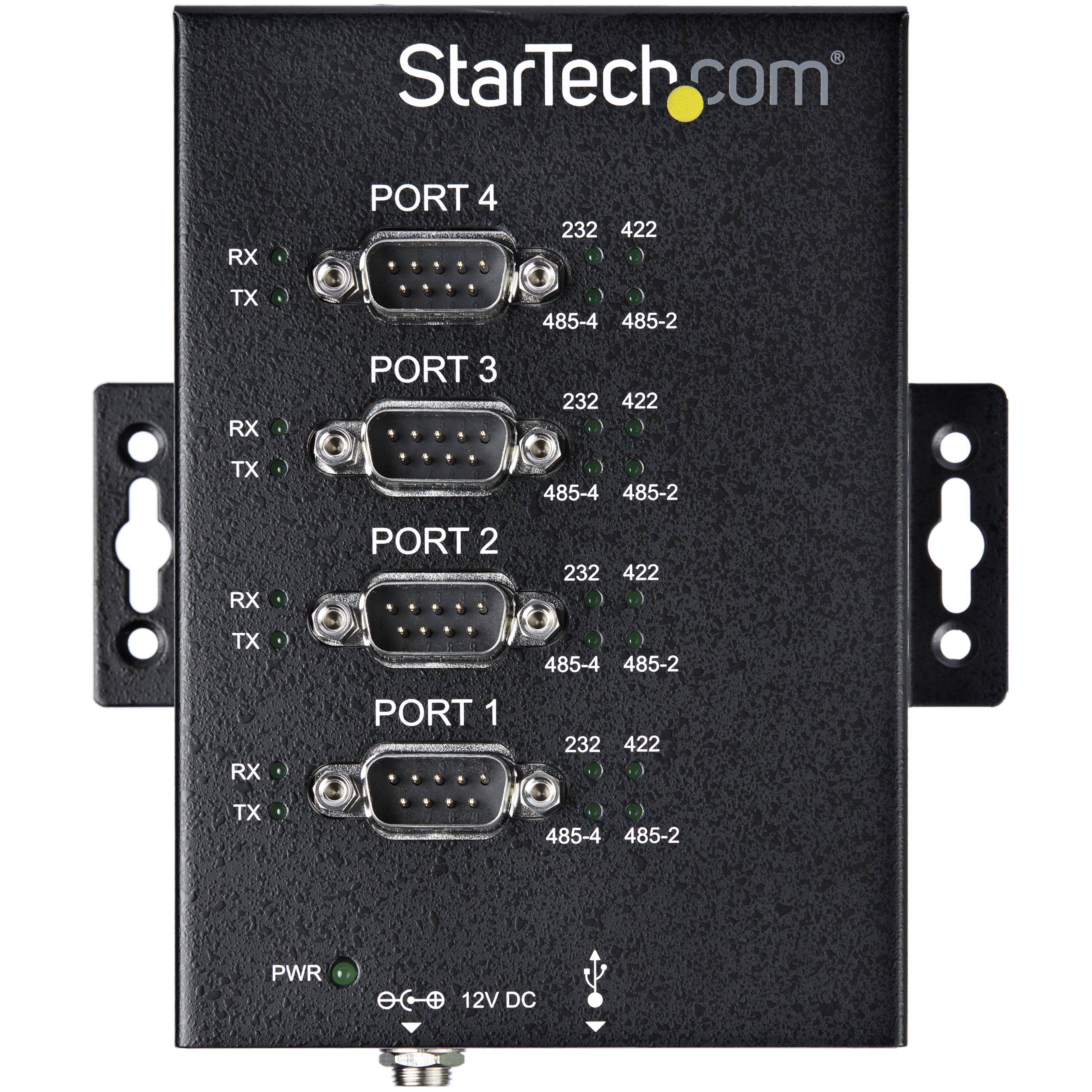

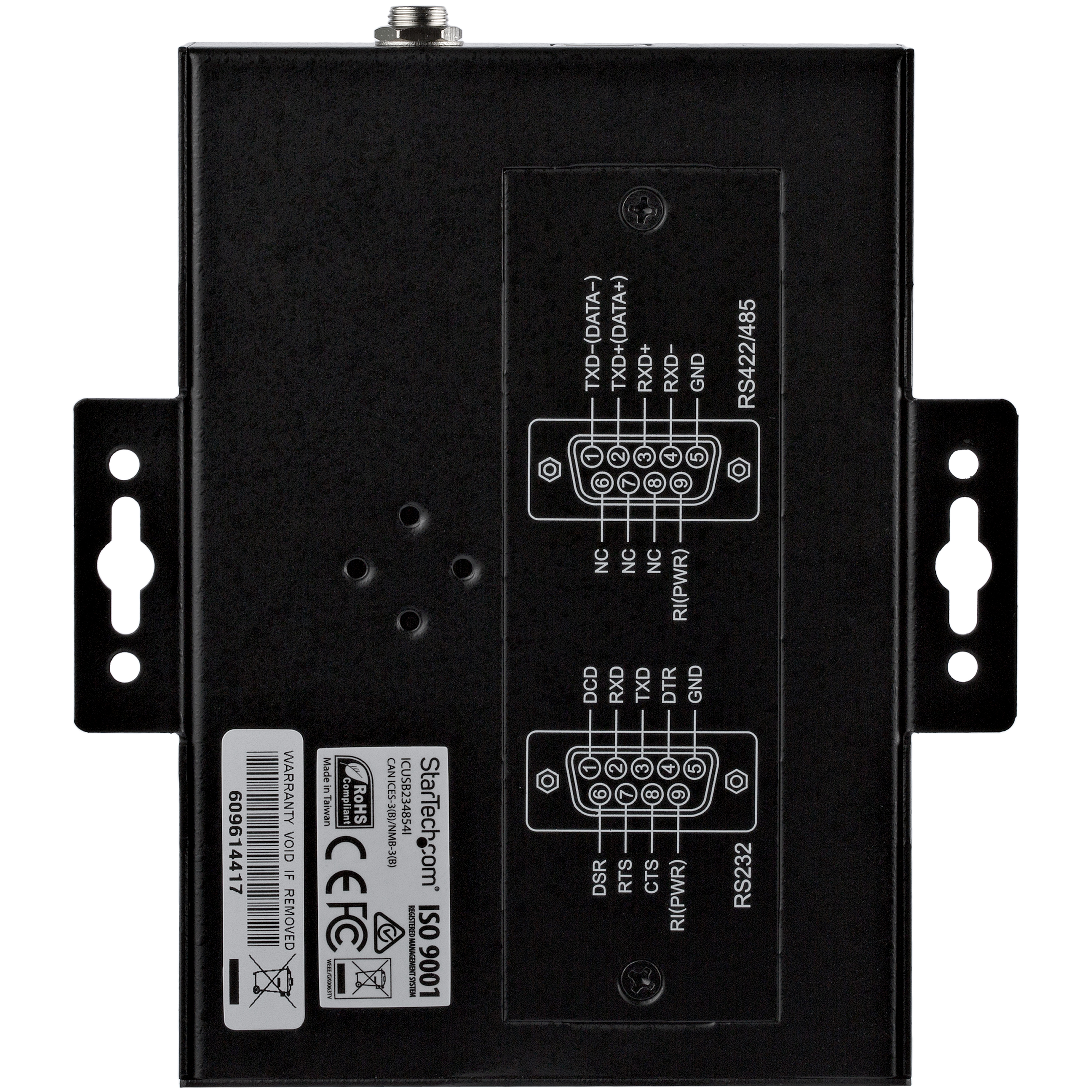

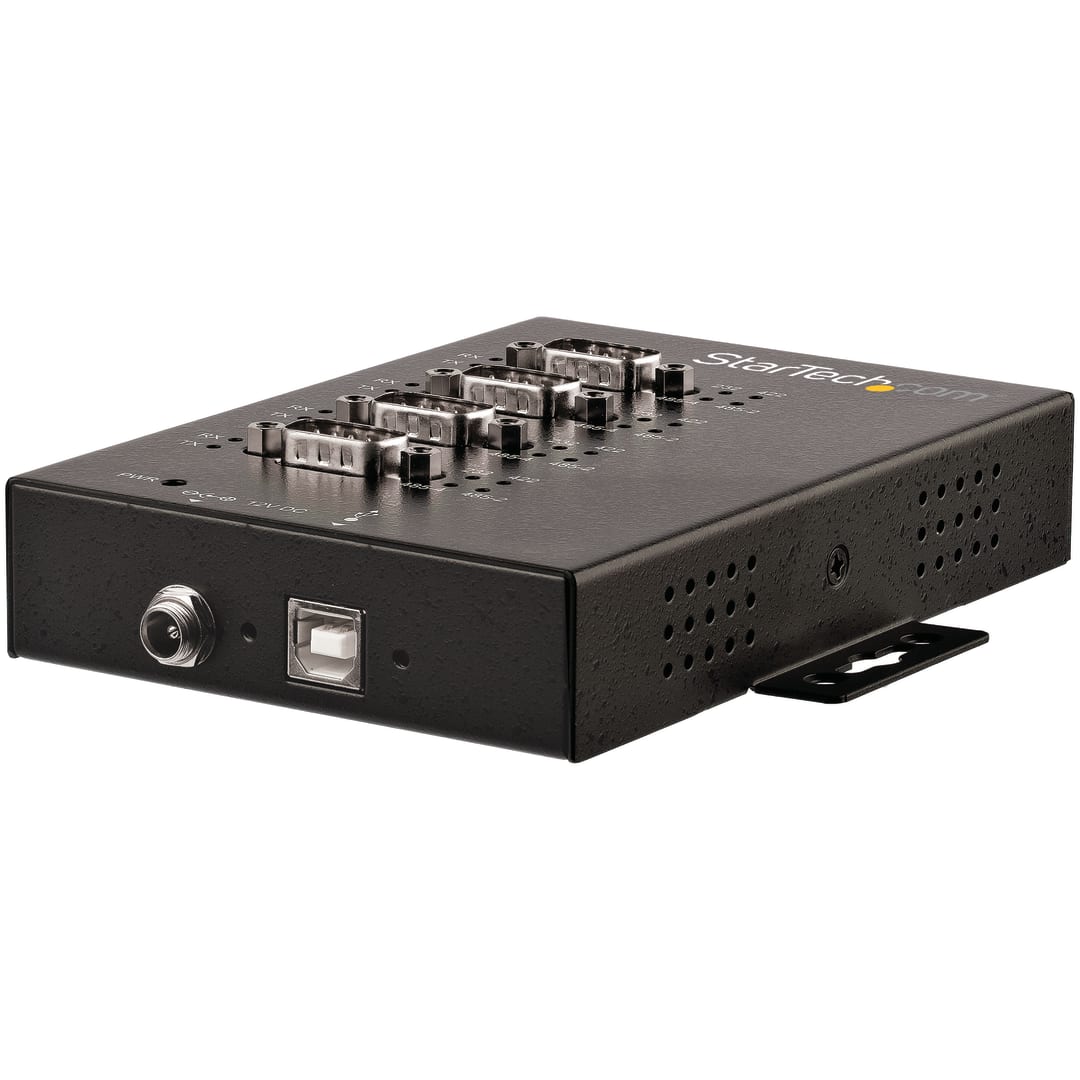

4 Port USB to RS 232 422 485 Serial Adapter w metal housing
Add four ports supporting three serial protocols, to easily connect serial devices to your computer through USB, with 15kV ESD protection
Main Image
Product Images
Product Images
Product Images
Product Images
Product Name 4 Port USB to RS 232 422 485 Serial Adapter w metal housing Product Number ICUSB234854I UPC 065030878562 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > Serial and Parallel Cards & Adapters Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 USB Serial Host Adapter Interconnects Family Industrial USB to Serial Adapters - Multi-Protocol Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX013X Product Title (Ultra-Short) USB Serial Adapter Product Title (Short) 4 Port Serial Hub USB to RS232 Adapter Product Title (Medium) 4-Port Industrial USB to RS-232/422/485 Serial Adapter - 15 kV ESD Protection Product Title (Standard) USB to RS232/RS485/RS422 4 Port Serial Hub Adapter, Industrial Metal USB 2.0 to DB9 Serial Converter, Din Rail Mountable, TAA Product Title (Long) 4 Port Serial Hub USB to RS232/RS485/RS422 Adapter - Industrial USB 2.0 to DB9 Serial Converter Hub - IP30 Rated - Din Rail Mountable Metal Serial Hub - 15kV ESD Protection - TAA Product Title (AMZ) 4 Port Serial Hub USB to RS232/RS485/RS422 Adapter - Industrial USB 2.0 to DB9 Serial Converter Hub - IP30 Rated - Din Rail Mountable Metal Serial Hub - 15kV ESD Protection , TAA Title Ingram (Part 1) Industrial USB to RS232/422/485 Title Ingram (Part 2) Serial Adapter - 4-Port Website Product Headline Add four ports supporting three serial protocols, to easily connect serial devices to your computer through USB, with 15kV ESD protection Bullet 1 RUGGED & RELIABLE: This industrial metal USB to serial adapter hub adds 4 RS-232/422/485 ports & 1 USB 2.0 port w/ 15kV ESD surge protection (level 4), IP30 rating & locking connectors on all ports Bullet 2 4 SERIAL PORTS: The ports on this USB to serial converter can be individually configured to RS232, RS422 or RS485 (2wire/4wire) at baud rates up to 921.6Kbps for devices like barcode scanners/printers Bullet 3 MOUNTING OPTIONS: This metal mountable 4-port serial hub w/ 6ft (1.8 m) screw-lock USB cable incl. installs securely to a desk, wall or DIN rail using the built-in mounting ears & incl. DIN brackets Bullet 4 FLEXIBLE POWER: This serial hub can be powered with either the 12V screw-locking power adapter or the 5V USB input, while each serial port (pin 9) can be set to 5V, 12V (power adapter required), or 0V Bullet 5 WIDELY COMPATIBLE: To connect industrial grade equipment to any terminal, the USB to multiple DB9 male serial converter supports current and legacy Windows, Linux, macOS, as well as embedded platforms Bullets (Compact) Industrial 4 port serial hub 15kV Level 4 ESD - IP30 rating metal USB to serial adapter converter w/ each DB9 port set to RS232/RS422/RS485(2wire/4wire) baud rates up to 921.6Kbps - Desk/wall/DIN rail mount - 6ft USB cable - 12V power adapter/5V USB Bullets (Consolidated) Rugged industrial sub to serial converter w/ 15kV ESD surge protection (level 4) IP30 rating and locking connectors (all ports) - Each port on the metal 4 port serial hub can be set to RS232/RS422/RS485(2wire/4wire) at baud rates up to 921.6Kbps - Desk/wall/DIN rail mountable - Incl. 6' locking USB cable - Power using incl. locking power adapter (12V) or USB (5V) DB9 male serial ports (pin9) can be individually set to 5V/12V/0V - Supports current/legacy Windows/Linux/macOS + embedded platform Marketing Copy Applications - Connect your RS232, RS422 and RS485 serial devices through your computer's USB port for easy access to barcode scanners, receipt printers and other serial devices
- Connect, monitor and control industrial/automotive sensors and equipment
- Program LED and digital signage boards with serial communication ports
- Connect a satellite receiver, serial modem, or PDA with serial sync
Website Search Keyword - USB to RS-232/422/485 serial adapter
- USB RS-232/422/485 serial adapter
- USB to RS-232 serial adapter
- USB to RS-232/422/485
- USB to serial adapter
- USB serial adapter
- USB to Serial Converter
- USB Serial Converter
- Serial to USB converter
- 9 pin to USB
- USB to RS232 Adapter
- rs485 to USB
- 4-Port Industrial USB to RS-232/422/485 Serial Adapter
- 4-Port USB to RS-232/422/485 Serial Adapter
- 4-Port USB to Serial Adapter
- 4 Port USB to Serial Adapter
- 4 Port Serial Adapter
- 4-Port Serial Adapter
Required Regulatory Compliance Marks - RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
Related Products - ICUSB2328
- ICUSB23208FD
- ICUSB23216FD
- ICUSB23216F
- ICUSB2321F
- ICUSB232PRO
- ICUSB232V2
- ICUSB232DB25
- ICUSB2321FIS
- ICUSB2321X
- ICUSB232SM3
- ICUSB232IS
- ICUSBANDR232
- ICUSB232D
- ICUSB2321284
- ICUSB2322X
- ICUSB232C2
- ICUSB2322F
- ICUSB2322I
- ICUSB2324
- ICUSB2324I
- ICUSB2324X
- ICUSB2322RJ
- ICUSB232FTN
- ICUSB2324852
- ICUSB234858I
Constrained SKU Alternatives (Limited Stock) ICUSB234858I Output Current 1A Output Voltage (V) 12V DC Plug Type M Color Black Humidity 5~95% RH Material Steel Operating Temperature 0°C to 55°C (32°F to 131°F) Primary Material Steel Product Length (mm) 128 Product Width (mm) 116 Product Height (mm) 25 Product Weight (g) 374 Storage Temperature -20°C to 85°C (-4°F to 185°F) TAA Compliant Yes Buffer Size 2 KB Data Bits 7, 8 Max Baud Rate 921.6 Kbps Maximum Data Transfer Rate 921.6 Kbps MTBF (hours) 262,123 Hours OS Compatibility - Windows 8
- Windows 7
- Windows Server 2012
- Linux
- Windows 10
- macOS Sierra (10.12)
- Windows Server 2016
- macOS High Sierra (10.13)
- macOS Mojave (10.14)
- Windows Server 2019
- macOS Catalina (10.15)
- macOS Big Sur (11.0)
- Windows 11
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- Windows Server 2022
- macOS Sonoma (14.0)
- Windows 11 ARM
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)
Parity Odd, Even, Mark, Space, None Stop Bits 1, 2 Supported Serial Protocol RS-232/422/485 Surge Protection 15 kV ESD Surge Protection Bus Type USB 2.0 Chipset ID FTDI - FT4232H Interface/Bridge Serial IO Card Port Style External Hub LED Indicators - 4 - Sets of 4 - port mode
- 4 - Port send
- 1 - Power
- 4 - Port receive

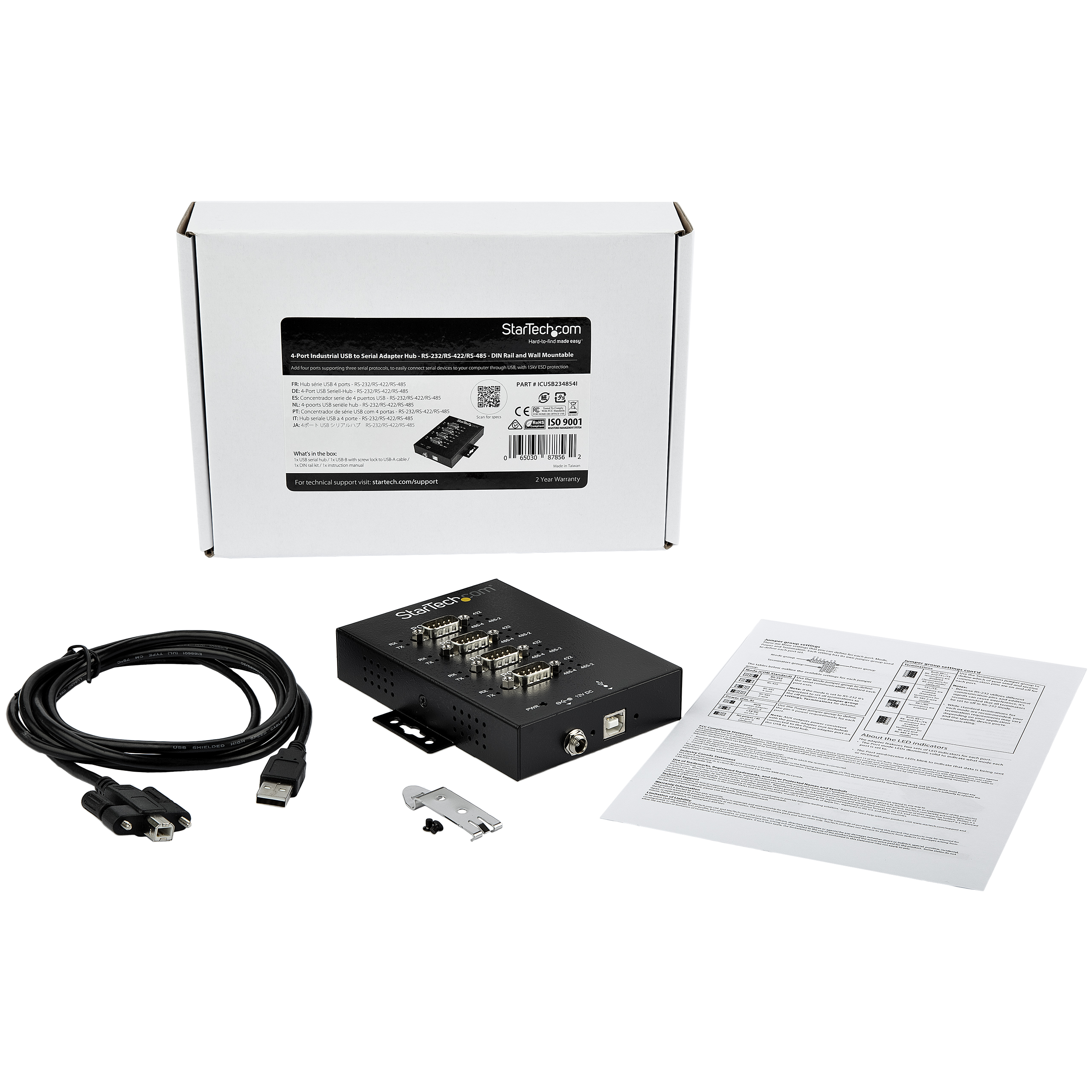

Carton Depth (mm) 434 Carton Height (mm) 413 Carton Quantity 15 Carton Weight Gross (g) 9660 Included in Package - 1 - USB serial hub
- 1 - 6 ft. [2 m] USB-B with screw lock to USB-A cable
- 1 - DIN rail kit
- 1 - instruction manual
Included In Package for Label - 1 - USB Serial Hub
- 1 - 6 Ft. [2 M] USB-B With Screw Lock To USB-A Cable
- 1 - Din Rail Kit
- 1 - Instruction Manual
Package Depth (mm) 169 Package Height (mm) 57 Package Width (mm) 245 Package Quantity 1 Package Weight (g) 586 Packaging Description 4-Port USB Serial Hub - RS-232/RS-422/RS-485 Packaging Description India 4-Port USB Serial Hub - RS-232/RS-422/RS-485 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-B (480Mbps, 2.5W) Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 4 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2018-01-26 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2018-01-26 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,HK,IE,IN,IT,JP,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Development Completion Date 2018-01-05 Target Production Release 2018-01-26 Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None
