ICUSB422

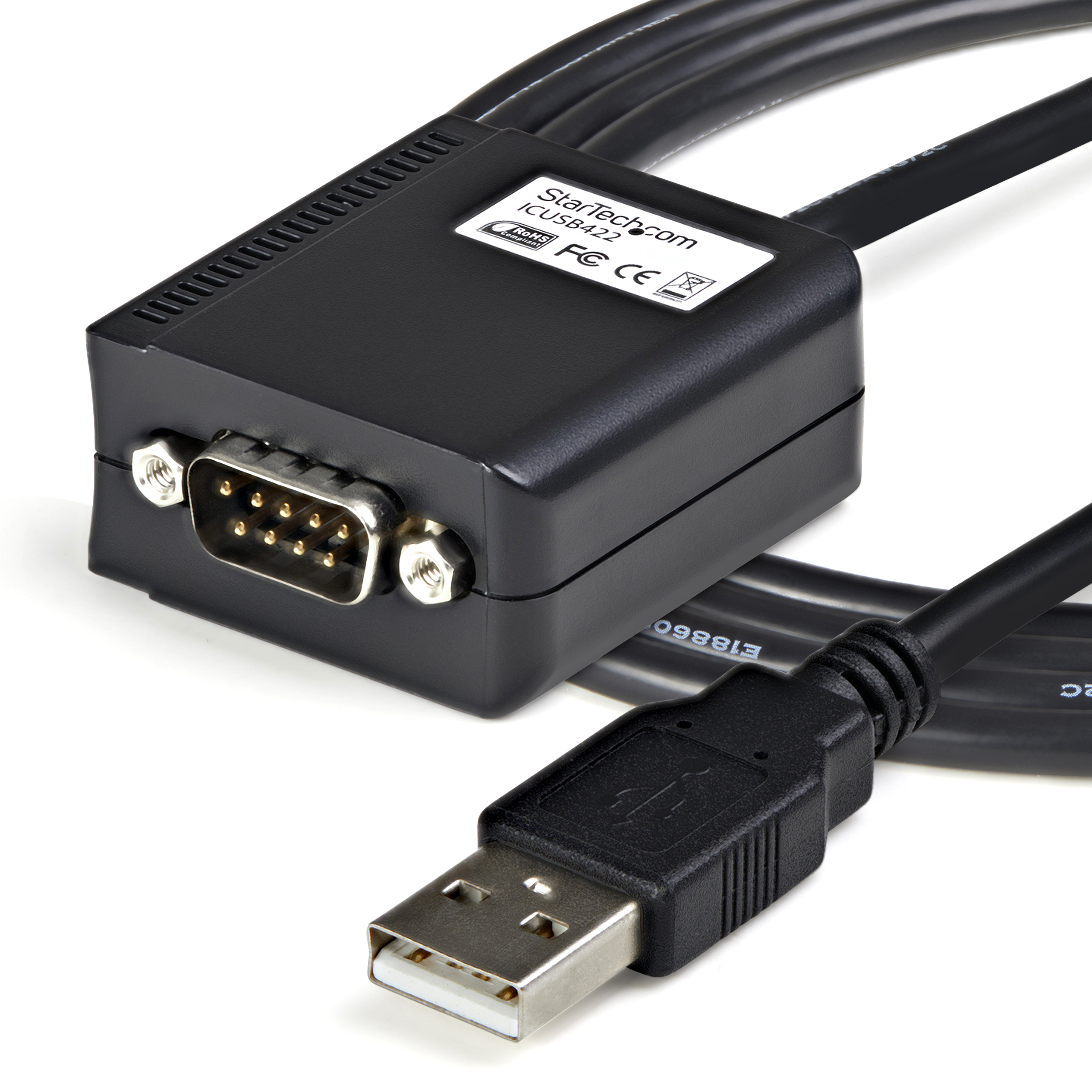

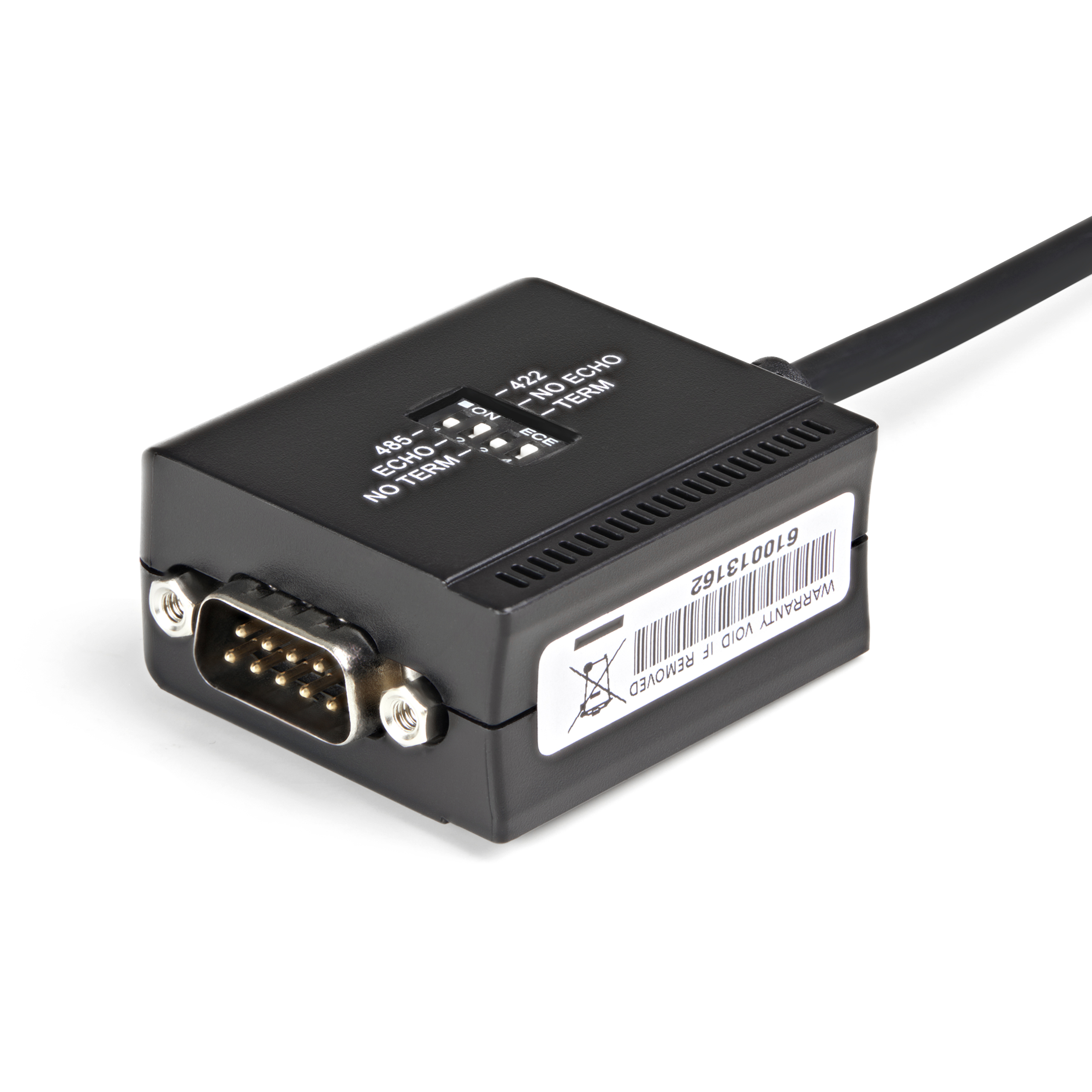

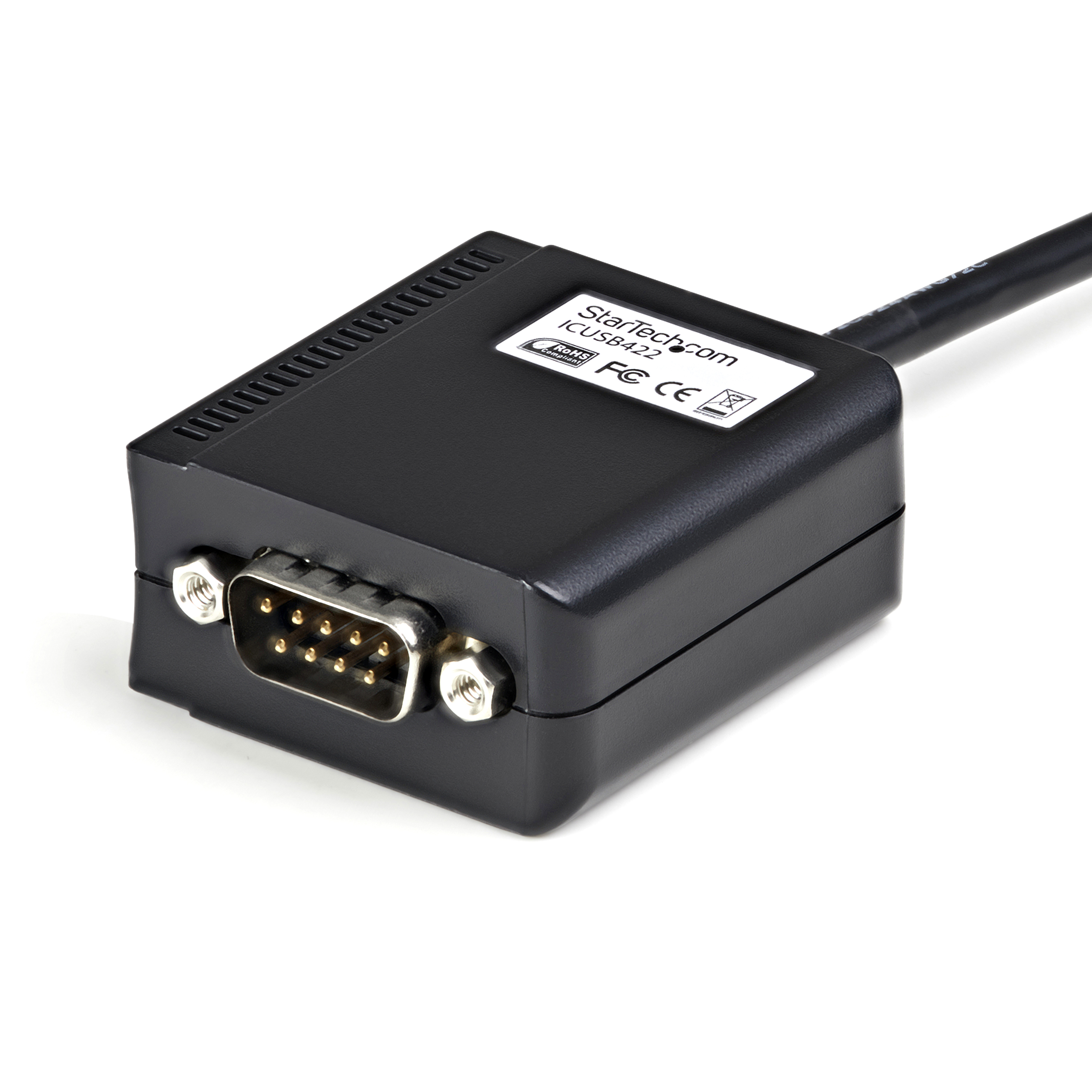

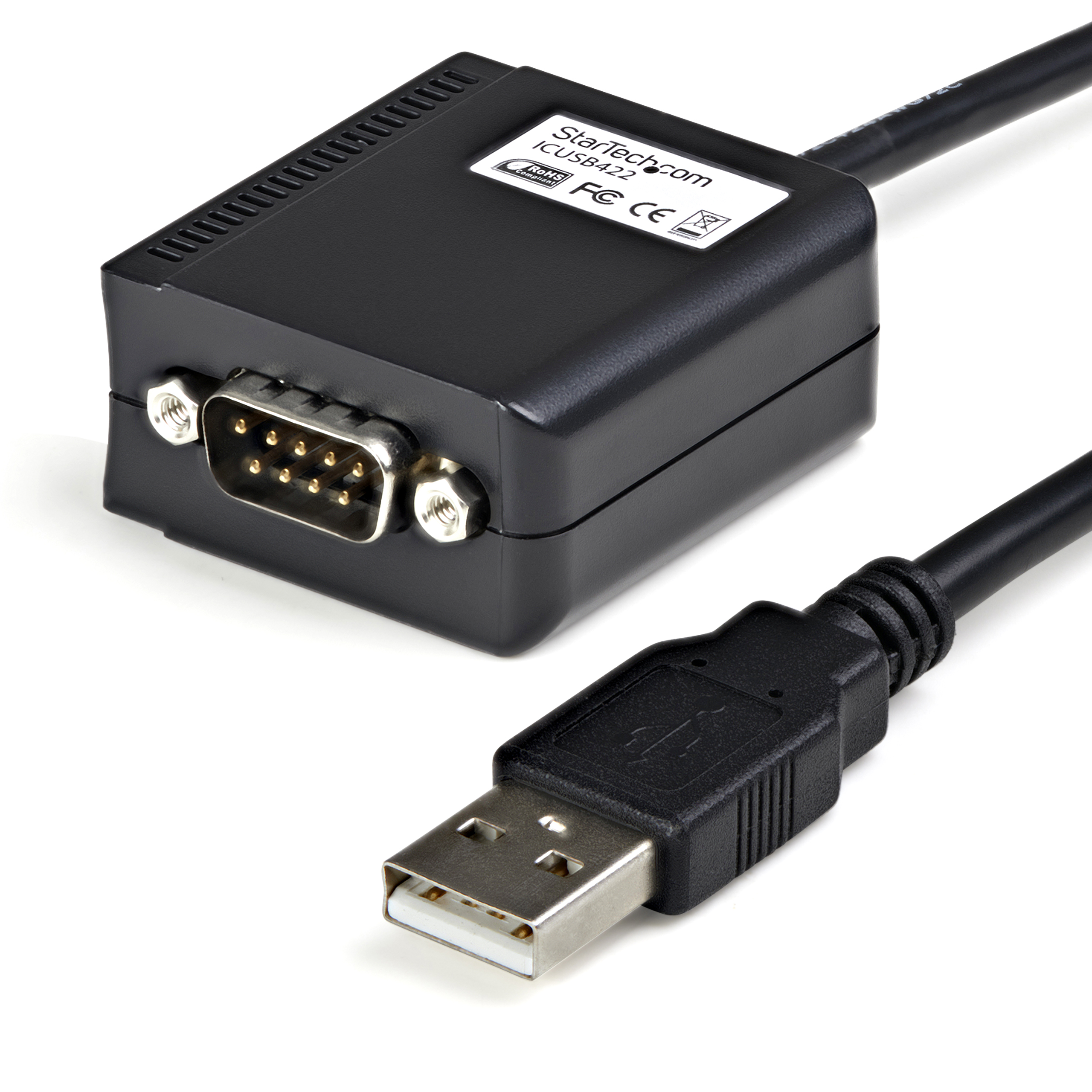

1.8m USB to RS422/485 Serial Cable
Add an RS422/485 serial port to your system through USB; features COM port retention
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name 1.8m USB to RS422/485 Serial Cable Product Number ICUSB422 UPC 065030836548 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > Serial and Parallel Cards & Adapters Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 USB Serial Host Adapter Interconnects Family USB to Serial Adapter Cables - USB-A - FTDI Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX013X Product Title (Short) RS422 RS485 USB Serial Cable Adapter Product Title (Medium) . Product Title (Standard) 6ft (1.8m) 1-Port Professional RS422/485 USB Serial Cable Adapter with COM Retention, USB to RS422 Adapter - TAA Product Title (Long) 6ft (1.8m) 1-Port Professional RS422/485 USB Serial Cable Adapter with COM Retention, USB to RS422 Adapter - TAA Product Title (AMZ) 6ft (1.8m) 1-Port Professional RS422/485 USB Serial Cable Adapter with COM Retention, USB to RS422 Adapter - TAA Title Ingram (Part 1) 6ft RS422 RS485 USB to Serial Ca Title Ingram (Part 2) ble Adapter w/ COM Retention Website Product Headline Add an RS422/485 serial port to your system through USB; features COM port retention Bullet 1 CUSTOMIZABLE SOLUTION: This USB serial hub features an FTDI chipset, making it highly customizable and compatible, and the ideal solution for any setup Bullet 2 COMPACT DESIGN: Designed with a small form factor, this serial RS422/485 converter is USB powered and requires no bulky power adapters or an outlet Bullet 3 EASY INSTALLATION: This serial adapter ensures easy installation and operation with COM port retention that provides robust serial connectivity for legacy devices Bullet 4 TECH SPECS: 6 feet (1.8 meters); FTDI FT232RL Chipset; Max Baud Rate: 921.6 Kbps; 256 Bytes FIFO; None/Odd/Even Parity Modes; 7 or 8 Data Bits; 1 or 2 Stop bits; TAA Compliant Bullet 5 MULTI-USE FUNCTIONALITY: This versatile USB to serial RS422/485 adapter is perfect for a range of applications, from digital signage to connecting point-of-sale systems and barcode scanners Bullets (Compact) Straight-Through USB to RS422/485 adapter - Small form factor and USB powered - Simple install / operation with COM port retention; Compatible with Windows, macOS and Linux - 6ft (1.8m); FTDI FT232RL Chipset; 921.6 Kbps Max Baud Rate; TAA Compliant Bullets (Consolidated) - Straight-Through USB to RS422/485 adapter - USB serial hub features an FTDI chipset, making it highly customizable and compatible - Small form factor designed serial RS422/485 converter is USB powered - Simple installation and operation with COM port retention; Compatible with Windows, macOS and Linux - 6ft (1.8m); FTDI FT232RL Chipset; 921.6 Kbps Max Baud Rate; 256 Bytes FIFO; 7 or 8 Data Bits; 1 or 2 Stop bits; TAA Compliant Marketing Copy Applications - Ideal for connecting serial RS422/485 devices to notebooks or tablet PC’s through an available USB port
- Perfect for controlling/diagnosing manufacturing machines(CNC, Process Control Equipment, Bar Code Scanners, Serial Printers)
- Security device control (key panels, cameras, card readers)
- Adapting and expanding POS systems
- Communicating with test and monitoring equipment.
- Great for Industrial programmers looking to test new code with serial devices
- Connect and program LED and Digital signage boards with serial communication ports
Website Search Keyword - Serial
- serial adapter
- USB to RS485
- USB to RS422
- RS-485
- RS-422
- USB converter
- USB 2.0
- Serial Converter
- Adapter Cable
- U209-30N-IND
- U209-000-R
Microsoft WHQL Certified Yes Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Accessory Products - GC98FF
- FIBCLDB9MF3
- FIBCLDB9MF6
- C9PCF
- C9PSF
- GC99MFRA2
- GC9SF
- MC6MF
- MXT100
- MXT100_25
- MXT100FF
Related Products - ICUSB422IS
- PCI2S422ISO
- PCI4S422DB9
- CB1S485
- NETRS2321E
- PCI2S485
- ICUSB2321X
- ICUSB2322X
- ICUSB2324X
- ICUSB232PRO
- ICUSB232
Cable Length (mm) 1830 Color Black Humidity 5~95% RH Material Plastic Operating Temperature 0°C to 55°C (32°F to 131°F) Primary Material Plastic Product Length (mm) 1830.000 Product Width (mm) 41.470 Product Height (mm) 22.060 Product Weight (g) 78 Storage Temperature -20°C to 85°C (-4°F to 185°F) TAA Compliant Yes Data Bits 7, 8 FIFO 256 Bytes Max Baud Rate 921.6 Kbps OS Compatibility - Linux
- Windows Server 2012
- Windows 8
- Windows 7
- Windows 10
- macOS Sierra (10.12)
- Windows Server 2016
- macOS High Sierra (10.13)
- macOS Mojave (10.14)
- Windows Server 2019
- macOS Catalina (10.15)
- macOS Big Sur (11.0)
- Windows 11
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- Windows Server 2022
- macOS Sonoma (14.0)
- Windows 11 ARM
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)
- Windows Server 2025

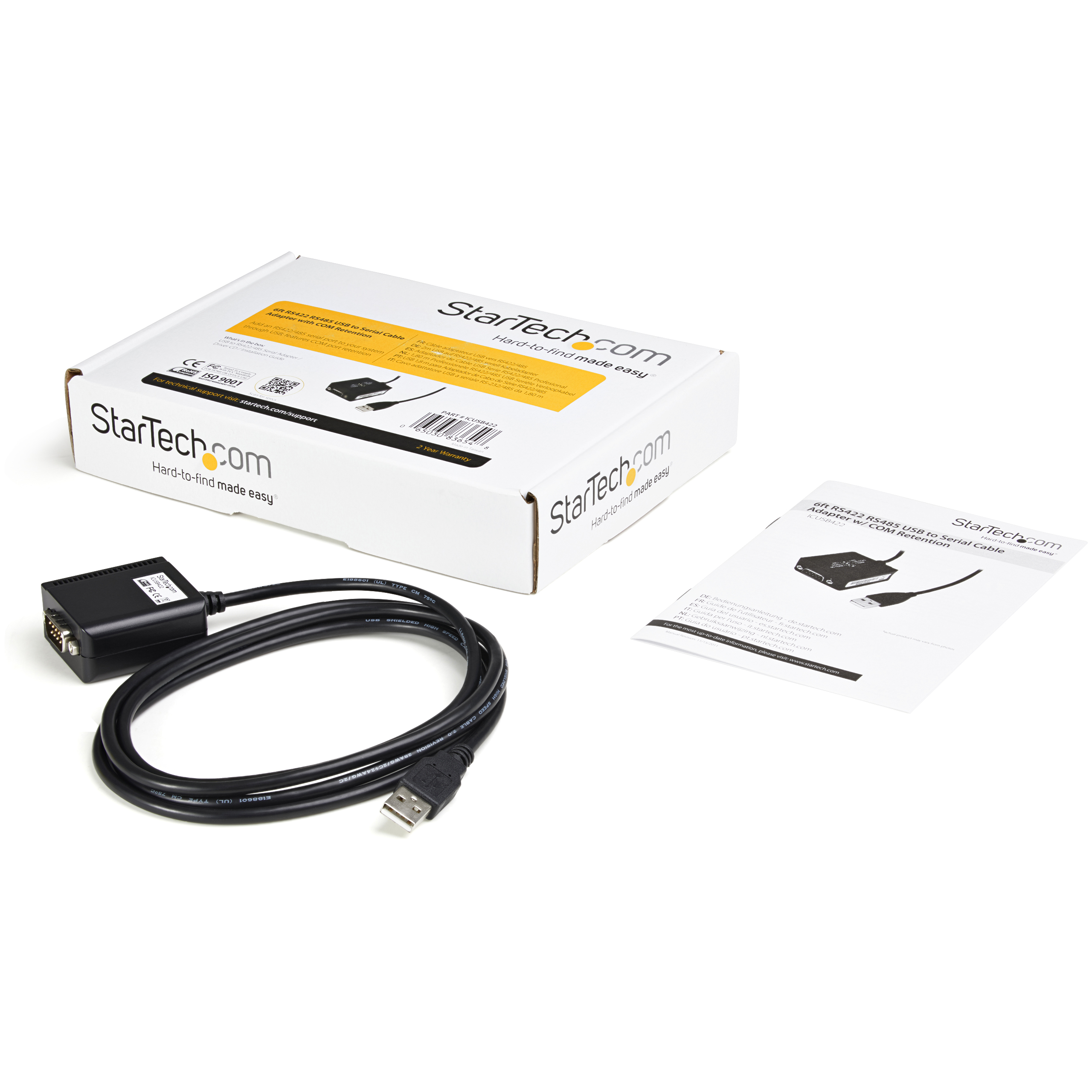

Parity Even, Odd, None Stop Bits 1, 2 Supported Serial Protocol RS-422/485 Bus Type USB 2.0 Chipset ID FTDI - FT232RL Interface/Bridge Serial IO Card Port Style Cable Adapters Carton Depth (mm) 448 Carton Height (mm) 332 Carton Quantity 50 Carton Weight Gross (g) 11210 Included in Package - 1 - USB to RS422/485 Serial Adapter
- 1 - Driver CD
- 1 - Installation Guide
Included In Package for Label - 1 - USB to RS422/485 Serial Converter
- 1 - Driver CD
- 1 - Installation Guide
Package Depth (mm) 145 Package Height (mm) 42 Package Width (mm) 209 Package Quantity 1 Package Weight (g) 202 Packaging Description 6ft USB to RS422/485 Serial Cable Adapter Packaging Description India 1.8m USB to RS422/485 Serial Cable Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (480Mbps, 2.5W) Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,IE,IN,IT,MX,NL,PE,SE,SG,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None
