ICUSB422IS
1 Port Metal USB to RS422 RS485 Serial Adapter
Add an R422/485 serial port to your laptop or desktop computer through USB
Main Image
Product Images
Product Images
BOM Image
Product Name 1 Port Metal USB to RS422 RS485 Serial Adapter Product Number ICUSB422IS UPC 065030830683 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > Serial and Parallel Cards & Adapters Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 USB Serial Host Adapter Interconnects Family Industrial USB to Serial Adapters - Multi-Protocol Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX013X Product Title (Short) 1 Port USB to Serial RS422/485 Adapter Product Title (Medium) x Product Title (Standard) USB serial adapter, RS422, RS485, Industrial, serial, 1 port, TAA Product Title (Long) 1 Port Metal Industrial USB to RS422/RS485 Serial Adapter w/ Isolation - TAA Product Title (AMZ) 1 Port Metal Industrial USB to RS422/RS485 Serial Adapter w/ Isolation , TAA (ICUSB422IS) Title Ingram (Part 1) 1 Port Industrial USB to RS422/R Title Ingram (Part 2) S485 Serial Adapter Website Product Headline Add an R422/485 serial port to your laptop or desktop computer through USB Bullet 1 Provides one RS422/485 port while powering the device through USB Bullet 2 RS-485 mode supports Auto Transceiver Turn Around (ATTA) Bullet 3 Compatible with both USB 2.0 and USB 1.1 Bullet 4 RS422/485 Baud rate up to 921.6 Kbps Bullet 5 Supports DB9 and terminal block connector Bullets (Consolidated) Provides one RS422/485 port while powering the device through USB - RS-485 mode supports Auto Transceiver Turn Around (ATTA) - Compatible with both USB 2.0 and USB 1.1 - RS422/485 Baud rate up to 921.6 Kbps - Supports DB9 and terminal block connector - Optical Isolation and Surge Protection (2500 Vrms) - Supports 4-wire RS422 and 2-wire RS485 applications Marketing Copy Applications - Manufacturing (CNC machinery, process control equipment, bar code scanners, serial printers)
- Security (UPS control, access key panels, video cameras, card readers)
- POS (credit/debit card readers, receipt printers, bar code scanners, cash registers, scales)
- Hospital (monitoring equipment, nurses' stations)
- Hotel Front Desk (serial printers, bar code scanners, keyboard, mouse, receipt printer, credit/debit card reader)
- Hospitality/Restaurant (credit card/debit card reader, serial printers)
Website Search Keyword - usb to serial
- usb to serial port
- isolation
- usb hub
- usb serial
- rs422
- rs485
- surge protection
- usb serial adapter
- serial to usb
- serial port
- industrial devices
- isolate
- U208-001-IND
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Accessory Products - GC9SF
- SCNM9FM
- SCNM9FF
- SCNM925FM
Related Products - PCI2S485
- NETRS2321E
- PCI4S422DB9
Input Current 200mA Input Voltage 5 DC Power Source USB-Powered Cable Length (mm) 1830 Color Black Humidity 5~95% RH Material Steel Operating Temperature 0°C to 55°C (32°F to 131°F) Primary Material Steel Product Length (mm) 118 Product Width (mm) 64 Product Height (mm) 23 Product Weight (g) 180 Storage Temperature -20°C to 85°C (-4°F to 185°F) TAA Compliant Yes Data Bits 7, 8 FIFO 256 Byte Receive/128 Byte Transmit Max Baud Rate 921.6 Kbps OS Compatibility - Linux
- Windows Server 2012
- Windows 8
- Windows 7
- Windows 10
- macOS Sierra (10.12)
- Windows Server 2016
- macOS High Sierra (10.13)
- macOS Mojave (10.14)
- Windows Server 2019
- macOS Catalina (10.15)
- macOS Big Sur (11.0)
- Windows 11
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- Windows Server 2022
- macOS Sonoma (14.0)
- Windows 11 ARM
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)
- Windows Server 2025

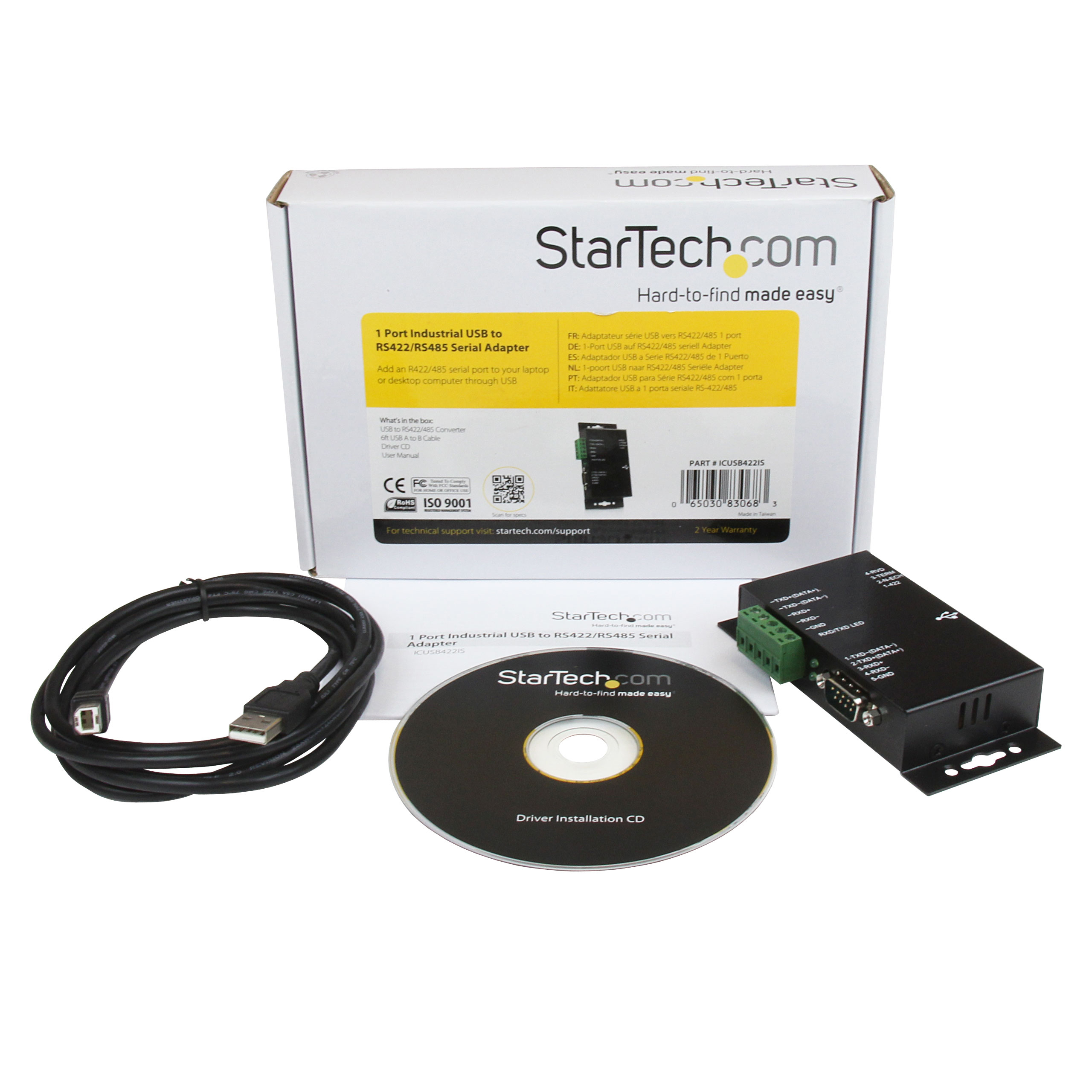

Parity Even, Odd, Mark, Space, None Stop Bits 1, 2 Supported Serial Protocol RS-422/485 Surge Protection 500W Bus Type USB 2.0 Chipset ID FTDI - FT232RL Interface/Bridge Serial IO Card Port Style External Hub Carton Depth (mm) 412 Carton Height (mm) 278 Carton Quantity 25 Carton Weight Gross (g) 10136 Included in Package - 1 - USB to RS422/485 Converter
- 1 - 6ft USB A to B Cable
- 1 - User Manual
- 1 - Driver CD
Included In Package for Label - 1 - Driver CD
- 1 - User Manual
- 1 - 6Ft USB A To B Cable
- 1 - USB To Rs422/485 Converter
Package Depth (mm) 145 Package Height (mm) 42 Package Width (mm) 209 Package Quantity 1 Package Weight (g) 372 Packaging Description 1 Port USB to RS422/485 Serial Adapter Packaging Description India 1 Port USB to RS422/485 Serial Converter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-B (480Mbps, 2.5W) Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 1 Connector 3 Terminal Block (5 Wire) Connector 3 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FR,IE,IN,IT,JP,NL,NZ,SE,SG,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None
