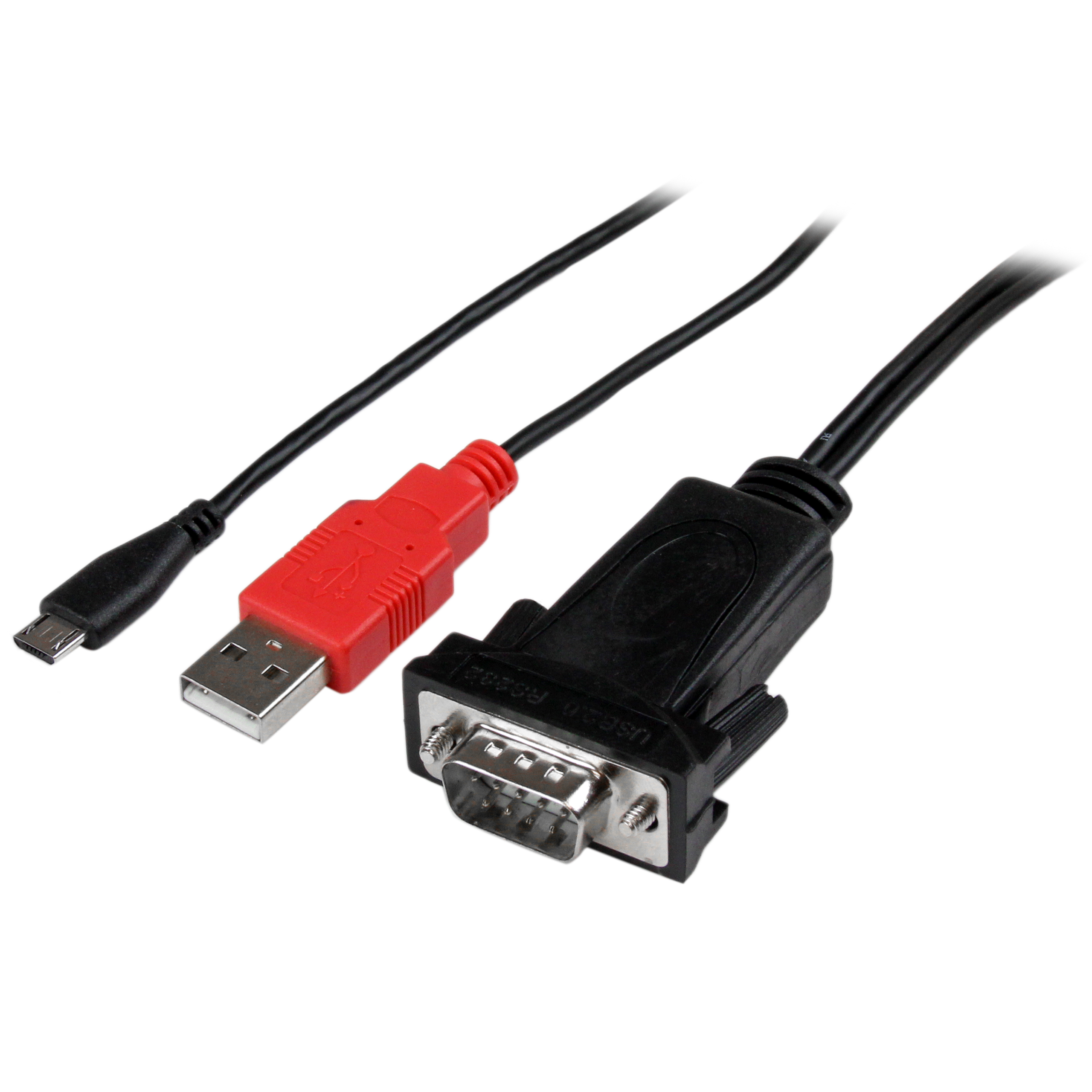

Main Image
ICUSBANDR232
Android RS-232 Cable
Add an RS232 serial port to your Android smartphone or tablet device through Micro USB with USB charging capabilities
Main Image

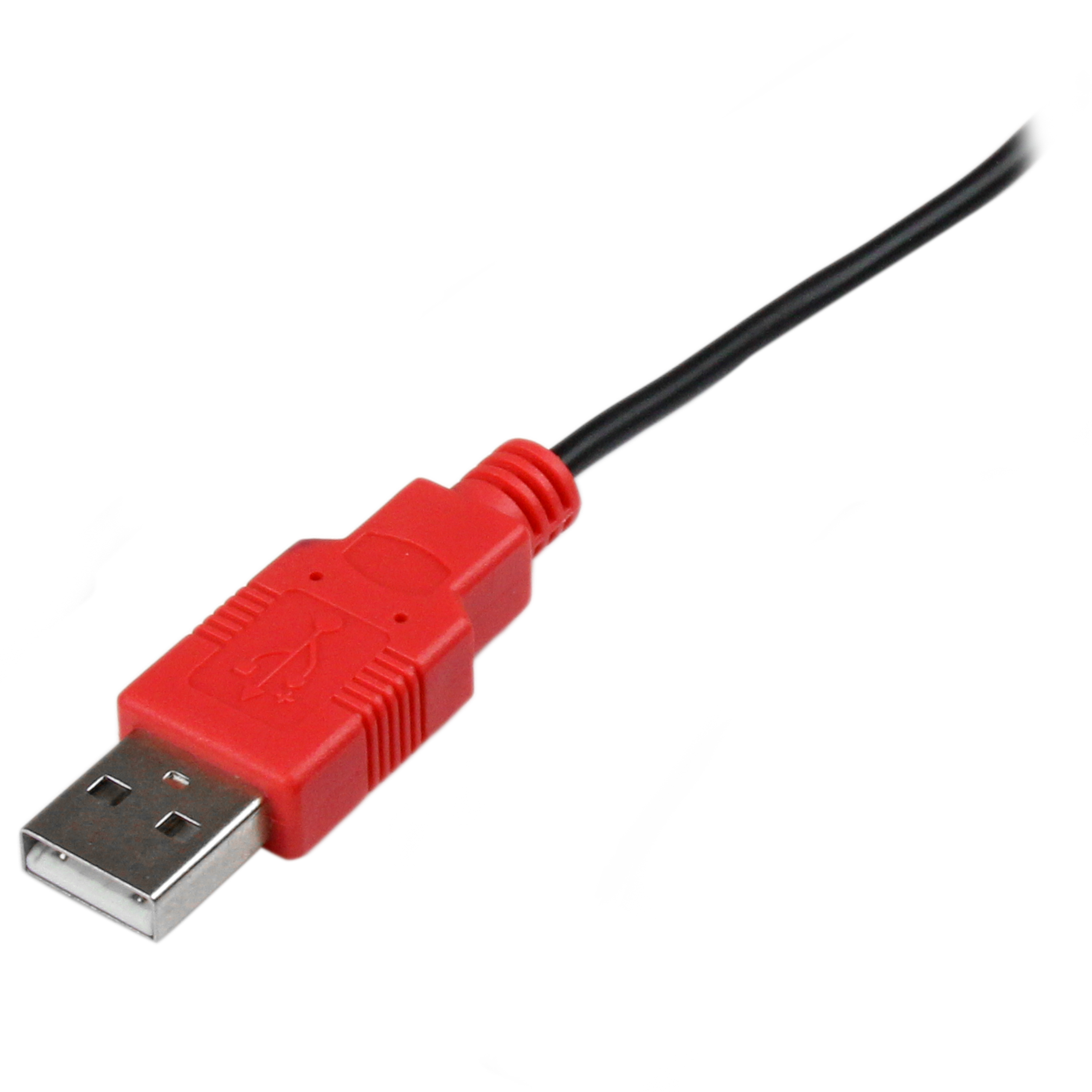

Product Images

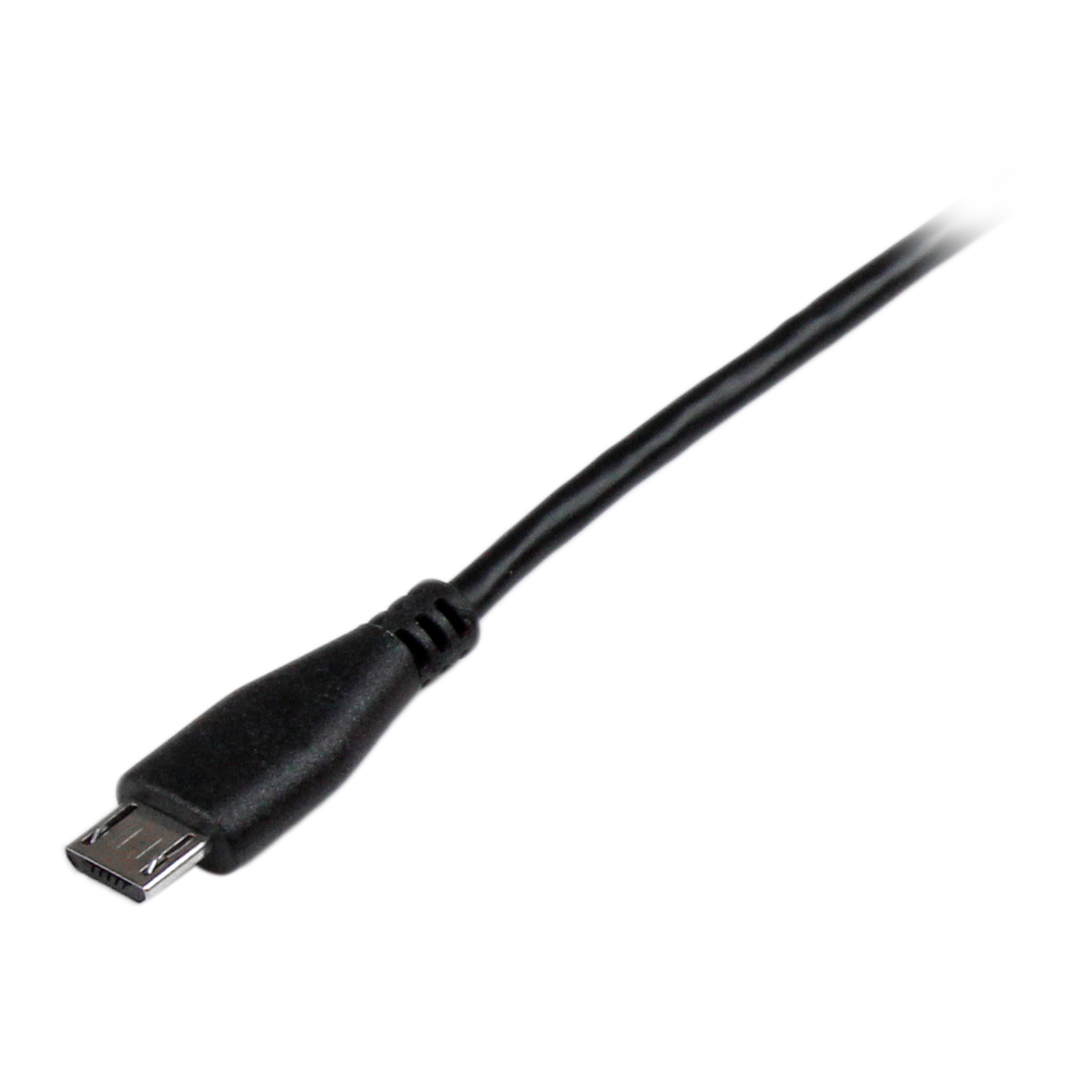

Product Images

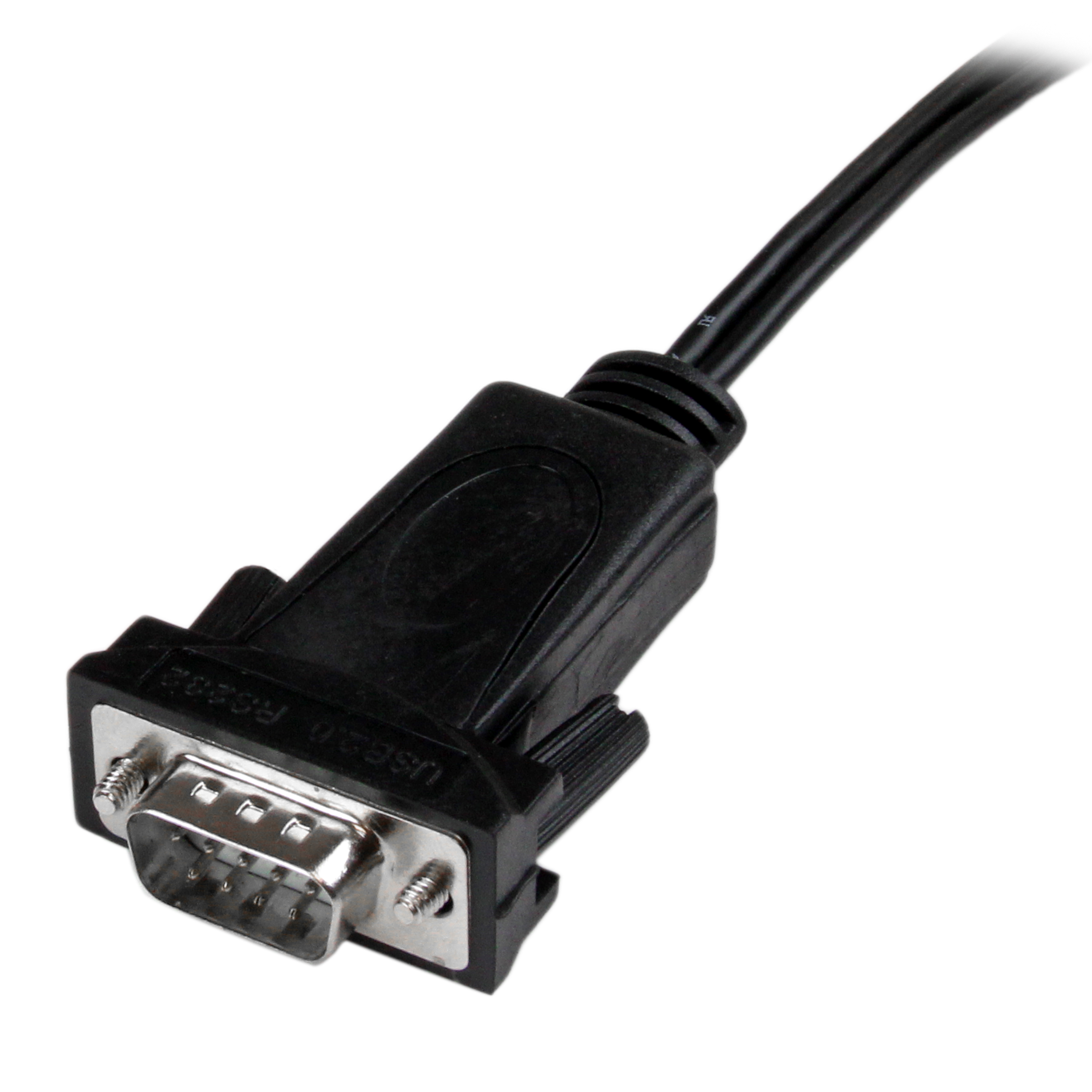

Product Images

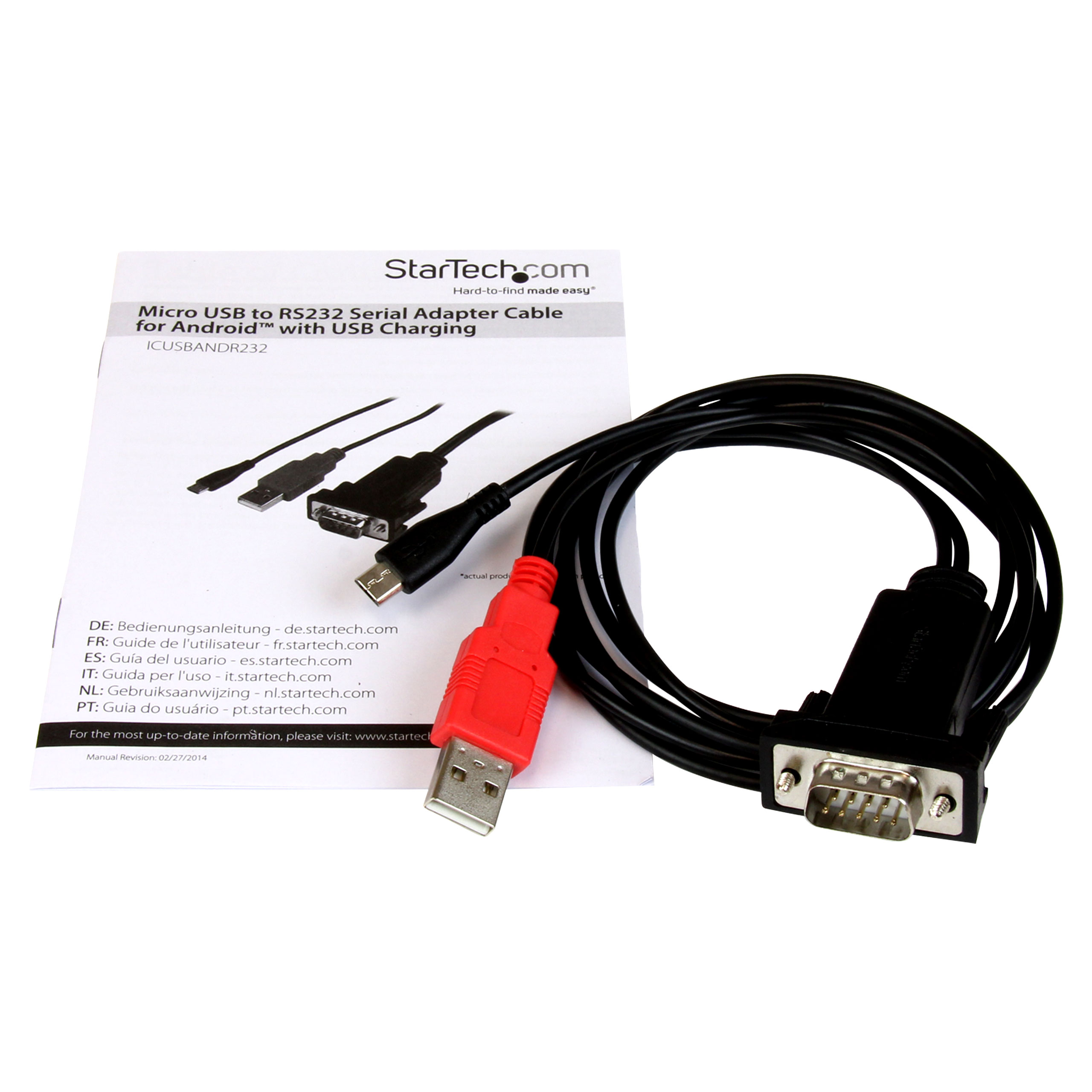

BOM Image
Product Name Android RS-232 Cable Product Number ICUSBANDR232 UPC 065030855853 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 USB Serial Host Adapter Interconnects Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX090X Product Title (Ultra-Short) Android Micro USB to Serial Product Title (Short) Android Micro USB to DB9 Serial Adapter Product Title (Medium) Micro USB to RS232 DB9 Serial Adapter Cable for Android™ with USB Charging - M/M Product Title (Standard) Micro USB to RS232 DB9 Serial Adapter Cable for Android™ with USB Charging - M/M Product Title (Long) Micro USB to RS232 DB9 Serial Adapter Cable for Android with USB Charging - M/M Product Title (AMZ) Micro USB to RS232 DB9 Serial Adapter Cable for Android w/ USB Charging - M/M - Micro USB to Serial Converter for Android (ICUSBANDR232) Title Ingram (Part 1) Micro USB to Serial Converter Title Ingram (Part 2) for Android w/ USB Charging Website Product Headline Add an RS232 serial port to your Android smartphone or tablet device through Micro USB with USB charging capabilities Bullet 1 OTG (On-The-Go) support not required by the connected mobile device Bullet 2 USB to Straight-Through RS-232 DB9 Serial Adapter for Android Bullet 3 Supports baud rates up to 921.6 Kbps Bullet 4 Compatible with USB 1.1 or higher ports Bullet 5 Single cable, small footprint design for portability Bullets (Consolidated) Add an RS232 serial port to your Android smart phone or tablet device through Micro USB with USB charging capabilities - Micro USB to RS232 DB9 Serial Adapter Cable for Android with USB Charging - M/M - Android Micro USB to Serial Converter with Charging - Android RS232 Cable - Powers and Charges the Connected Android Device - OTG Not Required Marketing Copy Applications - Mobile hobbyists and enthusiasts configuring serial-based projects and applications
- Administrators or mobile repair technicians controlling or configuring serial devices in a server room or office
- Hospital and medical environments with monitoring equipment, nurses' stations
- Remote locations where a laptop/desktop serial controller is unavailable
- POS devices such as credit/debit card readers, receipt printers, bar code scanners, or cash registers
- Control industrial/automotive sensors and equipment from an Android mobile device
Website Search Keyword - android serial adapter
- android rs232 adapter
- android serial cable
- android rs232 cable
- android micro usb to serial
- micro usb to serial
- db9 to micro usb
- android to serial
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
System and Cable Requirements - Available USB A Female Port for power/charging capabilities (eg: PC USB or USB Wall Charger)
- FTDI AOA HyperTerm Application for Android™ — To manually find and install the application, open the Google Play Store from your Android device, then search for "FTDI UART.”
Accessory Products - MXT106
- AT925SFM
- MXT100FF
- AT925FM
- MXT100_25
- MXT100
Power Source USB-Powered Cable Length (mm) 1000 Humidity 5-90% RH Operating Temperature 0°C to 60°C (32°F to 140°F) Product Length (mm) 1000.000 Product Width (mm) 35.000 Product Height (mm) 15.000 Product Weight (g) 103.100 Storage Temperature 0°C to 80°C (32°F to 176°F) TAA Compliant No Data Bits 7, 8 Flow Control None, CTS/RTS, DTR/DSR Max Baud Rate 921.6 Kbps OS Compatibility Android Parity None, Odd, Even, Mark, Space Stop Bits 1, 2 Supported Serial Protocol RS-232 Bus Type USB 2.0 Chipset ID FTDI - FT312D Industry Standards RS-232 Interface/Bridge Serial IO Card Port Style Cable Adapters Carton Depth (mm) 305 Carton Height (mm) 300 Carton Quantity 40 Carton Weight Gross (g) 5924 Included in Package - 1 - USB to RS-232 Serial Adapter Cable for Android™
- 1 - Instruction Manual
Package Depth (mm) 140 Package Height (mm) 30 Package Width (mm) 170 Package Quantity 1 Package Weight (g) 149.6 Packaging Description Micro USB to RS232 for Android™ with USB Charging Packaging Description India Micro USB to RS232 for Android™ with USB Charging Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DB-9 Serial Connector 1 (Quantity) 1 Connector 2 USB-A (480Mbps, 2.5W) Connector 2 (Quantity) 1 Connector 3 USB Micro-B (480Mbps, 2.5W) Connector 3 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-01-03 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AU,BE,CA,DE,DK,ES,EU,FR,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist kfarid Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None
