ICUSBAUDIO2D
USB to Audio Converter External SPDIF Sound Card
Add an SPDIF digital audio output and standard 3.5mm audio/microphone connections to your system through USB
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name USB to Audio Converter External SPDIF Sound Card Product Number ICUSBAUDIO2D UPC 065030852296 Lifecycle status Active Warranty 2 Years Taxonomy Product > Other > Audio Cards & Adapters Category Level 1 Computer Cards and Adapters Category Level 2 USB Audio Adapters Category Level 3 USB-A Audio Adapters Family USB-A Audio Adapters - 3.5mm with SPDIF Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX072X Product Title (Ultra-Short) Ext USB Sound Card Product Title (Short) USB Sound Card Audio Adapter w/ SPDIF Product Title (Medium) x Product Title (Standard) USB Stereo Audio Adapter External Sound Card with SPDIF Digital Audio Product Title (Long) USB Stereo Audio Adapter External Sound Card with SPDIF Digital Audio and Stereo Mic Product Title (AMZ) USB Sound Card w/ SPDIF Digital Audio & Stereo Mic – External Sound Card for Laptop or PC – SPDIF Output (ICUSBAUDIO2D) Title Ingram (Part 1) USB to Audio Converter Title Ingram (Part 2) External SPDIF Sound Card Website Product Headline Add an SPDIF digital audio output and standard 3.5mm audio/microphone connections to your system through USB Bullet 1 4 position TRRS headset with Mic supported Bullet 2 Hardware volume knob and Bass/Treble boost EQ switch Bullet 3 S/PDIF digital output with AC3 (Dolby Digital) and DTS pass-through support Bullet 4 3.5mm headphone/microphone ports Bullet 5 96KHz / 24-bit Hi-Fi USB Audio Bullets (Compact) Add an SPDIF digital audio output and standard 3.5mm audio/microphone connections to your system through USB - USB Stereo Audio Adapter - External Sound Card w/ SPDIF Out - USB Sound Card Adapter - USB to Audio Converter - USB SPDIF Sound Card Bullets (Consolidated) Add an SPDIF digital audio output and standard 3.5mm audio/microphone connections to your system through USB - USB Stereo Audio Adapter - External Sound Card w/ SPDIF Out - USB Sound Card Adapter - USB to Audio Converter - USB SPDIF Sound Card - USB DAC - USB Audio Adapter - 4 position TRRS headset with Mic supported - 16in Attached USB Cable Marketing Copy Marketing Copy (No HTML) Applications - Add digital audio support to an Ultrabook™ or small form factor system with no internal expansion options
- Connect your computer to a home theater audio receiver through S/PDIF, without opening the case
- Replace or upgrade the integrated audio on a laptop or portable computer
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
Special Notes - 5.1 surround sound output is supported in Windows only
- Microphone is stereo only.
System and Cable Requirements Available USB Port Accessory Products - THINTOSMIN10
- GCTOSMINIFM
- THINTOSMIN6
- THINTOSMIN3
- THINMIN6
- THINMIN3
- THINMIN10
Related Products - ICUSBAUDIO7D
- ICUSBAUDIO7
- ICUSBAUDIO
- ICUSBAUDIOB
Power Source USB-Powered Cable Length (mm) 406.5 Color Black Humidity 10~90% RH (Non-Condensing) Material Plastic Operating Temperature 0°C to 60°C (32°F to 140°F) Primary Material Plastic Product Length (mm) 47 Product Width (mm) 46 Product Height (mm) 16 Product Weight (g) 33 Storage Temperature 0°C to 70°C (32°F to 158°F) TAA Compliant No OS Compatibility - Windows 8
- Windows 7
- Windows Server 2012
- Windows 10
- Windows Server 2016
- Mac OS X
- Windows Server 2019
- Windows 11
- Windows Server 2022
Bus Type USB 2.0 Chipset ID Cmedia CM6533 LED Indicators - 1 - Power
- 3 - Playback sample rate

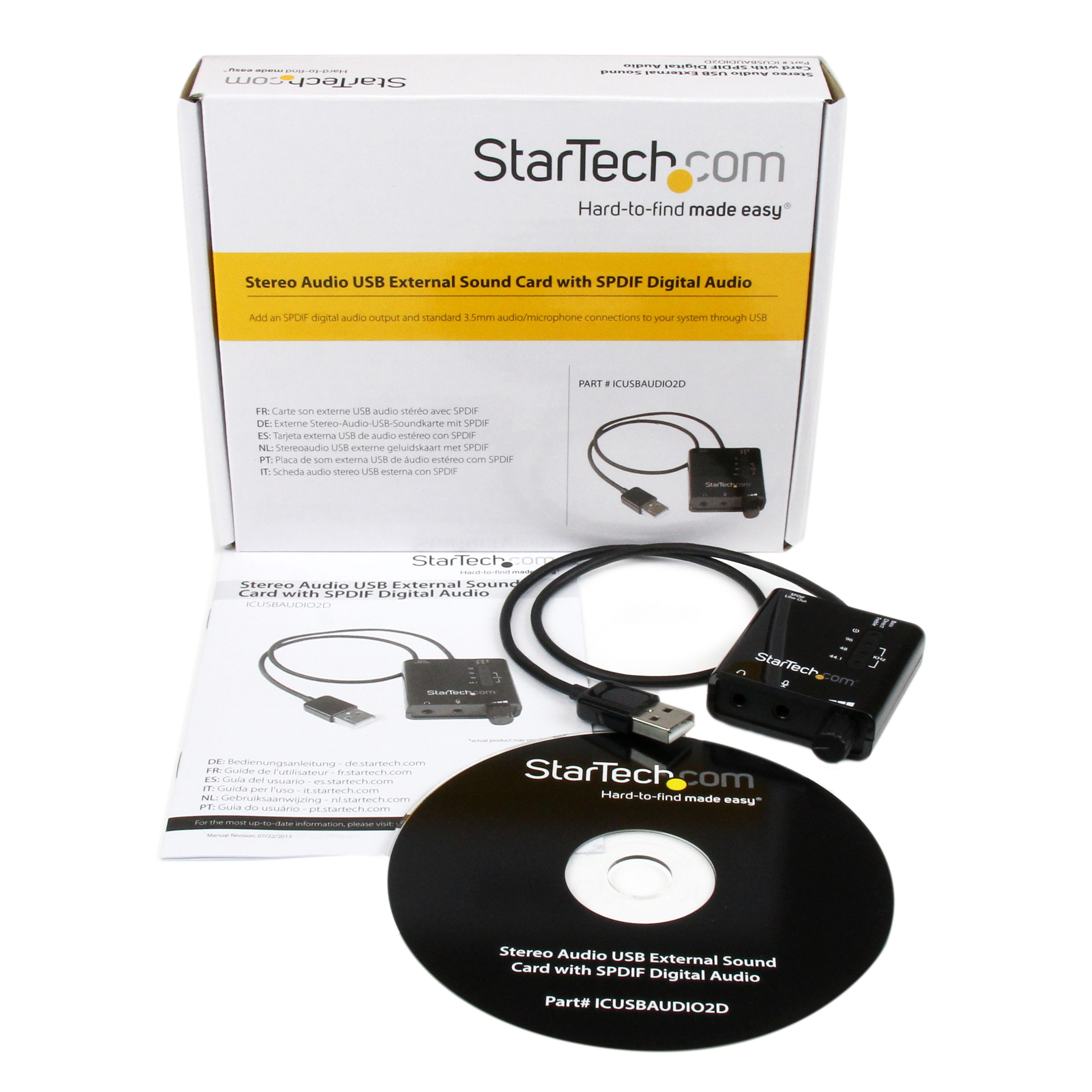

Carton Depth (mm) 270 Carton Height (mm) 372 Carton Quantity 50 Carton Weight Gross (g) 5420 Included in Package - 1 - USB Stereo Audio Adapter
- 1 - Instruction Manual
- 1 - Software CD
Included In Package for Label - 1 - Software CD
- 1 - Instruction Manual
- 1 - USB Stereo Audio Converter
Package Depth (mm) 143 Package Height (mm) 32 Package Width (mm) 172 Package Quantity 1 Package Weight (g) 90 Packaging Description Stereo Audio USB External Sound Card w/ SPDIF Packaging Description India Stereo Audio USB External Sound Card w/ SPDIF Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 3.5mm (4 Conductors, TRRS) Connector 1 (Quantity) 1 Connector 2 Mini-TOSLINK (Optical S/PDIF) Connector 2 (Quantity) 1 Connector 3 3.5mm (3 Conductors, TRS) Connector 3 (Quantity) 1 Connector 4 USB-A (480Mbps, 2.5W) Connector 4 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2013-07-08 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,HK,IE,IN,IT,JP,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None
