ICUSBAUDIOMH
USB to Audio Converter (DAC) SPDIF Sound Card
Add a 3.5mm audio connection with SPDIF digital output and an external microphone to your system through USB
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name USB to Audio Converter (DAC) SPDIF Sound Card Product Number ICUSBAUDIOMH UPC 065030854832 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 USB Audio Adapters Category Level 3 USB-A Audio Adapters Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX072X Product Title (Ultra-Short) Ext USB Sound Card Product Title (Short) USB Sound Card Audio Adapter w/ Mic Product Title (Standard) USB Stereo Audio Adapter External Sound Card with SPDIF Digital Audio and Built-in Microphone Product Title (Long) USB Stereo Audio Adapter External Sound Card with SPDIF Digital Audio and Built-in Microphone Product Title (AMZ) USB Stereo Audio Adapter External Sound Card with SPDIF Digital Audio Out and Built-in Microphone - USB Sound Card Adapter (ICUSBAUDIOMH) Title Ingram (Part 1) USB to Audio Converter (DAC) Title Ingram (Part 2) SPDIF Sound Card w/ Microphone Website Product Headline Add a 3.5mm audio connection with SPDIF digital output and an external microphone to your system through USB Bullet 1 96KHz / 24-bit Hi-Fi USB Audio Bullet 2 5.1 Surround Sound supported (Windows® only) Bullet 3 Combo 3.5mm Mini-Toslink and 3.5mm Stereo Headphone output Bullet 4 S/PDIF digital output with AC3 (Dolby Digital) and DTS pass-through support Bullet 5 Built-in microphone Bullets (Consolidated) Add a 3.5mm audio connection with SPDIF digital output and an external microphone to your system through USB - USB Stereo Audio Adapter w/ Built-in Microphone - USB - External Sound Card - USB Audio Converter - USB DAC Adapter - USB 2.0 Sound Adapter - USB Powered (DAC) 96KHz Sound Card - 5.1 Digital Surround Sound Support - Stereo Microphone Input Marketing Copy Applications - Connect your computer to a home theater audio receiver through S/PDIF, without opening the case
- Add digital audio support to an Ultrabook™ or small form factor system with no internal expansion options
- Replace or upgrade the integrated audio on a laptop or portable computer
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Special Notes 5.1 surround sound output is supported in Windows only System and Cable Requirements Available USB Port Accessory Products - THINTOSMIN10
- THINMIN10
- THINMIN3
- GCTOSMINIFM
- MUHSMF1M
- MUHSMF2M
- MU6MMRCA
- THINTOSMIN3
- THINTOSMIN6
- THINMIN6
Related Products - ICUSBAUDIO2D
- ICUSBAUDIO7
- ICUSBAUDIO7D
- ICUSBAUDIOB
- ICUSBAUDIO
Replacement Product ICUSBAUDIO2D Power Source USB-Powered Cable Length (mm) 380 Color Black Humidity 10~90% RH (Non-Condensing) Material Plastic Operating Temperature 0°C to 60°C (32°F to 140°F) Product Length (mm) 50 Product Width (mm) 21 Product Height (mm) 18 Product Weight (g) 22 Storage Temperature 0°C to 70°C (32°F to 158°F) TAA Compliant No OS Compatibility - Windows 8
- Mac OS X Mavericks (10.9)
- Windows Server 2012
- Windows 7
- Windows 10
- Windows Server 2016
- Windows 11
Bus Type USB 2.0 Chipset ID VIA/VLI - VT1630A Industry Standards LED Indicators - 1 - Power / USB Link
- 1 - Microphone Mute
- 3 - Playback / Recording Sample Rate
- 1 - Mute
- 1 - Activity

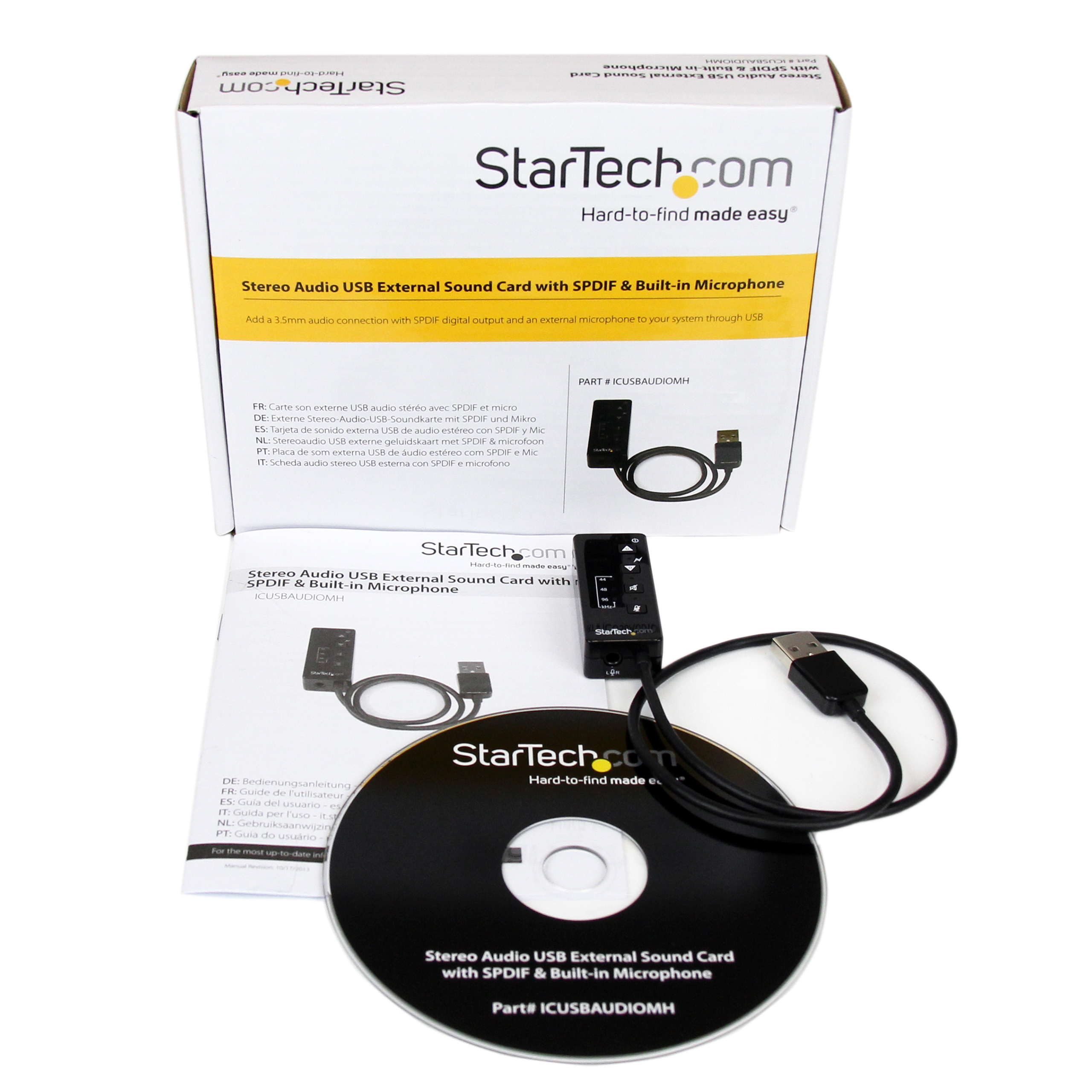

Carton Depth (mm) 275 Carton Height (mm) 400 Carton Quantity 50 Carton Weight Gross (g) 5500 Included in Package - 1 - USB Audio Adapter
- 1 - Software CD
- 1 - Instruction Manual
Package Depth (mm) 140 Package Height (mm) 30 Package Width (mm) 171 Package Quantity 1 Package Weight (g) 96 Packaging Description Stereo Audio USB External Sound Card w/ SFDIF & Mic Packaging Description India Stereo Audio USB External Sound Card w/ SFDIF & Mic Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (480Mbps, 2.5W) Connector 1 (Quantity) 1 Connector 2 3.5mm (3 Conductors, TRS) Connector 2 (Quantity) 1 Connector 3 3.5mm / Mini-TOSLINK Combo (TRS / Optical S/PDIF) Connector 3 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2013-10-22 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) BE,CA,DE,DK,ES,EU,FR,IT,NL,SE,UK,US Primary Technology None Product Development Specialist kfarid Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle Legacy
