Main Image
ICUSBROLLOVR

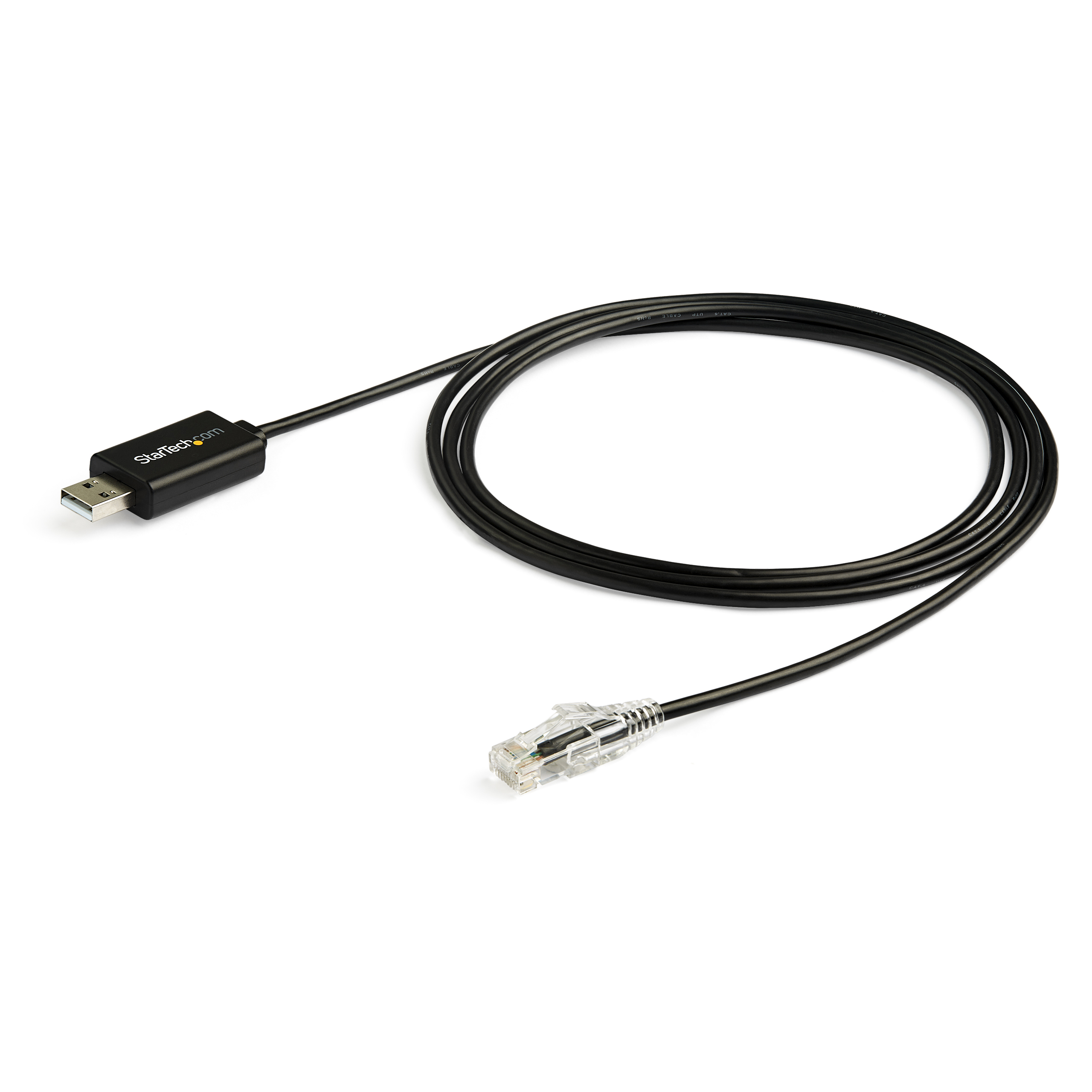

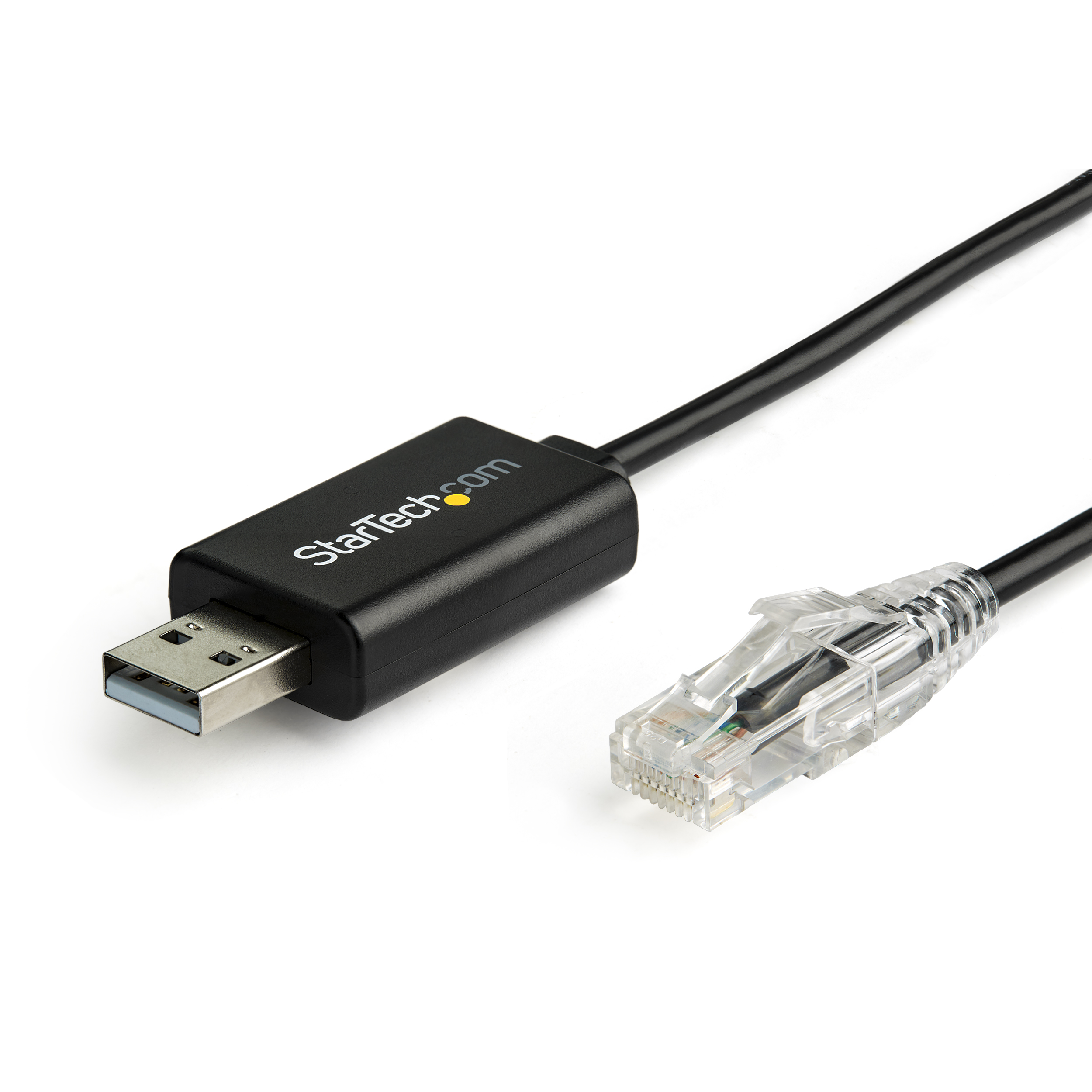

1.8m Cisco Rollover Cable - USB to RJ45 - M/M
Rollover Cable | Windows®, Mac and Linux® Compatible | M/M
Main Image
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name 1.8m Cisco Rollover Cable - USB to RJ45 - M/M Product Number ICUSBROLLOVR UPC 065030880459 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > Network Cards & Adapters Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 USB Serial Host Adapter Interconnects Family USB to RJ45 Rollover Cables Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX072X Product Title (Ultra-Short) Rollover cable Product Title (Short) Cable - Cisco USB Console Cable 460Kbps Product Title (Medium) 6 ft. (1.8 m) Cisco USB Console Cable - USB to RJ45 Product Title (Standard) 6 ft / 1.8 m Cisco USB Console Cable - USB to RJ45 Rollover Cable - Transfer rates up to 460Kbps - M/M - Windows®, Mac and Linux® Compatible Product Title (Long) 6 ft. (1.8 m) Cisco USB Console Cable - USB to RJ45 Product Title (AMZ) 6 ft (1.8 m) Cisco USB Console Cable - USB to RJ45 Rollover Cable - 460Kbps - Windows, Mac and Linux Compatible - M/M (ICUSBROLLOVR) Title Ingram (Part 1) Cisco USB Console Cable - M/M Title Ingram (Part 2) 6 ft / 1.8 m - USB to RJ45 Website Product Headline Rollover Cable | Windows®, Mac and Linux® Compatible | M/M Bullet 1 Directly connect a USB-equipped laptop or desktop to a router console, without the need for an adapter Bullet 2 Supports connections to network devices that feature a console port Bullet 3 Maximum compatibility with Cisco®, Juniper®, Ubiquiti® or TP-Link® routers Bullet 4 Supports a direct USB console connection, with no additional adapters Bullet 5 Constructed of high-quality materials, supports transfer rates of up to 460Kbps Bullets (Compact) Connect 6 ft./1.8m Cisco USB console cable to USB 2.0 equipped laptop to RJ45 port of your console router without an adapter - Rollover cable is compatible with Cisco, Juniper, Ubiquiti or TP-Link routers supporting transfer rates of up to 460Kbps Bullets (Consolidated) Connect 6 ft/1.8m Cisco USB console cable to USB-equipped laptop or desktop to the RJ45 port of your console router without the need for an adapter - Directly connect rollover cable compatible Cisco or Juniper or Ubiquiti or TP-Link routers - Create a reliable connection with the USB 2.0 port to the RJ45 port on your router or server or firewall or switch with the USB rollover cable - 6ft USB to Ethernet cable is constructed of high-quality materials supporting transfer rates of up to 460Kbps Marketing Copy Marketing Copy (No HTML) Applications - Connect a computer terminal to a router console port
- Configure your networking equipment through the USB port on your laptop or desktop computer
- Connect laptops to compatible routers, servers or firewalls
Website Search Keyword - cisco console cable
- cisco usb rj45
- serial to usb console cable
- usb 3.0 rj45
- usb console cable
- console cable
- usb serial console
- USB to RJ45 cable
- usb to rj45 console cable
- usb to rj45 serial
- usb to ethernet cable
- usb to lan cable
- router console cable
- usb rollover cable
- cisco usb to rj45 console cable
- cisco rollover cable
- Cisco USB Console cable
- U209-006-RJ45-X
- U009-006-RJ45-X
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
System and Cable Requirements One available USB 1.1 (or above) port Related Products ROLLOVERMM6 Power Source Bus Powered Cable Length (mm) 1828 Color Black Humidity 20~80% RH Material Plastic Operating Temperature 0°C to 70°C (32°F to 158°F) Primary Material Plastic Product Length (mm) 1828.000 Product Width (mm) 23.400 Product Height (mm) 10.900 Product Weight (g) 40.000 Storage Temperature -20°C to 80°C (-4°F to 176°F) TAA Compliant No Wire Gauge 28 AWG Data Bits 5, 6, 7, 8 FIFO 512 Bytes Max Baud Rate 460.8 Kbps OS Compatibility - Windows 10
- Windows 8
- Windows 7
- Windows Server 2016
- Windows Server 2008 R2
- Linux
- macOS Sierra (10.12)
- macOS High Sierra (10.13)
- macOS Mojave (10.14)
- macOS Catalina (10.15)
- macOS Big Sur (11.0)
- macOS Monterey (12.0)
- Windows 11
- macOS Ventura (13.0)
- Windows Server 2022
- Windows Server 2019
- macOS Sonoma (14.0)
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)

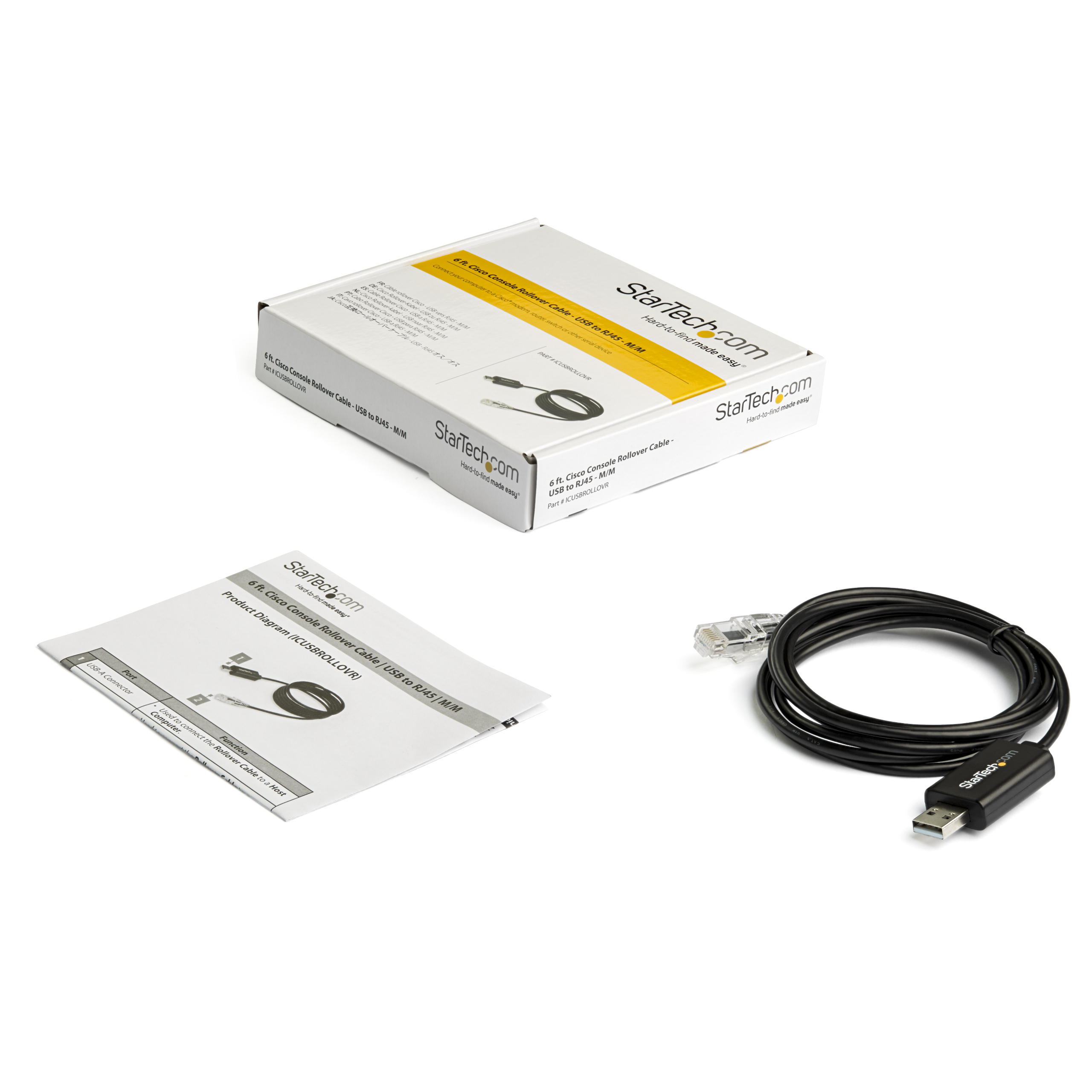

Parity Odd, Even, Mark, Space, or None Stop Bits 1, 1.5, 2 Supported Protocols RS-232 Bus Type USB 2.0 Cable Jacket Material PVC - Polyvinyl Chloride Chipset ID Prolific - PL2303GC Connector Plating Nickel Industry Standards USB 1.1/2.0, RS-232 IO Card Port Style Cable Adapters Carton Depth (mm) 484 Carton Height (mm) 371 Carton Quantity 50 Carton Weight Gross (g) 5438 Included in Package - 1 - USB to RJ45 Rollover Cable
- 1 - Quick-Start Guide
Included In Package for Label - 1 - USB to RJ45 Rollover Cable
- 1 - Quick-Start Guide
Package Depth (mm) 170 Package Height (mm) 33 Package Width (mm) 142 Package Quantity 1 Package Weight (g) 100 Packaging Description Cisco Rollover Cable - USB to RJ45 - M/M Packaging Description India 1.8m Cisco Rollover Cable - USB to RJ45 - M/M Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (480Mbps, 2.5W) Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2019-01-11 Buying Center - AV & Collaboration No Buying Center - Data Center Yes Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2019-03-08 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 2 Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Development Completion Date 2018-11-23 Target Production Release 2019-01-25 Tech Lead Brian Linseman Technical Writer Evan Hanbidge Technology Lifecycle None
