IDE1810U2Z
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images

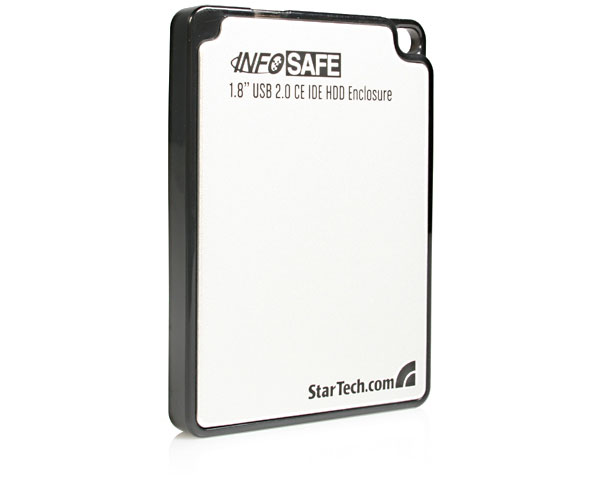

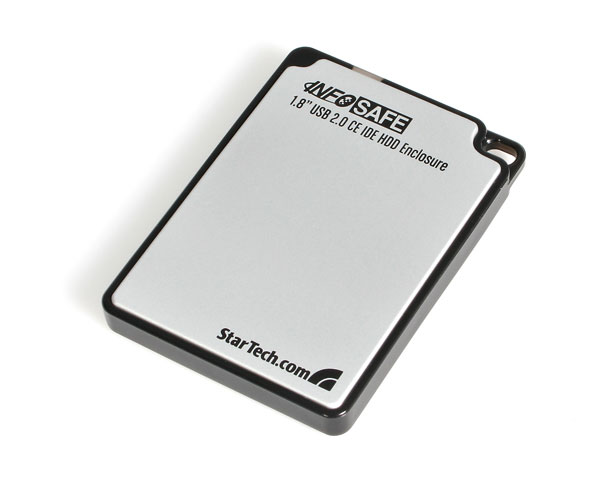

Product Name 1.8" USB 2.0 IDE HDD Enclosure For ZIF Drives Product Number IDE1810U2Z UPC 065030825931 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX005X Product Title (Short) 1.8in External HDD Enclosure - LIF/ZIF Product Title (Standard) StarTech.com USB 2.0 External Hard Drive Enclosure Product Title (Long) 1.8in USB External Hard Drive Enclosure for LIF/ZIF HDD Title Ingram (Part 1) 1.8in USB External Hard Drive En Title Ingram (Part 2) closure for LIF/ZIF HDD Bullet 1 Provides maximum portability and file sharing flexibility between computers – optimized for combination of mobile power and performance to quickly add external storage. Bullet 2 Rugged aluminum enclosure for reliable data protection Bullet 3 Plug and Play; Hot-Swapping Bullet 4 USB powered device; no adapter needed due to low HDD power consumption Bullet 5 Supports USB 2.0 and backwards compatible with USB 1.1 Marketing Copy Applications - Ideal for convenient external offloading or additional storage for notebook computers while traveling or working out of the office
- Use with 1.8” CE-ATA (also known as ZIF or LIF style) hard drives, the newest fastest growing standard in small form factor storage that is used in these handheld and consumer electronic devices:
- Portable Music
- Video Players (MP3, Ipods)
- Smartphones
- Digital Video Cameras
- Digital Cameras
- Other External Storage Devices
- Can be used as a removable boot device; Great for onsite repairs and emergency data recovery.
Website Search Keyword - CE ATA IDE 1.8" hard drive
- ZIF LIF connector interface
- IDE Hard Drive Enclosure
- zero insertion force
- low insertion force
- 1.8in
Special Notes Enclosure is Aluminum for the case, outer enclosure is hard plastic. Accessory Products - USB2HAB6
- USB2HAB10
Related Products - IDE2510U2
- SAT2510U2
- SATCASE25OTG
- IDECASE18U2B

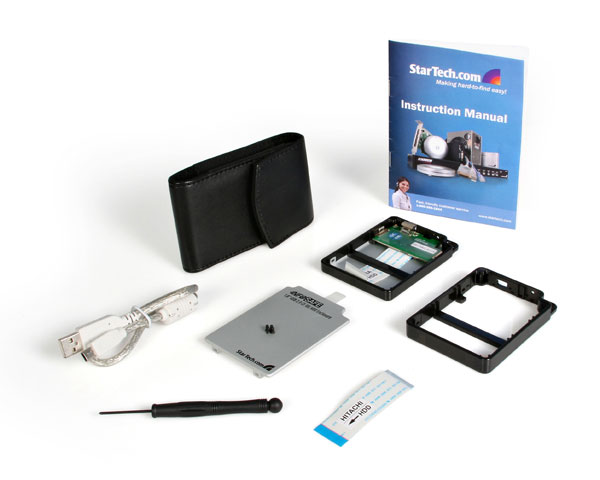

Color Silver Humidity 5% ~ 90% RH Material Aluminum Operating Temperature 0°C to 60°C (32°F to 140°F) Product Length (mm) 86 Product Width (mm) 62 Product Height (mm) 10 Product Weight (g) 20 Storage Temperature -20°C to 85°C (-4°F to 185°F) TAA Compliant No Maximum Data Transfer Rate 480 Mbps RAID No UASP Support No Bus Type USB 2.0 Compatible Drive Types LIF/ZIF Fans Included? Yes/No No Interface/Bridge USB 2.0 Number of Drives 1 Carton Depth (mm) 300 Carton Height (mm) 270 Carton Quantity 20 Carton Weight Gross (g) 5600 Included in Package - 1 - 1.8” Drive Enclosure
- 1 - 1 ft. USB Cable
- 1 - Bracket
- 1 - Leather Pouch
- 1 - Screw Kit
- 1 - Instruction Manual

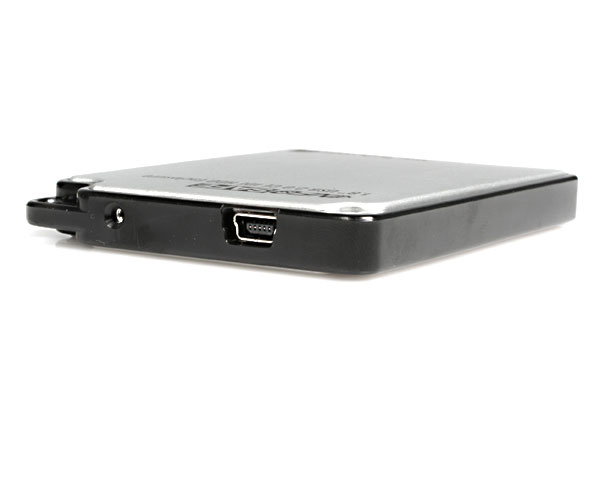

Package Depth (mm) 130 Package Height (mm) 50 Package Width (mm) 175 Package Weight (g) 219.9912 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB Mini-B (480Mbps, 2.5W) Connector 1 (Quantity) 1 Host Connector 1 USB Mini-B (480Mbps, 2.5W) Host Connector 1 (Quantity) 1 en-US Content Approved Yes Product Manager David Muzinic
